Place of Origin:
CHINA
Brand Name:
ZH
Certification:
ISO
Model Number:
32212-A 2212 7512e

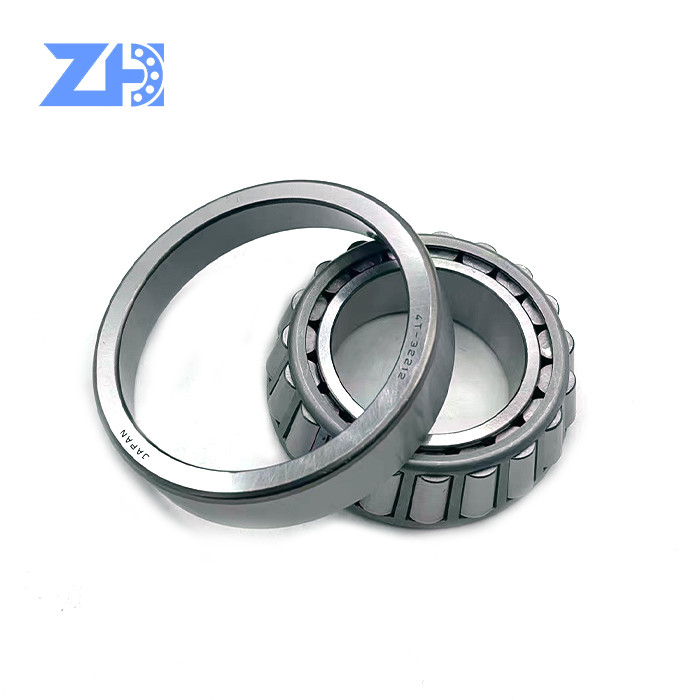

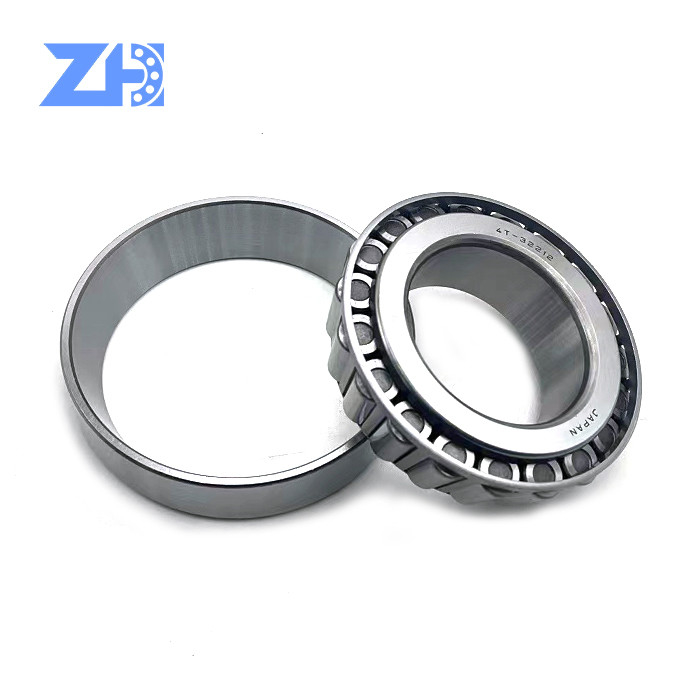

32200 series TAPERED ROLLER BEARING 32212-A Truck Wheel Bearing 32212 7512e Auto Bearing Tapered Roller Bearing
Precision Rating: P0, P6, P5, P4, P2
Material: Bearing steel
Delivery time: 3-15days
Function: :Rolling mill, mine, metallurgy, plastics machinery industry.
The kinds of tapered roller bearing and models
Metric single row tapered roller bearing
Inch single row tapered roller bearing
Double row tapered roller bearing
Four row tapered roller bearings
Paired single row tpered roller bearings
| boundary dimensions(mm) | basic load ratings(kn) | limiting speeds(rpm) | bearing no. | ||||||
| d | d | t | r | r1 | cr | cor | grease lub. | oil lub. | |
| min. | min. | ||||||||
| 45 | 75 | 20 | 1 | 1 | 62.8 | 86.5 | 5000 | 6600 | 32009 |
| 45 | 75 | 24 | 1 | 1 | 69.6 | 101 | 5000 | 6700 | 33009 |
| 45 | 80 | 26 | 1.5 | 1.5 | 87.5 | 120 | 4800 | 6400 | 33109 |
| 45 | 85 | 20.75 | 1.5 | 1.5 | 67.2 | 77.4 | 4600 | 6100 | 30209 |
| 45 | 85 | 24.75 | 1.5 | 1.5 | 84.2 | 104 | 4600 | 6100 | 32209 |
| 45 | 85 | 32 | 1.5 | 1.5 | 112 | 149 | 4600 | 6200 | 33209 |
| 45 | 100 | 27.25 | 2 | 1.5 | 113 | 128 | 4100 | 5400 | 30309 |
| 45 | 100 | 38.25 | 2 | 1.5 | 146 | 180 | 4100 | 5500 | 32309 |
| 50 | 80 | 20 | 1 | 1 | 65.7 | 94.5 | 4600 | 6100 | 32010 |
| 50 | 80 | 24 | 1 | 1 | 73 | 110 | 4600 | 6100 | 33010 |
| 50 | 85 | 26 | 1.5 | 1.5 | 89.4 | 127 | 4400 | 5900 | 33110 |
| 50 | 90 | 21.75 | 1.5 | 1.5 | 76.5 | 91.7 | 4300 | 5700 | 30210 |
| 50 | 90 | 24.75 | 1.5 | 1.5 | 85 | 105 | 4300 | 5700 | 32210 |
| 50 | 90 | 32 | 1.5 | 1.5 | 119 | 167 | 4300 | 5700 | 33210 |
| 50 | 110 | 29.25 | 2.5 | 2 | 137 | 152 | 3700 | 4900 | 30310 |
| 50 | 110 | 42.25 | 2.5 | 2 | 176 | 220 | 3700 | 5000 | 32310 |
| 55 | 90 | 23 | 1.5 | 1.5 | 84.6 | 121 | 4100 | 5500 | 32011 |
| 55 | 90 | 27 | 1.5 | 1.5 | 96.5 | 145 | 4100 | 5400 | 33011 |
| 55 | 95 | 30 | 1.5 | 1.5 | 116 | 161 | 4000 | 5300 | 33111 |
| 55 | 100 | 22.75 | 2 | 1.5 | 94.6 | 113 | 3900 | 5200 | 30211 |
| 55 | 100 | 26.75 | 2 | 1.5 | 107 | 133 | 3900 | 5200 | 32211 |
| 55 | 100 | 35 | 2 | 1.5 | 142 | 189 | 3900 | 5200 | 33211 |
| 55 | 120 | 31.5 | 2.5 | 2 | 149 | 170 | 3300 | 4500 | 30311 |
| 55 | 120 | 45.5 | 2.5 | 2 | 200 | 250 | 3400 | 4500 | 32311 |
| 60 | 95 | 23 | 1.5 | 1.5 | 86.1 | 127 | 3900 | 5200 | 32012 |
| 60 | 95 | 27 | 1.5 | 1.5 | 101 | 162 | 3900 | 5200 | 33012 |
| 60 | 100 | 30 | 1.5 | 1.5 | 118 | 170 | 3700 | 5000 | 33112 |
| 60 | 110 | 23.75 | 2 | 1.5 | 106 | 127 | 3500 | 4700 | 30212 |
| 60 | 110 | 29.75 | 2 | 1.5 | 132 | 167 | 3500 | 4700 | 32212 |
| 60 | 110 | 38 | 2 | 1.5 | 174 | 239 | 3600 | 4700 | 33212 |
| 60 | 130 | 33.5 | 3 | 2.5 | 173 | 201 | 3100 | 4100 | 30312 |
| 60 | 130 | 48.5 | 3 | 2.5 | 244 | 315 | 3100 | 4200 | 32312 |
| 65 | 100 | 23 | 1.5 | 1.5 | 90 | 137 | 3600 | 4800 | 32013 |
| 65 | 100 | 27 | 1.5 | 1.5 | 103 | 169 | 3600 | 4800 | 33013 |
| 65 | 110 | 34 | 1.5 | 1.5 | 152 | 223 | 3400 | 4600 | 33113 |
| 65 | 120 | 24.75 | 2 | 1.5 | 128 | 156 | 3200 | 4300 | 30213 |
| 65 | 120 | 32.75 | 2 | 1.5 | 157 | 203 | 3200 | 4300 | 32213 |
| 65 | 120 | 41 | 2 | 1.5 | 200 | 277 | 3200 | 4300 | 33213 |
| 65 | 140 | 36 | 3 | 2.5 | 204 | 239 | 2800 | 3800 | 30313 |
| 70 | 110 | 25 | 1.5 | 1.5 | 108 | 163 | 3300 | 4400 | 32014 |
| 70 | 110 | 31 | 1.5 | 1.5 | 134 | 208 | 3300 | 4400 | 33014 |
| 70 | 120 | 37 | 2 | 1.5 | 181 | 266 | 3100 | 4200 | 33114 |
| 70 | 125 | 26.25 | 2 | 1.5 | 138 | 173 | 3100 | 4100 | 30214 |
| 70 | 125 | 33.25 | 2 | 1.5 | 169 | 225 | 3100 | 4100 | 32214 |
| 70 | 125 | 41 | 2 | 1.5 | 206 | 294 | 3100 | 4100 | 33214 |
| 70 | 150 | 38 | 3 | 2.5 | 230 | 273 | 2600 | 3500 | 30314 |
| 70 | 150 | 54 | 3 | 2.5 | 317 | 414 | 2700 | 3600 | 32314 |
| 75 | 115 | 25 | 1.5 | 1.5 | 110 | 169 | 3100 | 4200 | 32015 |
| 75 | 115 | 31 | 1.5 | 1.5 | 141 | 225 | 3200 | 4200 | 33015 |
| 75 | 125 | 37 | 2 | 1.5 | 186 | 280 | 3000 | 4000 | 33115 |
| 75 | 130 | 27.25 | 2 | 1.5 | 142 | 181 | 2900 | 3900 | 30215 |
| 75 | 130 | 33.25 | 2 | 1.5 | 174 | 234 | 2900 | 3900 | 32215 |
| 75 | 130 | 41 | 2 | 1.5 | 212 | 310 | 2900 | 3900 | 33215 |
| 75 | 160 | 40 | 3 | 2.5 | 260 | 311 | 2500 | 3300 | 30315 |
| 75 | 160 | 58 | 3 | 2.5 | 363 | 481 | 2500 | 3300 | 32315 |
| 71425/71751D | HM124649/HM124618XD |
| 936/932CD | 74472/74851CD |
| HH224340/HH224310CD | M224748/M224710DC |
| 37431/37626DC | M224748/M224710D |
| 37431/37626D | L624549/L624514D |
| 71432/71751D | L225842/L225812D |
| H924043/H924010D | M224749/M224710D |
| LM522548/LM522510D | 48282/48220DC |
| LM522549/LM522510D L | 48282/48220D |
| 64433/64700D | 795/792CD |
| 942/932CD | 95475/95927CD |
| 71437/71751D | 48286/48220DC |
| H924045/H924010D | 48286/48220D |
| HH924349/HH924310D | 95491/95927CD |
| L623149/L623110D | HM926745/HM926710D |
| 64450/64700DC | HM127440/HM127415XD |
| 64450/64700D | L225849/L225812D |
| 71450/71751DC | 48290/48220DC |
| 71450/71751D | 48290/48220D |
| 938/932CD | 67388/67322DC |
| HH224346/HH224310CD | 67388/67322D |
| HM926740/HM926710D | 67388/67325D |
| 64452A/64700D | 74500/74851CD |
| HH224349/HH224310CD | 97500/97901D |
| 71453/71751D | HM926747/HM926710DC |
| HM124646/HM124616XD | HM926747/HM926710D |
| HM124646/HM124618XD | 95500/95927CD |
Related Products
We could supply the following spare parts:
| OEM | Reference No. |
|
BPW : 02.6405.60.00
DAF : 1602388
FIAT : 26800180
FRUEHAUF : 10500481
IVECO : 1110005
IVECO : 1125573
IVECO : 26800180
MERCEDES-BENZ : 0019812405
MERCEDES-BENZ : 015 981 9705
NISSAN : 1831299-M91
TRUCKS : 09 59 532 212
TRUCKS : 23432873
SAF : 4 200 0029 00
SCANIA : 1305878
EC : 11075
|
32212A
32212DY
19781
10500481
32212
32212JR
HI-CAP32212J
32212
HR32212J
32212
4T-32212
VKHB 2347
VKT 8690
32212V
32212
SET1061
SET1061
0635 100 089
0635373008
0735 371 960
|
Reference No. (For other models, please share the OE with us for price checking)
| Type | Basic Size (mm) | Type | Basic Size (mm) |
| dxDxB | dxDxB | ||
| DAC255200206 | 25x52x20.6mm | DAC35800047 | 35x80x47mm |
| DAC25520037 | 25x52x37mm | DAC35800045 | 35x80x45mm |
| DAC28580042 | 28x58x42mm | DAC36650037 | 36x65x37mm |
| DAC28610042 | 28x61x42mm | DAC36680033 | 36x68x33mm |
| DAC30600037 | 30x60x37mm | DAC37720037 | 37x72x37mm |
| DAC306000337 | 30x60.03x37mm | DAC38700038 | 38x70x38mm |
| DAC30640042 | 30x64x42mm | DAC38740050 | 38x74x50mm |
| DAC30630342 | 30x63.03x42mm | DAC38720034 | 38x72x34mm |
| DAC32730054 | 32x73x54mm | DAC38720034 | 38x72x34mm |
| DAC32640034 | 32x64x34mm | DAC38720040 | 35x72x40mm |
| DAC34620037 | 34x62x37mm | DAC38730040 | 38x73x40mm |
| DAC34640037 | 34x64x37mm | DAC39680037 | 39x68x37mm |
| DAC34660037 | 34x66x37mm | DAC39680637 | 39x68.06x37mm |
| DAC34680037 | 34x68x37mm | DAC39680737 | 39x68.07x37mm |
| DAC34680042 | 34x68x42mm | DAC39720037 | 39x72x37mm |
| DAC35640037 | 35x64x37mm | DAC39720637 | 39x72.06x37mm |
| DAC35650035 | 35x65x35mm | DAC40720037 | 40x72x37mm |
| DAC35660033 | 35x66x33mm | DAC40740036/34 | 40x74x36/34mm |
| DAC35660037 | 35x66x37mm | DAC40750037 | 40x75x37mm |
| DAC35680037 | 35x68x37mm | DAC408000302 | 40x80x30.2mm |
| DAC35680233/30 | 35x68.02x33mm | DAC40820040 | 40x82x40mm |
| DAC35720033 | 35x72x33mm | DAC40700043 | 40x70x43mm |
| DAC35720433 | 35x72.04x33mm | DAC40740040 | 40x74x40mm |
| DAC35720034 | 35x72x34mm | DAC42750037 | 42x75x37mm |
| DAC35720442 | 35x72.04x42mm | DAC42760039 | 42x76x39mm |
| DAC35618031 | 35x61.8x31mm | DAC42800342 | 42x80.03x42mm |
| DAC35720045 | 35x72x45mm | DAC42820036 | 42x82x36mm |
| Wheel Bearing | Dimensions(mm) | Mass | Hub Assembly | Clutch Bearing | Truck Bearng | Taper roller bearing | Wheel bearing kit | Wheel Bearing | |||
| d | D | B | C | ||||||||
| DAC25520037 | 25 | 52 | 37 | 37 | 0.31 | 54KWH01 | VKC2601 | 564734.H195 | HM218248/10 | VKBA 1333 | 510082 |
| DAC25520042 | 25 | 52 | 42 | 42 | 0.36 | 51KWH01 | VKC2091 | 566193.H195 | 32218 | VKBA 3455 | 510086 |
| DAC27530043 | 27 | 53 | 43 | 43 | 0.34 | 52710-25001 | VKC3500 | 566425.H195 | EK50045 | 510058 | |
| DAC27600050 | 27 | 60 | 50 | 50 | 0.56 | 52710-2D111 | VKC3501 | 566426.H195 | EK50046 | VKBA 3661 | 510092 |
| DAC28580044 | 28 | 58 | 44 | 44 | 0.48 | 51750-2D003 | VKC3502 | 566427.H195 | NP672572 | VKBA 1358 | 510093 |
| DAC29530037 | 29 | 53 | 37 | 37 | 0.35 | 42200-SAA-G02 | VKC3505 | 569868.H195 | 39581/39520 | VKBA 3614 | 510095 |
| DAC30550032 | 30 | 55 | 32 | 32 | 0.28 | 28BWK15 | VKC3507 | 571762.H195 | NP318274 | VKBA 3676 | 510100 |
| DAC34660037 | 34 | 66 | 37 | 37 | 0.5 | MB242820 | VKC3514 | 201059 | 30206 | VKBA 3680 | 510037 |
| DAC35650035 | 35 | 65 | 35 | 35 | 0.4 | 2DACF4-100/495 | VKC3515 | 800792 | 30207 | VKBA 3613 | 510038 |
| DAC35650037 | 35 | 65 | 37 | 37 | 0.51 | 27BWK03 ABS | VKC3519 | 803194A | 30209 | VKBA 3639 | 516004 |
| DAC37720033 | 37 | 72 | 33 | 33 | 43200-30R07 | VKC3523 | VKBA3552 | 30210 | VKBA 3648 | 516005 | |
| DAC37720037 | 37 | 72 | 37 | 37 | 0.59 | 3DACF026F1AS | VKC3527 | VKBA5314 | 30212 | VKBA 3596 | 516012 |
| DAC38700037 | 38 | 70 | 37 | 37 | 0.56 | 3DACF026F-2A | VKC3530 | VKBA5397 | 30313 | VKBA 6831 | 510072 |
| DAC38720036/33 | 38 | 72 | 36 | 33 | 0.56 | 53KWH01 | VKC3538 | VKBA5412 | 32007X | VKBA 1460 | 512405 |
| DAC38720036 | 38 | 72 | 36 | 36 | 1DACF6-98/44 | VKC3541 | VKBA5415 | 32212 | VKBA 3617 | 512416 | |
| DAC38720040 | 38 | 72 | 40 | 40 | 0.63 | 2DACF5-95/702 | VKC3548 | VKBA5416 | 32219 | VKBA 3556 | 512469 |
| DAC38740036 | 38 | 74 | 36 | 36 | 0.62 | 801344D | VKC3552 | VKBA5423 | 32309 | VKBA 6556 | 512494 |
| DAC39720037 | 39 | 72 | 37 | 37 | 0.6 | 2DACF5-100/425 | VKC3553 | VKBA5424 | 32310 | VKBA 3907 | 512510 |
| DAC39740036 | 39 | 74 | 36 | 36 | 0.54 | D6512615XE | VKC3555 | VKBA5552 | 33209 | VKBA 6520 | 512554 |
| DAC39740036/34 | 39 | 74 | 36 | 34 | 0.52 | 3DACF10-85/52 | VKC3556 | BTF0056EB | 33213 | VKBA 3656 | 512568 |
| DAC40720036/33 | 40 | 72 | 36 | 33 | 0.67 | 42410-87101 | VKC3558 | 80503A.H195 | 33213 | VKBA 3981 | 513335 |
| DAC40720036 | 40 | 72 | 36 | 36 | 42200-SM4-018 | VKC3559 | F-805567 | 33118 | VKBA 3532 | 513338 | |
| DAC40740036 | 40 | 74 | 36 | 36 | 0.62 | 3DACF026F-1AC | 3151027031 | 805092C | 32310 | VKBA 3658 | 513365 |
| DAC408402538 | 40 | 84.02 | 53.8 | 53.8 | 0.97 | 43560-26010 | F - 358286 | 805011C | 33215 | VKBA 3554 | 513366 |
| DAC42720038 | 42 | 72 | 38 | 38 | 0.54 | 89411-B2050 | 360809B | 805479 | 33116 | VKBA 3786 | 513389 |
| DU42750060 | 42 | 75 | 60 | 60 | 2DACF6-1143/59 | F - 358547 | 805008 | 3977X/3921XA | VKBA 3605 | 27BWD01J | |
| DAC42760033 | 42 | 76 | 33 | 33 | 0.65 | 3DACF10-84/78-I | CR 1315 | 805531 | LM78349A/10C | VKBA 3576 | 28BWD03A |
| DAC42760038/35 | 42 | 76 | 38 | 35 | 0.65 | BR930872 | 500000820 | 805012 | 32206B | VKBA 3643 | 28BWD01A |
| DAC42760040 | 42 | 76 | 40 | 40 | 0.68 | 42410-12130 | 3151133031 | BTH0018A | L44649/10 | VKBA3608 | 30BWD01A |
| DAC43790045 | 43 | 79 | 45 | 45 | 0.84 | 2DACF4-100/565 | 3151044031 | BTH0022 | L45449/L45410 | VKBA1437 | 32BWD05 |
| DAC38730040 | 38 | 73 | 40 | 40 | 0 | ||||||
| DAC45820045 | 45 | 82 | 45 | 45 | LA01-33-04XB | 3151899001 | BTH0053 | 34274/34492A | VKBA 007 | 34BWD11 | |
| DAC49900045 | 49 | 90 | 45 | 45 | 1.08 | 42410-87701 | 3151807001 | BTH0055 | 594A/592A | VKBA3404 | 34BWD07B |
| DAC50890051 | 50 | 89 | 51 | 51 | 55BWKH01V | 500023560 | 81 93420 0346 | 32218 | VKBA1441 | 34BWD09A | |
| DAC52960050 | 52 | 96 | 50 | 50 | 43202-72B00 | PRB-42 | VKBA528 | JH307749/10 | VKBA 959 | 35BWD19E | |
| DAC54960051 | 54 | 96 | 51 | 51 | 89544-06070(R) | 3151875001 | SET420 | 42686/42624 | VKBA 733 | 35BWD07 | |
| DU55900054 | 55 | 90 | 54 | 54 | 2DACF5-100/56 | 500053960 | VKBA 673 | 575S/572 | VKBA 505 | 35BWD07A | |
| DAC55900060 | 55 | 90 | 60 | 60 | 2DACF6-100/45 | F-218286.2 | VKBA523 | 482A/472 | VKBA 5038 | 35BWD16 | |
A wide range of applications:
• agriculture and forestry equipment
• automotive and industrial gearboxes
• automotive and truck electric components, such as alternators
• electric motors
• fluid machinery
• material handling
• power tools and household appliances
• textile machinery
• two Wheeler
FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
Why choose us?
1. Let’s talk—we have NO barrier in language
2. Request for more item information---there are nearly 2000 products for your option!
3. Write us for quotation---reply you within 24 hours,one quotation could be ready in 2mins for a ready products!
Send your inquiry directly to us
