Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
22326CA
Professional production 22326CA 22326CC 22326ECK 22326FA 22326JA 130*280*93mm CHROME STEEL Spherical Roller Bearing P0 P5 P3 P2 Quality Level
Product introduction (Price cheap and high quality)
22326CATapered roller bearings have a conical inner ring and an outer ring raceway, and the tapered roller is arranged between the two. The projected lines of all conical surfaces meet at the same point on the bearing axis. This design makes tapered roller bearings particularly suitable for bearing combined (radial and axial) loads. The axial load capacity of the bearing is mostly determined by the contact Angle α. The larger the alpha Angle, the higher the axial load capacity. The Angle size is expressed by calculating coefficient e. The greater the e value, the greater the contact Angle, and the greater the applicability of the bearing to bear the axial load.
| Inside Ø (mm): | 130 |
| Outside Ø (mm): | 280 |
| Width (mm): | 93 |
| max. Operating Temperature: | +120°C |
| min. Operating Temperature: | -40°C |
| Bore: | cylindrical |
| Internal Clearance: | CN (Standard) |
| Ring Material: | Rolling Bearing Steel |
| Rolling Element Material: | Rolling Bearing Steel |
| Cage Material: | Brass |
| Type of lubrication: | oiled |
| Magnetic: | yes |
| Tolerance for inside-Ø (mm): | 0/-0,025 |
| Tolerance for outside-Ø (mm): | 0/-0,035 |
| Tolerance for width (mm): | 0/-0,25 |
| Norm: | DIN 635-2 |
| Permissible angular misalignment: | 3° |
| Item weight: | 28,50 kg |
| Bore diameter | 130 mm |
| Outside diameter | 280 mm |
| Width | 93 mm |
| da |
min.147 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.263 mm
|
Diameter of housing abutment |
| ra |
max.3 mm
|
Radius of fillet |
| d |
130 mm
|
Bore diameter |
|---|---|---|
| D |
280 mm
|
Outside diameter |
| B |
93 mm
|
Width |
| d2 |
≈164 mm
|
Shoulder diameter of inner ring |
| D1 |
≈233 mm
|
Shoulder/recess diameter of outer ring |
| b |
16.7 mm
|
Width of lubrication groove |
| K |
9 mm
|
Diameter of lubrication hole |
| r1,2 |
min.4 mm
|
Chamfer dimension |
| Basic dynamic load rating | C |
1 176 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 320 kN
|
| Fatigue load limit | Pu |
114 kN
|
| Reference speed |
1 800 r/min
|
|
| Limiting speed |
2 400 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
22326CA Collection
| NUP307 | T7FC055=300 | SG02 | HMK3525 | NUP207 | NUP308 | NUP2209 | NUP307 | NUP309180 |
| NUP205E | NUP309 | SG15 | 30309D | HMGF57 | NUP309 | NUP2212 | 30311D | |
| M5X130 | 30312D | 30314D=250 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | |
| NUP306 | 30314D | KMF41-PC60-7 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | |
| NUP208E | NUP309 | KMF90-PC200-6 | 30311D | JMV-44/22 | 30312D156 | 30312D155 | NUP2207140 | |
| NUP2212 | JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP2206130 | |
| NUP206 | JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | NUP309180 | |
| NUP308=140 | JMF151 | GM38VB | M2X146 | T7FC060 | 30312 | NUP309 | ||
| NUP309 | JMF195 | JMV-53/31 | HMT36FA | M2X150 | NUP207 | 30312D | NUP310 | |
| NUP206 | JMF250 | MAG85 | HMGC32 | M2X170 | 6213 | 30312D | NUP2310 | |
| 6305M | M2X55 | MAG120 | HMGF35 | M2X210 | NUP308 | NUP308 | NUP310 | |
| NUP207 | M2X63 | MAG150 | HMGF36 | SG20 | NUP2207 | DNB50/60 | NUP307 | |
| 30309D | KMF125-PC200-8 | NUP206E | HMGC48 | HMS072 | 6305 | NUP308 | NUP2208 | |
| NUP207 | KMF160-PC360-7 | 15578 | NUP309 | AP5S67 | NUP2211=250 | 30309D=110 | MAG150 | |
| NUP307 | MSG-27P | NUP306 | T7FC055 | 11749/11710 | T7FC055 | AP5S53 | TM09 |

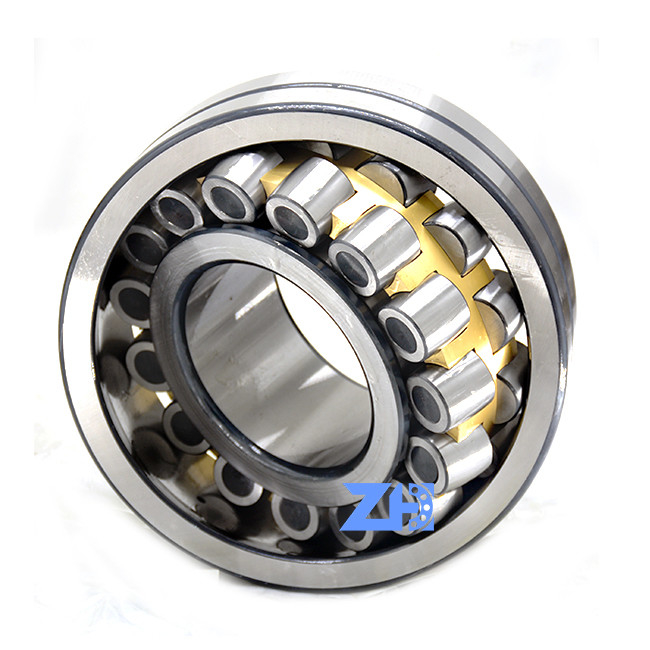

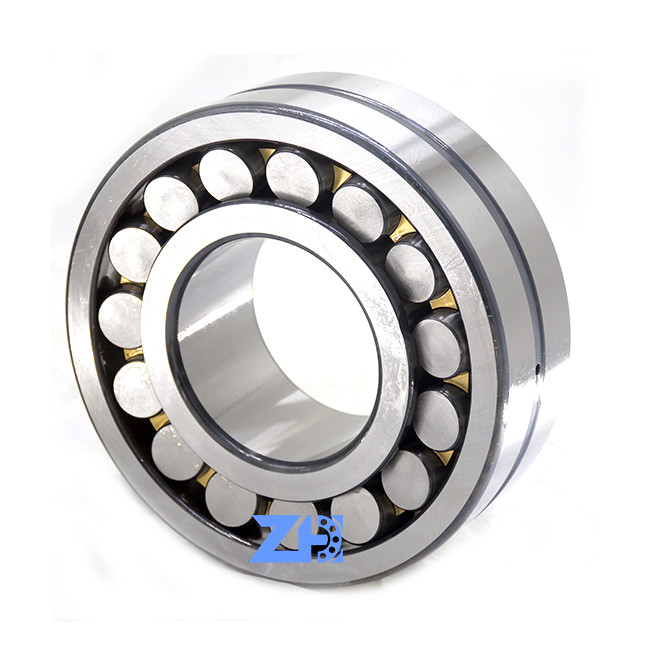

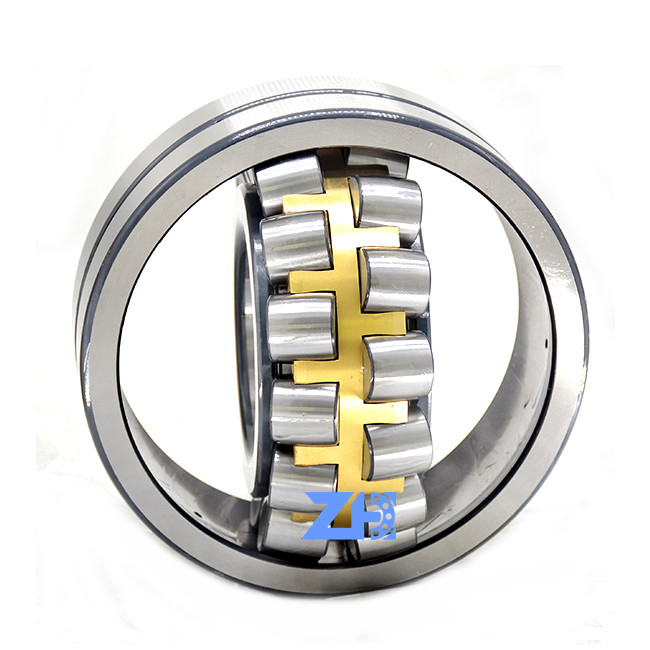

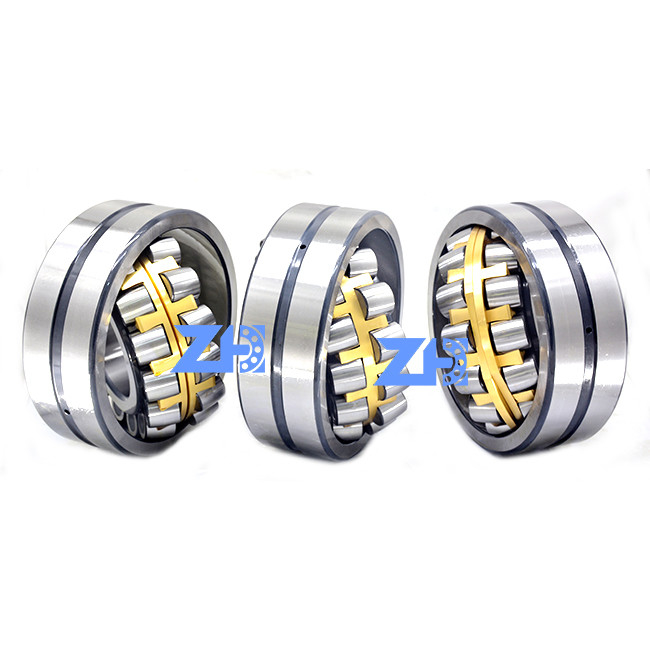

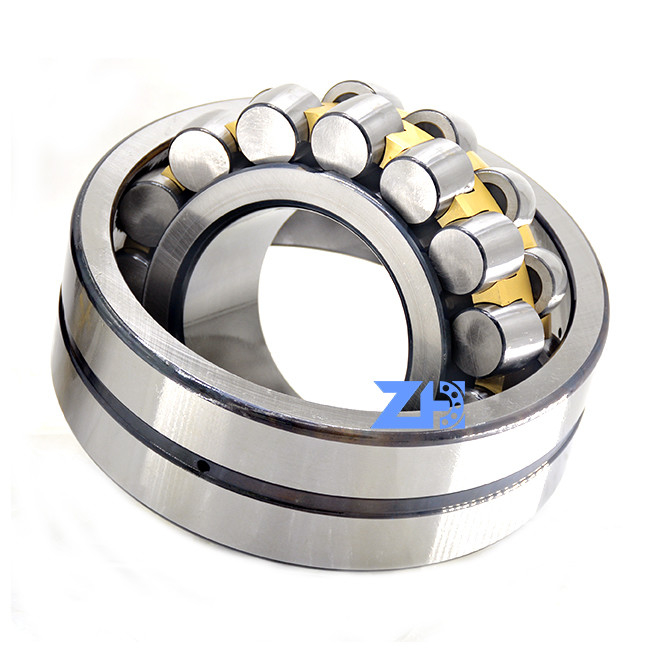

Picture show
