Place of Origin:
CHINA
Brand Name:
QIEAL ZH
Model Number:
308 MR 3L - CE066

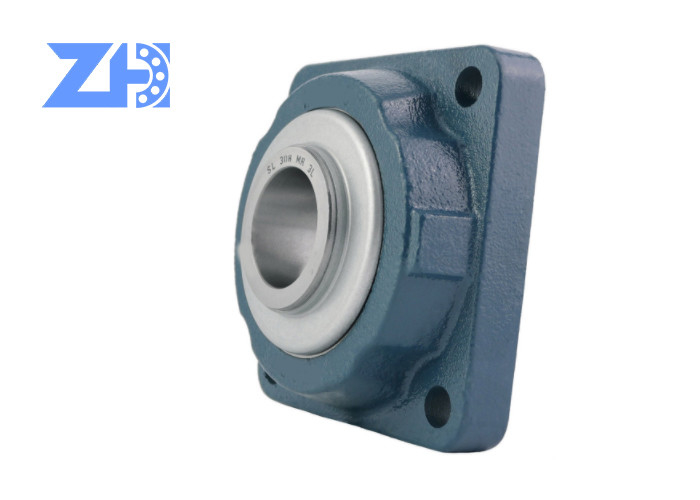

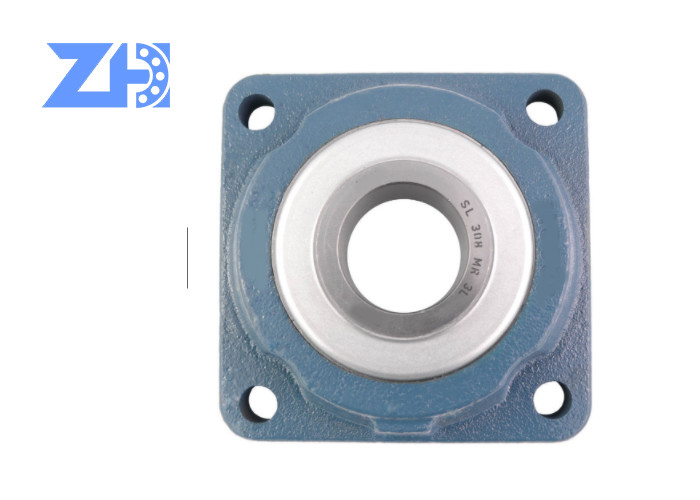

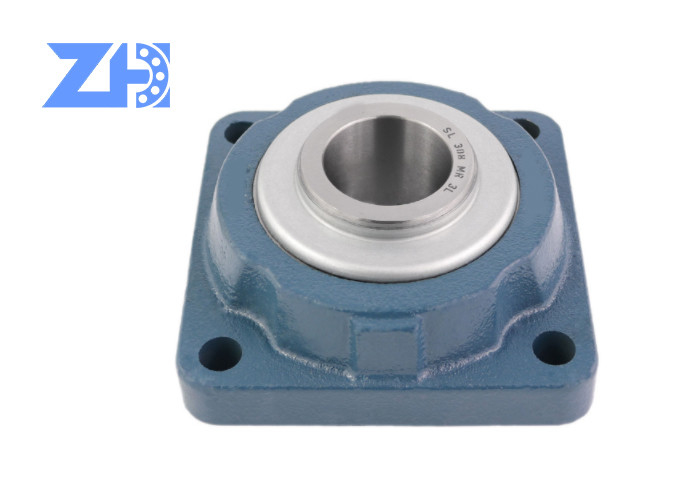

SLMS 308 MR 3L - CE066 Bearing Units CE066 Pillow Ball Bearing Bearing Unit
Pillow Block 308 MR 3L - CE066 consist of the insert ball bearing and house, the inster bearing is the deep groove ball bearings with wide inner rings, it insert in housingwork as an unit bearings. The housing are mainly casting or pressed steel. The bearing unit are compact in design with perfect sealing devices, they can alignwith easy during operation and can be conveniently mounted or dismounted. When mounted in appropriate housings to form housed bearing units, they are able tocompensate for initial errors of alignment.
Features:
1.Series: UKF series,UKP series,UCF series, UCP series, UCFL series, UC series, etc.
2.Tolerance: ABEC-1, ABEC-3, ABEC-5
3.Bore size: 12 to 100 mm; Outside diameter:47 to 215 mm
Appliexcavatorion:
Pillow block bearing 308 MR 3L - CE066 is widely used in various of machinery, especially in food machine. Also 308 MR 3L - CE066 can be used into pharmaceutical machinery, conveyering systems, photo & film processing machinery, spin machine,dying & printing machinery,etc.

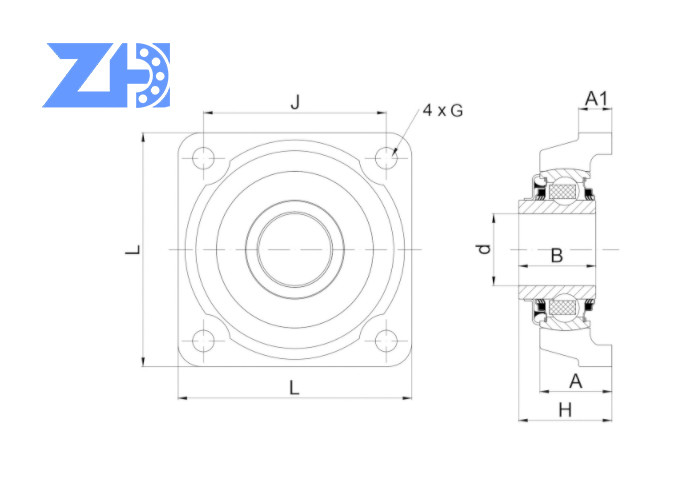

Technical parameters:
| Model | Basic size(mm) | Weight (kg) | ||
| L | d | B1 | ||
| UKF205+H2305X | 95 | 20 | 35 | 0.77 |
| UKF206+H2306X | 108 | 25 | 38 | 1.1 |
| UKF207+H2307X | 117 | 30 | 43 | 1.43 |
| UKF208+H2308X | 130 | 35 | 46 | 1.84 |
| UKF209+H2309X | 137 | 40 | 50 | 2.17 |
| UKF210+H2310X | 143 | 45 | 55 | 2.51 |
| UKF211+H2311X | 162 | 50 | 59 | 3.6 |
| UKF212+H2312X | 175 | 55 | 62 | 4.04 |
| UKF213+H2313X | 187 | 60 | 65 | 5.09 |
| UKF215+H2315X | 200 | 65 | 73 | 6.63 |
| UKF216+H2316X | 208 | 70 | 78 | 7.93 |
| UKF217+H2317X | 220 | 75 | 82 | 9.35 |
| UKF218+H2318X | 235 | 80 | 86 | 11.08 |
| UKF305+H2305X | 110 | 20 | 35 | 1.2 |
| UKF306+H2306X | 125 | 25 | 38 | 1.7 |
| UKF307+H2307X | 135 | 30 | 43 | 2.1 |
| UKF308+H2308X | 150 | 35 | 46 | 2.9 |
| UKF309+H2309X | 160 | 40 | 50 | 3.6 |
| UKF310+H2310X | 175 | 45 | 55 | 4.8 |
| UKF311+H2311X | 185 | 50 | 59 | 5.04 |
| UKF312+H2312X | 195 | 55 | 62 | 6.48 |
| UKF313+H2313X | 208 | 60 | 65 | 7.46 |
| UKF315+H2315X | 236 | 65 | 73 | 11.54 |
| UKF316+H2316X | 250 | 70 | 78 | 12.84 |
| UKF317+H2317X | 260 | 75 | 82 | 15.1 |
| UKF318+H2318X | 280 | 80 | 86 | 19 |
| UKF319+H2319X | 290 | 85 | 90 | 18.47 |
| UKF320+H2320X | 310 | 90 | 97 | 23.68 |
| UKF322+H2322X | 340 | 100 | 105 | 33.83 |
| UKF324+H2324X | 370 | 110 | 112 | 44.83 |
| UKF326+H2326X | 410 | 115 | 121 | 59.04 |
| UKF328+H2328X | 450 | 125 | 131 | 87.3 |
| UKFX05+H2305X | 108 | 20 | 35 | 1.1 |
| UKFX06+H2306X | 117 | 25 | 38 | 1.4 |
| UKFX07+H2307X | 130 | 30 | 43 | 1.8 |
| UKFX08+H2308X | 137 | 35 | 46 | 1.8 |
| UKFX09+H2309X | 143 | 40 | 50 | 2.4 |
| UKFX10+H2310X | 162 | 45 | 55 | 3.6 |
| UKFX11+H2311X | 175 | 50 | 59 | 4.3 |
| UKFX12+H2312X | 187 | 55 | 62 | 5.3 |
| UKFX13+H2313X | 187 | 60 | 65 | 5.53 |
| UKFX15+H2315X | 197 | 65 | 73 | 7.67 |
| UKFX16+H2316X | 214 | 70 | 78 | 10.2 |
| UKFX17+H2317X | 214 | 75 | 82 | 10.57 |
| UKFX18+H2318X | 214 | 80 | 86 | 10.2 |
| UKFX120+H2320X | 268 | 90 | 97 | 15.9 |
Packaging Detail: 1. Industrial packaging: plastic bag + carton + wooden pallets; 2. Commercial packing: plastic bag + color/white box + carton + wooden pallets; 3. According to the clients' requirement
Delivery Detail: Normally ready goods and stock within 5-7 days
