Place of Origin:
CHINA
Brand Name:
QIEAL ZH
Model Number:
368S

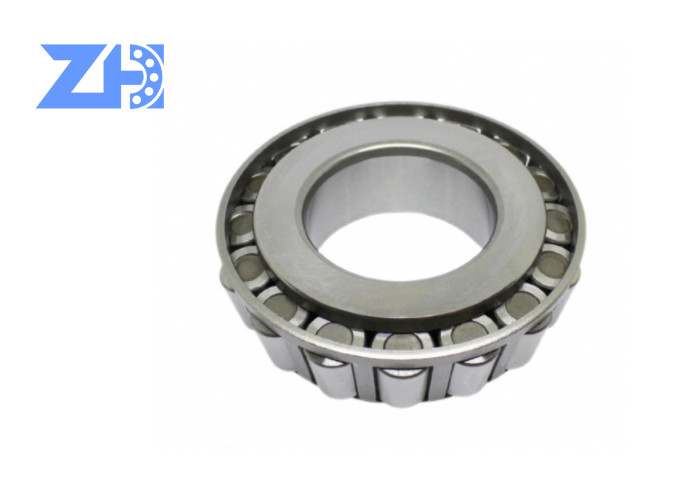

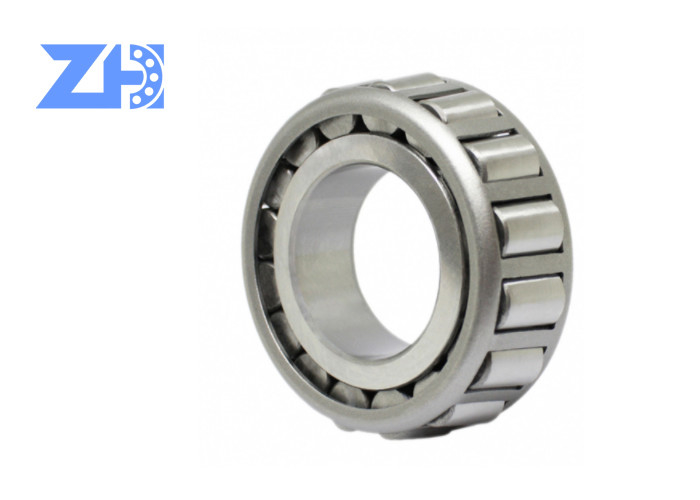

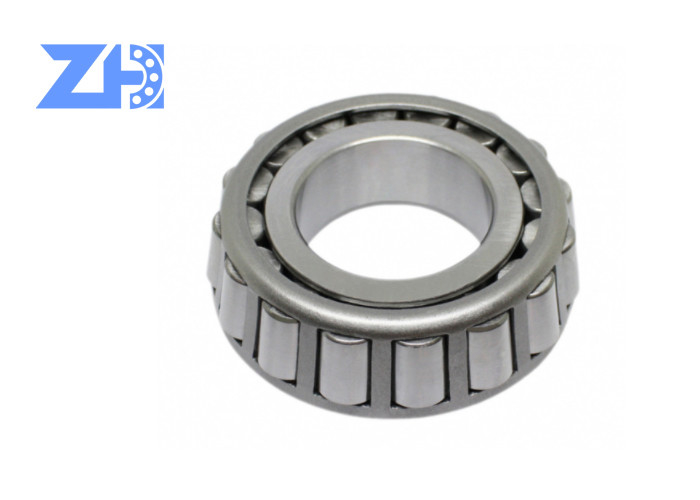

Tapered Roller Bearing 368S High Quality Taper Roller Bearing 368S
| Bearing NO. | Taper Roller Bearing 368S |
| d | 51.592 mm |
| D | 88.9 mm |
| T | 20.638 mm |
| B | 22.225 mm |
| C | 16.513 mm |
| r3,4 | 2 mm |
| r1,2 | 1.3 mm |
| Mass | 0.4787 kg |
tapered roller bearing 368 S
Bearings with tapered inner and outer ring raceways as well as tapered rollers. Designed to take on heavy combined loads. Available in many designs, series, and sizes. With a wide range of designs to choose from, SDZY tapered roller bearings are also customizable to match your specific speed, load, contamination, temperature or vibration conditions. SDZY Tapered roller bearings feature a cup and cone assembly. The cup is comprised of the outer ring and the cone assembly consists of inner ring, rollers, and cage. This bearing construction accommodates combined loads and provides low friction during operation. By adjusting one single row tapered roller bearing against a second tapered roller bearing and applying a preload, a rigid bearing appliexcavatorion can be achieved.
| 30202 2CC | 32007 X | 32921 | 32928 |
| 30302 2FB | 30207 | 32021 X | T4CB 140 |
| 30203 2DB | 32207 | 33021 | 32028 X |
| 30303 2FB | 33207 | 30221 | 30228 |
| 32303 2FD | 33207 | 32221 | 32228 |
| 32004 X 3CC | 30307 | 30321 | 30328 |
| 30204 2DB | 32307 B | 30321 | 31328 X |
| 30304 2FB | 32307 | 31321 X | 32328 |
| 32304 2FD | JL 69349/310 | 32321 | T4DB 150 |
| 320/22 X 3CC | JL 69345/310 | 32922 | 32930 |
| 32005 X 4CC | JL 69349 A/310 | JM 822049/010 | 32030 X |
| 30205 3CC | JL 69349 X/310 | 32022 X | 33030 |
| 32205 B 5CD | 32008 X | 33022 | 30230 |
| 32205 2CD | 33108 | 33122 | 32230 |
| 33205 2CE | 30208 | 30222 | 30330 |
| 31305 7FB | 32208 | 32222 | 31330 X |
| 30305 2FB | 33208 | 30322 | T4DB 160 |
| 32305 2FD | T2EE 040 | 31322 X | 32932 |
| 320/28 X 4CC | 31308 | 32322 | 32032 X |
| 302/28 3DC | 30308 | 32924 | T4EE 160 |
| 322/28 B 5CD | 32308 B | T4CB 120 | 30232 |
| 32006 X 4CC | 32308 | 32024 X | 32232 |
| 30206 3DB | 32009 X | 33024 | 30332 |
| 32206 3DC | 33109 | 30224 | T4DB 170 |
| 33206 2DE | 30209 | 32224 | 32934 |
| 31306 7FB | 32209 | 30324 | 32034 X |
| 30306 2FB | 33209 | 31324 X | 30234 |
| 32306 2FD | T7FC 045 | 32324 | 32234 |
| JL 26749/710 L 26700 | T2ED 045 | 32926 | 30334 |
| 320/32 X 4CC | 31309 | 32026 X | T4DB 180 |
| 32309 | 30309 | 33026 | 32936 |
| 32309 B | 32326 | 30226 | 32036 X |
| 31326 X | 30326 | 32226 | 30236 |
| 32236 | |||
| A 4059/A 4138 | A 4000 | 25877/25821 | 25800 |
| 11590/11520 | 11500 | 23690/23620 | 23600 |
| LM 11749/710 | LM 11700 | HM 89446/410 | HM 89400 |
| LM 11949/910 | LM 11900 | 395/394 A | 395 |
| M 12649/610 | M 12600 | 39585/39520 | 39500 |
| LM 12749/710 | LM 12700 | 3982/3920 | 39800 |
| LM 12749/711 | LM 12700 | 6379/K-6320 | 6300 |
| 1380/1328 | 1300 | 395 S/394 A | 395 |
| L 44643/610 | L 44600 | 395 A/394 A | 395 |
| 15578/15520 | 15500 | 3984/3920 | 3900 |
| M 84548/510 | M 84500 | 39590/39520 | 39500 |
| 15101/15245 | 15000 | 39590/39528 | 39500 |
| 15103 S/15243 | 15000 | HM 212049/011 | HM 212000 |
| 15103 S/15245 | 15000 | 6386/K-6320 | 6300 |
| L 44649/610 | L 44600 | 29675/29620 | 29600 |
| 1982/1924 A | 1900 | 482/472 | 475 |
| 1985/1922 | 1900 | 47487/47420 | 47400 |
| 1988/1922 | 1900 | 47487/47420 A | 47400 |
| M 86647/610 | M 86600 | 566/563 | 565 |
| L 45449/410 | L 45400 | 655/652 | 655 |
| M 86649/610 | M 86600 | 33281/33462 | 33000 |
| M 88043/010 | M 88000 | H 715345/311 | H 715300 |
| LM 67048/010 | LM 67000 | 29685/29620 | 29600 |
| 15123/15243 | 15000 | 33287/33462 | 33000 |
| 15123/15245 | 15000 | 567/563 | 565 |
| HM 88542/510 | HM 88500 | HM 215249/210 | HM 215200 |
| M 88048/010 | M 88000 | L 814749/710 | L 814700 |
| 14131/14276 | 14000 | 42687/42620 | 42600 |
| LM 48548/510 | LM 48500 | 47678/47620 | 47600 |
| LM 48548 A/510 | LM 48500 | 575/572 | 575 |
| 14137 A/14276 | 14000 | 9285/9220 | 9200 |
| HM 88649 X/610 | HM 88600 | 34306/34478 | 34000 |
| HM 88649/610 | HM 88600 | 42690/42620 | 42600 |
| 580/572 | 575 | 663/653 | 655 |
| 749 A/742 | 745 | 497/492 A | 495 |
| 665/653 | 655 | 593/592 A | 593 |
| HM 518445/410 | HM 518400 | 6580/6535 | 6500 |
| HM 218248/210 | HM 218200 | 6581 X/6535 | 6500 |
| 47890/47820 | 47800 | 598/592 A | 595 |
| 47896/47820 | 47800 | 594 A/592 A | 595 |
| 594/592 A | 595 | 683/672 | 675 |
| 90381/90744 | 90300 | HH 224334/310 | HH 224300 |
| HM 220149 A/110 | HM 220100 | HM 220149/110 | HM 220100 |
| 687/672 | 675 | HH 221449/410 | HH 221400 |
| HH 224335/310 | HH 224300 | 37425/37625 | 37000 |
| 56425/56650 | 56000 | 64432/64708 | 64000 |
| 64450/64700 | 64000 | 68450/68712 | 68000 |
| HH 224346/310 | HH 224300 | 938/932 | 935 |
| HH 224349/310 | HH 224300 | HM 624749/710 | HM 624700 |
| 48290/48220 | 48200 | 67388/67322 | 67300 |
| 798/792 | 795 | L 327249/210 | L 327200 |
| 67391/67322 | 67300 | 95525/95925 | 95000 |
| 898/892 | 895 | HM 231132/110 | HM 231100 |
| HM 231148/110 | HM 231100 | LM 330448/410 | LM 330400 |
| M 231649/610 | M 231600 | L 432348/310 | L 432300 |
| L 432349/310 | L 432300 | HH 437549/510 | HH 437500 |
| 36990/36920 | 36900 | 94700/94113 | 94000 |
| M 336948/912 | M 336900 | M 336949/912 | M 336900 |
| 87737/87111 | 87000 | M 239447/410 | M 239400 |
| 87750/87111 | 87000 | LL 639249/210 | LL 639200 |
| LM 739749/710 | LM 739700 | 67981/67919 | 67900 |
| 67982/67919 | 67900 | LM 241147/110 | LM 241100 |
| 67983/67920 | 67900 | LM 241148/110 | LM 241100 |
| 67985/67920 | 67900 | H 242649/610 | H 242600 |
| LM 742747/710 | LM 742700 | M 244249 A/210 | M 244200 |
| LM 245846/810 | LM 245800 | 544091/544118 | 544000 |
| LM 245848/810 | LM 245800 | LM 545848/810 | LM 545800 |
| M 349547/510 | M 349500 | M 349549/510 | M 349500 |
| M 249747/710 | M 249700 | 38880/38820 | 38800 |
| LM 451345/310 | LM 451300 | L 555249/210 | L 555200 |
| L 357049/010 | L 357000 | LM 757049/010 | LM 757000 |
| HM 259048/010/HA4 HM 259000 | LM 361649/610 LM 361600 | LM 361649 A/610 LM 361600 | HM 262749/710 HM 262700 |
| HM 261049/010 HM 261000 | L 865547/512 L 865500 | LM 567949/910/HA1 LM 567900 | LM 869448/410 LM 869400 |
| L 570649/610 L 570600 | 30307 R | 32008 XR | 30208 R |
| 32309 BR | 32311 BR | 33113 R | 30313 R |
| 31305/DF | 30206/DF | 32206/DF | 31306/DF |
| 30306/DF | 32007 X/DF | 32207/DF | 33207/DF |
| 31307/DF | 30307/DF | 33108/DF | 30208/DF |
| 31308/DF | 32009 X/DF | 32209/DF | 31309/DF |
| 30309/DF | 32010 X/DF | 33010/DF | 30210/DF |
| 32210/DF | 33210/DF | 31310/DF | 32011 X/DF |
| 33011/DF | 30211/DF | 32211/DF | 31311/DF |
| 30311/DF | 32012 X/DF | 30212/DF | 32212/DF |
| 33212/DF | 31312/DF | 30312/DF | 32312/DF |
| 32013 X/DF | 33013/DF | 30213/DF | 32213/DF |
| 31313/DF | 32014 X/DF | 33014/DF | 33114/DF |
| 32214/DF | 31314/DF | 33015/DF | 33015/DFC240 |
| 33115/DF | 30215/DF | 32215/DF | 33215/DF |
| 31315/DF | 32315/DF | 32016 X/DF | 33116/DF |
| 32216/DF | 33216/DF | 31316/DF | 32316/DF |
| 32017 X/DF | 33017/DF | 30217/DF | 32217/DF |
| 33217/DF | 31317/DF | 32018 X/DF | 33018/DF |
| 30218/DF | 32218/DF | 31318/DF | 32318/DF |
| 32019 X/DF | 33019/DF | 32219/DF | 31319/DF |
| 32920/DF | 32020 X/DF | 30220/DF | 32220/DF |
| 30320/DF | 31320 X/DF | 32320/DF | 32021 X/DF |
| 30221/DF | 32221/DF | 32022 X/DF | 32022 X/DFC200 |
| 33122/DF | 30222/DF | 32222/DF | 31322 X/DF |
| 32322/DF | 32024 X/DF | 33024/DF | 30224/DF |
| 32224/DF | 30324/DF | 31324 X/DF | 32324/DF |
| 32926/DF | 32226/DF | 30226/DF | 30326/DF |
| 31326 X/DF | 32928/DF | 32028 X/DF | 32228/DF |
| 30228/DF | 31328 X/DF | 32030 X/DF | 30230/DF |
| 32230/DF | 30330/DF | 31330 X/DF | 32032 X/DF |
| 30232/DF | 32232/DF | 32034 X/DF | 30234/DF |
| 32234/DF | 32936/DF | 32036 X/DF | 30236/DF |
| 32236/DF | 32938/DF | 32038 X/DF | 32038 X/L4BDF |
| 30238/DF | 32040 X/DF | 30240/DF | 32240/DF |
| 32944/DF | 32044 X/DF | 30244/DF | 32244/DF |
| 32948/DF | 32048 X/DF | 32248/DF | 32052 X/DF |
| 32252/DF | 32056 X/DF | 32256/DF | 32060 X/DF |
| 32260/DF | 32964/DF | 32064 X/DF | 32968/DF |
| 32972/DF | 33207T64/DB | 32008T41.5 X/DB | 30308T72/DB |
| 31309T62.5/DB | 32010T50 X/DB | 32210T67.5/DB | 33011T59/DB |
| 33111T88/DB | 32012T65 X/DB | 30212T53/DB | 32013T53 X/DB |
| 33013T60/DB | 30313T82/DB | 32014T63 X/DB | 33014T108.8/DB |
| 30214T59/DB | 30314T84/DB | 30215T70/DB | 32215T78/DB |
| 32216T78/DB | 32017T66 X/DB | 32217T87/DB | 33217T145/DB |
| 32317T132/DB | 31317T133.19/DB | 33118T104/DB | 32219T105/DB |
| 33020T88/DB | 30220T100/DB | 32220T107/DB | 33220T135/DB |
| 31320T125 X/DB | 30221T88/DB | 32022T84 X/DB | 32222T122/DB |
| 31322T140 X/DB | 30224T133/DB | 32926T76/DB | 32026T102 X/DB |
| 32226T142/DB | 30326T142/DB | 31326T164 X/DB | 32028T130 X/DB |
| 30228T102/DB | 30228T106/DB | 32228T158/DB | 31328T170 X/DB |
| 32030T112 X/DB | 33030T132/DB | 32230T164/DB | 30230T168/DB |
| 31330T179 X/DB | 30232T114/DB | 32232T179/DB | 32234T194/DB |
| 32936T103/DB | 32036T138 X/DB | 32236T192/DB | 32938T102/DB |
| 30238T136/DB | 32240T228/DB | 32044T164 X/DB | 32244T248/DB |
| 32948T114/DB | 32048T164 X/DB | 32052T189 X/DB | 32956T170/DB |
| 32064T220 X/DB | T7FC 045T62/DTC10 | T7FC 050T69/DTC10 | T7FC 055T73/DTC10 |
| T7FC 060T80/DTC15 | T7FC 065T80/DTC15 | T7FC 080T98/DTC20 | BT2B 332767 A |
| BT2B 328957 | 331945 | BT2B 328615 | BT2B 331782 |
| 617479 B | BT2B 328130 | BT2B 328383/HA1 | BT2B 332504/HA2 |
| BT2B 332516 A/HA1 | BT2B 332845/HA2 | 331775 B | BT2B 332830 |
| BT2B 332802 A | 331981 | BT2B 332505/HA2 | BT2B 332506/HA2 |
| BT2B 332831 | BT2B 332603/HA1 | BT2B 332754 | 331606 A |
| BT2B 328020 | 331197 A | BT2B 328389 | 331656 |
| BT2B 332604/HA1 | BT2B 332237 A/HA1 | BT2B 332913/HB1 | 331527 C |
| BT2B 328410 C/HA1 | BT2-8000/HA3 | BT2B 331836 | BT2B 332468 A/HA1 |
| BT2-8009/HA3 | 331158 A | BT2B 331837 | BT2B 328580/HA1 |
| BT2-8010/HA3VA901 | BT2B 328705/HA1 | BT2B 328896/HA3 | BT2B 328934/HA3 |
| BT2B 331840 C/HA1 | BT2B 328874/HA1 | BT2B 328466/HA1 | 331714 B |
| 331445 | BT2B 328283/HA1 | BT2B 334013/HA1 |
tapered roller bearing 368S
