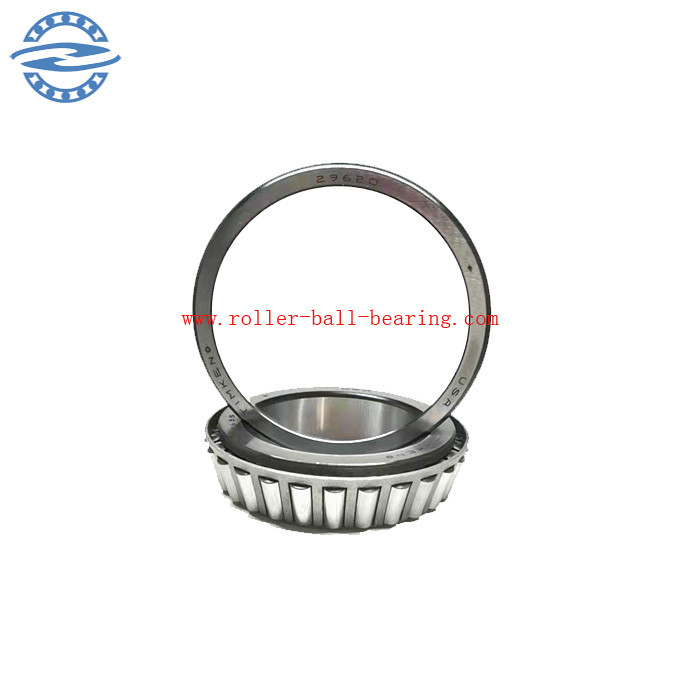

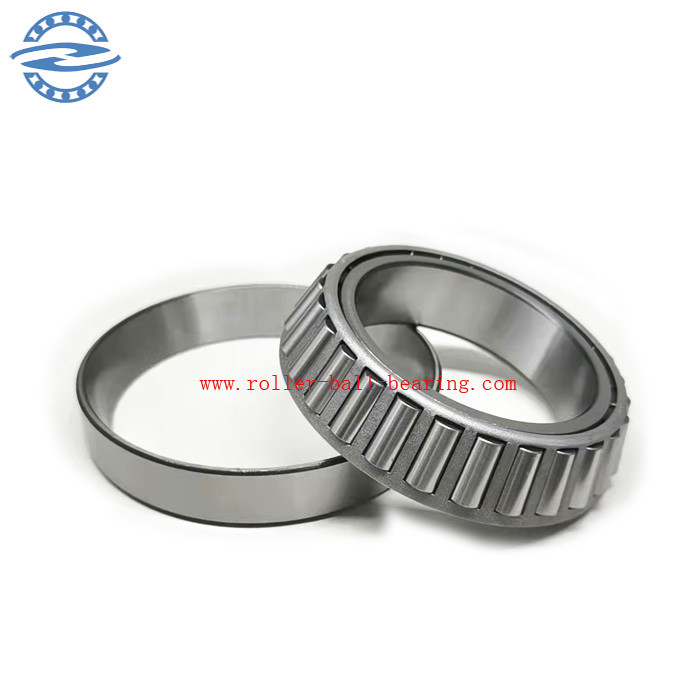

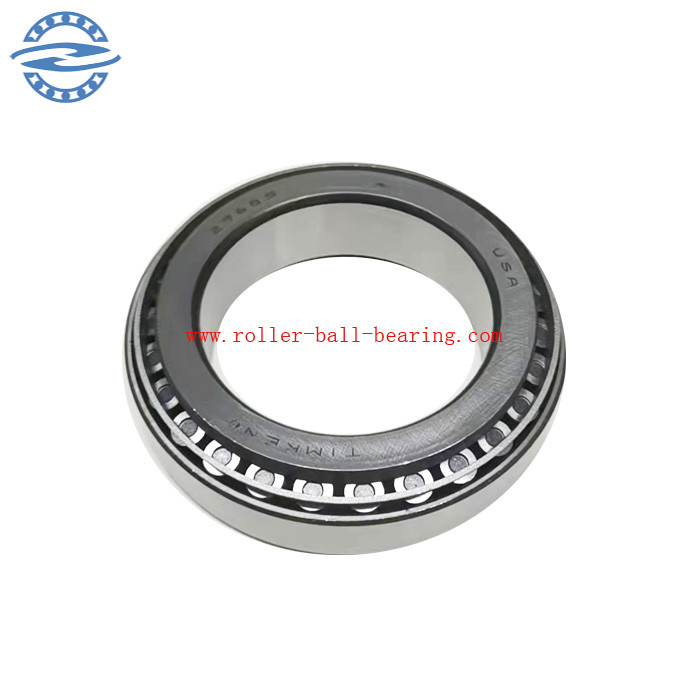

Tapered Roller Bearing 29675 29620 4t-29675-29620 29675-29620 29685/29620 29685/20 69.85*112.71*25.4 mm

Tapered Roller Bearing 29675 29620 4t-29675-29620 29675-29620 29685/29620 29685/20 69.85112.7125.4 mm

Name: Tapered Roller Bearing 29675 29620 4t-29675-29620 29675-29620 29685/29620 29685/20 69.85*112.71*25.4 mm
Brand: ZhongHong bearing Co., LTD.
SKU: 29620
Price: negotiable USD
Availability: InStock

29675-29620-ZH Tapered Roller Bearing

69.85mm Tapered Roller Bearing

Place of Origin:

China

Brand Name:

Model Number:

29620

Request A Quote

Product Details

PRODUCT:

29620

WEIGHT:

0,974 KG

INNER DIAMETER:

69,85 MM

OUTER DIAMETER:

112,71 MM

WIDTH:

25,4 MM

Highlight:

29675-29620-ZH Tapered Roller Bearing

69.85mm Tapered Roller Bearing

Payment & Shipping Terms

Minimum Order Quantity

1PC

Price

Negotiation

Packaging Details

Wooden case,By carton or on request.

Delivery Time

2-7 work days

Payment Terms

L/C,,D/P,T/T, Alibaba online payment,Paypal,etc.

Supply Ability

500 per day

Professional Service Taper Roller Bearing 4T-32014X P6 Precision

Get Best Price

GCR15 Taper Roller Bearing 4T-33113 Long Service Life Low Maintenance

Get Best Price

P4 Precision Tapered Roller Bearing 4T-33114 High-Strength Steel

Get Best Price

Stable And Durable Taper Roller Bearing 4T-33117 GCR15 Steel

Get Best Price

Contact Now

Product Description

Tapered Roller Bearing 29675 29620 4t-29675-29620 29675-29620 29685/29620 29685/20 69.85*112.71*25.4 mm

Product Details

Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !

All products undergo quality inspection before entering the market;
All product packaging and MOQ will try our best to meet the actual requirements and needs of customers;
All kinds of express delivery as you choose, whatever by sea, Fed Express, DHL, TNT, EMS or others.

Product name	29620
Brand	ZH
Model No.	29620
Cage Type	P - Plastic Molded Cage
Precision	P4 Precision (Higher than P5)
Technical details (B)	B=High Capacity & Higher Speed (Replaces “A” Type).
Shipment	Lead time: 2-3 days for stock; 7-20 days for customized. Packing: Plastic bag/middle box+Carton+Wooden Case+Wooden Pallet Delivery: by sea/air/express(Fedex, UPS, TNT, DHL ect)
Services	1. Factory price & High quality control 2. Mass stock & Fast Delivery 3. Small Order accepted & OEM service 4. Quick Response & After sales service

Product Details

Tapered Roller Bearing 29675 29620 4t-29675-29620 29675-29620 29685/29620 29685/20 69.85*112.71*25.4 mm 0

Tapered Roller Bearing 29675 29620 4t-29675-29620 29675-29620 29685/29620 29685/20 69.85*112.71*25.4 mm 1

Specifiexcavatorions

Series	29600
Cone Part Number	29685
Cup Part Number	29620-B
Design Units	Imperial
Bearing Weight	1.5 lb0.70 Kg
Cage Type	Stamped Steel

Dimensions

d - Bore	2.8750 in73.025 mm
D - Cup Outer Diameter	4.4375 in112.713 mm
D1 - Flange Outer Diameter	4.5900 in116.586 mm
B - Cone Width	1.0000 in25.400 mm
C - Cup Width	0.7500 in19.050 mm
C1 - Cup Flange Width	0.1563 in3.970 mm
T1 - Bearing Width	1.0000 in25.400 mm
T - Bearing Width to Flange	0.4063 in10.320 mm

Abutment and Fillet Dimensions

R - Cone Backface "To Clear" Radius¹	0.14 in3.600 mm
r - Cup Backface "To Clear" Radius²	0.130 in3.30 mm
da - Cone Frontface Backing Diameter	3.15 in80 mm
db - Cone Backface Backing Diameter	3.39 in86.10 mm
Da - Cup Frontface Backing Diameter	4.35 in110.49 mm
Ab - Cage-Cone Frontface Clearance	0.08 in2 mm
Aa - Cage-Cone Backface Clearance	0.08 in2 mm
a - Effective Center Loexcavatorion³	0.04 in1 mm

Basic Load Ratings

C90 - Dynamic Radial Rating (90 million revolutions)⁴	6440 lbf28600 N
C1 - Dynamic Radial Rating (1 million revolutions)⁵	24800 lbf111000 N
C0 - Static Radial Rating	37200 lbf166000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	5370 lbf23900 N

Factors

K - Factor⁷	1.2
e - ISO Factor⁸	0.49
Y - ISO Factor⁹	1.23
G1 - Heat Generation Factor (Roller-Raceway)¹⁰	77.7
G2 - Heat Generation Factor (Rib-Roller End)	43.3
Cg - Geometry Factor¹¹	0.117

d	73.025mm
D	112.712mm
T	25.4mm
C₁	102000N	Basic dynamic load rating
C₀	166000N	Basic static load rating
m	0.88kg
Grease RPM	3200 r/min
Oil ROM	4300 r/min

Tapered Roller Bearing 29675 29620 4t-29675-29620 29675-29620 29685/29620 29685/20 69.85*112.71*25.4 mm 2

Tapered Roller Bearing 29675 29620 4t-29675-29620 29675-29620 29685/29620 29685/20 69.85*112.71*25.4 mm 12

you need to pay in advance

You can use west union

L/C at sight

30% T/T in advance . 70% against copy of B/L
