Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
22316CC

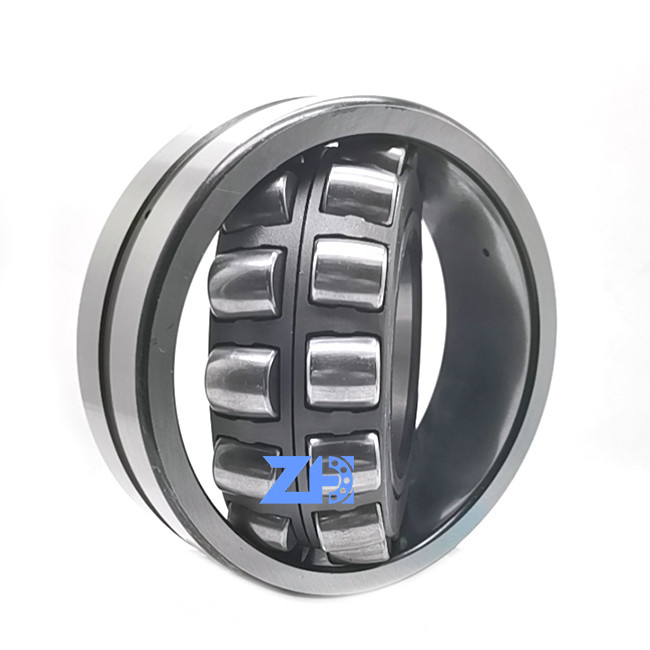

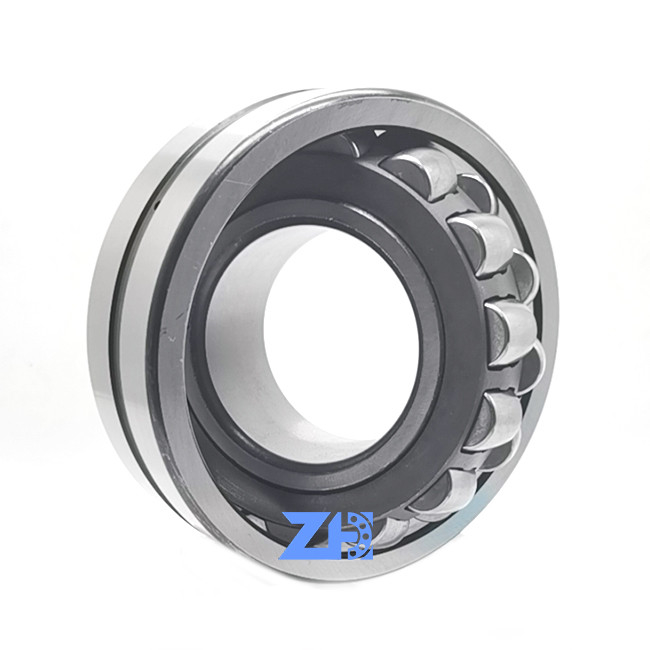

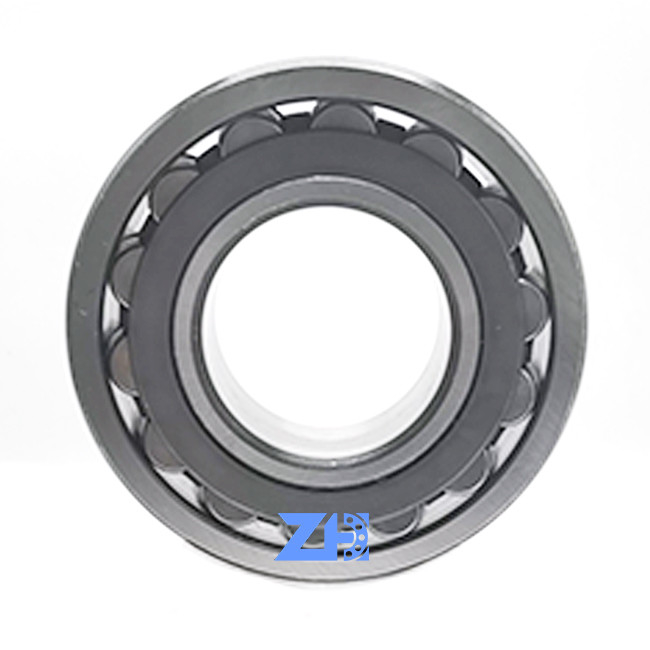

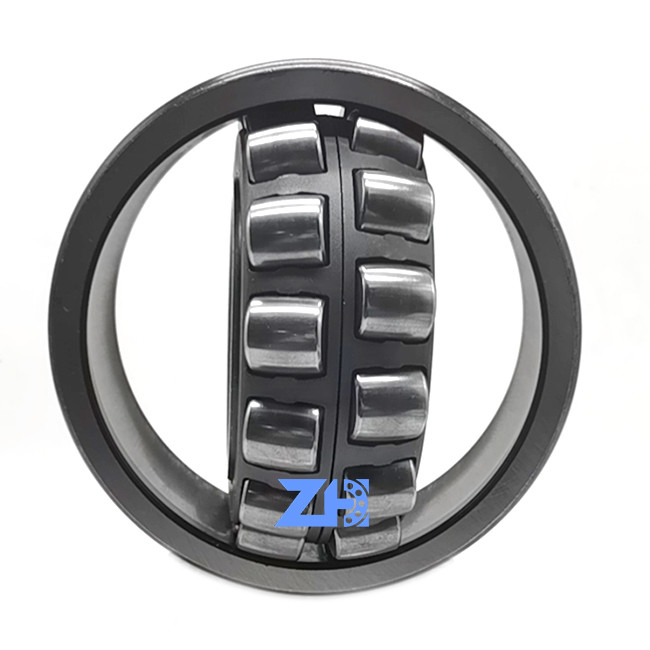

Professional production 22316CC 22316CC 22316CC Spherical Roller Bearing 80*170*58mm
Product introduction(When you are hungry, you eat food, and when you buy bearings, you go to ZH factory)
22316CC The inner hole of the self-aligning roller bearing has two kinds: cylindrical and conical, and the taper of the conical cone hole is 1:30 and 1:12. This kind of conical inner hole bearing is equipped with a tight sleeve or a disconnecting sleeve, so that the self-aligning ball bearing with the conical inner hole can be conveniently and quickly assembled on the optical shaft or the stepped machine shaft.
| d |
80 mm
|
Bore diameter |
|---|---|---|
| D |
170 mm
|
Outside diameter |
| B |
58 mm
|
Width |
| d2 |
≈98.3 mm
|
Shoulder diameter of inner ring |
| D1 |
≈143 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2.1 mm
|
Chamfer dimension |
| da |
min.92 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.158 mm
|
Diameter of housing abutment |
| ra |
max.2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
516 kN
|
|---|---|---|
| Basic static load rating | C0 |
540 kN
|
| Fatigue load limit | Pu |
54 kN
|
| Reference speed |
3 000 r/min
|
|
| Limiting speed |
4 000 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
