Place of Origin:
CHINA
Brand Name:
NTN
Model Number:
22216K

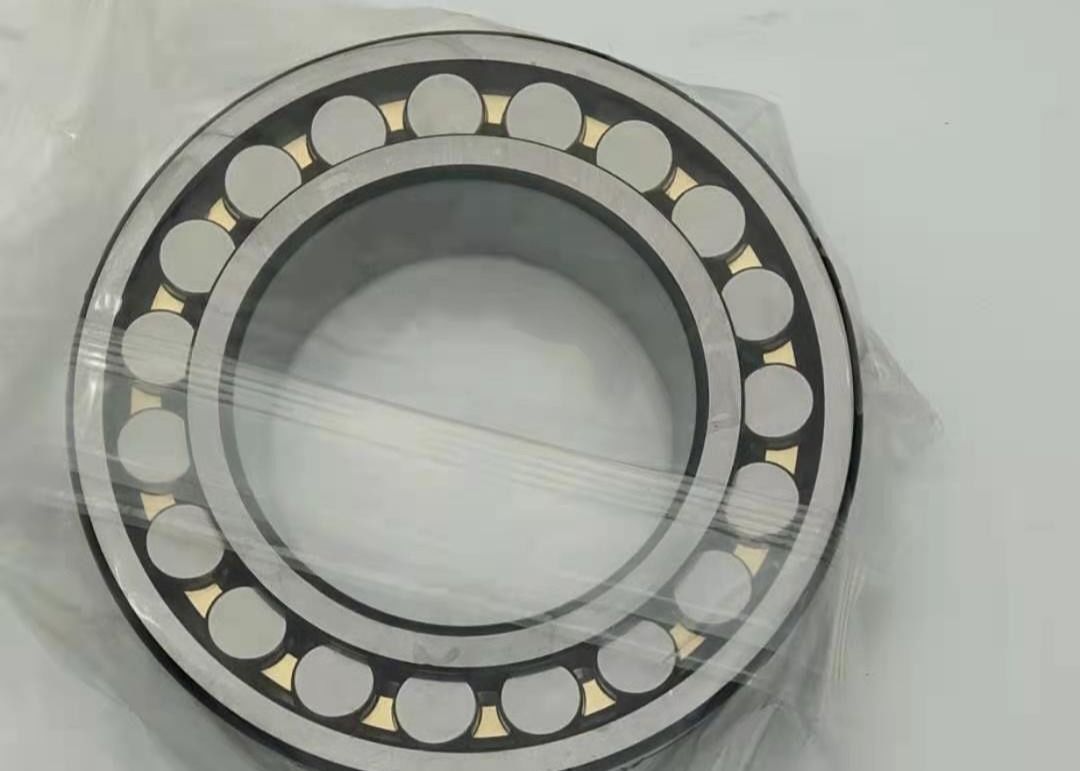

High Precision Good Price Bearing Bushing Adapter Sleeve H316 22216k
| Item | Dimension(mm) | Bearing No. | Weight(kg) | ||||
| d | d1 | B1 | d2 | Spherical Ball Bearing | Spherical Roller Bearing | ||
| H302 | 15 | 12 | 22 | 25 | 1302K 2202K | ||
| H303 | 17 | 14 | 24 | 28 | 1303K 2203K | ||
| H304 | 20 | 17 | 28 | 32 | 1304K 2204K | 21304K | 0.04 |
| H305 | 25 | 20 | 29 | 38 | 1305K 2205K | 21305K | 0.071 |
| H306 | 30 | 25 | 31 | 45 | 1306K 2206K | 21306K | 0.095 |
| H307 | 35 | 30 | 35 | 52 | 1307K 2207K | 21307K | 0.14 |
| H308 | 40 | 35 | 36 | 58 | 1308K 2208K | 21308K 22208K | 0.17 |
| H309 | 45 | 40 | 39 | 65 | 1309K 2209K | 21309K 22209K | 0.23 |
| H310 | 50 | 45 | 42 | 70 | 1310K 2210K | 21310K 22210K | 0.27 |
| H311 | 55 | 50 | 45 | 75 | 1311K 2211K | 21311K 22211K | 0.32 |
| H312 | 60 | 55 | 47 | 80 | 1312K 2212K | 21312K 22212K | 0.36 |
| H313 | 65 | 60 | 50 | 85 | 1313K 2213K | 21313K 22213K | 0.42 |
| H314 | 70 | 60 | 52 | 92 | 1314K 2214K | 21314K 22214K | 0.67 |
| H315 | 75 | 65 | 55 | 98 | 1315K 2215K | 21315K 22215K | 0.78 |
| H316 | 80 | 70 | 59 | 105 | 1316K 2216K | 21316K 22216K | 0.95 |
| H317 | 85 | 75 | 63 | 110 | 1317K 2217K | 21317K 22217K | 1.1 |
| H318 | 90 | 80 | 65 | 120 | 1318K 2218K | 21318K 22218K | 1.3 |
| H319 | 95 | 85 | 68 | 125 | 1319K 2219K | 21319K 22219K | 1.4 |
| H320 | 100 | 90 | 71 | 130 | 1320K 2220K | 21320K 22220K | 1.6 |
| H322 | 110 | 100 | 77 | 145 | 1322K 2222K | 21322K 22222K | 2.05 |
2.Appliexcavatorion:
agricultural machinery to conveying equipment,
robotics,
dental equipment,
elevators,
rolling mills,
ship rudder shafts,
and aggregate crushers,
among others.
3.Features:
Support radial and oscillating axial loads
C3 radial clearance allows thermal expansion for continuous operating temperatures up to 200 degrees C/392 degrees
Tapered bore with 1:12 taper for compensating for a flexing shaft or fitting to a tapered shaft
Roller-guided brass cage evenly spaces rollers for reduced friction, vibration, and noise
Open design, circumferential groove and three lubriexcavatorion holes in the outer ring allow for lubriexcavatorion in place
4.Quality&Services
Products process: Advanced producing equipment, inspection equipment and good control system to keep the product produce smoothly.
Quality guaranty: Product quality assurance period is over year 2000 miles.
Superficial finish: Carefully work in the assembly line to confirm the products in perfect appearance.Products can also be manufactured according to drawings and samples with customers requirement. We sincerely welcome our friends to visit and negotiate business.
Meanwhile, we are looking forward to finding long-term partners..
3 . CONPANY PROFILE
ZhongHong Bearing Manufacturing Co. Ltd is a bearing production, sales - based company,
the company in the industrial field has many years of bearing supporting and industrial service experience.
Types involved: deep groove ball bearings, joint bearings, conical bearings, cylindrical bearings and so on Our products are widely used in machine tools,
coal mine, railway, petroleum printing, power plant, ship, aviation, automobile and other industries
Our plant was equipped with fully modern enclosed dust-free workshop and warehouse, with improved detection technology.
This enables us produce many high quality bearings and meet customers delivery time.
All products could meet many advanced international standards with high quality steel and fully testing treatment.
WORKSHOP
WAREHOUSE
4. PACKAG and SHIPPING
1.Single box packing, then in carton then in Pallet.
2.Standard export packing.
3. According customer demand.
4. Negotiable
5 . FAQ
1. What is your Before-sales Service ?
1>.Offer bearing related consultation about technology and appliexcavatorion;
2>.Help customers about bearing choice, clearance configuration, products' life and reliability analysis;
3>.Offer highly cost-effective and complete solution program according to site conditions;
4>.Offer localized program on introduced equipment to save running cost
5>.Design and develop non-standard bearing to support customers' technology innovation
2. What is your After-sales Service ?
1>.Offer training about bearing installation and maintenance;
2>.Offer guidance about bearing installation, adjustment and testing at site;
3>.Help customers with trouble diagnosis and failure analysis;
4>.Visit customers regularly and feedback their rational suggestions and requirements to company.
Welcome to contact us to get more details of our products!
