Place of Origin:
China
Brand Name:
Z&H
Model Number:

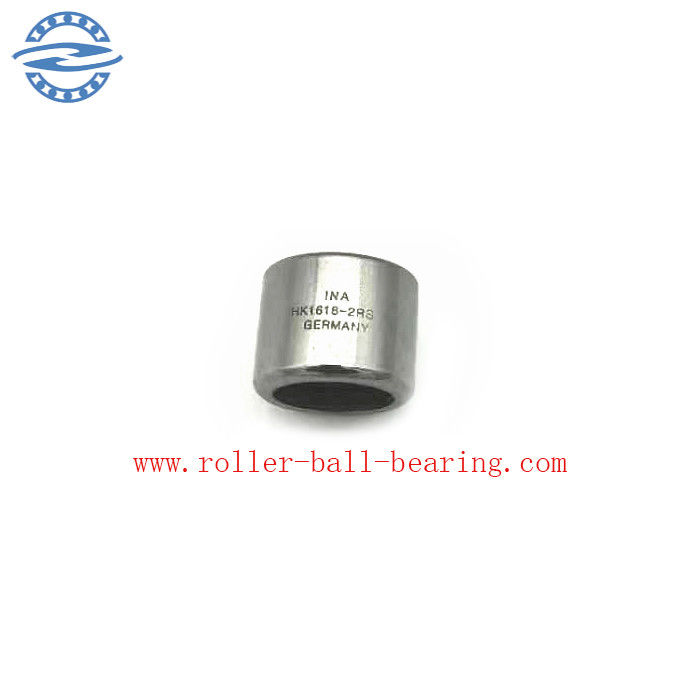

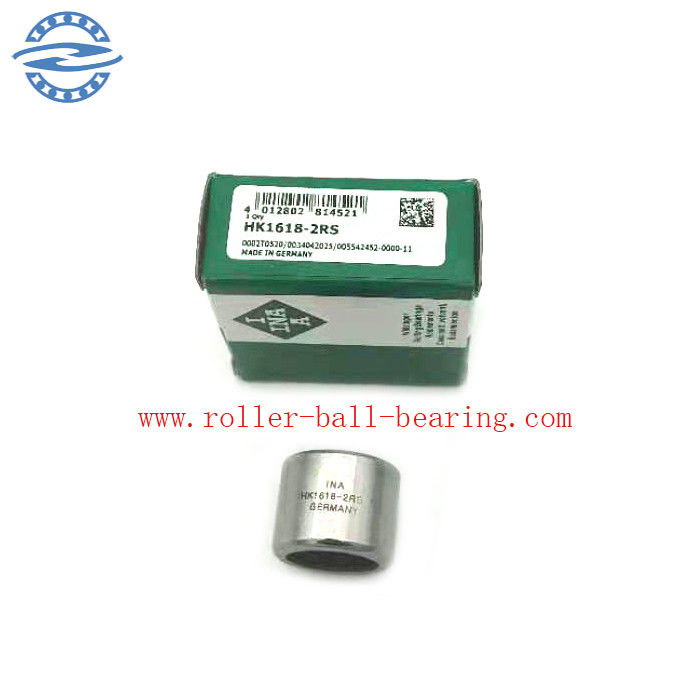

HK1618
| Model | HK1618 |
| Inside Ø (mm): | 16 |
| Outside Ø (mm): | 22 |
| Width (mm): | 18 |
| Tolerance for inside-Ø (mm): | 0/-0,008 |
| Tolerance for outside-Ø (mm): | 0/-0,009 |
| Tolerance for width (mm): | 0/-0,12 |
| Seal: | open |
| Ring Material: | Chrome Steel |
| Inner Ring: | no |
| Rolling Element Material: | Chrome Steel |
| Cage Material: | Sheet Steel |
| Rows of Rolling Elements: | single row |
| Magnetic: | yes |
| Product weight: | 14 g |
| Shaft Diameter | Bearing Designation | Mass Approx | Boundary Dimensions | Basic Load Rating | Limiting Speed | |||
| Current | Fw | D | C | Cr Dynamic | Cor Static | Oil | ||
| mm | g | mm | N | rpm | ||||
| 8 | HK0810 RS | 2.9 | 8 | 12 | 10 | 2250 | 2100 | 19000 |
| HK0812 2RS | 3.5 | 8 | 12 | 12 | 2250 | 2100 | 19000 | |
| 9 | HK09*13*12 RS | 4 | 9 | 13 | 12 | 3800 | 4300 | 19000 |
| 10 | HK1012 RS | 4.2 | 10 | 14 | 12 | 4100 | 5000 | 19000 |
| HK1014 RS | 5.2 | 10 | 14 | 14 | 4100 | 5000 | 15000 | |
| 12 | HK1214 RS | 10.7 | 12 | 18 | 14 | 6100 | 7000 | 15000 |
| HK1216 RS | 11.5 | 12 | 18 | 16 | 6100 | 7000 | 12000 | |
| 13 | HK13*19*12 RS | 8.9 | 13 | 19 | 12 | 6800 | 7580 | 12000 |
| 14 | HK1414 RS | 12 | 14 | 20 | 14 | 6100 | 7500 | 13000 |
| HK1416 RS | 14 | 14 | 20 | 16 | 6100 | 7500 | 11000 | |
| BK1414 RS | 14.1 | 14 | 20 | 14 | 6100 | 7500 | 11000 | |
| 15 | HK1514 RS | 12.6 | 15 | 21 | 14 | 6800 | 8800 | 11000 |
| HK1516 RS | 14.3 | 15 | 21 | 16 | 6800 | 8800 | 10000 | |
| BK1514 RS | 14.4 | 15 | 21 | 14 | 6800 | 8800 | 10000 | |
| HK1518 RS | 16 | 15 | 21 | 18 | 9500 | 11400 | 10000 | |
| HK1520 RS | 18 | 15 | 21 | 20 | 9500 | 11400 | 10000 | |
| 16 | HK1614 RS | 15.1 | 16 | 22 | 14 | 7200 | 9200 | 10000 |
| HK1616 RS | 15.1 | 16 | 22 | 16 | 7200 | 9200 | 10000 | |
| BK1614 RS | 15.3 | 16 | 22 | 14 | 7200 | 9200 | 10000 | |
| HK1620 RS | 16.8 | 16 | 22 | 20 | 9900 | 12300 | 10000 | |
| HK1625 RS | 16 | 22 | 25 | 9900 | 12300 | 10000 | ||
| 17 | HK17*25*14RS | 17.7 | 17 | 25 | 14 | 8000 | 9800 | 10000 |
| HK17*25*115.5RS | 20 | 17 | 25 | 15.5 | 9320 | 10400 | 13000 | |
| HK17*25*18 RS | 23.5 | 17 | 25 | 18 | 10500 | 12600 | 13000 | |
| HK17*25*20 RS | 26.2 | 17 | 25 | 20 | 11600 | 13200 | 13000 | |
| 18 | HK1814 RS | 15.1 | 18 | 24 | 14 | 7800 | 9900 | 13000 |
| HK1816 2RS | 17 | 18 | 24 | 16 | 7800 | 9900 | 9200 | |
| 20 | HK2012 RS | 11.7 | 20 | 26 | 12 | 9500 | 11900 | 9200 |
| HK2016 2RS | 18.8 | 20 | 26 | 16 | 8000 | 10100 | 9000 | |
| HK2018 RS | 21.4 | 20 | 26 | 18 | 12700 | 20100 | 8200 | |
| HK2020 2RS | 23.5 | 20 | 26 | 20 | 12700 | 20100 | 7800 | |
| BK2018 RS | 24.4 | 20 | 26 | 18 | 12700 | 20100 | 7800 | |
| HK20*29*18RS | 28.8 | 20 | 29 | 18 | 8700 | 9980 | 7800 | |
| 22 | HK2212 RS | 14 | 22 | 28 | 12 | 8310 | 10000 | 9000 |
| HK2214 RS | 18.3 | 22 | 28 | 14 | 9000 | 12400 | 7800 | |
| HK2216 RS | 20.3 | 22 | 218 | 16 | 9000 | 12400 | 7800 | |
| HK2218 RS | 23.5 | 22 | 28 | 18 | 10400 | 20100 | 7800 | |
| HK2220 2RS | 25.5 | 22 | 28 | 20 | 10400 | 20100 | 7800 | |
| 25 | HK2516 2RS | 27.3 | 25 | 32 | 16 | 9800 | 13200 | 6900 |
| HK2518 RS | 31 | 25 | 32 | 18 | 13600 | 20000 | 6900 | |
Q : Why choose us ?
A: a. With experiences over 10 years.
b. Strict inspection and high quality with reasonable price.
c. OEM service provided.
d. Delivery time is short.
Q: What kinds of bearing you supply?
A: main products are ball bearing, plastic bearing, ceramic bearing, needle bearings and
industrial tools, etc, as per customers' drawings or samples.
A: The precision of the bearings (dimension tolerance, loading rate), internal
clearance and hardness under heat treatment, structure of cage and material.
Q:Your product certifiexcavatorions?
A: ISO 9001:2008, RoHS.
A: 3-7 days for samples, 3-4 weeks for mass production.
A: We accept T/T, PAYPAL or Western Union, credit card or via ALIBABA Assurance order.
