Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
24130CC

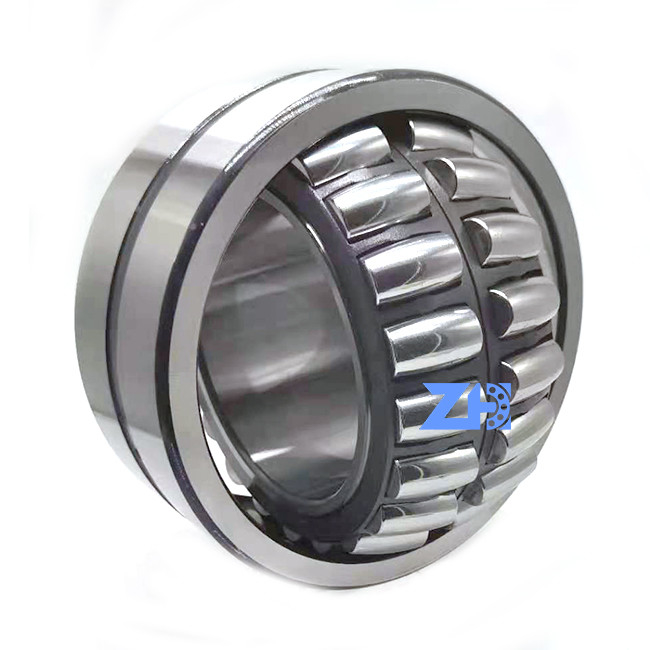

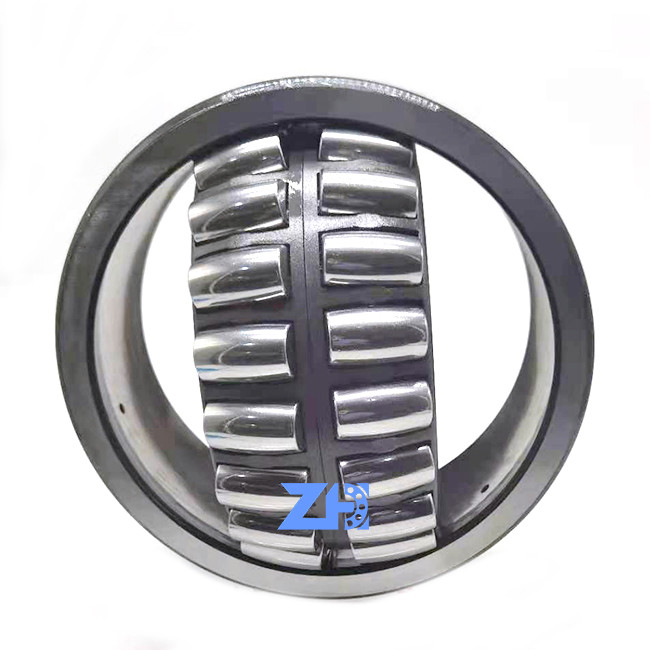

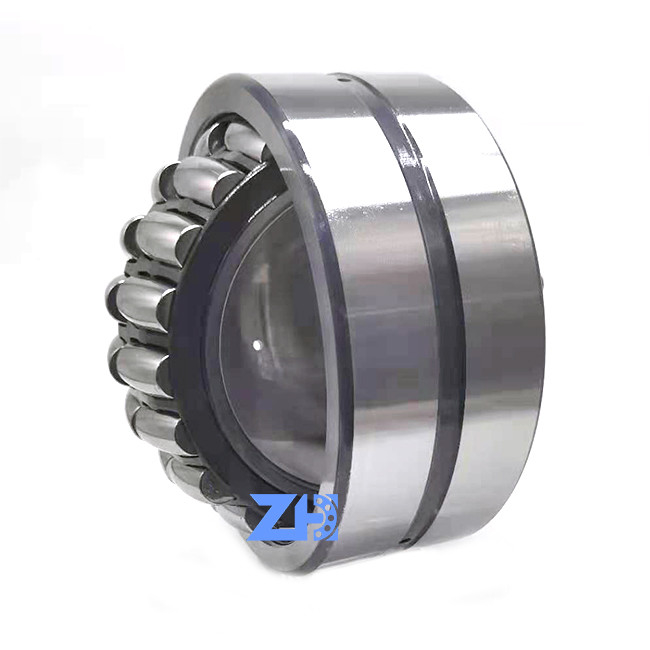

Long service time Spherical Roller Bearing 24130CC 24130W33 24130C3 CHROME STEEL 150*250*100mm
Product introduction(Since ancient times, loyalty and filial piety are difficult to both, and bearings are not necessarily, ZH factory quality is low price)
24130CC The inner hole of the self-aligning roller bearing has two kinds: cylindrical and conical, and the taper of the conical cone hole is 1:30 and 1:12. This kind of conical inner hole bearing is equipped with a tight sleeve or a disconnecting sleeve, so that the self-aligning ball bearing with the conical inner hole can be conveniently and quickly assembled on the optical shaft or the stepped machine shaft.
| d |
150 mm
|
Bore diameter |
|---|---|---|
| D |
250 mm
|
Outside diameter |
| B |
100 mm
|
Width |
| d2 |
≈169 mm
|
Shoulder diameter of inner ring |
| D1 |
≈211 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min.2.1 mm
|
Chamfer dimension |
| da |
min.162 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.238 mm
|
Diameter of housing abutment |
| ra |
max.2 mm
|
Radius of fillet |
| Inner Diameter(mm) | 150 |
| Outer Diameter(mm) | 250 |
| Width(mm) | 100 |
| Weight(kg) | 20.4 |
| Material | Chrome steel |
| Sealed type | OPEN,RZ,2RS,4RS |
| Tolerance | P0,P6,P5,P4,P2 |
| Clearance | C2,C0,C3,C4,C5 |
| Noize level | Z,Z1,Z2,Z3 |
| Price | Factory Price |
| Application | spherical roller bearing |
241300CC Collection
| NUP2209 | NUP310 | SG15 | MAG150 | HMGC32 | KMF90-PC200-6 | HMS072 | AP5S53 | 30309D |
| NUP2209 | NUP207 | SG20 | TM09 | HMGF35 | NUP2206 | AP5S67 | NUP2207 | |
| NUP2212 | 6213 | NUP309=180 | NUP2212=220 | 6305 | NUP308 | NUP308=140 | NUP2207 | |
| M2X146 | NUP308 | NUP309 | DNB50/60 | NUP2211=250 | 30309D=110 | T7FC055=300 | JMF195 | |
| NUP309 | JMF29 | NUP206 | NUP307 | NUP207 | NUP207/NUP306 | NUP309 | NUP2212 | |
| NUP2212 | HMGF36 | 6305M | NUP2209=160 | NUP307 | NUP309=180 | JMF250 | NUP2211 | |
| 32205 | NUP206=100 | GM17VA | NUP2207=140 | NUP2211 | NUP309=180 | NUP206E | 30312D=155 | |
| T7FC060 | NUP308 | JMV-44/22 | 30312D | HMGC48 | NUP310 | 15578 | NUP307 | |
| M2X150 | 30314D=250 | KMF125-PC200-7 | 30312D | NUP309 | 6008 | NUP306 | 30311D | |
| M2X170 | 30312D | NUP2310 | 30309D | 30312D | MAG150 | 30312D | T7FC055 | |
| M2X210 | 30314D | 30210 | 30210 | GM35VA | NUP309 | NIP2310 | MAG120 | |
| HMGF57 | JMF151 | 30311D | KMF125-PC200-8 | 30312D=155 | NUP2209 | NUP208E | NUP2208=210 | |
| NUP306 | 11749/11710 | SG04 | KMF160-PC360-7 | M2X96 | M2X120 | NUP308=14 | NUP307=110 | |
| NUP307 | KMF41-PC60 | SG025 | MSG-27P | MCB172 | 32207 | T7FC065 | NUP308 | |
| M5X130 | NUP205E | 4T-30307 | NUP309 | NUP307 | M2X55 | JMV-53/31 | GM35VL | |
| M5X180 | NUP207=120 | SG08 | T7FC055 | NUP2208 | M2X63 | MAG85 | NUP2206=130 |
