Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
120BA16 120BA-16

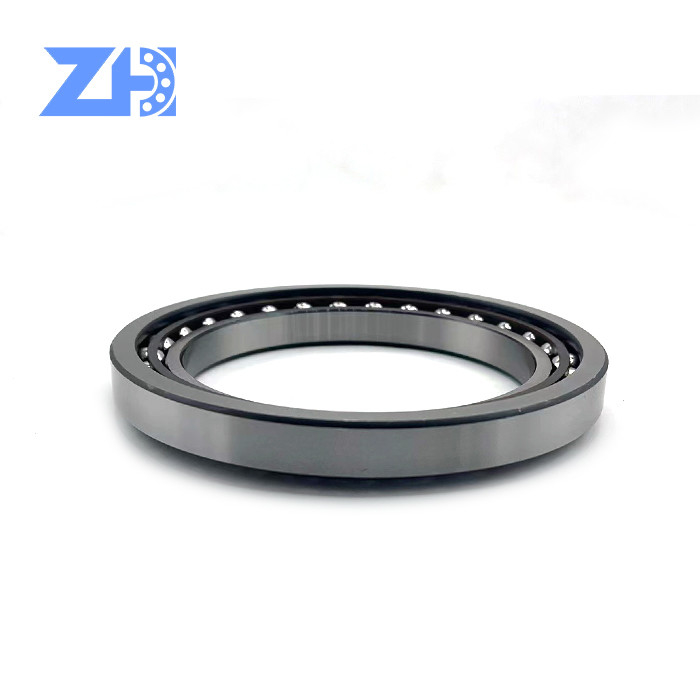

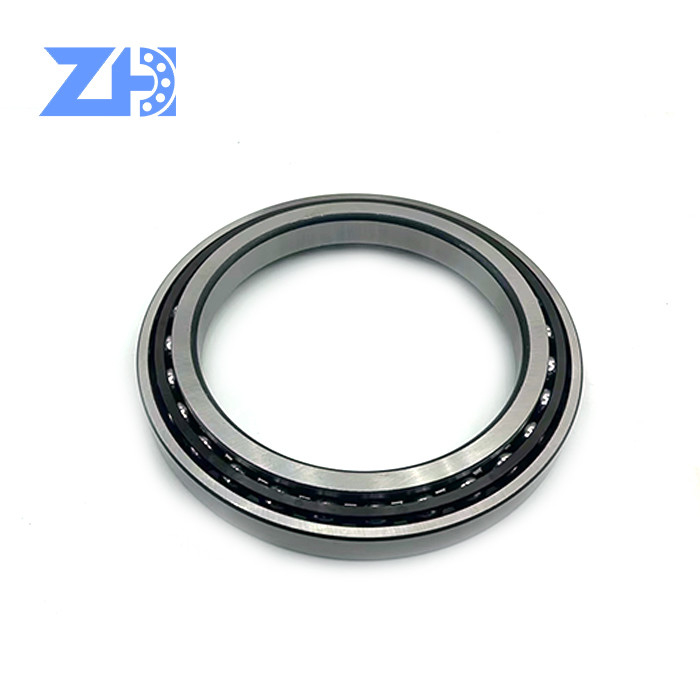

120BA16 120BA-16 excavator travel motor gear box bearing 120x165x22mm Single Row Angular Contact Ball Bearing 120ba16
welcome to choose ZH BRAND BEARING .
NO 1. our adwantages
1. 14 years bearing products manufacturing and exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be provided.
4. To respect customers, you can choose the loading port.
5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.
NO 2. Feature: Cylindrical roller bearing
Single row cylindrical roller bearing feature:
Tape NU and type N allow shaft moving in axial direction within limits,applicable to use as free end.
Type NJ and type NF can carry certain extent one-way axial load.Type NUP and type NH can carry certain extent both-way axial load.
Main dimension of type E cylindrical roller bearing coordinate with standard, and through modifying interior specification to increase nominal load.
Double row cylindrical roller bearing feature:
Double row cylindrical roller bearing have cylindrical hole and tapered hole type,tapered bore bearing can get needed internal clearance by self-aligning the depth of thrusting in.
NO 3. OEM all brand bearing
NO 4. Cylindrical roller bearing Specification:
| Seals Types | OPEN |
| Vibration Level | Z1V1,Z2V2,Z3V3 |
| Clearance | C2,C0,C3,C4,C5 |
| Tolerance Codes | ABEC-1,ABEC-3,ABEC-5 |
| Materral | GCr15-China/AISI52100-USA/Din100Cr6-Germany |
| MOQ | 1Set at least |
| Delivery Time | 5-45 days after contract |
| Payment Terms | TT/PAPAL/WESTERN UNION |
| Pavkage | Tube package+outer carton+pallets;Single box+outer carton+pallets; According to your requirement |
| bearing number | size | ||
| d | D | B | |
| BA152-2036 | 15 | 203 | 26 |
| BA222-1WSA | 222 | 273 | 26 |
| BA220-6SA | 220 | 276 | 26 |
| BA240-3ASA | 240 | 310 | 33.5 |
| SF4815VPX1 | 240 | 310 | 34 |
| SF4831PX1 | 240 | 310 | 33.4 |
| AC5033 | 250 | 330 | 37 |
| AC5836 | 289 | 355 | 34 |
| AC463240 | 230 | 320 | 40 |
| HS05145 | 117 | 145 | 14 |
| HS05154 | 126 | 154 | 14 |
| HS05383 | 320 | 383 | 30 |
| MC6034 | 300 | 340 | 18 |
| 180BA-2256 | 180 | 225 | 22 |
| B-SF4454PX1 | 220 | 295 | 33 |
| BA260-4 | 260 | 340 | 38 |
| AC4629 | 230 | 290 | 27 |
| BA230-7ASA | 230 | 300 | 35 |
| SF3607 | 180 | 225 | 15 |
| BA180-4WSA | 180 | 250 | 33 |
| AC4531 | 225 | 315 | 36 |
| AC4631 | 230 | 310 | 39 |
| BA4852PX1 | 240 | 310 | 33 |
| R196Z-4 | 196.85 | 241.3 | 17.462/23.812 |
| AC463240 | 230 | 320 | 40 |
| 180N19W | 180 | 250 | 33 |
| 200BA27V-2 | 200 | 270 | 33 |
| 210BA29V | 210 | 295 | 35 |
| AC423040-1 | 210 | 300 | 40 |
| AC4630 | 230 | 300 | 35 |
| BA280-2SA | 280 | 370 | 40 |
| BA300-4WSA | 300 | 395 | 50 |
| BD130-1SA | 130 | 166 | 34 |
| BN220-1 | 220 | 280 | 28 |
| CR4411PX1 | 220 | 290 | 32 |
| CR6016PX1 | 300 | 380 | 38 |
| SF2812PX1 | 140 | 175 | 17.5 |
| SF3227PX1 | 160 | 200 | 20 |
| SF4007PX1 | 200 | 250 | 25 |
| SF4019PX1 | 200 | 260 | 30 |
More models:
| SL. | BEARING NO | EXCAVATOR MODLE | SIZE |
| 1 | BA120-16A | PC35 EX40 | 120*165*22 |
| 2 | BD130-1SA | E303.YC35 | 130*166*34(OD 29.5) |
| 3 | BD130-16SA | YQ85(GYM-53-01-VBL马达号) | 130*166*40 |
| 4 | BD130-2 | PC40-8 KX91-3 | 130*166*34(OD 30) |
| 5 | SF2812VPX1 | PC30-7.PC40-8 | 140*175*17.5 |
| 140BA-18 | PC56-7 | 140*180*22/20 | |
| SF3240 | 石川岛40.PC50UU-2 | 160*200*20 (ID H16)(OD 18) |
|
| 6 | HS05154 | YQ45-6 | 126*154*14 |
| 7 | BA135-6(135BA170) | YQ85/YC35 | 135*170*20 |
| 8 | BD155-6 | ZX60.EX60-5 | 155*198*48 |
| 9 | SF3235 /SF3240 |
PC50UU | 160*200*21 |
| SF3235 | 160*200*20(OD 19) | ||
| 10 | SF3227PX1 | PC45-8 | 160*200*10(OD 12) |
| SF3227PX1/SF3215 | 160*200*20 (ID OD H 18) |
||
| 165BA210/AC3321 | 165*210*22 | ||
| 11 | BD165-6A(3321) | DA0102 DH55 | 165*210*58 |
| 12 | BA160-432348 | R80 | 160*210*24 |
| 13 | 180BA-2256S | PC60-6,SK60-6,E70B,E307 SH60,8004213YQ85 | 180*225*22 |
| 14 | SF3607TVPX1 | PC60-5,PC60-3 DH250,HD250 SH60,E70B | 180*225*15 |
| 15 | BA180-4BWSA | PC120-3,PC100-3,HD400-5,HD450-5 | 180*250*33 |
| 16 | 180BN19-BTB7936 | PC100-2,HD700-1,HD700-2SE2,HD450-2 | 180*250*33 |
| 17 | 184BA-2251 | PC60-7,YCXW,WY200-2,YQ85 | 184*226*19 |
| BD185-1 | YC85 | 185*232*37 | |
| 18 | BD185-6A | SHS/60EJ | 185*232*51 |
| 19 | 200BA27V-2 | SK07-N1 | 200*272*34 |
| 20 | SF4007PX1 | HSO5250 E70B,E307,PC80 | 200*250*24 |
| SF4007PX1 | 200*250*24 | ||
| 21 | SF4019PX1 | PC100.PC120-5 | 200*260*30 |
| 22 | BA200-6A(SF4021) | 200*250*24 | |
| 97 | BA200-7SA | 200*245*23.6 | |
| 23 | BA200-10 | SK200-1,SK200-3 | 200*280*38 |
| 24 | BA205-1 | SK200-6,SK200-7 | 205*295*40 |
| 25 | 210BA27V-2 | 210*295*35 | |
| 26 | AC423040-1 | SK07N2 | 210*300*40 |
| 27 | BN220-1 | R120B E120B | 220*280*28 |
| 28 | BA220-6SA | PC120-5,PC120-6,SH120,SK120, HD400,SH100 |
220*276*26 |
| 29 | SF4411 | EX300-1 | 220*290*32 |
| 30 | CR4411PX2U6 | EX300-1 | 220*290*33 |
| 31 | SF4444PX1 | PC200-6,PC220-6 | 220*295*32 |
| 32 | SF4454PX1 | PC200-6(6D102),EC210 | 220*295*33 |
| 33 | BA222-1WSA | E312B,SH200,SH260,SH265 | 222*273*26 |
| 34 | BA222-5WSA | CAT311 | 222*273*26 |
| 35 | BA4531 | 225*315*40 | |
| 36 | BA230-7ASA(AC4630) | (ACBB-0021) R130,E240 | 230*300*35 |
| 37 | AC4629 | (CR-450E) EX270 | 230*290*27 |
| 38 | BA230-2 | HD850G,HD880SE2,HD700,HD800-5,HD770-5,SH340 | 230*320*40 |
| 39 | AC4632 | HD770-2 HD1250 | 230*320*40 |
| 40 | AC4631(BA230-9) | SK200-2.SK200-5 | 230*310*39 |
| 41 | AC463240 | HD900 SH340 | 230*320*40 |
| 42 | SF4615PX1 | MS180-3 | 230*300*35 |
| 43 | BN230-3A | 230*300*33 | |
| 44 | SF4630PX1/SF4615PX1 | MS180(SF4639PX1),E240 | 230*300*35 |
| 45 | 230BA30-2/BN230-7 | LS280 | 230*300*33 |
| 46 | BA240-3AR | HD700-7,HD700-5,HD820-1,SH200-1,SH200-2,SH280,EX200-6 | 240*310*33 |
| 47 | BA240-5SA | 240*310*30 | |
| BA240-5ASA(BA240-8) | 240*308*32 | ||
| 48 | SF4831PX1 | PC200 E320/200B | 240*310*33.4 |
| 49 | SF4826PX1 | E320,E320B | 240*310*33/32 |
| 50 | SF4815VPX1 | PC200-5 | 240*310*32/33.5 |
| 51 | 240BA32S1/SF4860 | EC240(SF4856) | 240*320*38 |
| 52 | SF4852PX1 | E320C | 240*310*32.5 |
| BA245-2 | 245*305*33 | ||
| 53 | 245BA35 | SK350-8 | 245*355*42 |
| 54 | BA246-1SA | ZX110 | 246*308*33 |
| 55 | BA246-2SA/SF4903 | SK230-6,SK200-8,SH200A3 | 246*313*32 |
| 56 | SF4860PX1 | 240*320*37 | |
| 57 | AC5033 | HD800-7,HD900-7,HD1250-7,DH225-7,R200.R200-5.R210-3.R210-5.R220-5.R210-7.R215-7.R225-7.R260-7.R265-7 | 250*330*36 |
| 58 | BA250-4A(HT1529) | HD800V1,R210-3 | 250*330*38 |
| 59 | CAT325C,816416 | 260*330*35 | |
| 60 | BA260-3A(OD 30) | R305-7.DH300-7 | 260*340*34 |
| 61 | BA260-4A(OD 33) | R300 DH300-5, SK07N2,E300,DH280, |
260*340*38 |
| AC523438-1(OD 30) | DH300-5 | 260*340*38 | |
| 62 | AC523438-1(OD 38) | E300 | 260*340*38 |
| 63 | SH0340 | SY | 260*340*40 |
| 64 | 260BA-35S2 | SK220-1/SK220-3 | 260*355*40 |
| 65 | BA270-3SA | PC300-7(NSK) | 270*350*40 |
| 66 | BA280-2SA/SF5620 | HD1250-7,DH330 | 280*370*40 |
| 67 | AC5836/BA289-1 | PC200-6(山),SK200-6E,DH220-5,DH220-7,LG200 | 290*355*34 |
| 68 | BA289-1A | DH220-5 R260-5 | 289*355*33 |
| 69 | BA290-3A/SF5811/SF5809 | E330B | 290*380*40 |
| 70 | SF6015 | EC290.EC360 | 300*372*36 |
| AC6015 | EC290.EC360 | 300*372*36 | |
| CR6016PX1-38 | 300*380*38 | ||
| 71 | SR6016PX1 | PC400-6,EX400-1 | 300*390*45 |
| 72 | MC6034 | 300*340*18 | |
| 73 | AC6037-1/BA300-7 | DH370,EC360,R300-5 | 300*370*33 |
| 74 | HS05383 | 320*383*30 | |
| 75 | BA300-1WSA | 300*390*40 | |
| 76 | BA300-4WSA | PC300-3,PC300-5,PC300-7 | 300*395*52 |
| 77 | BA300-5WSA | PC300-6 | 300*380*42 |
| 78 | BA340-1 | PC400-3 208-2731271 | 340*440*52 |
| 79 | R196Z-4SA | EX200-2,EX200-3,ZX200,EX220-5,ZX230,4246793 | 196*241*26 |
| 80 | LL639249/10 | EX100-1.EX120 | 197*242*25 |
| 81 | LL225749/10 | EX60,EX90 | 127*166*18 |
| 82 | L540049/10 | EX200-1 | 197*254*28 |
| 83 | LM739749/10 | UH083,UH07-1, | 197*257*40 |
| 84 | JM738249/10 | E973 | 192*260*46 |
| 85 | 4T-LL735449VI | EX120-5 | 178*215.9*21 |
| 86 | LL641149/10 | HD400-2 | 202*261*30 |
| 87 | M348449/10 | 248*347*66 | |
| 88 | L853049/10 | SK300-2 | |
| 89 | 310BN42-2 | E450 | 310*420*42 |
| 90 | BA345-1SA | PC400-6 | 345*470*54 |
| 91 | 150BA-182 | YQ60/65 | 150*182*16 |
| 92 | 340-1 | PC400-3 | |
| 93 | BD140-1 | 140*180*34 | |
| 94 | E305.5 | 165*203*17 | |
| BA135-6(135BA-16) | 135*175*22 | ||
| 95 | BN230-7 | LS280 | |
| 96 | BD135-6 | 135*166*41 | |
| 98 | |||
| 100 | 140BA-18 | 140*180*20 | |
| 101 | SF2907 | 143*175*16 | |
| 102 | 180BA24Y | 185*248*28 | |
| 103 | CR2256(R110-13) | SK60-1 | 110*150*20/30 |
| 250BA36 | 250*360 |
3 . Advantage Of Us
1. Original /OEM quality and competitive price
2. Professional work team and quick service
3. Strong and standard package
4. Fast and safe delivery
5. Long export experience in Middle east, Northern Europe, Southeast Asia, North America, Africa, Brazil.
6. Clear details photos what you see is what you get
7. Able to develop & produce according to customer specifiexcavatorion with technical drawing
8.Wholesaler and agent of excavator spare parts
1) We professionally specialize in link assy, pin, bushing, high-strength bolt &nut and machine spare parts for various models of excavators and bulldozers and so on.
2) High quality products with reasonable price and good service for customers, the goods have been done the Physics and the Chemistry Detecting
3) Custom designs are allowed.
4)FOB price as latest price
Excavator Parts Bucket Pins and Bushings for Engineering and Construction Machinery
| Name | Bucket pin |
| Color | White/black/other |
| Size | Many kinds |
| Logo | Customized |
| OEM | Wellcomed |
| Material | 40 Cr or 45# |
| Payment Term | T/T or Other |
| Features | 1-Durable quality |
| 2-Delivery timely | |
| 3-Good appearance | |
| Packing Details | The cartons/wooden case/tray,as you required |
| Factory manufacturing | Control quality and delivery time |
| Shipping | Large order ship via sea to save shipping cost |
HOT SALE Size models :
| S.NO | DESCRIPTION | PART NUMBER | HS Code | CO |
| 2 | PIN BUCKET SK200-8 80*450 | 80*450 | 84314990 | CN |
| 3 | PIN BUCKET SK200-8 70*450 | 70*450 | 84314990 | CN |
| 4 | PIN BUCKET SK200-8 80*530 | 80*530 | 84314990 | CN |
| 5 | PIN BUCKET SK220 80*450 | 80*450 | 84314990 | CN |
| 6 | PIN BUCKET SK220 80*540 | 80*540 | 84314990 | CN |
| 7 | PIN BUCKET EX200 80*440 | 80*440 | 84314990 | CN |
| 8 | PIN BUCKET EX200 70*440 | 70*440 | 84314990 | CN |
| 9 | PIN BUCKET EX200 80*500 | 80*500 | 84314990 | CN |
| 10 | PIN BUCKET DX225 80*420 | 80*420 | 84314990 | CN |
| 11 | PIN BUCKET DX225 70*420 | 70*420 | 84314990 | CN |
| 12 | PIN BUCKET DX225 80*500 | 80*500 | 84314990 | CN |
| 13 | PIN BUCKET PC210-8 70*420 | 70*420 | 84314990 | CN |
| 14 | PIN BUCKET PC210-8 80*530 | 80*530 | 84314990 | CN |
| 15 | PIN BUCKET PC200-8 70*410 | 70*410 | 84314990 | CN |
| 16 | PIN BUCKET PC200-8 80*500 | 80*500 | 84314990 | CN |
| 17 | PIN BUCKET PC200-7 70*410 | 70*410 | 84314990 | CN |
| 18 | PIN BUCKET PC200-7 80*500 | 80*500 | 84314990 | CN |
We can offer kinds excavator parts ,
WELCOME TO SENT US LIST FOR CHECK !
1. How can I get the price? - We usually quote within 24 hours after we get your inquiry (except weekend and holidays). If you are urgent to get the price, please email us or contact us in other ways so that we can offer you a quote. 2. Can I buy samples? - Yes. Please feel free to contact us. 3. What is your lead time? - It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity. 4. What is your payment term? - T/T, Western Union, MoneyGram, and Paypal. This is negotiable. 5. What is the shipping method? - It could be shipped by sea, by air, or by express (EMS, UPS, DHL, TNT, FEDEX etc). Please confirm with us before placing orders. 6. How do you make our business long-term and good relationship? - We keep good quality and competitive price to ensure our customers benefit. Furthermore, we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Send your inquiry directly to us
