Place of Origin:
China
Brand Name:
ZH / Qireal
Model Number:
30317

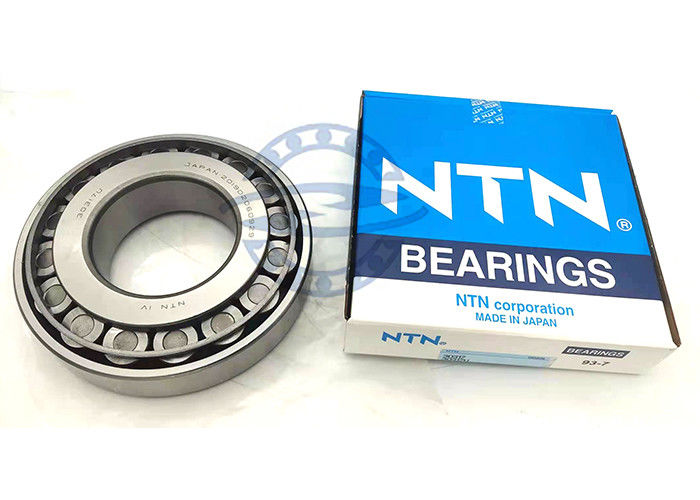

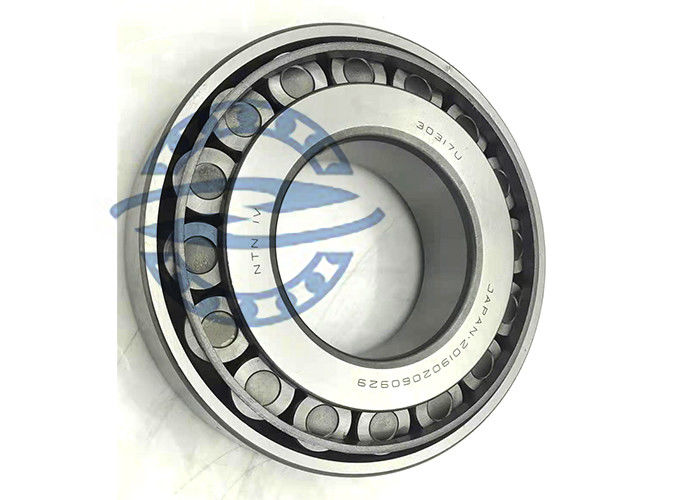

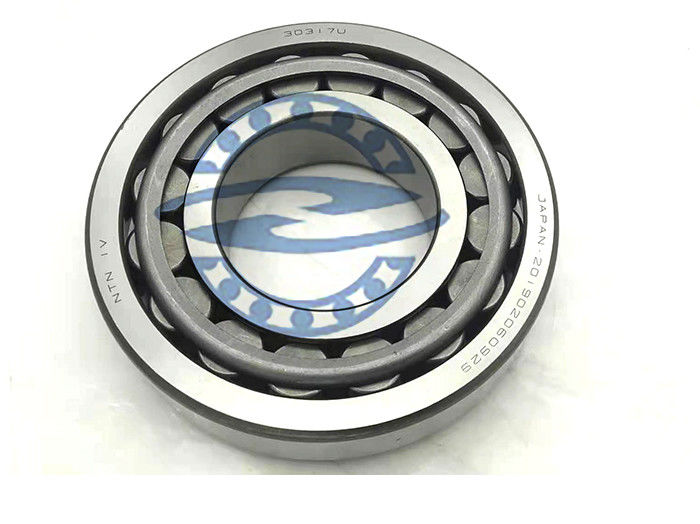

30315 30316 30317 Taper Roller Bearing Size 85*180*44.5 mm For Automobiles
Details
Taper roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage).
| product name | bearing 30317 taper roller bearing |
| size | 85*180*41mm |
| weight | 4.84kg |
| seal type | open |
| precision | P0, P6, P5, P4, P2 |
| number of row | single row |
| material | Gcr15 or Gcr15SiMn |
| appliexcavatorion | Papermaking machinery, speed reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industry. |
| delivery time |
1) 1-3 days for samples or in stock
2) 10-15 days for ordering |
Hot sell product
| Designation | d | D | B | Weight(kg) |
| BS2-2205-2CS | 25 | 52 | 23 | 0.26 |
| BS2-2206-2CS | 30 | 62 | 25 | 0.34 |
| BS2-2207-2CS | 35 | 72 | 28 | 0.52 |
| BS2-2208-2CS | 40 | 80 | 28 | 0.57 |
| BS2-2209-2CS | 45 | 85 | 28 | 0.66 |
| BS2-2210-2CS | 50 | 90 | 28 | 0.7 |
| BS2-2211-2CS | 55 | 100 | 31 | 1 |
| BS2-2212-2CS | 60 | 110 | 34 | 1.3 |
| BS2-2213-2CS | 65 | 120 | 38 | 1.6 |
| BS2-2214-2CS | 70 | 125 | 38 | 1.8 |
| BS2-2215-2CS | 75 | 130 | 38 | 2.1 |
| BS2-2216-2CS | 80 | 140 | 40 | 2.4 |
| BS2-2217-2CS | 85 | 150 | 44 | 3 |
| BS2-2218-2CS | 90 | 160 | 48 | 3.7 |
| BS2-2219-2CS | 95 | 170 | 51 | 4.6 |
| BS2-2220-2CS | 100 | 180 | 55 | 5.5 |
| BS2-2222-2CS | 110 | 200 | 63 | 7.6 |
| BS2-2224-2CS | 120 | 215 | 69 | 9.75 |
| BS2-2226-2CS | 130 | 230 | 75 | 11 |
| BS2-2228-2CS | 140 | 250 | 80 | 15.7 |
| BS2-2308-2CS | 40 | 90 | 38 | 1.2 |
| BS2-2309-2CS | 45 | 100 | 42 | 1.6 |
| BS2-2310-2CS | 50 | 110 | 45 | 2.1 |
| BS2-2311-2CS | 55 | 120 | 49 | 2.8 |
| BS2-2312-2CS | 60 | 130 | 53 | 3.4 |
| BS2-2313-2CS | 65 | 140 | 53 | 4.15 |
| BS2-2314-2CS | 70 | 150 | 60 | 5.1 |
| BS2-2315-2CS | 75 | 160 | 64 | 6.5 |
1.Cylindrical roller bearing
2.Thrust ball bearing
3.Thrust roller bearing
4.Tapered roller bearing
5.Spherical roller bearing
6.Self-aligning ball bearing
7.Angular contact ball bearing
8.Joint bearing
