Place of Origin:
China
Brand Name:
Z&H
Model Number:
UCF208

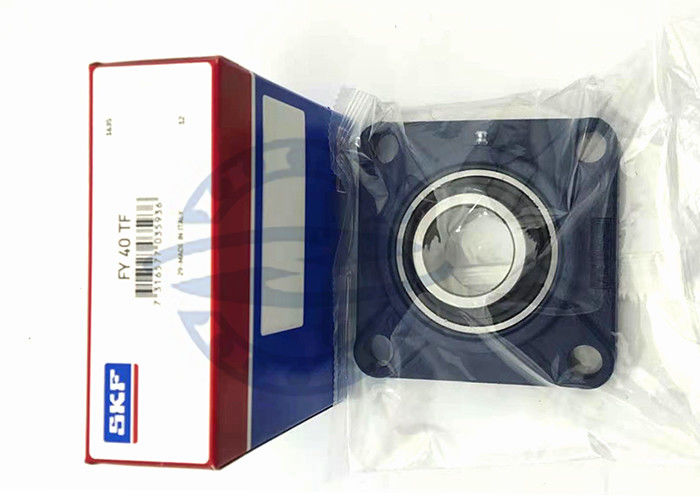

Pillow Block Bearing Housing UCF208 FY40TF Weight 1.8KG
| Model | Size(mm) | |||||
| d | D | J | A2 | N | A | |
| UCF201 | 12 | 86 | 64 | 15 | 12 | 25.5 |
| UCF202 | 15 | 86 | 64 | 15 | 12 | 26.5 |
| UCF203 | 17 | 86 | 64 | 15 | 12 | 27.5 |
| UCF204 | 20 | 86 | 64 | 15 | 12 | 28.5 |
| UCF205 | 25 | 95 | 70 | 16 | 12 | 27 |
| UCF206 | 30 | 108 | 83 | 18 | 12 | 31 |
| UCF207 | 35 | 117 | 92 | 19 | 14 | 34 |
| UCF208 | 40 | 130 | 102 | 21 | 16 | 36 |
| UCF209 | 45 | 137 | 105 | 22 | 18 | 38 |
| UCF210 | 50 | 143 | 111 | 22 | 20 | 40 |
| UCF211 | 55 | 162 | 130 | 25 | 22 | 43 |
| UCF212 | 60 | 175 | 143 | 29 | 22 | 48 |
| UCF213 | 65 | 187 | 149 | 30 | 22 | 50 |
| UCF214 | 70 | 193 | 152 | 31 | 22 | 54 |
ZhongHong Bearing Manufacturing Co.Ltd., produces a wide range of ball and roller bearings for automotive making, Ferrous Metallurgy, Chemical Machinery and Machine Manufacturing in its primary plants in China mainland. Our main bearing products include deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, spherical ball bearings, spherical roller bearings, single row angular contact bearings, double row angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings, pump bearings, and many non-standard bearings are also in our product range. The annual output is more than 10 million sets.
1.Cylindrical roller bearing
2.Thrust ball bearing
3.Thrust roller bearing
4.Tapered roller bearing
5.Spherical roller bearing
6.Self-aligning ball bearing
7.Angular contact ball bearing
8.Joint bearing
| Unit Part No. | Housing Part No. | Inset bearing Part No. |
| FY 30 TR | FY 506 M | YAR 206-2RF |
| FYJ 30 TF | FYJ 506 | YAR 206-2F |
| FY 1.3/16 RM | FY 506 U | YAT 206-103 |
| FY 1.3/16 TF | FY 506 U | YAR 206-103-2F |
| FY 1.1/4 TR | FY 507 M | YAR 207-104-2RF |
| FY 1.1/4 ARM | FY 506 U | YAT 206-104 |
| FY 1.1/4 RM | FY 507 U | YAT 207-104 |
| FY 1.1/4 ATF | FY 506 U | YAR 206-104-2F |
| FY 1.1/4 TF | FY 507 U | YAR 207-104-2F |
| FYJ 1.1/4 TF | FYJ 507 | YAR 207-104-2F |
| FY 1.5/16 TF | FY 507 U | YAR 207-105-2F |
| FY 1.3/8 TF | FY 507 U | YAR 207-106-2F |
| FY 1.3/8 RM | FY 507 U | YAT 207-106 |
| FY 35 TR | FY 507 M | YAR 207-2RF |
| FY 35 TF | FY 507 M | YAR 207-2F |
| FYJ 35 TF | FYJ 507 | YAR 207-2F |
| FY 1.7/16 TF | FY 507 U | YAR 207-107-2F |
| FYM 1.7/16 TF | FY 508 U | YAR 208-107-2F |
| FY 1.7/16 RM | FY 507 U | YAT 207-107 |
| FY 1.1/2 RM | FY 508 U | YAT 208-108 |
| FY 1.1/2 TR | FY 508 M | YAR 208-108-2RF |
| FY 1.1/2 TF | FY 508 U | YAR 208-108-2F |
| FYM 1.1/2 TF | FY 509 U | YAR 209-108-2F |
| FYJ 1.1/2 TF | FYJ 508 | YAR 208-108-2F |
| FYJ 40 TF | FYJ 508 | YAR 208-2F |
| FY 40 TF | FY 508 M | YAR 208-2F |
| FY 40 TR | FY 508 M | YAR 208-2RF |
| FY 1.5/8 TF | FY 509 U | YAR 209-110-2F |
| FY 1.11/16 TF | FY 509 U | YAR 209-111-2F |
| FYM 1.11/16 TF | FY 510 U | YAR 210-111-2F |
