Place of Origin:
China
Brand Name:
Z&H
Model Number:
TUJ60TF FY65TF
| Manufacturer Product Code | FY65TF |

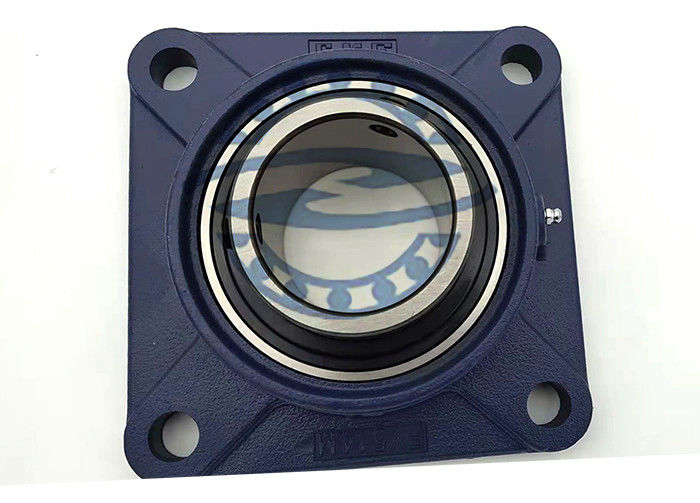

| Basic Product Description | Y-Bearing Square 4-bolt flanged unit |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 65 |
| Weight (Kg) | 4.77 |
| Ex-3 Features 2 | Set screw locking |
| In-1 Bolt Hole Centres (mm) | 149.5 |
| Ma-2 Bearing Material | Bearing steel |
| Ma-3 Housing Material | Cast iron |
| Co-2 Bearing/Insert | YAR 213-2F |
| Co-3 Housing | FY 513 M |
| Model | Size(mm) | |||||
| d | D | J | A2 | N | A | |
| UCF201 | 12 | 86 | 64 | 15 | 12 | 25.5 |
| UCF202 | 15 | 86 | 64 | 15 | 12 | 26.5 |
| UCF203 | 17 | 86 | 64 | 15 | 12 | 27.5 |
| UCF204 | 20 | 86 | 64 | 15 | 12 | 28.5 |
| UCF205 | 25 | 95 | 70 | 16 | 12 | 27 |
| UCF206 | 30 | 108 | 83 | 18 | 12 | 31 |
| UCF207 | 35 | 117 | 92 | 19 | 14 | 34 |
| UCF208 | 40 | 130 | 102 | 21 | 16 | 36 |
| UCF209 | 45 | 137 | 105 | 22 | 18 | 38 |
| UCF210 | 50 | 143 | 111 | 22 | 20 | 40 |
| UCF211 | 55 | 162 | 130 | 25 | 22 | 43 |
| UCF212 | 60 | 175 | 143 | 29 | 22 | 48 |
| UCF213 | 65 | 187 | 149 | 30 | 22 | 50 |
| UCF214 | 70 | 193 | 152 | 31 | 22 | 54 |

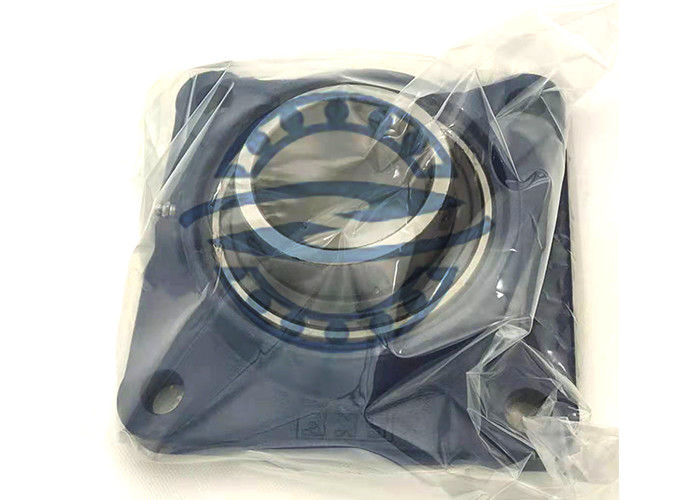

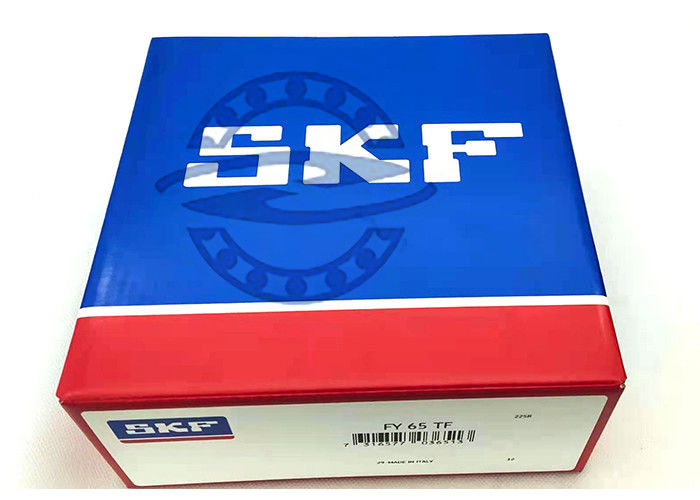

1 . Single box packing, then in carton then in Pallet .
2 . Standard export packing .
3 . According customer demand .
1.you need to pay in advance
2.You can use west union
3.L/C at sight
4.30% T/T in advance . 70% against copy of B/L
Send your inquiry directly to us
