Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
6006-2RS

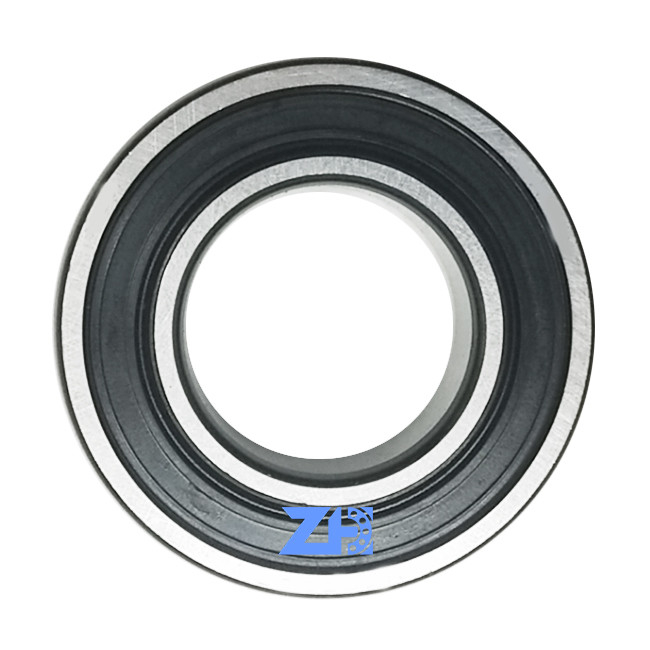

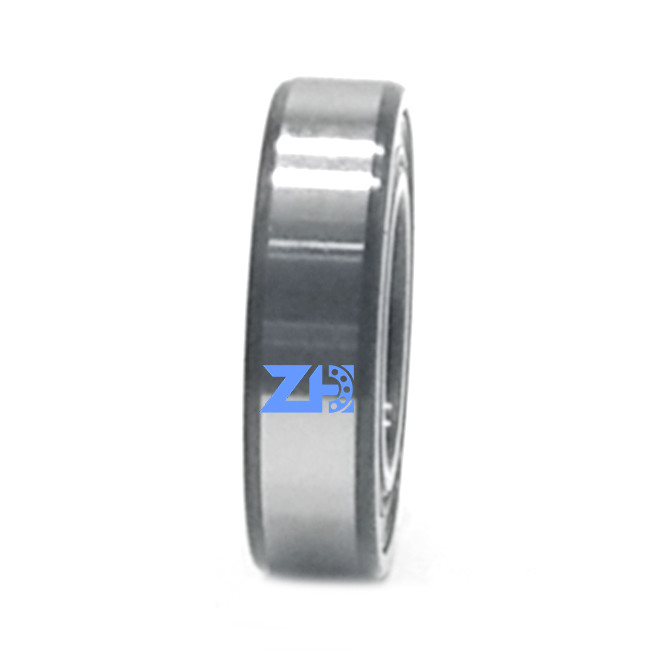

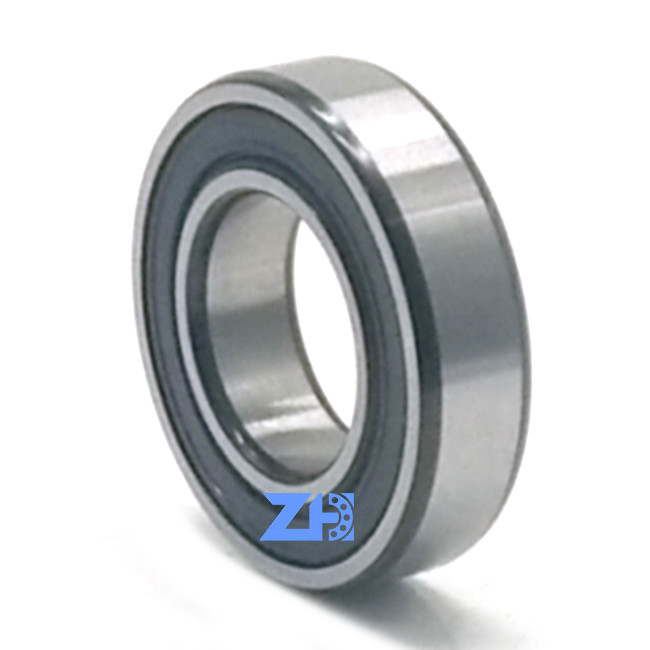

Long service time 30*55*13mm 6006-2RS 6006-2Z 6006-RS Deep Groove Ball Bearing CHROME STEEL
Product introduction(High-quality bearings, cheap bearings, are often out of reach, but you have a chance to have it now)
6006-2RS Single row deep groove ball bearing, is the most representative structure of rolling bearings, widely used. The raceway located on the inner ring and the outer ring is a radius arc cross-section slightly larger than the radius of the rolling ball. In addition to bearing radial loads, it can also bear axial loads in two directions.
d |
30 mm
|
Bore diameter |
---|---|---|
D |
55 mm
|
Outside diameter |
B |
13 mm
|
Width |
d1 |
≈38.2 mm
|
Shoulder diameter |
D2 |
≈49 mm
|
Recess diameter |
r1,2 |
min.1 mm
|
Chamfer dimension |
da |
min.34.6 mm
|
Diameter of shaft abutment |
---|---|---|
Da |
max.50.4 mm
|
Diameter of housing abutment |
ra |
max.1 mm
|
Radius of shaft or housing fillet |
Basic dynamic load rating | C |
13.8 kN
|
---|---|---|
Basic static load rating | C0 |
8.3 kN
|
Fatigue load limit | Pu |
0.355 kN
|
Reference speed |
28 000 r/min
|
|
Limiting speed |
17 000 r/min
|
|
Minimum load factor | kr |
0.025
|
Calculation factor | f0 |
15
|
