Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
6002-2Z

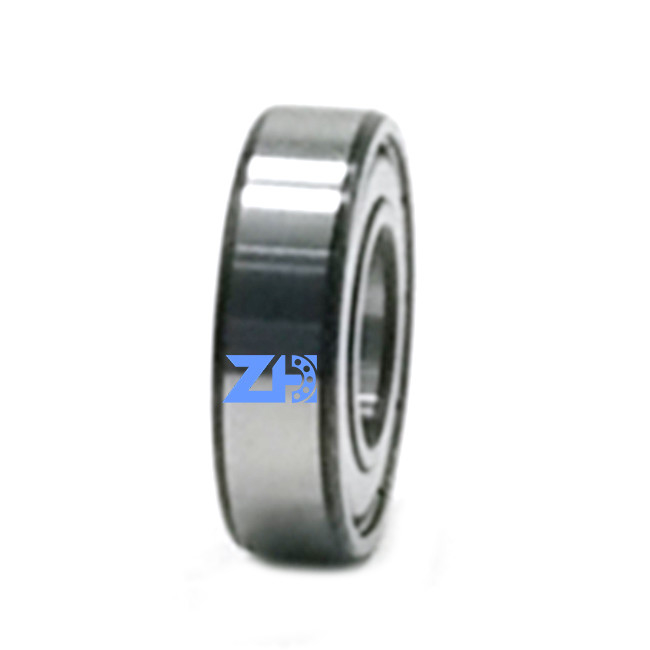

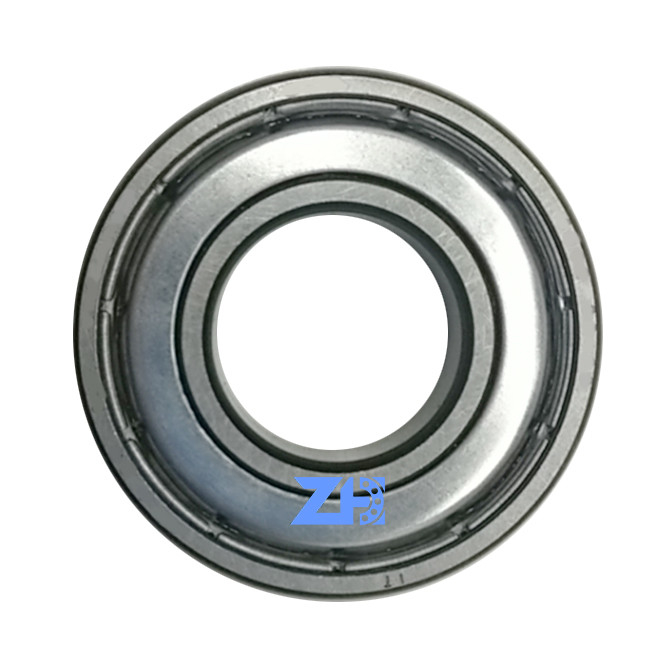

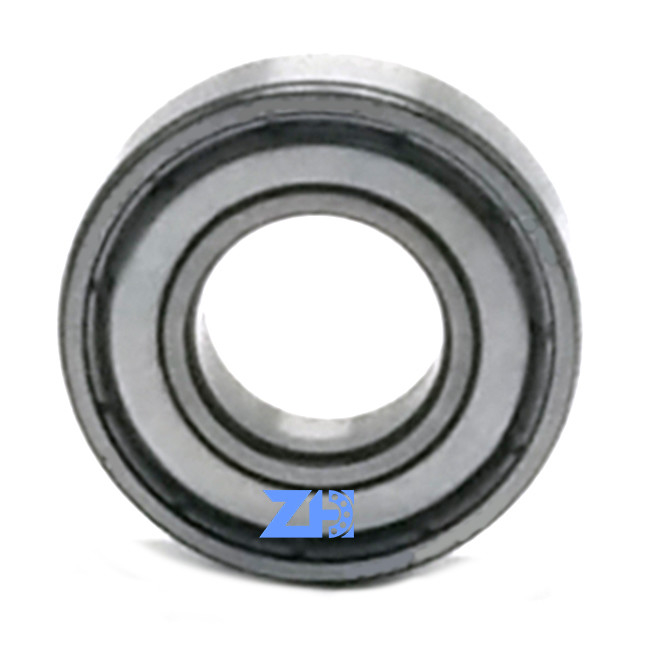

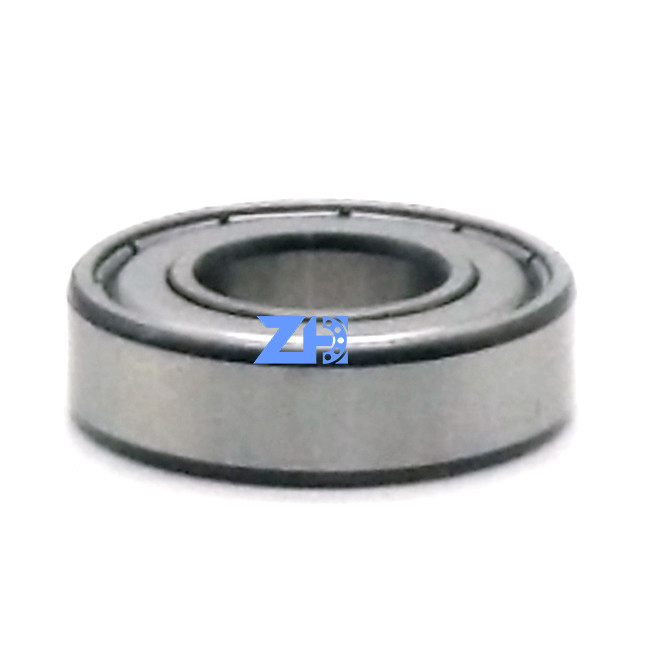

High Quality 6002-2Z 6002-2RS 6002-RS Deep Groove Ball Bearing 15*32*9mm CHROME STEEL
Product introduction
6002-2Z Deep groove ball bearing are the most common type and are used in a wide variety of applications. Not only are they capable of supporting radial loads but also moderate axial loads in either direction. Due to their low torque, they are suitable for applications where high speed and low power loss is required. They are easy to mount and suitable for many different configurations.
| d |
15 mm
|
Bore diameter |
|---|---|---|
| D |
32 mm
|
Outside diameter |
| B |
9 mm
|
Width |
| d1 |
≈20.5 mm
|
Shoulder diameter |
| D2 |
≈28.2 mm
|
Recess diameter |
| r1,2 |
min.0.3 mm
|
Chamfer dimension |
| da |
min.17 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.30 mm
|
Diameter of housing abutment |
| ra |
max.0.3 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
5.85 kN
|
|---|---|---|
| Basic static load rating | C0 |
2.85 kN
|
| Fatigue load limit | Pu |
0.12 kN
|
| Reference speed |
50 000 r/min
|
|
| Limiting speed |
32 000 r/min
|
|
| Minimum load factor | kr |
0.025
|
| Calculation factor | f0 |
14
|
6002-2Z Collection
| HMK3525+IR | T7FC055 | SG02 | GM38VB | HMT36FA |
| NUP2209 | NUP310 | SG15 | MAG150 | HMGC32 |
| NUP2209 | NUP207 | SG20 | TM09 | HMGF35 |
| NUP2212 | 6213 | NUP309=180 | NUP2212=220 | 6305 |
| M2X146 | NUP308 | NUP309 | DNB50/60 | NUP2211=250 |
| NUP309 | JMF29 | NUP206 | NUP307 | NUP207 |
| NUP2212 | HMGF36 | 6305M | NUP2209=160 | NUP307 |
| 32205 | NUP206=100 | GM17VA | NUP2207=140 | NUP2211 |
| T7FC060 | NUP308 | JMV-44/22 | 30312D | HMGC48 |
| M2X150 | 30314D=250 | KMF125-PC200-7 | 30312D | NUP309 |
| M2X170 | 30312D | NUP2310 | 30309D | 30312D |
| M2X210 | 30314D | 30210 | 30210 | GM35VA |
| HMGF57 | JMF151 | 30311D | KMF125-PC200-8 | 30312D=155 |
| NUP306 | 11749/11710 | SG04 | KMF160-PC360-7 | M2X96 |
| NUP307 | KMF41-PC60 | SG025 | MSG-27P | MCB172 |
| 30312 | NUP207 | GM18VL | JMF23 | GM35VL |
| KMF90-PC200-6 | HMS072 | AP5S53 | 30309D | NUP2206=130 |
| NUP2206 | AP5S67 | NUP2207 | M5X130 | MAG85 |
| NUP308 | NUP308=140 | NUP2207 | M5X180 | |
| 30309D=110 | T7FC055=300 | JMF195 | NUP205E | |
| NUP207/NUP306 | NUP309 | NUP2212 | NUP207=120 | |
| NUP309=180 | JMF250 | NUP2211 | 4T-30307 | |
| NUP309=180 | NUP206E | 30312D=155 | SG08 | |
| NUP310 | 15578 | NUP307 | NUP309 | |
| 6008 | NUP306 | 30311D | T7FC055 | |
| MAG150 | 30312D | T7FC055 | NUP307 | |
| NUP309 | NIP2310 | MAG120 | NUP2208 | |
| NUP2209 | NUP208E | NUP2208=210 | M2X55 | |
| M2X120 | NUP308=14 | NUP307=110 | M2X63 | |
| 32207 | T7FC065 | NUP308 | JMV-53/31 |
