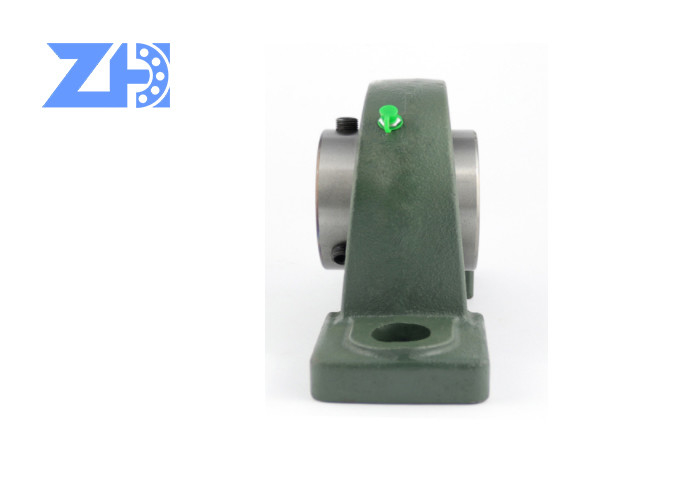

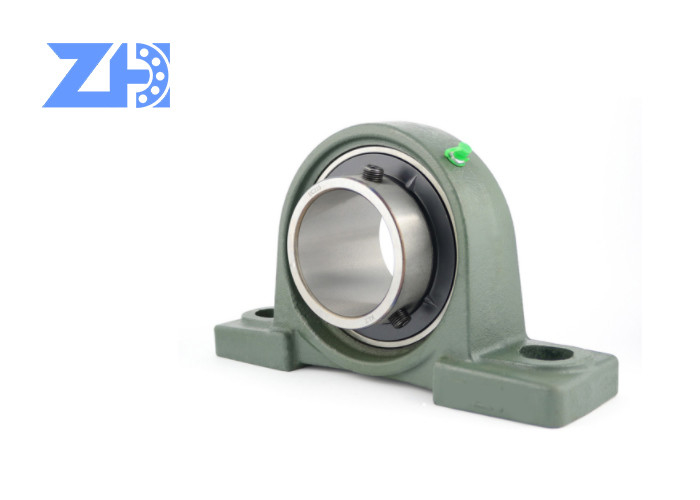

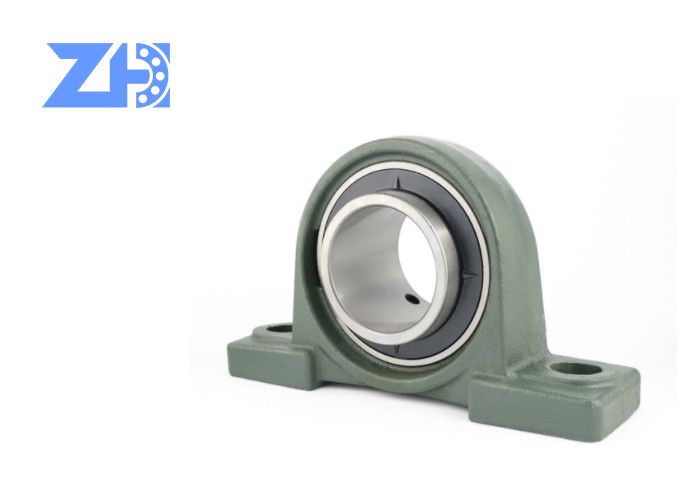

Asahi Pillow Block Bearing UCP215 UC215 Flanged Mounted Pillow Block Bearing
UCP Series Insert Bearing With Housing
Pillow block bearings are widely used in various kinds of industries and machines such as car wash equipment, construction machinery, fans, HVAC, food processing, metal working machinery, textile machinery, paper making & paper converting equipment & woodworking machinery.
Pillow block bearings are mounted type bearings available in flanged & upright styles in different inch & metric sizes. Pillow block bearings are designed to support shafts. Features include mounting surfaces parallel to shaft axes & elongated bolt holes in bases or feet of units for adjustment & mounting of pillow block bearing. Pillow block bearings are available in bore sizes ranging from 1/2 in. To 10 in.
Material & Sizes:
1. Material: Housing available in Cast iron, Ductile iron, Stainless Steel;
2. Bore diameter: From 12mm to 140mm;
3. Outer diameter: From 47mm to 300mm;
4. Size: Metric and Imperical size available.
Supplying range:
1. Pillow Block
1) UCP, UCPA, UCPH, UCPW, UCF, UCFA, UCFB, UCFC, UCFL, UCHA, UCHE, UCT 200, SALF, SBLF, SBFW, SBFD series, bore size 12mm to 90mm Metric and Imperial available;
2) UCP, UCF, UCFL, UCT 300 series, bore size 25mm to 140mm available;
3) UCPX, UCFX, UCFLX, UCFCX, UCTX, bore size 25mm to 85mm Metric and imperial size available.
2. Insert Ball Bearing (Material for chrome steel and stainless steel available)
1) UC, UB, UD, UK, UEL, SA, SB, SER, UCX 200 and 300 series, Metric and imperial bore size: 10mm to 200mm available
2) UC, UB, UD, UK, UEL, SA, SB, SER, UCX 200 and 300 series, Metric and imperial bore size: 12mm to 90mm available
Appliexcavatorion:
Pillow Block Bearing are widely used in automobile, electrical. (Home appliances, electric tools, fitness equipment, motors, medical devices, motorbikes, textile machines) .Pillow Block Bearing used in equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries
| Bearing No. |
Dimensions mm inch |
Load Rating(KN) | |||||||||
| Dynamic | Static | ||||||||||
| d | D | B | C | S | S1 | G | ds | F | Cr | Cor | |
| UC201 | 12 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | M6×1x0.75 | 3.7 | 12800 | 6650 |
| UC201-8 | 1/2 | 1.8504 | 1.2205 | 0.6693 | 0.5 | 0.72 | 0.189 | 1/4-2 8UNF | 0.146 | ||
| UC202 | 15 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | M6×1x0.75 | 3.7 | ||
| UC202-9 | 9/16 | 1.8504 | 1.2205 | 0.6693 | 0.5 | 0.72 | 0.189 | 1/4-2 8UNF | 0.146 | ||
| UC202-10 | 5/8 | ||||||||||
| UC203 | 17 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | M6×1x0.75 | 3.7 | ||
| UC203-11 | 11/16 | 1.8504 | 1.2205 | 0.6693 | 0.5 | 0.72 | 0.189 | 1/4-2 8UNF | 0.146 | ||
| UC204 | 20 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | M6×1x0.75 | 4 | 12800 | 6650 |
| UC204-12 | 3/4 | 1.8504 | 1.2205 | 0.6693 | 0.5 | 0.72 | 0.189 | 1/4-28UNF | 0.157 | ||
| UC205 | 25 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | M6×1x0.75 | 4 | 14000 | 7850 |
| UC205-13 | 13/16 | 2.00472 | 1.3425 | 0.6693 | 0.563 | 0.78 | 0.197 | 1/4-28UNF | 0.157 | ||
| UC205-14 | 7/8 | ||||||||||
| UC205-15 | 15/16 | ||||||||||
| UC205-16 | 1 | ||||||||||
| UC206 | 30 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | M6×1x0.75 | 5 | 19500 | 11300 |
| UC206-17 | 1-1/16 | 2.4409 | 1.5 | 0.748 | 0.626 | 0.874 | 0.197 | 1/4-28UNF | 0.197 | ||
| UC206-18 | 1-1/8 | ||||||||||
| UC206-19 | 1-3/16 | ||||||||||
| UC206-20 | 1-1/4 | ||||||||||
| UC207 | 35 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | M8×1 | 5.5 | 25700 | 15300 |
| UC207-20 | 1-1/4 | 2.8346 | 1.689 | 0.7874 | 0.689 | 1 | 0.276 | 5/16-24UNF | 0.216 | ||
| UC207-21 | 1-5/16 | ||||||||||
| UC207-22 | 1-3/8 | ||||||||||
| UC207-23 | 1-7/16 | ||||||||||
| UC208 | 40 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | M8×1 | 6 | 29500 | 18100 |
| UC208-24 | 1-1/2 | 3.1496 | 1.937 | 0.8268 | 0.748 | 1.189 | 0.315 | 5/16-24UNF | 0.236 | ||
| UC208-25 | 1-9/6 | ||||||||||
| UC209 | 45 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | M8×1 | 6.4 | 31600 | 20600 |
| UC209-26 | 1-5/8 | 3.3465 | 1.937 | 0.8661 | 0.748 | 1.189 | 0.315 | 5/16-24UNF | 0.252 | ||
| UC209-27 | 1-11/16 | ||||||||||
| UC209-28 | 1-3/4 | ||||||||||
| UC210 | 50 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | M10×1.25 | 6.5 | 35000 | 23200 |
| UC210-29 | 1-13/16 | 3.5433 | 2.0315 | 0.9449 | 0.748 | 1.283 | 0.394 | 3/8-24UNF | 0.256 | ||
| UC210-30 | 1-7/8 | ||||||||||
| UC210-31 | 1-15/16 | ||||||||||
| UC210-32 |
2 |
||||||||||
OEM and Customized Package is Possible
Natural package:
White box,Plastic Tubes,Wooden cartons
Customized Package According to our customer's requirements
Original Brand Packing Bearing and packing are both original. Please contact us for pictures.
Delivery time:3-5 days or according to our customer’s order quantity
