Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
22332MA
140x300x102mm Truck Wheel Bearing 22332MA 22332BC 22332CAC 22332CC C22332E P0 P5 P3 P2 CHROME STEEL Truck Wheel Bearing
Product introduction(Long use time, good quality, low price, looking for ZH factory)
22332MA Spherical roller bearing with relubrication features
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature.
| Bore diameter | 160 mm |
| Outside diameter | 340 mm |
| Width | 114 mm |
| d |
160 mm
|
Bore diameter |
|---|---|---|
| D |
340 mm
|
Outside diameter |
| B |
114 mm
|
Width |
| d2 |
≈200 mm
|
Shoulder diameter of inner ring |
| D1 |
≈282 mm
|
Shoulder/recess diameter of outer ring |
| b |
16.7 mm
|
Width of lubrication groove |
| K |
9 mm
|
Diameter of lubrication hole |
| r1,2 |
min.4 mm
|
Chamfer dimension |
| da |
min.177 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max.323 mm
|
Diameter of housing abutment |
| ra |
max.3 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
1 680 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 960 kN
|
| Fatigue load limit | Pu |
160 kN
|
| Reference speed |
1 500 r/min
|
|
| Limiting speed |
1 900 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
| PART NO | 22332 MA C4 F80 W33 |
|---|---|
| DESCRIPTION | 22332 MA C4 F80 W33 |
| D | 160mm (6.2992 inch) |
| D | 340mm (13.3858 inch) |
| B | 114mm (4.4882 inch) |
| BASIC DYNAMIC RATING CR | 1520 kN (341710 pounds) |
| BASIC STATIC RATING COR | 2160 kN (485587 pounds) |
| LIMITING SPEED GREASE (RPM) | 900 |
| LIMITING SPEED OIL (RPM) | 1, 200 |
| RS (MIN) | 4mm (0.1575 inch) |
| E | 0.37 |
| Y1 | 1.8 |
| Y2 | 2.7 |
| Y0 | 1.8 |
| WEIGHT UNIT OF MEASURE: | EA |
|---|---|
| WEIGHT: | 114.64 |
| SALE QTY MULTIPLE: | 1 |
| PACKAGED LENGTH: | 14.57 |
| PACKAGED WIDTH: | 14.57 |
| PACKAGED HEIGHT: | 5.91 |
| NO. LINKS/FT. : | 0 |
| BORE DIA: | 160mm (6.2992 inch) |
| BORE CONFIGURATION: | Cylindrical |
| SERIES: | 22300 |
| RADIAL CLEARANCE: | Normal |
| ANGULAR MISALIGNMENT: | 2° |
22332MA Collection
| 32205 | NUP2209=160 | NUP307 | T7FC065 | NUP2211 | NUP2209 | 6008 | MAG150 |
| T7FC055=300 | SG02 | HMK3525+IR | NUP207 | NUP308 | NUP2209 | NUP307 | TM09 |
| NUP309 | SG15 | 30309D | HMGF57 | NUP309 | NUP2212 | 30311D | GM18VL |
| 30312D | 30314D=250 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | KMF125-PC200-7 |
| 30314D | KMF41-PC60-7 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | NUP309=180 |
| NUP309 | KMF90-PC200-6 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP2207=140 | |
| JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP2206=130 | |
| JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | NUP309=180 | |
| JMF151 | GM38VB | M2X146 | T7FC060 | 30312 | NUP309 | ||
| JMF195 | JMV-53/31 | HMT36FA | M2X150 | NUP207 | 30312D | NUP310 | |
| JMF250 | MAG85 | HMGC32 | M2X170 | 6213 | 30312D | NUP2310 | |
| M2X55 | MAG120 | HMGF35 | M2X210 | NUP308 | NUP308 | NUP2212 | |
| M2X63 | MAG150 | HMGF36 | SG20 | NUP2207 | DNB50/60 | NUP206 | |
| KMF125-PC200-8 | NUP206E | HMGC48 | HMS072 | 6305 | NUP308 | NUP308=140 | |
| KMF160-PC360-7 | 15578 | NUP309 | AP5S67 | NUP2211=250 | 30309D=110 | NUP309 | |
| MSG-27P | NUP306 | T7FC055 | 11749/11710 | NUP207 | NUP207 | NUP206 | |
| AP5S53 | NUP307 | T7FC055 | NUP310 | NUP307 | 30309D | 6305M | |
| M5X130 | NUP205E | NUP306 | NUP208E | NUP307 | 30312D | 4T-30307 |

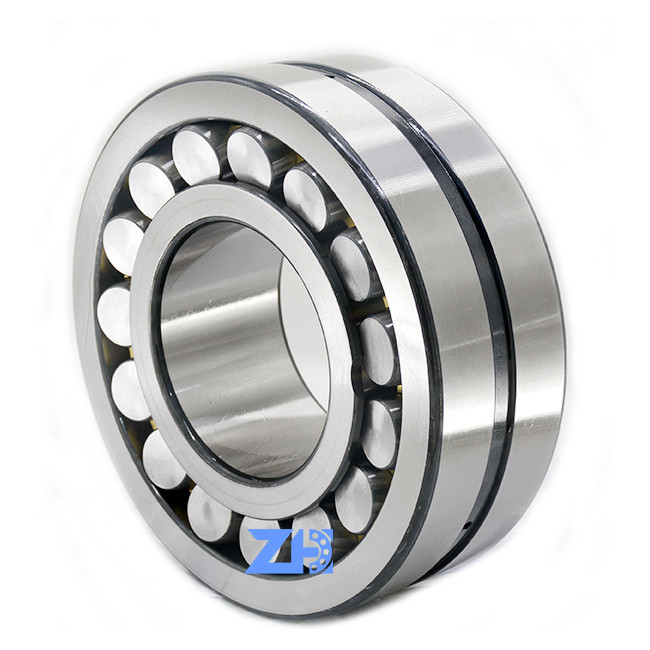

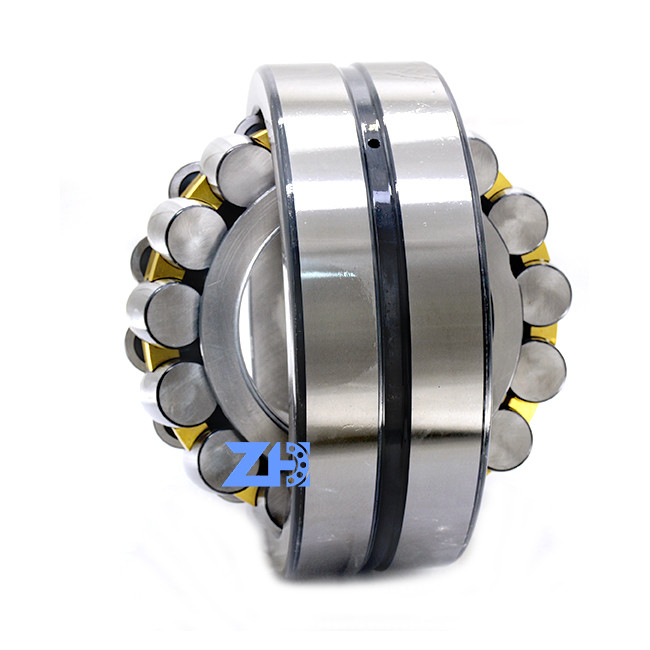

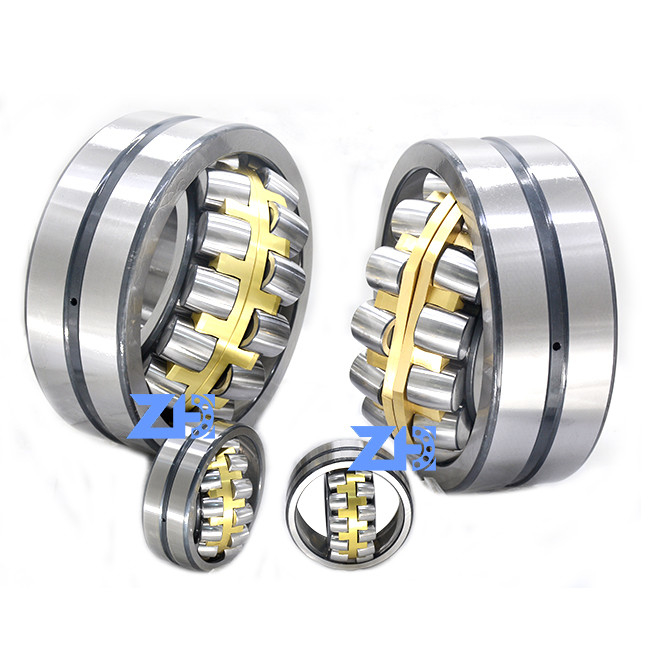

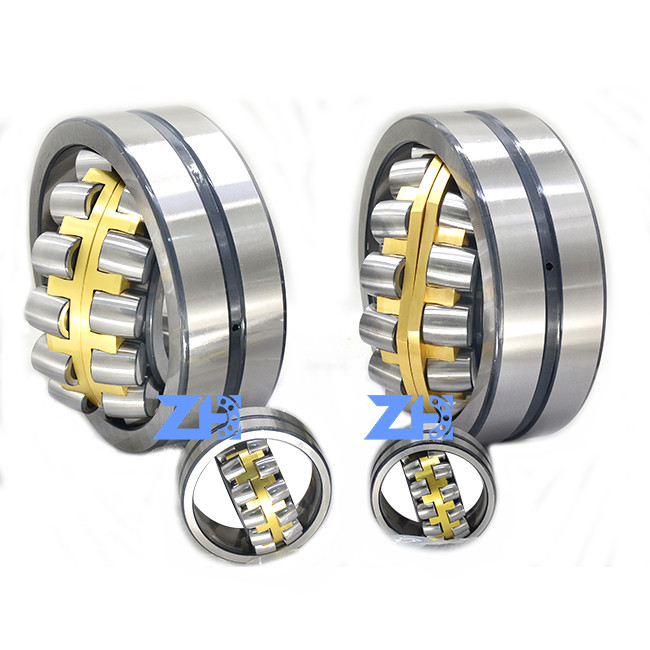

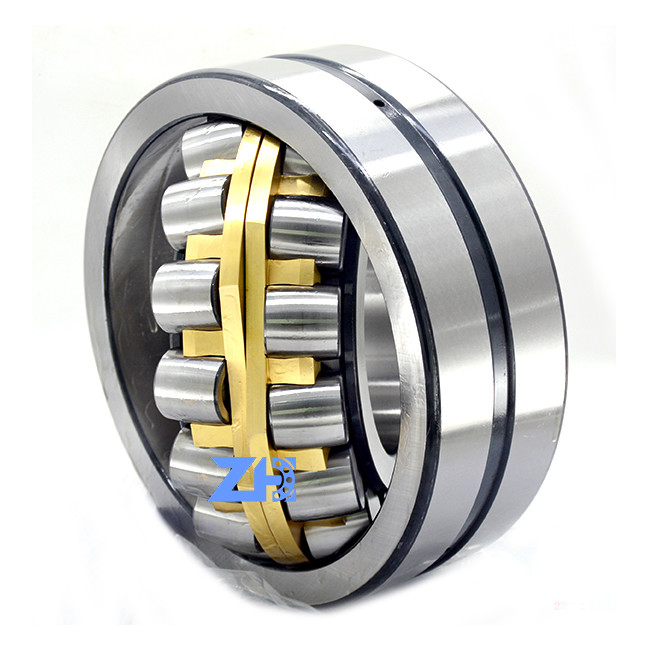

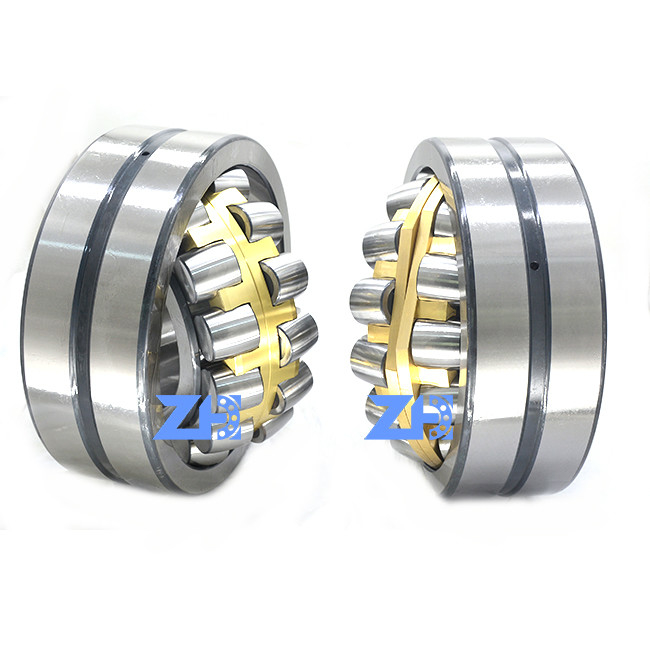

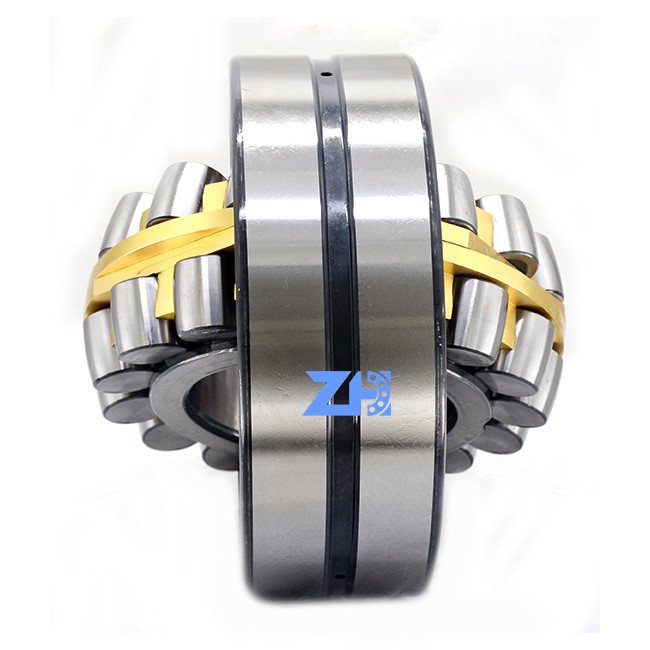

Picture show
