Place of Origin:
China
Brand Name:
ZH
Certification:
IS09001
Model Number:
22330CA

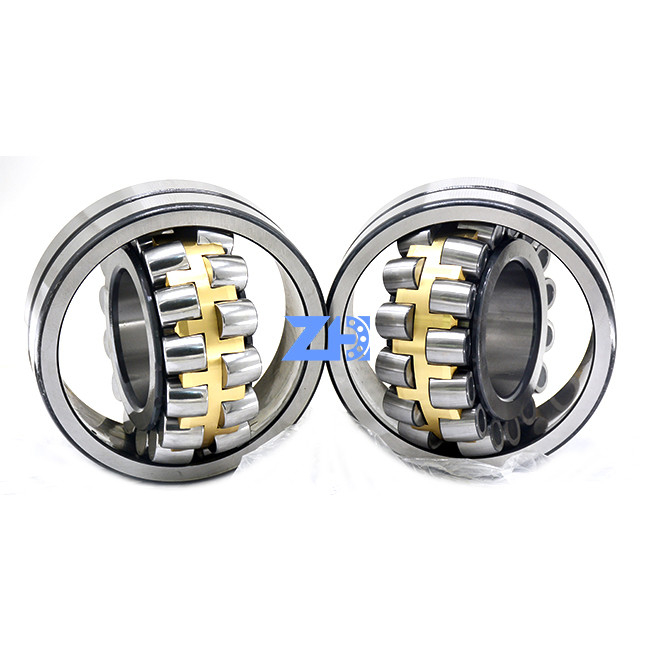

Professional production Spherical Roller Bearing 22330CA 22330ECA 22330MA 22330CB 150*320*108mm
Product introduction (Price good,High quality )
22330CA The unique design also leads to: Reduced friction torque (as much as 30% less), offering lower operating temperature, with lower power and lubricant consumption. Appreciably increased operating speed, allowing an extended scope of applications. High temperature capacity of up to 200°C (392°F) for metallic cage bearings. Dimensional stability is ensured by a specific heat treatment. A +/- 0.5° misalignment capability, without reducing the load capacity, and up to 1° 30’ in case of low loads.
| Bore diameter | 150 mm |
| Outside diameter | 320 mm |
| Width | 108 mm |
| Basic dynamic load rating | 1 539 kN |
| Basic static load rating | 1 760 kN |
| Reference speed | 1 600 r/min |
| Limiting speed | 2 000 r/mi |
| Number of rows | 2 |
| Locating feature, bearing outer ring | Without |
| Bore type | Cylindrical |
| Cage | Surface-hardened sheet metal |
| Radial internal clearance | C4 |
| Tolerance class for dimensions | Normal, bore to P5 and outside diameter P6 |
| Tolerance class for run-out | Normal |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | With |
| Candidate for remanufacturing | Yes mm |
| d |
150 mm
|
Bore diameter |
|---|---|---|
| D |
320 mm
|
Outside diameter |
| B |
108 mm
|
Width |
| d2 |
≈188 mm
|
Shoulder diameter of inner ring |
| D1 |
≈266 mm
|
Shoulder/recess diameter of outer ring |
| b |
16.7 mm
|
Width of lubrication groove |
| K |
9 mm
|
Diameter of lubrication hole |
| r1,2 |
min.4 mm
|
Chamfer dimension |
22330CA Collection
| NUP309 | SG15 | 30309D | HMGF57 | NUP309 | NUP2212 | 30311D | GM18VL |
| 30312D | 30314D=250 | 30210 | SG08 | NUP309 | NUP2212 | T7FC055 | KMF125-PC200-7 |
| 30314D | KMF41-PC60-7 | 30210 | GM17VA | NUP2212 | NUP2211 | NIP2310 | NUP309=180 |
| NUP309 | KMF90-PC200-6 | 30311D | JMV-44/22 | 30312D=155 | 30312D=155 | NUP2207=140 | |
| JMF29 | NUP2206 | SG04 | GM35VA | M2X96 | M2X120 | NUP2206=130 | |
| JMF23 | NUP2207 | SG025 | GM35VL | MCB172 | 32207 | NUP309=180 | |
| JMF151 | GM38VB | M2X146 | T7FC060 | 30312 | NUP309 | ||
| JMF195 | JMV-53/31 | HMT36FA | M2X150 | NUP207 | 30312D | NUP310 | |
| JMF250 | MAG85 | HMGC32 | M2X170 | 6213 | 30312D | NUP2310 | |
| M2X55 | MAG120 | HMGF35 | M2X210 | NUP308 | NUP308 | NUP2212 | |
| M2X63 | MAG150 | HMGF36 | SG20 | NUP2207 | DNB50/60 | NUP206 | |
| KMF125-PC200-8 | NUP206E | HMGC48 | HMS072 | 6305 | NUP308 | NUP308=140 | |
| KMF160-PC360-7 | 15578 | NUP309 | AP5S67 | NUP2211=250 | 30309D=110 | NUP309 | |
| MSG-27P | NUP306 | T7FC055 | 11749/11710 | NUP207 | NUP207 | NUP206 | |
| AP5S53 | NUP307 | T7FC055 | NUP310 | NUP307 | 30309D | 6305M | |
| M5X130 | NUP205E | NUP306 | NUP208E | NUP307 | 30312D | 4T-30307 |

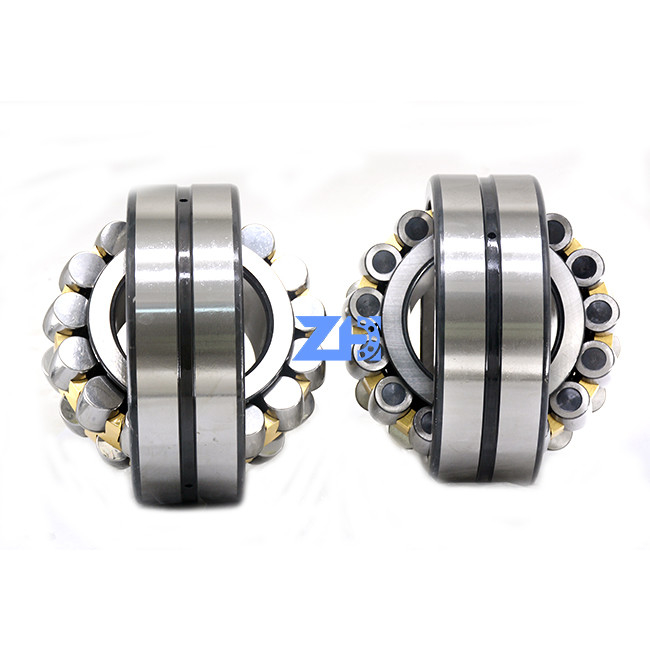

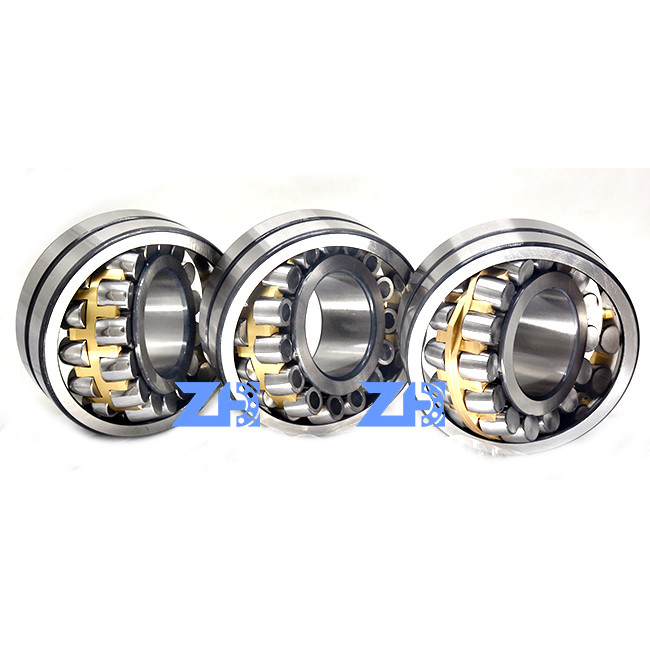

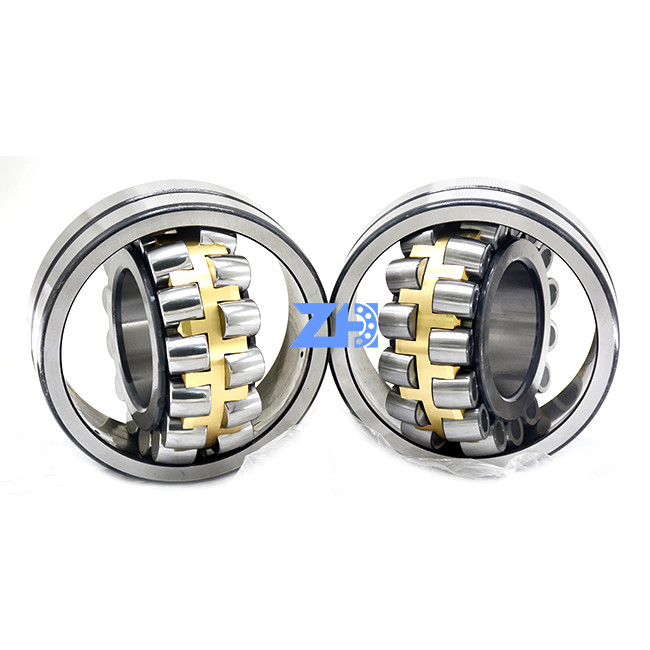

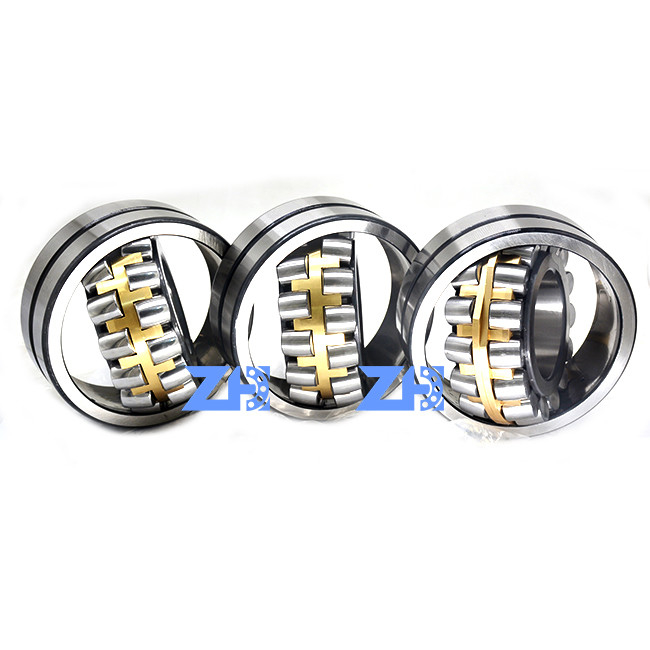

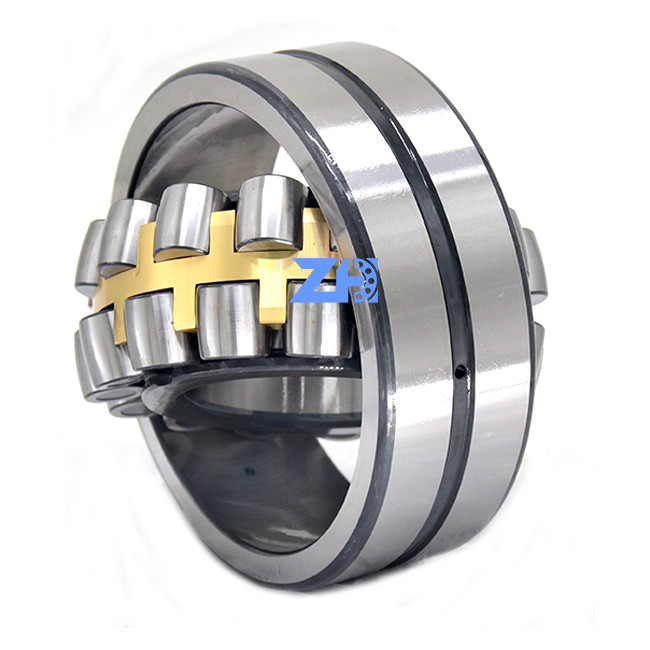

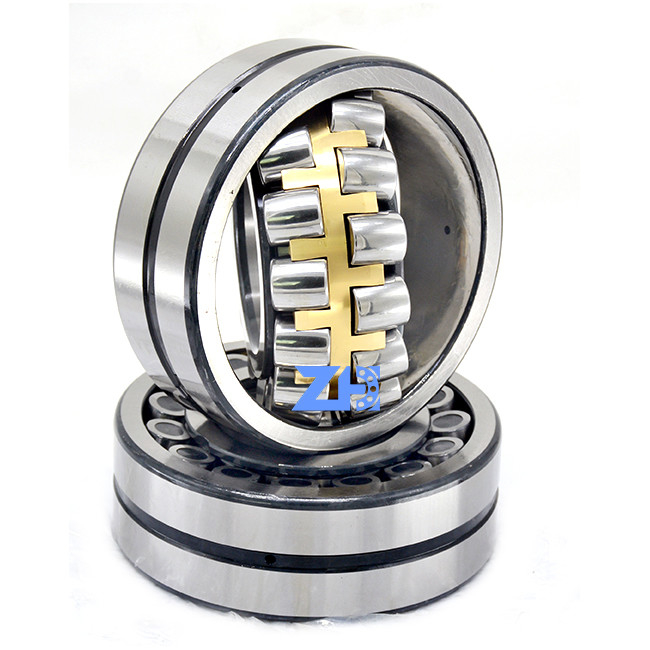

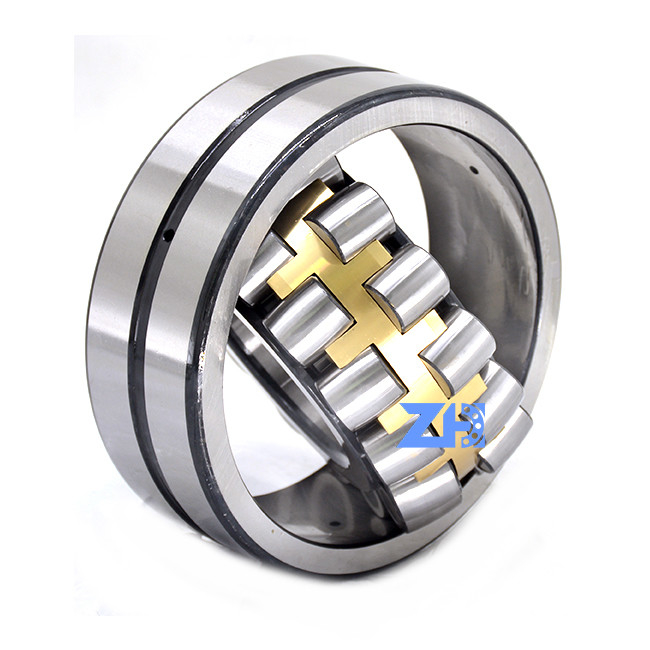

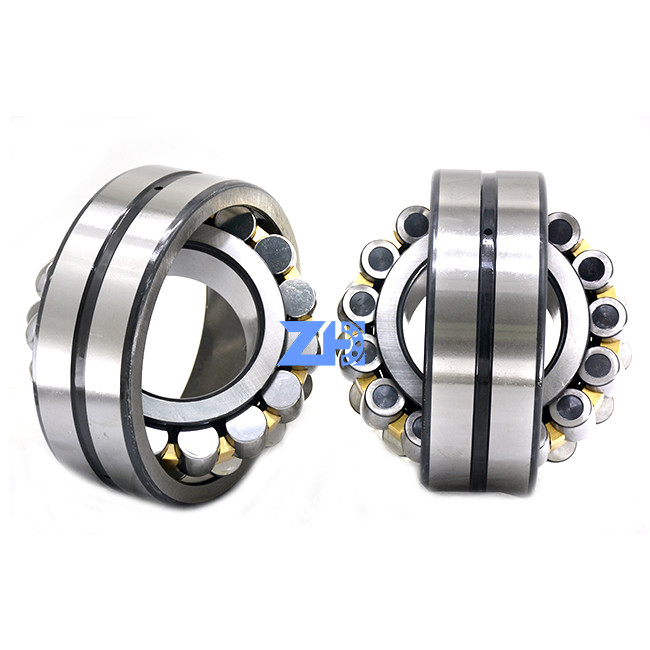

Picture show
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , L/C , WEST UNION , ESCROW , PAYPAL , ETC. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: If you meet with quality problem, we promise to replace goods or return your funds.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month, and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send 1pc for quality testing if we have the item you need in stock.
