Place of Origin:
China
Brand Name:
Z&H
Model Number:
NKIS35

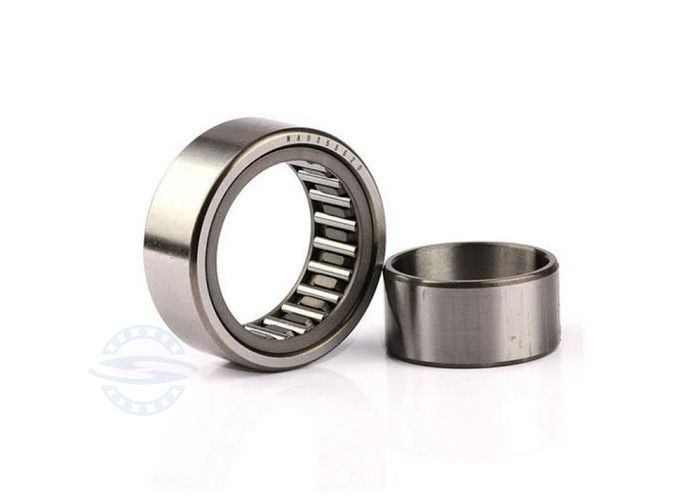

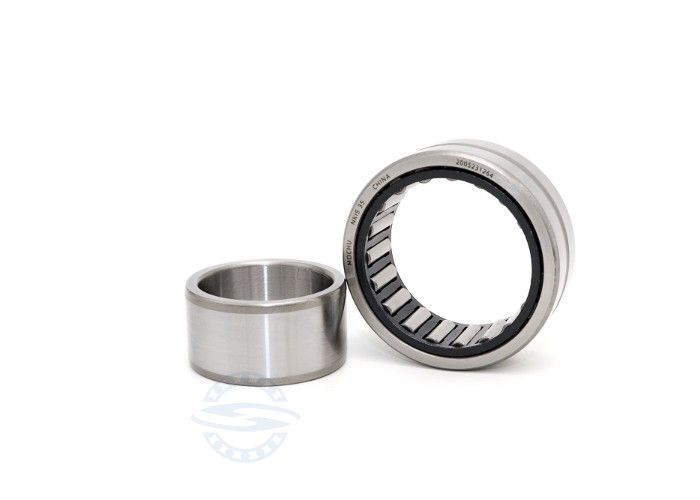

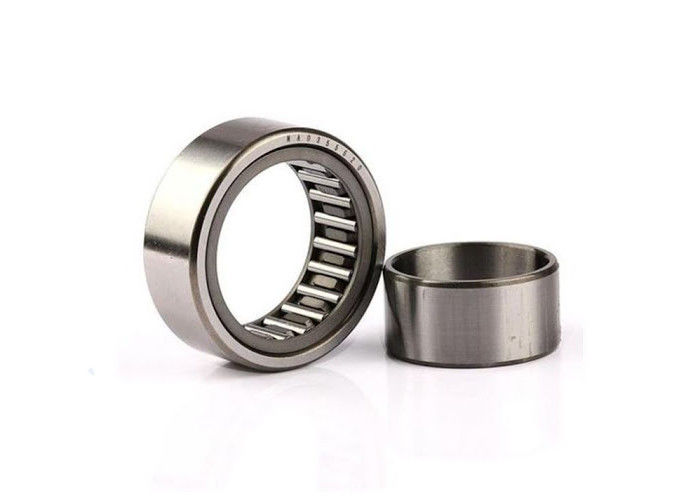

NKIS35 NKI35/20 NKI35/20 Needle Roller Bearing Open Seals Type Size 35*43*58mm
Product Description
|
Name |
Needle Roller Bearing NKIS35 |
| Material | Chrome steel GCR15 |
| Cage material | steel,brass |
| Clearance | C0,C2,C3,C4,C5 |
| Precision | P0,P6,P5,P4 |
| Greese | Lithium soap base grease or as coustomer's requirement |
| Appliexcavatorion | Machine tool,oil,vibration screen,rolling mill handling machinery and machines in various industries. |
| Certifiexcavatorions | ISO9001:2008 quality management system |
Needle roller bearings are rotational motion bearings in which a thin needle-shaped roller is incorporated into a rolling element. They have a low cross-section height and high load capacity compared with ball bearings. Being small, needle roller bearings contribute to reducing overall machine size, and are thus widely used in various appliexcavatorions such as automobiles, motorcycles, printing presses, industrial robots and construction equipment.
Needle Roller Bearing Feature: Needle roller bearings are stamped from a thin-walled outer ring with a needle roller and cage assemblies consisting of sets of component units,Particularly space-saving structure, Hardened setting is applied to the inner ring using IR or LR series combination, Needle roller bearings double row may have lubriexcavatorion holes as a standard feature, Easy to install, With AXW series thrust needle roller composition used in combination.
| Designation | Mass | Dimensions | Basic Load Ratings | Limiting | ||||||
| Diameter | d | F | D | B | r | Cr | Cor | Speed | ||
| mm | No. | g | min. | kN | kN | rpm | ||||
| 15 | NKIS 15 | 92 | 15 | 22 | 35 | 20 | 0.6 | 24.5 | 28 | 11000 |
| 17 | NKIS 17 | 98 | 17 | 24 | 37 | 20 | 0.6 | 25.1 | 31 | 10000 |
| 20 | NKIS 20 | 129 | 20 | 28 | 42 | 20 | 0.6 | 25.8 | 33.5 | 9000 |
| 25 | NKIS 25 | 162 | 25 | 32 | 47 | 22 | 0.6 | 33.5 | 43.5 | 8500 |
| 30 | NKIS 30 | 184 | 30 | 37 | 52 | 22 | 0.6 | 32.8 | 50 | 7500 |
| 35 | NKIS 35 | 220 | 35 | 43 | 58 | 22 | 0.6 | 35.5 | 57.8 | 6500 |
| 40 | NKIS 40 | 281 | 40 | 50 | 65 | 22 | 1 | 38 | 66.1 | 5500 |
| 45 | NKIS 45 | 336 | 45 | 55 | 72 | 22 | 1 | 42.4 | 72.1 | 5500 |
| 50 | NKIS 50 | 518 | 50 | 60 | 80 | 28 | 1.1 | 51.7 | 100 | 5000 |
| 55 | NKIS 55 | 558 | 55 | 65 | 85 | 28 | 1.1 | 53 | 105 | 4700 |
| 60 | NKIS 60 | 560 | 60 | 70 | 90 | 28 | 1.1 | 54.5 | 113 | 4500 |
| 65 | NKIS 65 | 641 | 65 | 75 | 95 | 28 | 1.1 | 57 | 122 | 4200 |
