Place of Origin:
CHINA
Brand Name:
NTN SKF NSK
Model Number:
22212CA/W33
CA,CA/W33,C,CC,CC/W33,MB
Spherical roller bearing 22212CA/W33 Specifiexcavatorion
1.ISO9001-2008 Certifiexcavatore
2.High quality
3.Reasonable price

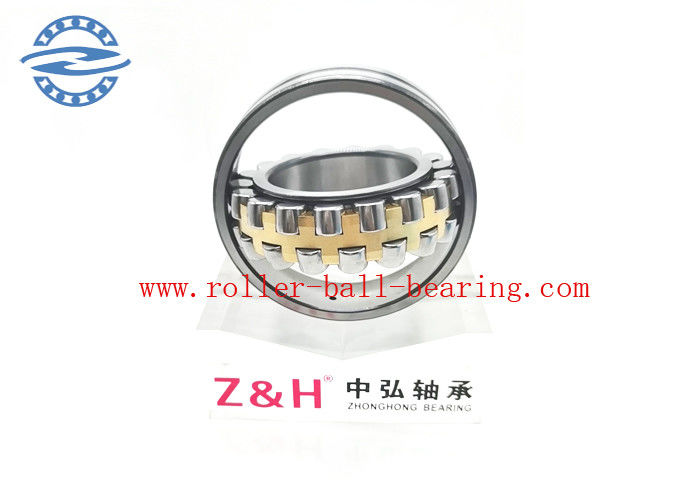

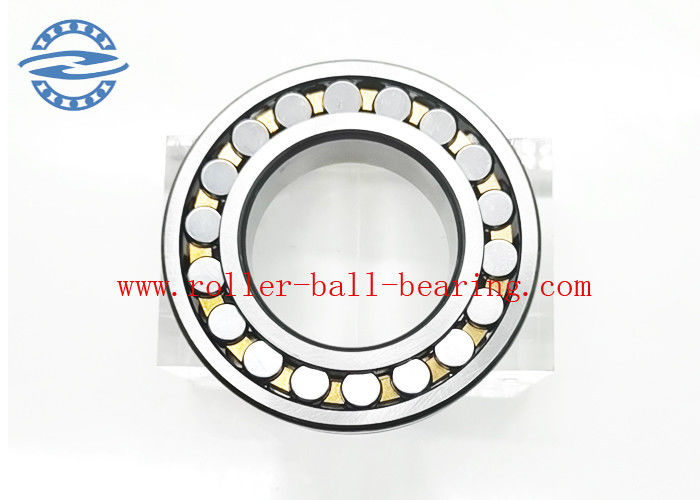

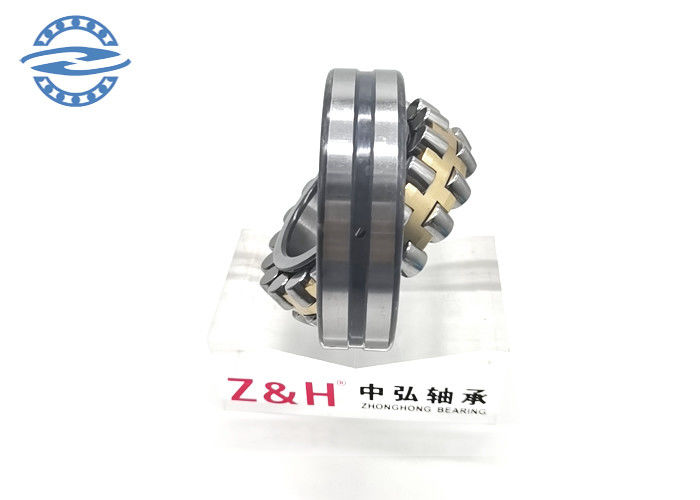

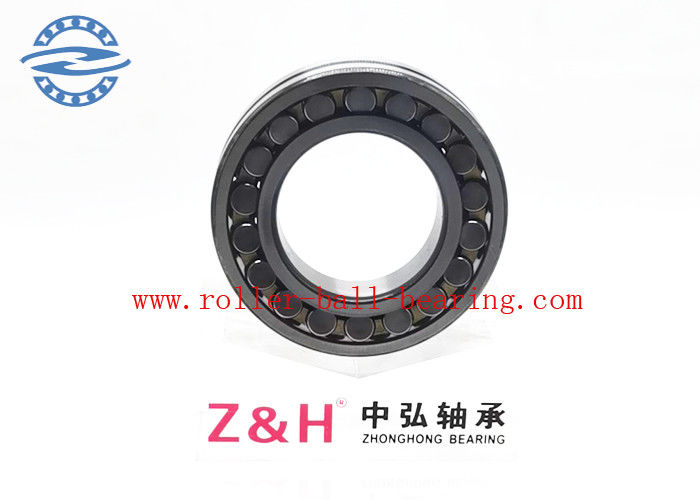

Spherical roller bearing (22212CA/W33)
Bearings 22210CA/W33 have barrel-shaped rollers between the inner ring, which has two raceways, and the outer ring which has one spherical raceway. Since the center of curvature of the outer ring raceway surface coincides with the bearing axis, 22210CA/W33 are self-aligning in a manner similar to that of self-aligning ball bearings. Therefore, if there is deflection of the shaft or housing or misalignment of their axes, it is automatically corrected so excessive force is not applied to the bearings
Spherical roller bearing 22212CA/W33 appliexcavatorion
1.Papermaking machinery, deceleration device, railway vehicle axle, rolling mill, roller gearbox,crusher,vibrating screen, printing machinery, woodworking machinery, various industrial reducer,vertical insert self-aligning bearing
2.Spherical Roller Bearings 22210CA/W33 are suitable for the high axial , impulse and heavy load appliexcavatorions such as paper manufacturing, rolling and other large size machineries
| Model | Boundary Dimensions (mm) | Basic Load Rating (KN) | Mass | |||||
| D | D | B | C | Co | Kg | |||
| 21307 | 21307K | 21307W33 | 35 | 80 | 21 | 70.70 | 73.30 | 0.547 |
| 21308 | 21308K | 21308W33 | 40 | 90 | 23 | 87.60 | 92.00 | 0.751 |
| 21309 | 21309K | 21309W33 | 45 | 100 | 25 | 105.00 | 112.00 | 1.010 |
| 21310 | 21310K | 21310W33 | 50 | 110 | 27 | 121.00 | 129.00 | 1.300 |
| 21311 | 21311K | 21311W33 | 55 | 120 | 29 | 141.00 | 152.00 | 1.660 |
| 21312 | 21312K | 21312W33 | 60 | 130 | 31 | 165.00 | 175.00 | 1.990 |
| 21313 | 21313K | 21313W33 | 65 | 140 | 33 | 186.00 | 197.00 | 2.450 |
| 21314 | 21314K | 21314W33 | 70 | 150 | 35 | 206.00 | 223.00 | 2.980 |
| 21315 | 21315K | 21315W33 | 75 | 160 | 37 | 249.00 | 270.00 | 3.630 |
| 21316 | 21316K | 21316W33 | 80 | 170 | 39 | 272.00 | 306.00 | 4.290 |
| 21317 | 21317K | 21317W33 | 85 | 180 | 41 | 297.00 | 351.00 | 5.190 |
| 21318 | 21318K | 21318W33 | 90 | 190 | 43 | 320.00 | 387.00 | 6.090 |
| 21319 | 21319K | 21319W33 | 95 | 200 | 45 | 366.00 | 500.00 | 7.150 |
| 21320 | 21320K | 21320W33 | 100 | 215 | 47 | 397.00 | 546.00 | 8.810 |
| 21322 | 21322K | 21322W33 | 110 | 240 | 50 | 460.00 | 634.00 | 9.460 |
3 . CONPANY PROFILE
ZhongHong Bearing Manufacturing Co. Ltd is a bearing production, sales - based company,
the company in the industrial field has many years of bearing supporting and industrial service experience.
Types involved: deep groove ball bearings, joint bearings, conical bearings, cylindrical bearings and so on Our products are widely used in machine tools,
coal mine, railway, petroleum printing, power plant, ship, aviation, automobile and other industries
WORKSHOP
WAREHOUSE
Exhibition photo
4. PACKAG and SHIPPING
1.Single box packing, then in carton then in Pallet.
2.Standard export packing.
3. According customer demand.
4. Negotiable
5 . FAQ
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
