Place of Origin:
China
Brand Name:
Z&H
Model Number:
528946

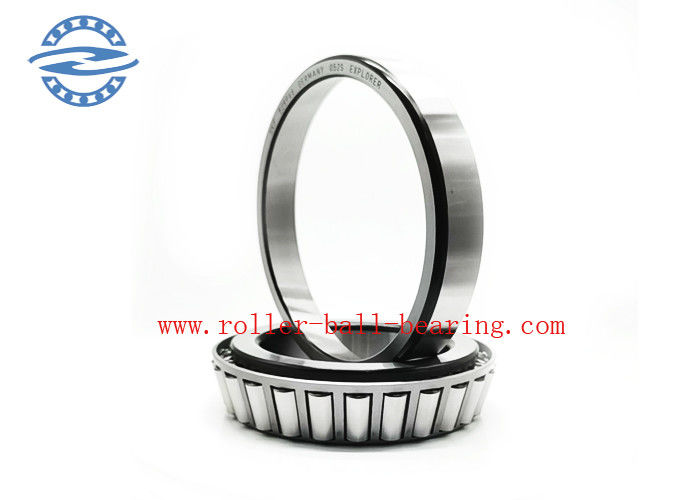

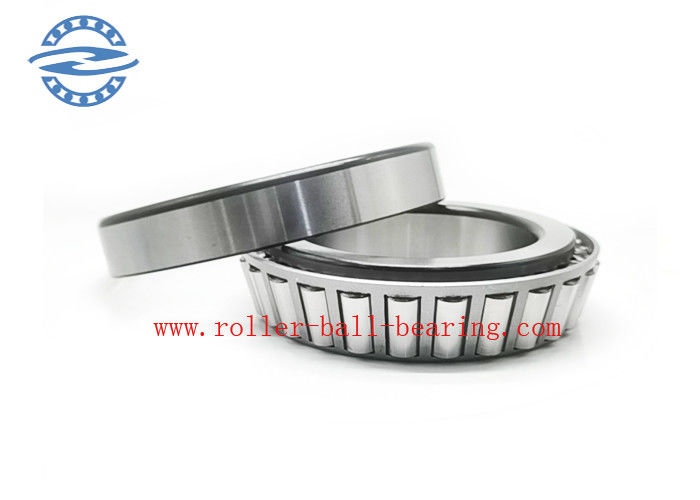

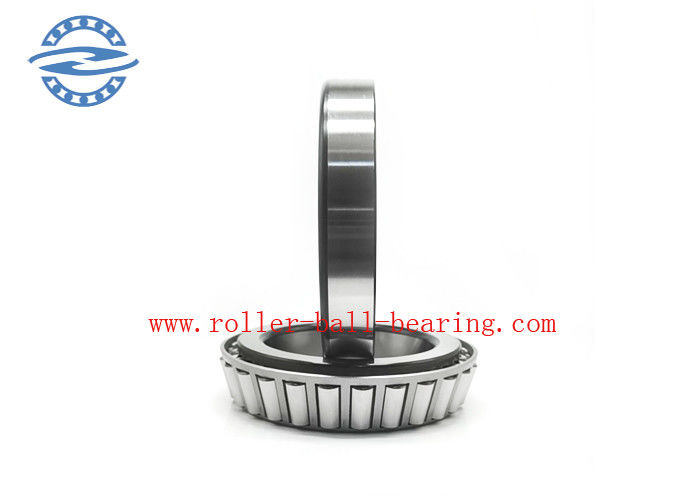

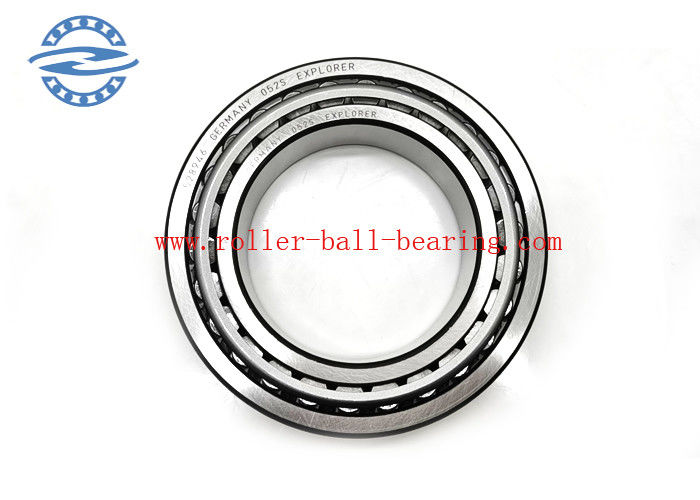

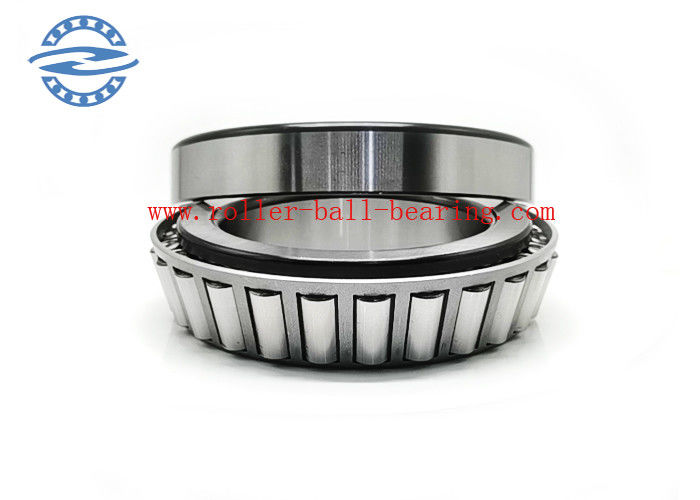

Factory direct sales Taper Roller Bearings 528946 Size105*170*38mm
| Brand Name | Z&H |
| item name | Taper Roller Bearings 528946 Size105*170*38mm |
| Bearing Seals | OPEN |
| Material | GCr15,chrome steel, stainless steel,Iron |
| Guarantee | 1YEAR |
| Size | 110*170*140mm |
| Package | Pallet,wooden case,commercial packaging or as customers' requirement. |
| Bearings weight | 3.35 kg |
| Payment Item | T/T ,Western Union , Paypal ,Credit card |
| Delivery time | 3-10day |
Appliexcavatorion: Automobile, Rolling mill, Mining, Metallurgy, Plastic machinery , etc.
Description: Tapered roller bearing comprised by inner ring, roller , retainer and outer ring, which can be installed separately.
This kind of bearing can support heavy radial load and axial load. Due to tapered roller bearing can only transfer one-way axial load, we need to install a symmetric tapered roller bearing to transfer the opposite direction axial load. This kind of bearing include single row , double-row and four-row tapered roller bearing according to the column number of roller. The clearance of single row tapered roller bearing need a adjustment during installation. And the clearance of double-row and four-row tapered roller bearing has been adjusted according to the users' requirement and need not to adjust.
Related Product
Other Size
1. Tapered roller bearings can be separated from the inner ring and roller assembly and the outer ring together form the cage tapered roller bearings can be installed separately.
2. The roller and raceway contact at the contact line can reduce the stress concentration.
3. Tapered roller bearings can withstand high radial and axial load.
4. As tapered roller bearings can only pass one-way axial load, therefore, to pass in the opposite direction of the axial load will need another with symmetrical installation of tapered roller bearings.
| Item | Size(mm) | Weight (kg) |
| 32004 | 20*42*15 | 0.103 |
| 32005 | 25*47*15 | 0.113 |
| 32006 | 30*55*17 | 0.181 |
| 32007 | 35*62*18 | 0.22 |
| 32008 | 40*68*19 | 0.277 |
| 32009 | 45*75*20 | 0.339 |
| 32010 | 50*80*20 | 0.38 |
| 32011 | 55*90*23 | 0.564 |
| 32012 | 60*95*23 | 0.597 |
| 32013 | 65*100*23 | 0.627 |
| 32014 | 70*110*25 | 0.972 |
| 32015 | 75*115*25 | 0.875 |
| 32016 | 80*125*29 | 1.26 |
| 32017 | 85*130*29 | 1.33 |
| 32018 | 90*140*32 | 1.66 |
| 32019 | 95*145*32 | 1.79 |
| 32020 | 100*150*32 | 1.87 |
| 32021 | 105*160*35 | 2.38 |
| 32022 | 110*170*38 | 3.01 |
| 32024 | 120*180*38 | 3.3 |
| 32026 | 130*200*45 | 4.91 |
| 32028 | 140*210*45 | 5.21 |
| 32030 | 150*225*48 | 6.47 |
| 32032 | 160*240*51 | 7.69 |
| 32034 | 170*260*57 | 10.2 |
| 32036 | 180*280*64 | 13.5 |
| 32038 | 190*290*64 | 15.3 |
| 32040 | 200*310*70 | 18.6 |
| 32048 | 240*360*76 | 25.8 |
| 32052 | 260*400*87 | 37.4 |
| 32064 | 320*480*100 | 59.2 |
| 33005 | 25*47*15 | 0.131 |
| 33006 | 30*55*20 | 0.208 |
| 33007 | 35*62*21 | 0.259 |
| 33008 | 40*68*22 | 0.322 |
| 33009 | 45*75*24 | 0.414 |
| 33010 | 50*80*24 | 0.452 |
| 33011 | 55*90*27 | 0.651 |
| 33012 | 60*95*27 | 0.713 |
| 33013 | 65*100*27 | 0.725 |
| 33014 | 70*110*31 | 1.07 |
| 33015 | 75*115*31 | 1.18 |
| 33016 | 80*125*36 | 1.65 |
We also provide Double Row and Four Row Taper Roller Bearings:
* Other models,please contact with us.
FAQ
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in different brands, we also customize circuit board & packaging box as per your requirements.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight. We DO NOT offer free samples to end users.
Q:How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
Send your inquiry directly to us
