Place of Origin:
China
Brand Name:
Z&H
Model Number:
LR5002 NPPU

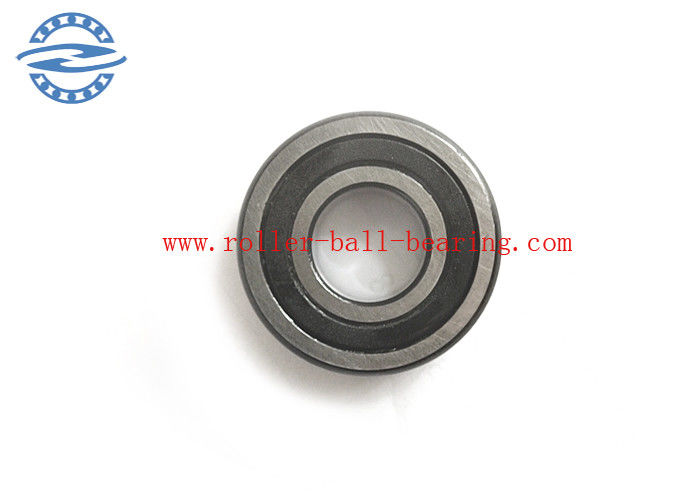

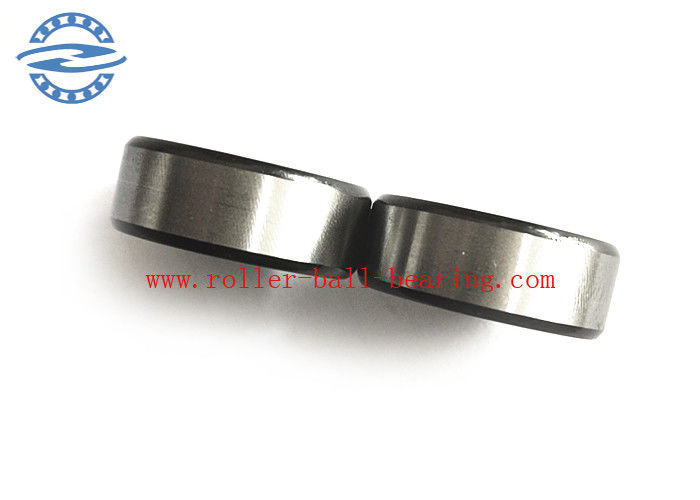

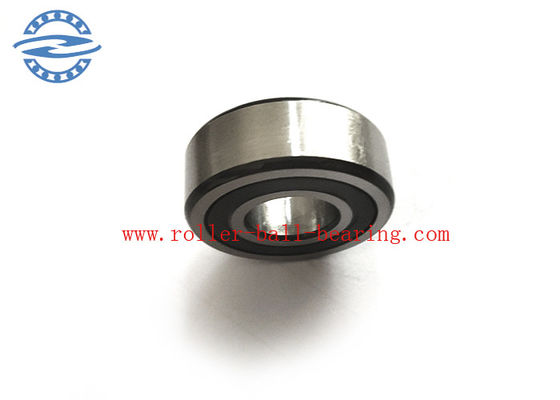

Hot Sell INA KOYO LR5002 NPPU 35*15*13 Needle Roller Bearing Chrome Steel Cam Follower Track Roller Bearing
angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.
Angular contact ball bearings are available as:
single row angular contact ball bearings
double row angular contact ball bearings
four-point contact ball bearings
Super-precision angular contact ball bearings
Double row cam rollers
Hub bearing units
| Designations : | HK 6068 |
| Drawn Cup Needle Roller Bearing | |
| Inside : | 35 mm |
| Outside : | 15 mm |
| Width : | 13 mm |
| Product Weight : | ≈ 1.01g |
| Ring Material : | GCR15/ Chrome Steel |
| Roller Material : | GCR15/ Chrome Steel |
| Cage Material : | Sheet Steel |
| Number of Row : | Double Row , outer ring with a lubriexcavatorion hole |
| Precision Rating : | P0 P6 P5 P4 |
| Appliexcavatorion Industries : | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining etc. |
| Price List : | Negotiate |
| Service : | OEM or Customer Logo Acceptable and Sample Offer |
| Package : | Industrial Packing or As Customer Required |
| More Service : | plz Contact Us . The contact address is at the bottom. |
Products Show
| Type | Weight | D | d | B | C | R | Rs | Cw | Cow | Puw | Seal | Shield |
| (g) | mm | N | ||||||||||
| LR5200 NPP | 70 | 32 | 10 | 14 | 14 | -- | 0.6 | 6800 | 4050 | 168 | 8000 | 11000 |
| LR5200 NPPU | 70 | 32 | 10 | 14 | 14 | 500 | 0.6 | 6800 | 4050 | 168 | 8000 | 11000 |
| LR5200 KDD | 70 | 32 | 10 | 14 | 14 | -- | 0.6 | 6800 | 4050 | 168 | 8000 | 11000 |
| LR5200 KDDU | 70 | 32 | 10 | 14 | 14 | 500 | 0.6 | 6800 | 4050 | 168 | 8000 | 11000 |
| LR5201 NPP | 80 | 35 | 12 | 15.9 | 16 | -- | 0.6 | 8600 | 5100 | 211 | 7500 | 10000 |
| LR5201 NPPU | 80 | 35 | 12 | 15.9 | 16 | 500 | 0.6 | 8600 | 5100 | 211 | 7500 | 10000 |
| LR5201 KDD | 80 | 35 | 12 | 15.9 | 16 | -- | 0.6 | 8600 | 5100 | 211 | 7500 | 10000 |
| LR5201 KDDU | 80 | 35 | 12 | 15.9 | 16 | 500 | 0.6 | 8600 | 5100 | 211 | 7500 | 10000 |
| LR5202 NPP | 110 | 40 | 15 | 15.9 | 16 | -- | 0.6 | 9800 | 6200 | 258 | 7000 | 10000 |
| LR5202 NPPU | 110 | 40 | 15 | 15.9 | 16 | 500 | 0.6 | 9800 | 6200 | 258 | 7000 | 10000 |
| LR5202 KDD | 110 | 40 | 15 | 15.9 | 16 | -- | 0.6 | 9800 | 6200 | 258 | 7000 | 10000 |
| LR5202 KDDU | 110 | 40 | 15 | 15.9 | 16 | 500 | 0.6 | 9800 | 6200 | 258 | 7000 | 10000 |
| LR5203 NPP | 170 | 47 | 17 | 17.5 | 18 | -- | 0.6 | 12600 | 8200 | 342 | 5500 | 7500 |
| LR5203 NPPU | 170 | 47 | 17 | 17.5 | 18 | 500 | 0.6 | 12600 | 8200 | 342 | 5500 | 7500 |
| LR5203 KDD | 170 | 47 | 17 | 17.5 | 18 | -- | 0.6 | 12600 | 8200 | 342 | 5500 | 7500 |
| LR5203 KDDU | 170 | 47 | 17 | 17.5 | 18 | 500 | 0.6 | 12600 | 8200 | 342 | 5500 | 7500 |
| LR5204 NPP | 230 | 52 | 20 | 20.6 | 21 | -- | 1 | 15800 | 10500 | 433 | 5000 | 7000 |
| LR5204 NPPU | 230 | 52 | 20 | 20.6 | 21 | 500 | 1 | 15800 | 10500 | 433 | 5000 | 7000 |
| LR5204 KDD | 230 | 52 | 20 | 20.6 | 21 | -- | 1 | 15800 | 10500 | 433 | 5000 | 7000 |
| LR5204 KDDU | 230 | 52 | 20 | 20.6 | 21 | 500 | 1 | 15800 | 10500 | 433 | 5000 | 7000 |
| LR5205 NPP | 340 | 62 | 25 | 20.6 | 21 | -- | 1 | 18500 | 13000 | 532 | 4500 | 6500 |
| LR5205 NPPU | 340 | 62 | 25 | 20.6 | 21 | 500 | 1 | 18500 | 13000 | 532 | 4500 | 6500 |
| LR5205 KDD | 340 | 62 | 25 | 20.6 | 21 | -- | 1 | 18500 | 13000 | 532 | 4500 | 6500 |
| LR5205 KDDU | 340 | 62 | 25 | 20.6 | 21 | 500 | 1 | 18500 | 13000 | 532 | 4500 | 6500 |
| LR5206 NPP | 510 | 72 | 30 | 23.8 | 24 | -- | 1 | 24600 | 21400 | 880 | 3500 | 5000 |
| LR5206 NPPU | 510 | 72 | 30 | 23.8 | 24 | 500 | 1 | 24600 | 21400 | 880 | 3500 | 5000 |
| LR5206 KDD | 510 | 72 | 30 | 23.8 | 24 | -- | 1 | 24600 | 21400 | 880 | 3500 | 5000 |
| LR5206 KDDU | 510 | 72 | 30 | 23.8 | 24 | 500 | 1 | 24600 | 21400 | 880 | 3500 | 5000 |
| LR5207 NPP | 660 | 80 | 35 | 27 | 27 | -- | 1.1 | 30500 | 22400 | 927 | 2800 | 3900 |
| LR5207 NPPU | 660 | 80 | 35 | 27 | 27 | 500 | 1.1 | 30500 | 22400 | 927 | 2800 | 3900 |
| LR5207 KDD | 660 | 80 | 35 | 27 | 27 | -- | 1.1 | 30500 | 22400 | 927 | 2800 | 3900 |
| LR5207 KDDU | 660 | 80 | 35 | 27 | 27 | 500 | 1.1 | 30500 | 22400 | 927 | 2800 | 3900 |
| LR5208 NPP | 750 | 85 | 40 | 30.2 | 30 | -- | 1.1 | 34500 | 25500 | 1060 | 2500 | 3500 |
| LR5208 NPPU | 750 | 85 | 40 | 30.2 | 30 | 500 | 1.1 | 34500 | 25500 | 1060 | 2500 | 3500 |
| LR5208 KDD | 750 | 85 | 40 | 30.2 | 30 | -- | 1.1 | 34500 | 25500 | 1060 | 2500 | 3500 |
| LR5208 KDDU | 750 | 85 | 40 | 30.2 | 30 | 500 | 1.1 | 34500 | 25500 | 1060 | 2500 | 3500 |
OTHER TYPE BEARING
Zhonghong bearing manufacturing co., Ltd is a bearing production, sales - based company, the company
in the industrial field has many years of bearing supporting and industrial service experience.Types
involved: deep groove ball bearings, joint bearings, conical bearings, cylindrical bearings and so on Our
products are widely used in machine tools, coal mine, railway, petroleum printing, power plant, ship,
aviation, automobile and other industries
1.Customer service
Any questions to be sent will get response within 24 hours.
2.Lead time
For products in stock, we will deliver the goods within 3-5 days; for products which need to order, it generally takes 15-30 days, it depends on quantity.
Anyway, we will deliver the products as soon as possible after getting your deposit.
3.After-sales service
Before shipment, products will be strictly inspected in our factory with our own inspection system. Please contact us at first time, just in case. Customer complaint handling procedure will be started at once. We will negotiate with customers to find a reasonable way to resolve and compensate.
Send your inquiry directly to us
