Place of Origin:
China
Brand Name:
ZH
Model Number:
H316
video

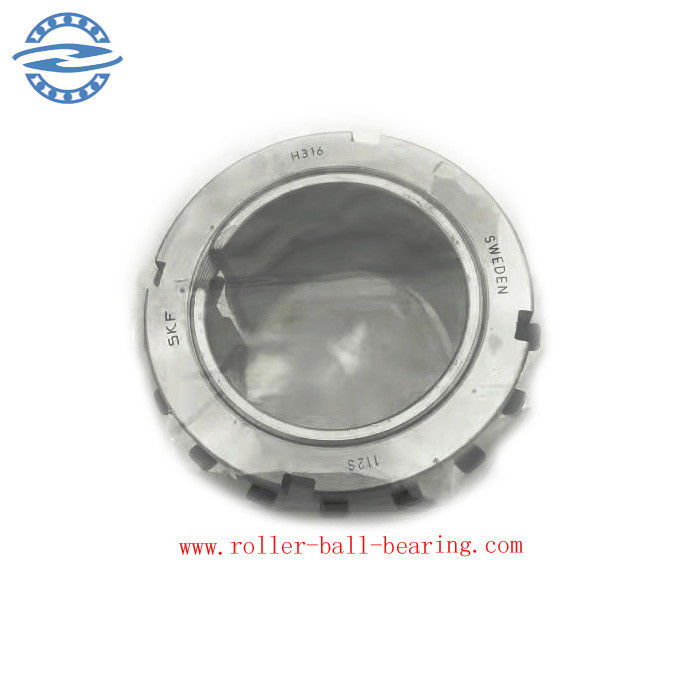

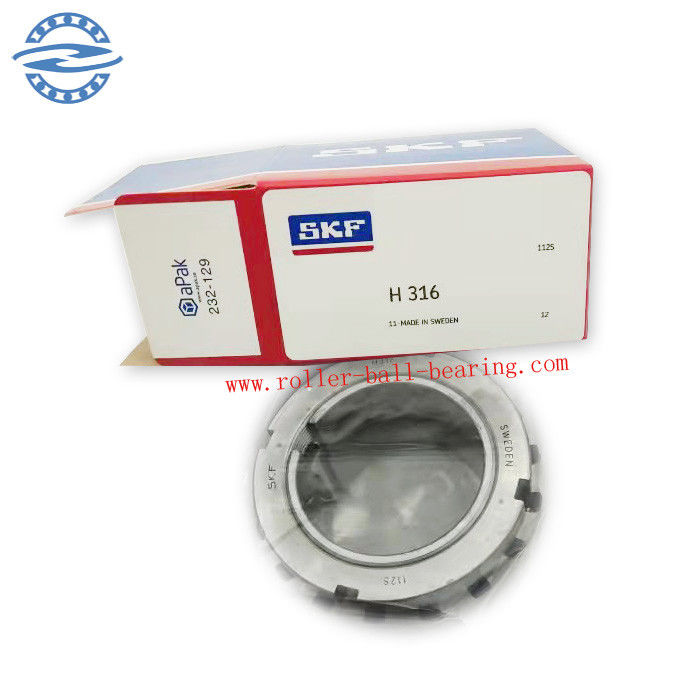

Sleeves H316-ZH brand, Inner diam. 70 mm, Outer diam. 105 mm, Width 59 mm
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
| Products name | Bearing Adapter Sleeve |
| Model NO. | H316 |
| Ring material | Chrome Steel, Carbon Steel, Stainless Steel |
| Material: | GCr15 GCr15SiMn |
| Brand: | ZH |
| d | 80 |
| d2 | 105 |
| b1 | 59 |
| Precision | P5, P4 |
| Clearance: | C0 |
| Model | Dimensions mm | Wt kg | components | |||||||
| d1 | d | d2 | B1 | B2 | G | cover | locknut | lock washer | ||
| H205 | 20 | 25 | 38 | 26 | 8 | M25×1.5 | 0.07 | A205 | KM05 | MB05 |
| H206 | 25 | 30 | 45 | 27 | 8 | M30×1.5 | 0.1 | A206 | KM06 | MB06 |
| H207 | 30 | 35 | 52 | 29 | 9 | M35×1.5 | 0.13 | A207 | KM07 | MB07 |
| H208 | 35 | 40 | 58 | 31 | 10 | M40×1.5 | 0.17 | A208 | KM08 | MB08 |
| H209 | 40 | 45 | 65 | 33 | 11 | M45×1.5 | 0.23 | A209 | KM09 | MB09 |
| H210 | 45 | 50 | 70 | 35 | 12 | M50×1.5 | 0.27 | A210 | KM10 | MB10 |
| H211 | 50 | 55 | 75 | 37 | 12 | M55×2 | 0.31 | A211 | KM11 | MB11 |
| H212 | 55 | 60 | 80 | 38 | 13 | M60×2 | 0.35 | A212 | KM12 | MB12 |
| H213 | 60 | 65 | 85 | 40 | 14 | M65×2 | 0.4 | A213 | KM13 | MB13 |
| H215 | 65 | 75 | 98 | 43 | 15 | M75×2 | 0.71 | A215 | KM15 | MB15 |
| H216 | 70 | 80 | 105 | 46 | 17 | M80×2 | 0.88 | A216 | KM16 | MB16 |
| H217 | 75 | 85 | 110 | 50 | 18 | M85×2 | 1 | A217 | KM17 | MB17 |
| H218 | 80 | 90 | 120 | 52 | 18 | M90×2 | 1.2 | A218 | KM18 | MB18 |
| H219 | 85 | 95 | 125 | 55 | 19 | M95×2 | 1.35 | A219 | KM19 | MB19 |
| H220 | 90 | 100 | 130 | 58 | 20 | M100×2 | 1.5 | A220 | KM20 | MB20 |
| H221 | 95 | 105 | 140 | 60 | 20 | M105×2 | 1.7 | A221 | KM21 | MB21 |
| H222 | 100 | 110 | 145 | 63 | 21 | M110×2 | 1.9 | A222 | KM22 | MB22 |
| H305 | 20 | 25 | 38 | 26 | 8 | M25×1.5 | 0.075 | A305 | KM05 | MB05 |
| H306 | 25 | 30 | 45 | 27 | 8 | M30×1.5 | 0.11 | A306 | KM06 | MB06 |
| H307 | 30 | 35 | 52 | 29 | 9 | M35×1.5 | 0.14 | A307 | KM07 | MB07 |
| H308 | 35 | 40 | 58 | 31 | 10 | M40×1.5 | 0.19 | A308 | KM08 | MB08 |
| H309 | 40 | 45 | 65 | 33 | 11 | M45×1.5 | 0.25 | A309 | KM09 | MB09 |
| H310 | 45 | 50 | 70 | 35 | 12 | M50×1.5 | 0.3 | A310 | KM10 | MB10 |
| H311 | 50 | 55 | 75 | 37 | 12 | M55×2 | 0.35 | A311 | KM11 | MB11 |
| H312 | 55 | 60 | 80 | 38 | 13 | M60×2 | 0.39 | A312 | KM12 | |
| H313 | 60 | 65 | 85 | 40 | 14 | M65×2 | 0.46 | A313 | KM13 | |
FAQ
A:1)More than 10 Years experience of bearing production and R&D.We have the most professional techniques and team. More advantage in price.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Our Advantages:
1. More than ten years bearing products exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be ok.
