Place of Origin:
CH
Brand Name:
ZH
Model Number:
680235-680270

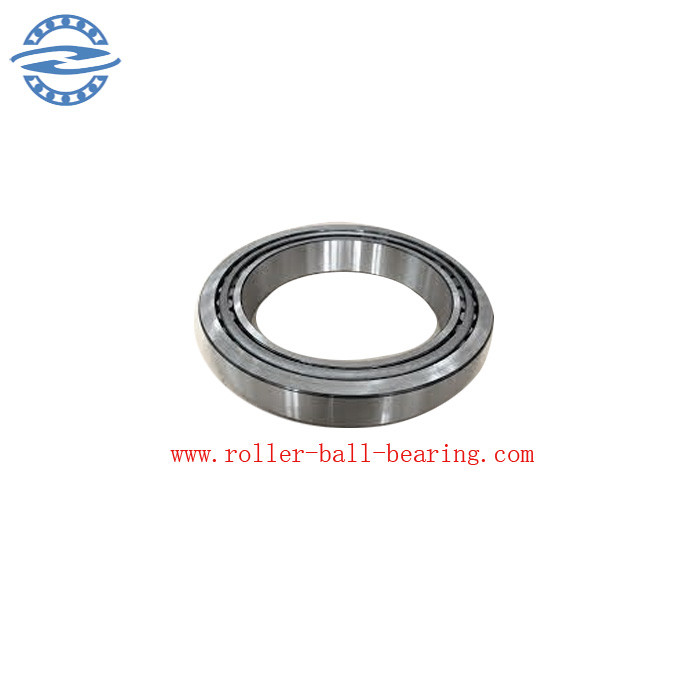

Taper Roller Bearing 680235/680270 596.9*685.8*31.75mm 680235 680270
Product Details
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! ! !
All products undergo quality inspection before entering the market; All product packaging and MOQ will try our best to meet the actual requirements and needs of customers; All kinds of express delivery as you choose, whatever by sea, Fed Express, DHL, TNT, EMS or others.
| Item number | 680235/680270 |
| Inner diameter(d) | 596.9 |
| Outer diameter(D) | 685.8 |
| Thickness: | 31.75 |
| Type | Single row(TS)tapered roller bearings |
| C1 | 337000 |
| e | 0.53 |
| Y | 1.14 |
| C90 | 87400 |
| Ca90 | 78800 |
| K | 1.11 |
| C0 | 963000 |
| B | 31.75 |
| C | 25.4 |
| a(3) | 96 |
| Shaft max shaft fillet radius R(4) | 3.5 |
| Shaft backing shoulder dia.da | 615 |
| Shaft backing shoulder dia.db | 615 |
| Housing backing shoulder dia. r(4) | 3.3 |
| Housing backing shoulder dia.Da | 669 |
| Housing backing shoulder dia.Da | 663 |
| Cage Aa | 1.8 |
| Cage Ab | 1.5 |
| G1 | 3740 |
| G2 | 1810 |
| Cg | 0.2225 |
| Weight(kg) | 16.76 |
| Delivery : in stock | 3 days after receiving your payment |
| Parameters of Bearing |
| Model NO. | d | D | H | m |
| 30204X2/P6XYB5 | 20 mm | 47 mm | 15 mm | 0.12 KG |
| 30305X2 | 25 mm | 62 mm | 18.25 mm | 0.27 KG |
| 31306X2A/HAP5-1 | 30 mm | 72 mm | 24 mm | 0.46 KG |
| 31306X2A-1-SG | 30 mm | 74 mm | 24 mm | 0.46 KG |
| 30607 | 35 mm | 65 mm | 18 mm | 0.25 KG |
| 30607-1 | 35 mm | 65 mm | 18 mm | 0.25 KG |
| 30207X1 | 35 mm | 80 mm | 18.25 mm | 0.43 KG |
| 32307X2A/YAB | 35 mm | 80 mm | 29.15 mm | 0.7 KG |
| 32307X3A/HAP5 | 35 mm | 89 mm | 38 mm | 1.22 KG |
| 323/36X4/YB2 | 36.51 mm | 90 mm | 35.25 mm | 1.18 KG |
| 306/37 | 37 mm | 92 mm | 35.3 mm | 1.19 KG |
| 306/39X4 | 39.7 mm | 90 mm | 25.4 mm | 0.77 KG |
| 32008X3 | 40 mm | 73 mm | 21 mm | 0.36 KG |
| 30306 | 40 mm | 80 mm | 21.5 mm | 0.45 KG |
| 33208X2A | 40 mm | 80 mm | 30 mm | 0.67 KG |
| 306/42 | 42 mm | 76 mm | 24 mm | 0.48 KG |
| 306/42/P6XYB2 | 42 mm | 76 mm | 23.8 mm | 0.48 KG |
| 323/42R | 42 mm | 100 mm | 38.25 mm | 1.55 KG |
| 32209X2A | 45 mm | 85 mm | 24.75 mm | 0.62 KG |
| 30309X2B | 45 mm | 100 mm | 32 mm | 1.08 KG |
FAQ
A:1)More than 10 Years experience of bearing production and R&D.We have the most professional techniques and team. More advantage in price.
2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.
3)We use 100% new materials and the best production process, in consequence our defective rate is lower than 0.01%.
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
Our Advantages:
1. More than ten years bearing products exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be ok.
