Place of Origin:
CHINA
Brand Name:
QIEAL ZH
Model Number:
CHC 208-24

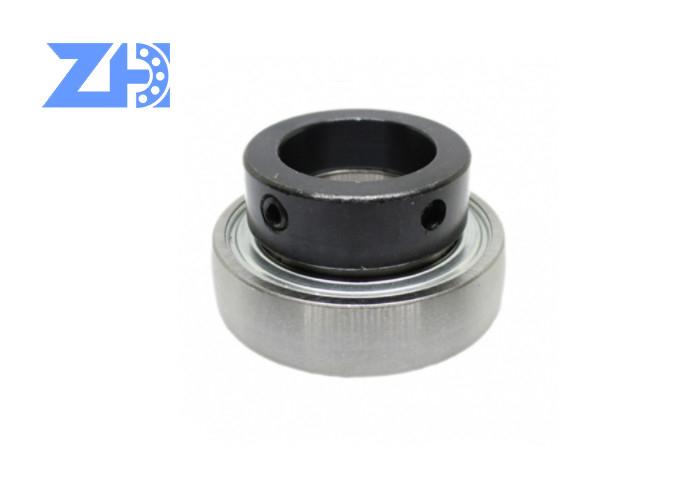

Insert Ball Bearing CHC 208-24 Pillow Ball Bearing CHC 20824
Insert bearings are designed to fit into bearing housings. They are often sold when assembled into a suitable bearing housing but may also be bought alone. They have the characteristic of being self aligning and can be easily mounted in a housing block. The housing is available in various configurations.
Insert bearing with housing is a bearing unit which is with the rolling bearing and housing. Most of the insert bearing with housing are made of outer diameter sphere, mounted together with the bearing housing having a spherical bore. Various forms of structure, good versatility and inter change ability.
At the same time, such bearing on the design also has a certain adjustable mind, easy to install, has the dual structure of sealing devices, can work in harsh condition. The housing is usually is made of casting forming. Commonly used with vertical (P), (F), the square convex square stands (FS), circular convex (FC) and diamond (FL), ring (C), such as the slider (T).
Insert ball bearing unit is divided into heart and bearing seat, bearing on the term is added heart bearing housings, such as belt tight set screw outer spherical bearing with vertical said. Insert bearing with housing is divided into heart and bearing seat, bearing on the term is added heart bearing housings, such as belt tight set screw outer spherical bearing with vertical said. because of the strong interchangeability, the heart of insert bearing with housing can be fitting in the bearing of the same specifiexcavatorions different shape.
Pillow block bearings are one of the most popular bearings both at home and abroad. Pillow block bearings are widely used in various kinds of industries and machines such as car wash equipment, construction machinery, fans, HVAC, food processing, metal working machinery, textile machinery, paper making & paper converting equipment & woodworking machinery.
Pillow block bearings are mounted type bearings available in flanged & upright styles in different inch & metric sizes. Pillow block bearings are designed to support shafts. Features include mounting surfaces parallel to shaft axes & elongated bolt holes in bases or feet of units for adjustment & mounting of pillow block bearing. Pillow block bearings are available in bore sizes ranging from 1/2 in. to 10 in.
Packaging Details A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle
Delivery Time Shipped in 2 days after payment
| Product Name | Insert Ball Bearing CHC 208-24 Pillow Ball Bearing CHC 20824 |
| Housing Material | Plastic, stainless steel, zinc alloy, cast iron |
| Bearing Material | Chrome Steel GCr15, plastic, zinc alloy, stainless steel |
| Precision Grade | P0 P6 P5 P4 P2 |
| Main Market | South Asia, South America, Europe, North America |
| Structure | Spherical ball |
| Service | OEM, Customization |
| Certifiexcavatore | ISO9001 |
| Delivery Time | Shipped in 2 days after payment |
| Package | A: barreled package+outer carton+pallets B: single box+outer carton+pallets C: tube package+middle |
| Features |
Long life with high quality
|
| Appliexcavatorion | Gearbox, instrument& apparatus, motor, household appliance,, vehicles, agricultural machinery, construction machinery, CNC router, laser cutting machine |
| d(mm) | D(mm) | B(mm) | weight(kg) | |
| UC201 | 12 | 47 | 31 | 0.21 |
| UC202 | 15 | 47 | 31 | 0.2 |
| UC203 | 17 | 47 | 31 | 0.18 |
| UC204 | 20 | 47 | 31 | 0.17 |
| UC205 | 25 | 52 | 34.1 | 0.2 |
| UC206 | 30 | 62 | 38.1 | 0.32 |
| UC207 | 35 | 72 | 42.9 | 0.46 |
| UC208 | 40 | 80 | 49.2 | 0.64 |
| UC209 | 45 | 85 | 49.2 | 0.68 |
| UC210 | 50 | 90 | 51.6 | 0.78 |
| UC211 | 55 | 100 | 55.6 | 1.04 |
| UC212 | 60 | 110 | 65.1 | 1.46 |
| UC213 | 65 | 120 | 65.1 | 1.86 |
| UC214 | 70 | 125 | 74.6 | 2.1 |
| UC215 | 75 | 130 | 77.8 | 2.34 |
| UC216 | 80 | 140 | 82.6 | 2.78 |
| UC217 | 85 | 150 | 85.7 | 3.54 |
| UC218 | 90 | 160 | 96 | 4.4 |
| UC305 | 25 | 62 | 38 | 0.35 |
| UC306 | 30 | 72 | 43 | 0.56 |
| UC307 | 35 | 80 | 48 | 0.7 |
| UC308 | 40 | 90 | 52 | 0.96 |
| UC309 | 45 | 100 | 57 | 1.28 |
| UC310 | 50 | 110 | 61 | 1.68 |
| UC311 | 55 | 120 | 66 | 2.08 |
| UC312 | 60 | 130 | 71 | 2.6 |
| UC313 | 65 | 140 | 75 | 3.25 |
| UC314 | 70 | 150 | 78 | 3.86 |
| UC315 | 75 | 160 | 82 | 4.7 |
| UC316 | 80 | 170 | 86 | 5.6 |
| UC317 | 85 | 180 | 96 | 6.7 |
| UC318 | 90 | 190 | 96 | 7.6 |
| UC319 | 95 | 200 | 103 | 8.7 |
| UC320 | 100 | 215 | 108 | 10.8 |
| UC321 | 105 | 225 | 112 | 12.2 |
| UC322 | 110 | 240 | 117 | 14.3 |
| UC324 | 120 | 260 | 126 | 18.5 |
| UC326 | 130 | 280 | 135 | 23 |
| UC328 | 140 | 300 | 145 | 28.5 |
| UCX05 | 25 | 62 | 38.1 | 0.39 |
| UCX06 | 30 | 72 | 42.9 | 0.68 |
| UCX07 | 35 | 80 | 49.2 | 0.74 |
| UCX08 | 40 | 85 | 49.2 | 0.8 |
| UCX09 | 45 | 90 | 51.6 | 0.94 |
| UCX10 | 50 | 100 | 55.6 | 1.22 |
| UCX11 | 55 | 110 | 65.1 | 1.72 |
| UCX12 | 60 | 120 | 65.1 | 2.1 |
| UCX13 | 65 | 125 | 74.6 | 2.45 |
| UCX14 | 70 | 130 | 77.8 | 2.47 |
| UCX15 | 75 | 140 | 82.6 | 3.11 |
| UCX16 | 80 | 150 | 85.7 | 3.96 |
| UCX17 | 85 | 160 | 96 | 4.72 |
| UCX18 | 90 | 170 | 104 | 5.5 |
| UCX20 | 100 | 190 | 117.5 | 8.06 |
Our Services
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Appliexcavatorions
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specifiexcavatorion is well-founded. We have a good reputation in the international market by our perfect serviceand sufficient supply.
Package: A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
Payment Terms: A.100%T/T
B.30%T/T in advance,70% aganist copy of B/L(For large order)
C.Western Union
FAQ
1. How long is your delivery term?
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment loexcavatored?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my appliexcavatorion in your excavatoralog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
