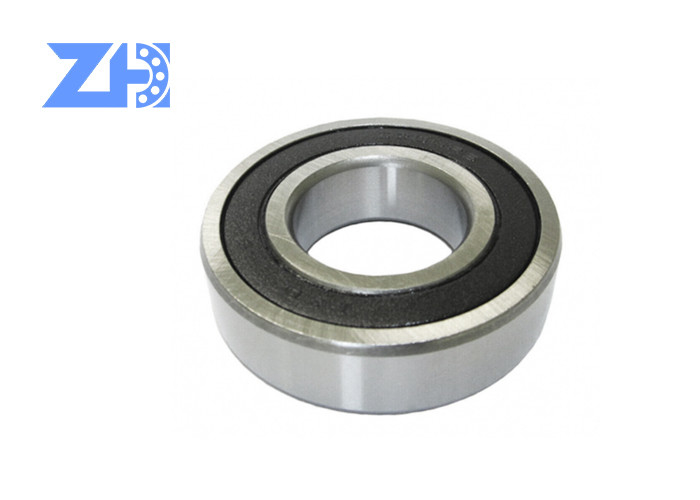

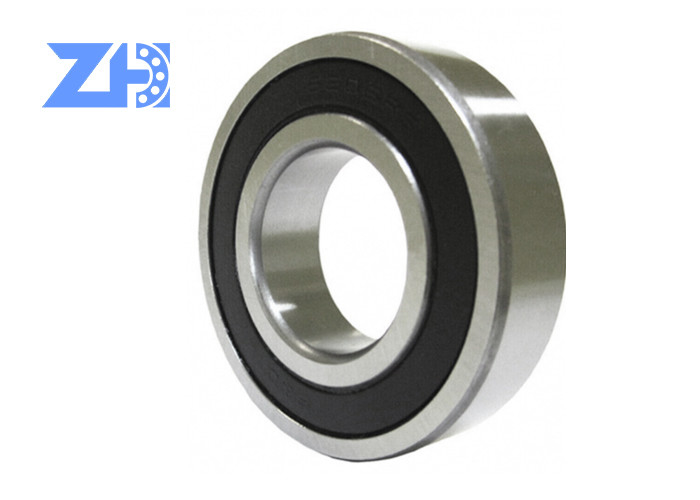

R14 2rs Ball Bearing, Deep Groove Ball Bearing R14-2rs
Product description
|
Product's name |
R14 2RS cheap price deep groove ball bearing bearing |
|
model number |
Bearing R14 2RS |
|
product material |
chrome steel |
|
degree of precision |
P0 P6 P5 P4 P2 are all available |
|
cage material |
Steel, brass, nylon |
|
Serive |
Agent, OEM, Customized |
|
delivery time |
Generally it is 2-5 datys if in stock, 7-15 days if not stock, or it is according to customer's requirements |
|
Features |
Long life and high quality |
|
High precision, low noise with strict quality control |
|
|
High loading by advanced high-technical design |
|
|
Most competitive prices, factory direct |
|
|
OEM service offered, to satisfy customer requrements |
|
|
price terms |
EXW, FOB, CFR, CIF |
|
Package |
PE bag+paper box+carton+outer carton+wooden pallet, or as customers' requirement |
R series inch series bearing deep groove ball bearing R14 2RS/R142RS
Deep groove ball bearings, Simple structure, easy to use. Mainly used to bear radial load. When the
radial clearance of bearing is increased,
Deep goove ball bearings has a certain function of angular contact ball bearing that can withstand
the combined radial and axial load.
In high speed cases where thrust ball bearing cannot be used, deep groove ball bearings can be used
to bear pure axial load.
Compared with other types of bearings of the same size, the coefficient of friction of deep groove
ball bearings is small, and the speed limit is high.
However, deep groove ball bearings cannot bear shocks, and are not suitable for bearing heavy loads.
Part of the bearing specifiexcavatorion:
| Bearing | Old NO. | ID | OD | B | Cr | Cor | Max Speed | Max Speed | Mass |
| NO. | (Grease) | (Oil) | |||||||
| (mm) | (mm) | (mm) | (kN) | (kN) | (r/min) | (r/min) | (kg) | ||
| 61801 | 1000801 | 12 | 21 | 5 | 1.9 | 1 | 24000 | 32000 | 0.006 |
| 61802 | 1000802 | 15 | 24 | 5 | 2.1 | 1.3 | 22000 | 30000 | 0.007 |
| 61803 | 1000802 | 17 | 26 | 5 | 2.2 | 1.5 | 20000 | 28000 | 0.008 |
| 61804 | 1000804 | 20 | 32 | 7 | 3.5 | 2.2 | 18000 | 24000 | 0.018 |
| 61805 | 1000805 | 25 | 37 | 7 | 4.3 | 2.9 | 16000 | 20000 | 0.022 |
| 61806 | 1000806 | 30 | 42 | 7 | 4.55 | 3.4 | 15000 | 18000 | 0.026 |
| 61807 | 1000807 | 35 | 47 | 7 | 4.75 | 3.85 | 13000 | 19000 | 0.03 |
| 61808 | 1000808 | 40 | 52 | 7 | 4.95 | 4.2 | 12000 | 14000 | 0.033 |
| 61809 | 1000809 | 45 | 58 | 7 | 6.4 | 5.6 | 9000 | 12000 | 0.03 |
| 61810 | 1000810 | 50 | 65 | 7 | 6.6 | 6.1 | 8500 | 10000 | 0.043 |
| 61811 | 1000811 | 55 | 72 | 9 | 9.1 | 8.4 | 8000 | 9500 | 0.07 |
| 61812 | 1000812 | 60 | 78 | 10 | 9.1 | 8.7 | 7000 | 8500 | 0.093 |
| 61813 | 1000813 | 65 | 85 | 10 | 11.9 | 11.5 | 6700 | 8000 | 0.13 |
| 61814 | 1000814 | 70 | 90 | 10 | 12.1 | 11.9 | 6300 | 7500 | 0.138 |
| 61815 | 1000815 | 75 | 95 | 10 | 12.5 | 12.8 | 6000 | 7000 | 0.147 |
| 61816 | 1000816 | 80 | 100 | 10 | 12.7 | 13.3 | 5600 | 6700 | 0.155 |
| 61817 | 1000817 | 85 | 110 | 13 | 19.2 | 19.8 | 5000 | 6300 | 0.245 |
| 61818 | 1000818 | 90 | 115 | 13 | 19.5 | 20.5 | 4800 | 6000 | 0.258 |
| 61819 | 1000819 | 95 | 120 | 13 | 19.8 | 21.3 | 4500 | 5600 | 0.27 |
| 61820 | 1000820 | 100 | 125 | 13 | 20.1 | 22 | 4300 | 5300 | 0.28 |
| 61821 | 1000821 | 105 | 130 | 13 | 20.3 | 22.7 | 4000 | 5000 | 0.3 |
| 61822 | 1000822 | 110 | 140 | 16 | 28.1 | 30.7 | 3800 | 5000 | 0.5 |
| 61800 | 1000800 | 10 | 19 | 5 | 1.8 | 0.93 | 28000 | 36000 | 0.005 |
| 61824 | 1000824 | 120 | 150 | 16 | 28.9 | 32.9 | 3400 | 4300 | 0.54 |
| 61826 | 1000826 | 130 | 165 | 18 | 37.9 | 42.9 | 3200 | 4000 | 0.736 |
| 61828 | 1000828 | 140 | 175 | 18 | 38.2 | 44.3 | 3000 | 3800 | 0.784 |
| 61830 | 1000830 | 150 | 190 | 20 | 49.1 | 57.1 | 2800 | 3400 | 1.114 |
| 61832 | 1000832 | 160 | 200 | 20 | 49.6 | 59.1 | 2600 | 3200 | 1.176 |
| 61834 | 1000834 | 170 | 215 | 22 | 61.5 | 73.3 | 2200 | 3000 | 1.545 |
| 61836 | 1000836 | 180 | 225 | 22 | 62.3 | 75.9 | 2000 | 2800 | 1.621 |
| 61838 | 100083 | 190 | 240 | 24 | 75.1 | 91.6 | 1900 | 2600 | 2.1 |
| 61840 | 1000840 | 200 | 250 | 24 | 74.2 | 91.2 | 1800 | 2400 | 2.178 |
| Deep groove ball bearings | Linear ball bearings | Pillow block bearings | Clutch release bearings |
| Cylindrical roller bearings | Needle roller bearings | Thrust ball bearings | Thrust roller bearings |
| Spherical roller bearings | Ball joint bearings | Conveyor roller bearings | Angular contact ball bearings |
