Place of Origin:
CHINA
Brand Name:
QIEAL ZH
Model Number:
XKAH-00800

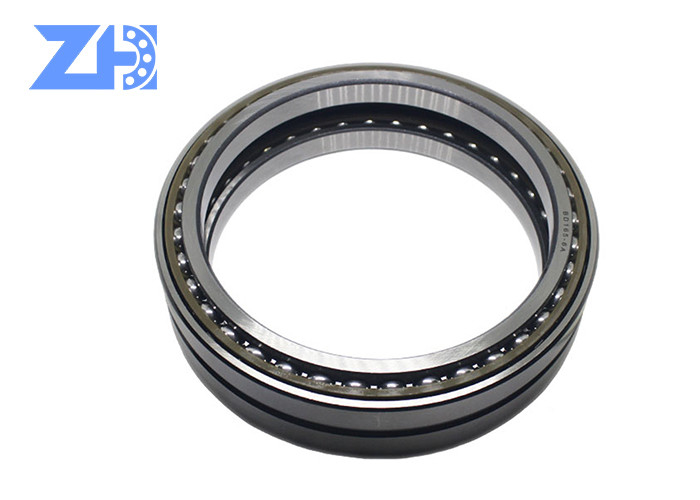

Hyundai excavator final drive bearing XKAH-00800
XKAH-00800 bearings are used in the final drive Bearing system of HYUNDAI heavy machinery equipment:
XKAH-00800 HYUNDAI BEARING parts
Apply to R55-7, R55-7A, R55-9, R55-9S, R60CR-9, R60CR-9A
| P/N |
XKAH-00800 |
Material: | GCR15 |
| i/d | mm | O/D | mm |
| H | mm | Brand: | ZHZB |
| Precision | P0 , P6 , P5 | Structure: | Angular contact bearing |
Product features:
1. Special bearing for excavator travel gearbox
2. It can bear the load from both axial and radial at the same time
3. High-strength high-quality steel
4. Smooth rotation and low noise
5. Compared with other companies' final drive bearings, the service life is increased by 50%
Our advantage:
100% factory quality inspection;
Minimum order quantity: 1;
Faster delivery efficiency;
Higher cost performance;
Have a mature production line so that we can customize according to the samples or drawings provided by customers;
Professional manufacturer of final drive bearings for excavators. Have many years of manufacturing experience
Production Process
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | TRAVEL MOTOR | SEE 4260 |
| *-4. | XKAH-00822 | [1] | REDUCTION GEAR | |
| 38. | XKAH-00326 | [3] | O-RING | |
| 101. | XKAH-00826 | [1] | HOLDER-FLANGE | |
| K102. | XKAH-00820 | [2] | SEAL-FLOATING | |
| 103. | XKAH-00819 | [1] | NUT-RING | |
| 104. | XKAH-00818 | [4] | PLUG-PT | |
| 105. | XKAH-00817 | [1] | HOUSING | |
| 106. | XKAH-00816 | [104] | BALL-STEEL | |
| 107. | XKAH-00325 | [3] | PLUG | |
| 108. | XKAH-00815 | [4] | GEAR-PLANET(F) | |
| 109. | XKAH-00814 | [4] | WASHER-THRUST | |
| 110. | XKAH-00813 | [4] | SCREW | |
| 111. | XKAH-00812 | [4] | BEARING-NEEDLE | |
| 112. | XKAH-00811 | [4] | COLLAR | |
| 113. | XKAH-00810 | [1] | PLATE-THRUST(F) | |
| 114. | XKAH-00809 | [1] | GEAR-SUN | |
| 115. | XKAH-00721 | [1] | RING-SNAP | |
| 116. | XKAH-00808 | [1] | HOLDER | |
| 117. | XKAH-00807 | [3] | GEAR-PLANET(R) | |
| 118. | XKAH-00806 | [3] | BEARING-NEEDLE | |
| 119. | XKAH-00805 | [3] | RACE-INNER | |
| 120. | XKAH-00804 | [3] | PIN-SPRING | |
| 121. | XKAH-00803 | [1] | GEAR-DRIVE | |
| 122. | XKAH-00802 | [1] | PLATE-THRUST(R) | |
| 123. | XKAH-00801 | [1] | COVER | |
| 124. | XKAH-00210 | [12] | BOLT-SOCKET | |
| 125. | XKAH-00800 | [1] | BEARING-ANGULAR | |
| K126. | XKAH-00799 | [1] | O-RING | |
| K127. | XKAH-00798 | [1] | O-RING | |
| 128. | XKAH-00058 | [1] | PLUG | |
| K. | XKAH-00838 | [1] | SEAL KIT | SEE ILLUST |
Delivery:
1.We will send express delivery for less than 45 kg, which is more convenient door-to-door.
2.45-200 kg we will choose air transportation, the safest, fastest, and the most expensive
3.For more than 200 kg, we will send it by sea to reduce transportation costs.
Why choose us?
✬1.Trusted Product
✬2.Advanced Technology
✬3.Reliable Service
✬4.Competitive price
FAQ
Q1: I want to buy your products, how can I pay?
A: You can contact me through Whatsapp to send bank account to you.
Q2: If we don't find what we want on your website, what should we do?
A: You can email or Whatsapp us the descriptions and pictures of the products you need, we will check whether we have them. We develop new items every month. and some of them have not been uploaded to website in time. Or you can send us sample by express, we will develop this item for bulk purchasing.
Q3: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to send lpc for quality testing if we have the item you need in stock
