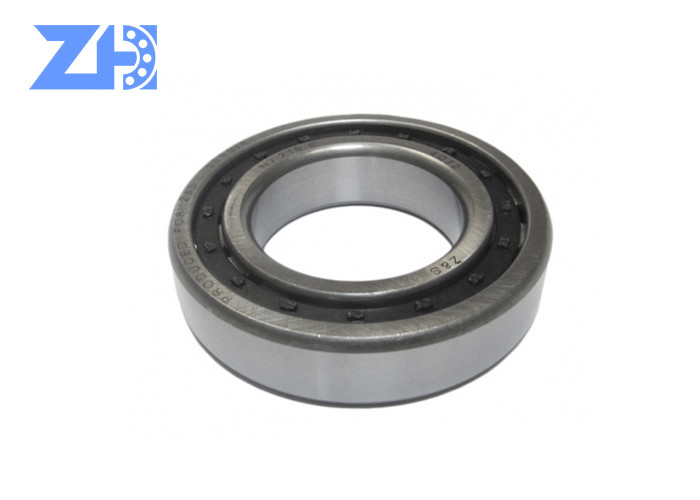

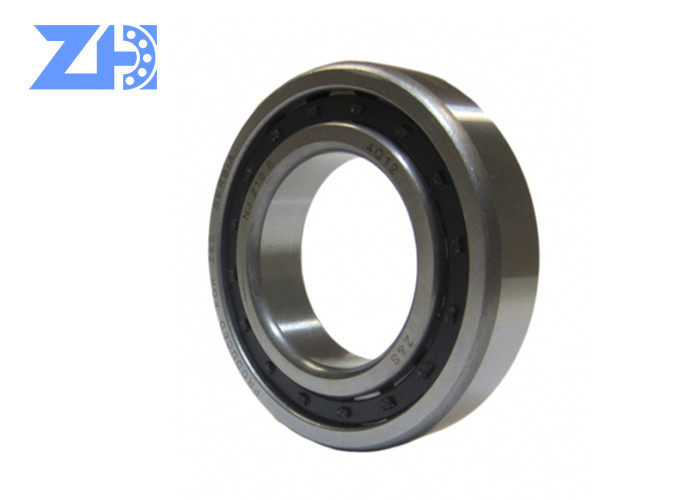

Name: K9007400 50mm I.D Cylindrical Roller Bearing 90mm O.D Race Width 20mm
Brand: ZhongHong bearing Co., LTD.
SKU: K9007400
Price: negotiable USD
Availability: InStock

Home > products > Cylindrical Roller Bearing >

K9007400 50mm I.D Cylindrical Roller Bearing 90mm O.D Race Width 20mm

K9007400 Cylindrical Roller Bearing

50mm Cylindrical Roller Bearing

Place of Origin:

CHINA

Brand Name:

QIEAL ZH

Model Number:

K9007400

Request A Quote

Product Details

Inside Diameter:

50mm

Outside Diameter:

90mm

Roller Bearing Type:

Cylindrical

Race Width:

20mm

Bore Type:

Parallel

Packing:

Carton Packing

Static Load Rating:

69000N

End Type:

Open

Highlight:

K9007400 Cylindrical Roller Bearing

50mm Cylindrical Roller Bearing

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

Negotiable

Packaging Details

Packaging Details: carton;

Delivery Time

2-5 work days

Payment Terms

L/C, D/A, D/P, T/T, Money Gram

Supply Ability

500 per day

NK44X75X17 NKI60-35 NKIB5912 Cylindrical Roller Bearing P4 Precision

Get Best Price

NK44X75X17 NKI60-35 NKIB5912 Cylindrical Roller Bearing GCR15 Material

Get Best Price

NK44X75X17 NKI60-35 NKIB5912 Cylindrical Roller Bearing

Get Best Price

ET-CR-1364-1355 ET/CR1364/1355 Cylindrical Roller Bearing GCR15 Material

Get Best Price

Contact Now

Product Description

K9007400 50mm I.D Cylindrical Roller Bearing, 90mm O.D Race Width 20mm

Packaging & delivery

Packaging Details: Box package for

Port: shanghai qingdao guangzhou

Lead time:

Quantity(pieces)	1 - 100	>100
Lead time (days)	2	To be negotiated

Specifiexcavatorions

Bore diameter:	50 mm	Static load capacity:	69000 N
Outside diameter:	90 mm	Precision rating:	Not Rated
Overall width:	20 mm	Maximum rpm:	9700 RPM
Flanges:	(2) Outer Ring	Cage material:	Brass
Bore type:	Straight	Finish/coating:	Uncoated
Number of rows:	1	Closure type:	Open
Internal clearance:	C3	Outer ring width:	20 mm
Ring separation:	Separable Outer Ring	Fillet radius:	1 mm
Operating temperature range:	-30 to +150 °C	Series:	NU2
Dynamic load capacity:	75000 N

BEARING NO.	ID	OD	B	Cr	Cor	MAX SPEED (GREASE)	MAX SPEED (OIL)	MASS
	(mm)	(mm)	(mm)	(kN)	(kN)	(r/min)	(r/min)	(kg)
NU202	15	35	11	7.98	5.5	15000	19000	0.095
NU203	17	40	12	9.12	7	14000	18000	0.102
NU204	20	47	14	25.8	24	12000	16000	0.117
NU205	25	52	15	27.5	26.8	11000	14000	0.14
NU206	30	62	16	36	35.5	8500	11000	0.214
NU207	35	72	17	46.5	48	7500	9500	0.311
NU208	40	80	18	51.5	53	7000	9000	0.394
NU209	45	85	19	58.5	63.8	6300	8000	0.45
NU210	50	90	20	61.2	69.2	6000	7500	0.505
NU211	55	100	21	80.2	95.5	5300	6700	0.68
NU212	60	110	22	89.8	102	5000	6300	0.86
NU213	65	120	23	102	118	4500	5600	1.08
NU214	70	125	24	112	135	4300	5300	1.2
NU215	75	130	25	125	155	4000	5000	1.32
NU216	80	140	26	132	165	3800	4800	1.58
NU217	85	150	28	158	192	3600	4500	2
NU218	90	160	30	172	215	3400	4300	2.44
NU219	95	170	32	208	262	3200	4000	2.96
NU220	100	180	34	235	302	3000	3800	3.58
NU222	110	200	38	278	360	2600	3400	5.02
NU224	120	215	40	322	422	2200	3000	6.11
NU226	130	230	40	258	352	2000	2800	7
NU228	140	250	42	302	415	1800	2400	9.1
NU230	150	270	45	360	490	1700	2200	11
NU232	160	290	48	405	552	1600	2000	14
NU238	190	340	55	512	745	1300	1700	23
