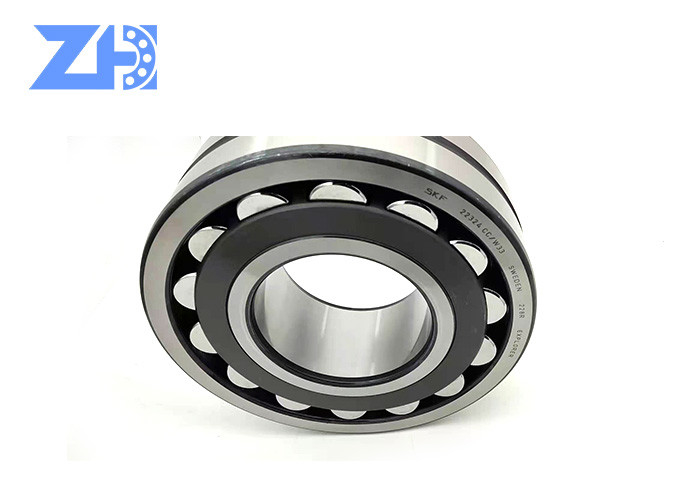

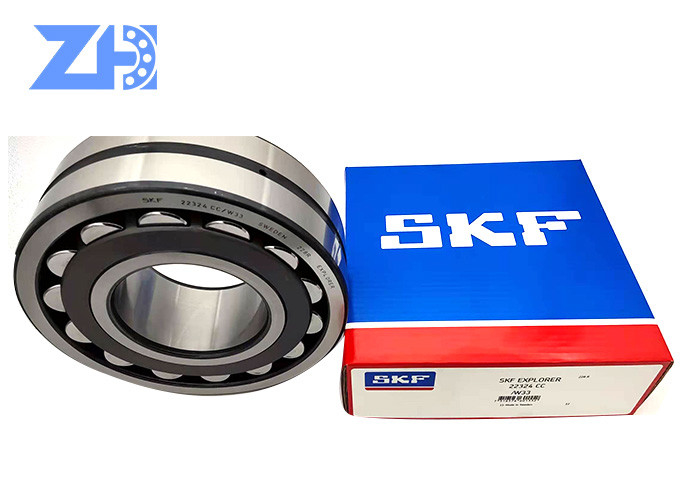

Name: Double Row Spherical Roller Bearing 0670-127 XKAQ-00146
Brand: ZhongHong bearing Co., LTD.
SKU: 0670-127 XKAQ-00146 SA8230-00780 VOE14547261 22324.
Price: negotiable USD
Availability: InStock

Home > products > Spherical Roller Bearing >

Double Row Spherical Roller Bearing 0670-127 XKAQ-00146

Double Row Spherical Roller Bearing

XKAQ-00146 Spherical Roller Bearing

Place of Origin:

CHINA

Brand Name:

QIEAL ZH

Model Number:

0670-127 XKAQ-00146 SA8230-00780 VOE14547261 22324.

Request A Quote

Double Row Spherical Roller Bearing 0670-127 XKAQ-00146

Product Details

Model No.e:

0670-127 XKAQ-00146

Inner Dimater:

Width:

Separate:

Unseparated

Outer Diameter:

Cage:

Steel

Specifiexcavatorion:

Europe Standard

Production:

Capacity 150PCS Per Month

Highlight:

Double Row Spherical Roller Bearing

XKAQ-00146 Spherical Roller Bearing

Payment & Shipping Terms

Minimum Order Quantity

1 PCS

Price

Negotiable

Packaging Details

Packaging Details: carton;

Delivery Time

2-5 work days

Payment Terms

L/C, D/A, D/P, T/T, Money Gram

22218 CC-W33 Spherical Roller Bearing Standard Size

Get Best Price

22209CA 23026 22313 Spherical Roller Bearing GCR15 Material

Get Best Price

Hot selling, high quality bearing, 804312A Spherical Roller Bearing, high quality and low price, welcome to buy

Get Best Price

Hot selling, high quality bearing, 801806 Spherical Roller Bearing, high quality and low price, welcome to buy

Get Best Price

Contact Now

Product Description

Spherical Bearing Vibration Screen SA8230-00780

Basic information.

Model No.

0670-127

Separate

unseparated

Inner Dimater

Outer Diameter

width

cage

steel

stock

yes

Transport Package

Industry Package and OEM

Specifiexcavatorion

Europe standard

Trademark

DEMEK&OEM

Origin

China

Production capacity

150PCS Per Month

Product Description

Brief Introduction

Spherical Bearing Vibration Screen used for mining machinery and equipment, mechanical agitator, vibration motor, is one of the most critical components of such equipment. Bearing poor working conditions, not only environmental humidity, dust particles and more, high speed, high temperature, vibration and strong impact, resulting in a large workload. Bearings have strong bearing capacity, good impact resistance, high reliability, good lubriexcavatoring properties, while overcoming shaft deflection.

Feature

1, vibrating screen bearings are generally symmetrical spherical roller, cylindrical roller;
2, in general, a tolerance of P6, with a tolerance of P5, tolerance in fact are fixed, but there are metric and English points;
3, due to the great heat, so we choose a large gap. But this clearance can be calculated, the main consideration of original clearance, tolerance and temperature can be calculated;
4. Appliexcavatorion requirements of vibrating screen supports are high, ordinary steel bearing material does not work. The retainers are machined bronze, guided by the outer ring, to be applied in case of eccentric load.

Appliexcavatorion

1, mainly used for mining machinery and equipment vibration, mechanical agitator, vibration motor;
2, riveters, drills, shovels and other pneumatic wind tools;
3, electric drills, saws, forest oil saws, crushers, polishing machines, grinding machines, road maintenance stamping machines and other power tools;
4 locomotives, ships, motorcycles and other vehicles;
5, tractors, harvesters, rotary threshing and other agricultural machinery;

Spherical Roller Bearings 213 series

Bearing Number	Boundary Dimensions(mm)				Basic Load Ratings(kN)		Limiting speeds (rpm)		Mass(Kg)
QBT	d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
21308	40	90	23	1.5	88	90	3200	4900	0.76
21309	45	100	25	1.5	102	106	2900	4400	1
21310	50	110	27	2	118	127	2600	4000	1.35
21311	55	120	29	2	145	163	2400	3700	1.7
21312	60	130	31	2.1	167	191	2200	3400	2.1
21313	65	140	33	2.1	194	228	2000	3100	2.6
21314	70	150	35	2.1	220	262	1900	2900	3.1
21315	75	160	37	2.1	239	287	1800	2700	3.8
21316	80	170	39	2.1	260	315	1700	2500	4.5
21317	85	180	41	3	289	355	1600	2400	5.2
21318	90	190	43	3	320	400	1500	2300	6.1
21319	95	200	45	3	335	420	1400	2100	7.1
21320	100	215	47	3	370	465	1300	2000	8.7
21322	110	240	50	3	485	635	1400	1900	11.6

Spherical Roller Bearings 222 series

Bearing Number	Boundary Dimensions(mm)				Basic Load Ratings(kN)		Limiting Speeds(rpm)		Mass(Kg)
QBT	d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
22205	25	52	18	1	36.5	36	6,500	10,000	0.186
22206	30	62	20	1	49	49	5,700	8,800	0.287
22207	35	72	23	1.1	69.5	71	4,900	7,500	0.446
22208	40	80	23	1.1	79	88.5	4,300	6,600	0.526
22209	45	85	23	1.1	82.5	95	3,800	5,900	0.584
22210	50	90	23	1.1	86	102	3,500	5,300	0.63
22211	55	100	25	1.5	118	144	3,200	4,900	0.808
22212	60	110	28	1.5	115	147	2,900	4,500	1.15
22213	65	120	31	1.5	143	179	2,700	4,200	1.5
22214	70	125	31	1.5	154	201	2,500	3,900	1.55
22215	75	130	31	1.5	166	223	2,300	3,600	1.65
22216	80	140	33	2	213	277	2,200	3,400	1.99
22217	85	150	36	2	251	320	2,100	3,200	2.49
22218	90	160	40	2	292	385	1,900	3,000	3.24
22219	95	170	43	2.1	294	390	1,800	2,800	4.1
22220	100	180	46	2.1	315	415	1,700	2,700	4.95
22222	110	200	53	2.1	410	570	1,600	2,400	7.2
22224	120	215	58	2.1	485	700	1,400	2,200	9.1
22226	130	230	64	3	570	790	1,300	2,000	11.2
22228	140	250	68	3	685	975	1,200	1,900	14
22230	150	270	73	3	775	1,160	1,100	1,700	18.1
22232	160	290	80	3	870	1,290	1,000	1,600	22.7
22234	170	310	86	4	1,000	1,520	980	1,500	28
22236	180	320	86	4	1,040	1,610	920	1,400	29.3
22238	190	340	92	4	1,160	1,810	860	1,300	36.6
22240	200	360	98	4	1,310	2,010	820	1,300	44
22244	220	400	108	4	1,580	2,460	730	1,100	60.4
22248	240	440	120	4	1,940	3,100	660	1,000	81.7
22252	260	480	130	5	2,230	3,600	610	930	106
22256	280	500	130	5	2,310	3,800	560	860	112
22260	300	540	140	5	2,670	4,350	510	790	141

Spherical Roller Bearings 223 series

Bearing Number	Boundary Dimensions(mm)				Basic Load Ratings(kN)		Limiting Speeds(rpm)		Mass(Kg)
QBT	d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
22308	110	240	50	3	495	615	1,200	1,800	11.1
22309	40	90	33	1.5	121	128	3,800	5,900	0.951
22310	45	100	36	1.5	148	167	3,400	5,300	1.3
22311	50	110	40	2	186	212	3,100	4,800	1.75
22312	55	120	43	2	204	234	2,800	4,400	2.25
22313	60	130	46	2.1	238	273	2,600	4,000	2.83
22314	65	140	48	2.1	265	320	2,400	3,700	3.37
22315	70	150	51	2.1	325	380	2,300	3,500	4.12
22316	75	160	55	2.1	330	410	2,100	3,200	5.13
22317	80	170	58	2.1	385	470	2,000	3,000	5.91
22318	85	180	60	3	415	510	1,900	2,900	6.94
22319	90	190	64	3	480	590	1,800	2,700	8.16
22320	95	200	67	3	500	615	1,600	2,500	9.54
22322	100	215	73	3	605	755	1,600	2,400	12.1
22324	110	240	80	3	745	930	1,400	2,200	16.7
22326	120	260	86	3	880	1,120	1,300	2,000	21
22328	130	280	93	4	1,000	1,290	1,200	1,800	26.2
22330	140	300	102	4	1,130	1,460	1,100	1,700	33
22332	150	320	108	4	1,270	1,750	1,000	1,600	41.8
22334	160	340	114	4	1,410	1,990	940	1,500	49.7
22336	170	360	120	4	1,540	2,180	880	1,400	58.5
22338	180	380	126	4	1,740	2,560	830	1,300	68.5
22340	190	400	132	5	1,870	2,790	780	1,200	79.3
22344	200	420	138	5	2,040	3,050	740	1,100	91.2
22348	220	460	145	5	2,350	3,500	660	1,000	115
22352	240	500	155	5	2,720	4,100	600	930	145
22356	260	540	165	6	3,100	4,750	550	850	179
22360	280	580	175	6	3,500	5,350	500	780	220

Spherical Roller Bearings 230 series

Bearing Number	Boundary Dimensions(mm)				Basic Load Ratings(kN)		Limiting Speeds(rpm)		Mass(Kg)
QBT	d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
23022	110	170	45	2	282	455	1,800	2,800	3.71
23024	120	180	46	2	296	495	1,700	2,600	4.05
23026	130	200	52	2	375	620	1,500	2,300	5.9
23028	140	210	53	2	405	690	1,400	2,200	6.35
23030	150	225	56	2.1	445	775	1,300	2,000	7.73
23032	160	240	60	2.1	505	885	1,200	1,900	9.42
23034	170	260	67	2.1	630	1,080	1,100	1,800	12.7
23036	180	280	74	2.1	740	1,290	1,100	1,700	16.7
23038	190	290	75	2.1	755	1,350	1,000	1,600	17.1
23040	200	310	82	2.1	915	1,620	960	1,500	22.7
23044	220	340	90	3	1,060	1,920	870	1,300	29.9
23048	240	360	92	3	1,130	2,140	790	1,200	33.4
23052	260	400	104	4	1,420	2,620	720	1,100	48.5
23056	280	420	106	4	1,510	2,920	660	1,000	50.6
23060	300	460	118	4	1,890	3,550	610	940	72.4

Spherical Roller Bearings 231 series

Bearing Number	Boundary Dimensions(mm)				Basic Load Ratings(kN)		Limiting Speeds(rpm)		Mass(Kg)
QBT	d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
23120	100	165	52	2	310	470	1,700	2,600	4.3
23122	110	180	56	2	370	580	1,500	2,400	5.4
23124	120	200	62	2	455	705	1,400	2,100	7.7
23126	130	210	64	2	495	795	1,300	2,000	8.47
23128	140	225	68	2.1	540	895	1,200	1,800	10.2
23130	150	250	80	2.1	730	1,190	1,100	1,700	15.6
23132	160	270	86	2.1	840	1,370	1,000	1,600	19.8
23134	170	280	88	2.1	885	1,490	960	1,500	21.5
23136	180	300	96	3	1,030	1,730	900	1,400	25.1
23138	190	320	104	3	1,190	2,020	850	1,300	35.3
23140	200	340	112	3	1,350	2,270	800	1,200	43.3
23144	220	370	120	4	1,540	2,670	720	1,100	53.3
23148	240	400	128	4	1,730	3,050	650	1,000	65.8
23152	260	440	144	4	2,140	3,850	600	920	91.4
23156	280	460	146	5	2,300	4,250	550	850	97.7
23160	300	500	160	5	2,750	5,000	510	780	131

Spherical Roller Bearings 240 series

Bearing Number	Boundary Dimensions(mm)				Basic Load Ratings(kN)		Limiting Speeds(rpm)		Mass(Kg)
QBT	d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
24024	120	180	60	2	390	670	1,500	2,300	5.48
24024K30	120	180	60	2	390	670	1,500	2,300	5.39
24026	130	200	69	2	505	895	1,300	2,100	8.08
24026K30	130	200	69	2	505	895	1,300	2,100	7.95
24028	140	210	69	2	510	945	1,200	1,900	8.57
24028K30	140	210	69	2	510	945	1,200	1,900	8.43
24030	150	225	75	2.1	585	1,060	1,200	1,800	10.7
24030K30	150	225	75	2.1	585	1,060	1,200	1,800	10.5
24032	160	240	80	2.1	650	1,200	1,100	1,700	13
24032K30	160	240	80	2.1	650	1,200	1,100	1,700	12.8
24034	170	260	90	2.1	800	1,470	1,000	1,600	17.7
24034K30	170	260	90	2.1	800	1,470	1,000	1,600	17.4
24036	180	280	100	2.1	965	1,770	950	1,500	23.3
24036K30	180	280	100	2.1	965	1,770	950	1,500	22.9
24038	190	290	100	2.1	995	1,850	900	1,400	24.3
24038K30	190	290	100	2.1	995	1,850	900	1,400	23.9
24040	200	310	109	2.1	1,160	2,140	850	1,300	31
24040K30	200	310	109	2.1	1,160	2,140	850	1,300	30.5
24044	220	340	118	3	1,350	2,570	770	1,200	40.2
24044K30	220	340	118	3	1,350	2,570	770	1,200	39.6
24048	240	360	118	3	1,410	2,770	700	1,100	43
24048K30	240	360	118	3	1,410	2,770	700	1,100	42.3
24052	260	400	140	4	1,830	3,550	640	980	65.2
24052K30	260	400	140	4	1,830	3,550	640	980	64.1
24056	280	420	140	4	1,950	3,950	590	900	69
24056K30	280	420	140	4	1,950	3,950	590	900	67.9
24060	300	460	160	4	2,450	4,950	540	840	98
24060K30	300	460	160	4	2,450	4,950	540	840	96.4

Spherical Roller Bearings 241 series

Bearing Number	Boundary Dimensions(mm)				Basic Load Ratings(kN)		Limiting Speeds(rpm)		Mass(Kg)
QBT	d	D	B	rs min	Cr	Cor	Grease	Oil	(Approx.)
24122	110	180	69	2	450	755	1,500	2,400	7.07
24122K30	110	180	69	2	450	755	1,500	2,400	6.96
24124	120	200	80	2	575	945	1,400	2,100	10.3
24124K30	120	200	80	2	575	945	1,400	2,100	10.1
24126	130	210	80	2	585	995	1,300	2,000	11
24126K30	130	210	80	2	585	995	1,300	2,000	10.8
24128	140	225	85	2.1	670	1,150	1,200	1,800	13.3
24128K30	140	225	85	2.1	670	1,150	1,200	1,800	13.1
24130	150	250	100	2.1	885	1,520	1,100	1,700	20.2
24130K30	150	250	100	2.1	885	1,520	1,100	1,700	20
24132	160	270	109	2.1	1,040	1,780	1,000	1,600	26
24132K30	160	270	109	2.1	1,040	1,780	1,000	1,600	25.6
24134	170	280	109	2.1	1,080	1,880	960	1,500	27.2
24134K30	170	280	109	2.1	1,080	1,880	960	1,500	26.8
24136	180	300	118	3	1,250	2,210	900	1,400	34.3
24136K30	180	300	118	3	1,250	2,210	900	1,400	33.8
24138	190	320	128	3	1,420	2,480	850	1,300	42.8
24138K30	190	320	128	3	1,420	2,480	850	1,300	42.2
24140	200	340	140	3	1,630	2,900	800	1,200	53.4
24140K30	200	340	140	3	1,630	2,900	800	1,200	52.6
24144	220	370	150	4	1,880	3,400	720	1,100	67
24144K30	220	370	150	4	1,880	3,400	720	1,100	66
24148	240	400	160	4	2,110	3,800	650	1,000	82.2
24148K30	240	400	160	4	2,110	3,800	650	1,000	80.9
24152	260	440	180	4	2,510	4,600	600	920	114
24152K30	260	440	180	4	2,510	4,600	600	920	112
24156	280	460	180	5	2,730	5,200	550	850	120
24156K30	280	460	180	5	2,730	5,200	550	850	118
24160	300	500	200	5	3,300	6,400	510	780	161
24160K30	300	500	200	5	3,300	6,400	510	780	159

Double Row Spherical Roller Bearing 0670-127 XKAQ-00146

Double Row Spherical Roller Bearing

XKAQ-00146 Spherical Roller Bearing

Double Row Spherical Roller Bearing

XKAQ-00146 Spherical Roller Bearing

22218 CC-W33 Spherical Roller Bearing Standard Size

22209CA 23026 22313 Spherical Roller Bearing GCR15 Material

Hot selling, high quality bearing, 804312A Spherical Roller Bearing, high quality and low price, welcome to buy

Hot selling, high quality bearing, 801806 Spherical Roller Bearing, high quality and low price, welcome to buy

Basic information.

spherical roller thrust bearing

split roller bearing

roller cage bearing
