Place of Origin:
CHINA JAPAN
Brand Name:
QIEAL ZH
Model Number:
319262B

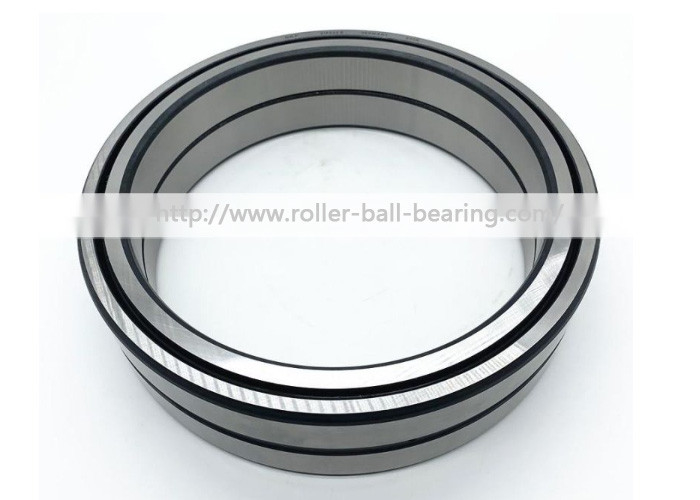

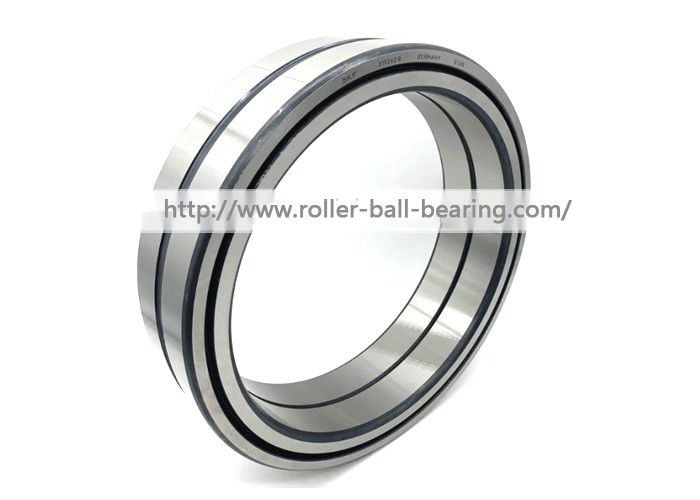

319262B Double Row Cylindrical Roller Bearing 319262B Road roller bearing E3-252
Product Description
Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rollingelements. They can therefore be used in appliexcavatorions involving heavy radial and impact loading.
The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitablefor appliexcavatorions that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.
Indexing roller units E3-252
Bearing number : E3-252
Size (mm) : 260x320x80
Bore Diameter (mm) : 260
Outer Diameter (mm) : 320
Width (mm) : 80
Bearing dimensions and specifiexcavatorion in excavatoralogue:
d - 260 mm
D - 320 mm
B - 80 mm
d1 - - 291.78 mm
D1 - - 294.37 mm
r1,2 - min. - 2 mm
r3,4 - min. - 2 mm
Basic dynamic load rating - C - 142 kN
Basic static load rating - C0 - 240 kN
Fatigue load limit - Pu - 22.8 kN
Maximum dynamic radial loads - Fr - max. 96.5 kN
Maximum static radial loads - F0r - max. 137 kN
Mass roller unit - 15 kg
Tags : INA , 260x320x80
| Principal dimensions |
|
|
Basic load ratings |
|
Fatigue load limit | Maximum radial loads |
|
Designation | ||||
|
|
|
|
dynamic | static |
|
dynamic | static |
|
||||
| d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | Pu[kN] | Frmax.[kN] | F0rmax.[kN] |
|
||||
| 110 | 210 | 110 | 286 | 360 | 40.5 | 265 | 380 | 319008 A/HB2 | ||||
| 120 | 210 | 114 | 336 | 550 | 64 | 320 | 455 | BCZ-0087 | ||||
| 120 | 210 | 114 | 369 | 520 | 60 | 290 | 415 | 319181/HB2 | ||||
| 140 | 250 | 114 | 528 | 765 | 86.5 | 335 | 480 | 316977 C | ||||
| 140 | 280 | 114 | 682 | 980 | 112 | 560 | 800 | BC2B 320055 A | ||||
| 160 | 250 | 140 | 539 | 830 | 90 | 310 | 450 | BNTB 326247/HB1 | ||||
| 260 | 320 | 80 | 142 | 240 | 22.8 | 96.5 | 137 | 319262 B | ||||

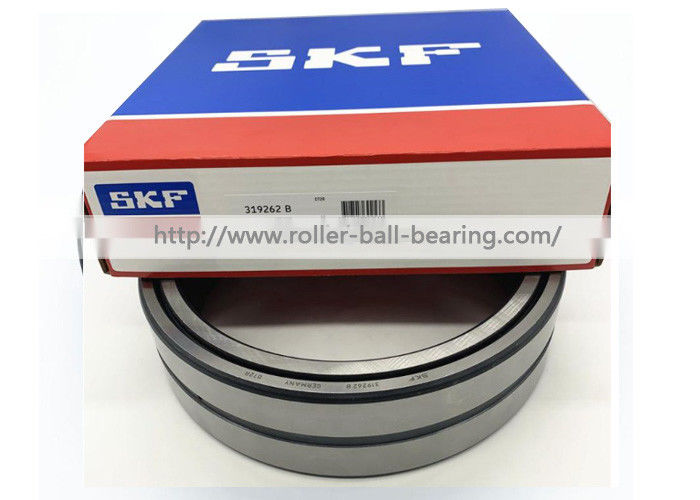

Product packaging
Packing : 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Send your inquiry directly to us
