Place of Origin:
CHINA
Brand Name:
QIEAL ZH
Model Number:
F-567079B

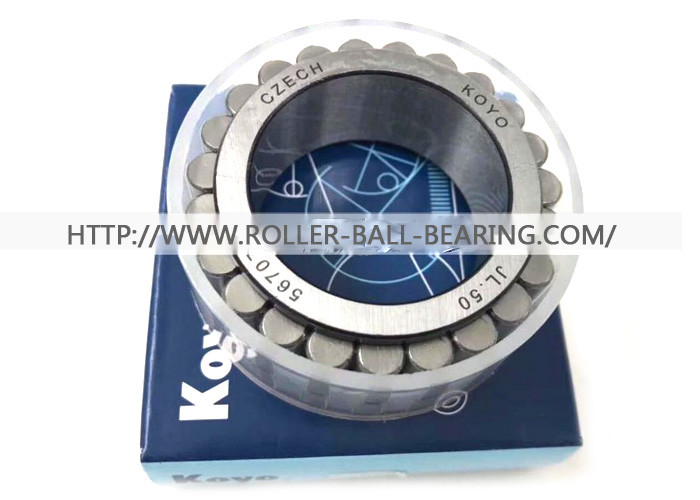

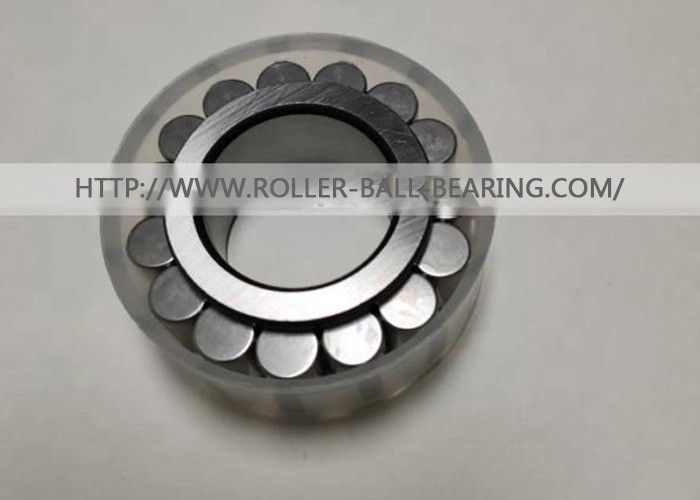

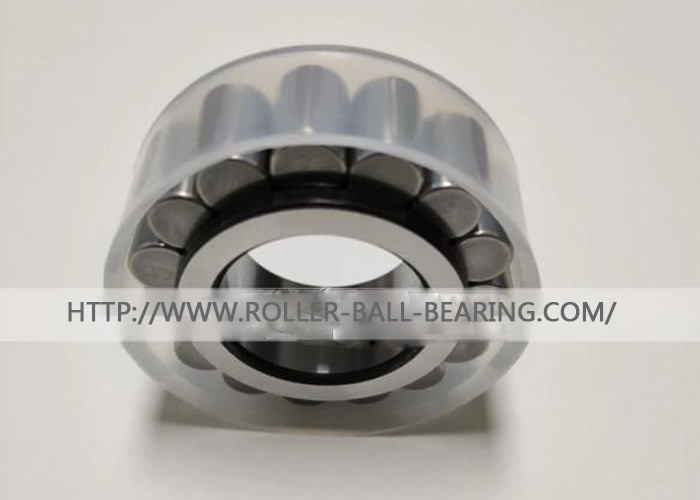

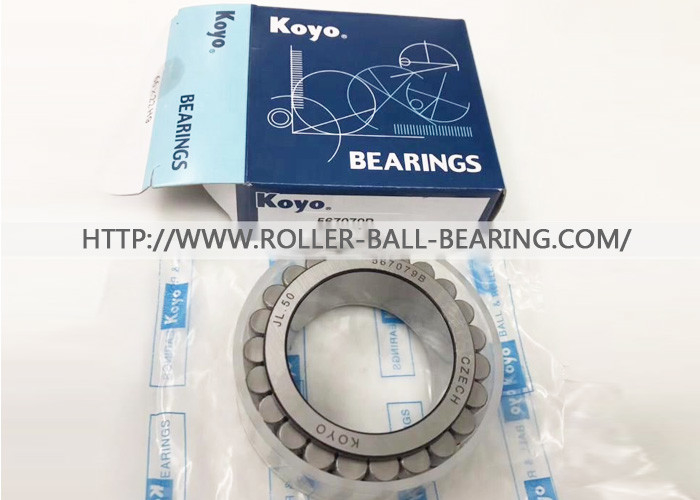

F-567079B KOYO Full Complement Cylindrical Roller Bearing 567079B
Product Description
full Cylindrical roller bearings can provide axial guidance of the planet.This can be carried out by means of axial washers and retaining rings arranged on both sides of the rolling element .The bearings are available as single row and double row loexcavatoring bearings. They can support not only high radial forces but also axial forces in both directions and can therefore guide shafts axially in both directions.The bearings are supplied in an open design. They are not greased and can be lubriexcavatored with oil or grease.The rolling elements are protected against damage and loss during transport by means of a plastic sleeve.
The other reduction gear box model
Model i) (ID) (OD) (Width)
RSL-183015 bearing 75 x107.9 x30mm
RSL-183013 bearing 65 x93.09 x26
RSL-183012 bearing 60 x86.74x 26
RSL-182212 bearing 60 x99.17 x28
RSL-182211 bearing 55 x88.81 x25
RSL-182210bearing 50 x81.4 x23
RSL-182208 bearing 40 x70.94 x23
RSL-182207 bearing 35 x63.97 x23
RSL-182206 bearing 30 x55.19x 20
RSL-182205 bearing 25 x46.52 x18
F-219590 bearing 30 x 50.74x 14
F-219593bearing 25x 50.74 x14
RN2205 bearing25 x46.55 x18
RN204 bearing 20x 36.85 x14
RN306bearing 30 x62x 19
F-212543bearing 50 x72.25 x 40
F-204783 bearing 50 x72.33 x39
F-219012bearing 45 x65.02 x34
F-204781bearing 40x 61.74 x35.5
F-208099 bearing40 x57.81 x34
F-210408 bearing22 x 38.75x 22.5
F-208098 bearing35x 52.09x 26.5
RNN3006X3V bearing30x 49.6x 25
RNN3005X3Vbearing 35 x42.6 x23
| Bearing Model | 567079B cylindrical roller bearing 567079B Planetary Gear box Bearing KOYO brand 567079 B |
| Structure | Cylindrical Roller Bearing |
| (dxDxB) | 36*54.3*22mm |
| Weight / | 0.3KG |
| HS CODE | 8482500000 |
| Lead Time | Within 3 Days |
| Contact Person | chen (Ms) |
| WhatsApp / Webchat | +86-18620602705 |
| qireal220929@163.com |
| Bearing No. | Weight(kg) | d(mm) | Dr(mm) | B(mm) |
| F-227932 | 0.12 | 20 | 36 | 30 |
| F-219593 | 0.144 | 25 | 42 | 30 |
| F-204045 | 0.27 | 30 | 49 | 34 |
| F-219590 | 0.28 | 35 | 55 | 36 |
| F-123243 | 0.4 | 45 | 66 | 40 |
| F-210408 | 0.46 | 50 | 72 | 40 |
| HS-262 | 0.86 | 55 | 83 | 46 |
| RNNX22AV | 0.895 | 60 | 86 | 46 |
| F-24*40.3*26 | 0.94 | 65 | 93 | 46 |
| RNN3005X3V | 1.12 | 70 | 100 | 54 |
| F-217615 | 1.35 | 75 | 107 | 54 |
| F-210304 | 1.8 | 80 | 116 | 60 |
| RNN306X3V | 1.85 | 85 | 121 | 60 |
| F-32*46.6*28 | 2.6 | 90 | 130 | 67 |
| F-208098 | 2.6 | 100 | 139 | 67 |
| RNN3007X3V | 3.95 | 110 | 156 | 80 |
| F-385328 | 4.52 | 120 | 167 | 80 |
| HS-263 | 6.7 | 130 | 183 | 95 |
| RNNX10V | 7.914 | 140 | 197 | 95 |
| F-237005 | 8.215 | 150 | 206 | 100 |
| F-229575.1 | 11.09 | 160 | 224 | 109 |
| 567079B | 15.6 | 170 | 242 | 122 |
| F-229070 | RSL185004 | RSL183004 | RSL182204 | RSL182304 |
| F-219012 | RSL185005 | RSL183005 | RSL182205 | RSL182305 |
| F-210390 | RSL185006 | RSL183006 | RSL182206 | RSL182306 |
| F-207407 | RSL185007 | RSL183007 | RSL182207 | RSL182307 |
| F-212543 | RSL185008 | RSL183008 | RSL182208 | RSL182308 |
| F-204754 | RSL185009 | RSL183009 | RSL182209 | RSL182309 |
| F-201346 | RSL185010 | RSL183010 | RSL182210 | RSL182310 |
| F-208098 | RSL185011 | RSL183011 | RSL182211 | RSL182311 |
| F-208099 | RSL185012 | RSL183012 | RSL182212 | RSL182312 |
| F-204783 | RSL185013 | RSL183013 | RSL182213 | RSL182313 |
| F-204781 | RSL185014 | RSL183014 | RSL182214 | RSL182314 |
| F-204782 | RSL185015 | RSL183015 | RSL182215 | RSL182315 |
| F-217411 | RSL185016 | RSL183016 | RSL182216 | RSL182316 |
| F-213617 | RSL185017 | RSL183017 | RSL182217 | RSL182317 |
| F-210408 | RSL185018 | RSL183018 | RSL182218 | RSL182318 |
| F-238900 | RSL185020 | RSL183020 | RSL182220 | RSL182320 |
| F-212590 | RSL185022 | RSL183022 | RSL182222 | RSL182323 |
| CPM2518 | RSL185024 | RSL183024 | RSL182224 | RSL182324 |
| 1056-25 | RSL185026 | RSL183026 | RSL182226 | RSL182326 |
| RNNX22V | RSL185028 | RSL183028 | RSL182228 | RSL182328 |
| RNN50x69.67x32 | RSL185050 | RSL183030 | RSL182222 | RSL182323 |
| RNN40x61.74x32 | RSL185032 | RSL183032 | RSL182232 | RSL182332 |
| RNN40x57.81x34 | RSL185034 | RSL183034 | RSL182234 | RSL182334 |
| RNN55x77.07x41 | RSL185036 | RSL183036 | RSL182236 | RSL182336 |
| RNN50x72.33x39 | RSL185038 | RSL183038 | RSL182238 | RSL182338 |
| RNN50x72.33x42 | RSL185040 | RSL183040 | RSL182240 | RSL182340 |
| d/mm | D/mm | B/mm | Cr kN | Cor kN | Bearing |
| 18 | 32.300 | 20.5 | 24.1 | 25.7 | CPM 2699 bearing |
| 22 | 36.200 | 30.0 | 47.5 | 68.8 | CPM 2435 bearing |
| 22 | 38.750 | 22.5 | 34.6 | 38.1 | CPM 2535 bearing |
| 22 | 38.750 | 22.5 | 34.6 | 38.1 | CPM 2834 bearing |
| 24 | 40.250 | 26.0 | 44.0 | 59.8 | CPM 2400 bearing |
| 24 | 40.250 | 34.0 | 53.3 | 76.4 | CPM 2597 bearing |
| 25 | 40.250 | 26.0 | 44.0 | 59.8 | CPM 2686 bearing |
| 25 | 40.250 | 32.0 | 53.3 | 76.4 | CPM 2613bearing |
| 28 | 44.450 | 34.0 | 70.8 | 99.8 | CPM 2776 bearing |
| 30 | 46.400 | 32.0 | 73.2 | 105.7 | CPM 2594 bearing |
| 30 | 48.250 | 40.0 | 85.8 | 131.6 | CPM 2687 bearing |
| 30 | 49.600 | 26.0 | 57.0 | 70.3 | CPM 2510 bearing |
| 30 | 49.600 | 24.0 | 50.8 | 60.6 | CPM 2178 bearing |
| 30 | 49.600 | 25.0 | 50.8 | 60.6 | CPM 2651 bearing |
| 30 | 49.600 | 26.0 | 57.1 | 70.4 | CPM 2198 bearing |
| 30 | 49.600 | 30.0 | 69.1 | 90.0 | CPM 2683 bearing |
| 32 | 46.600 | 25.0 | 54.3 | 82.5 | CPM 2508 bearing |
| 32 | 46.600 | 28.0 | 54.3 | 82.5 | CPM 2183 bearing |
| 32 | 46.600 | 28.0 | 54.3 | 82.5 | CPM 2439 bearing |
| 32 | 48.240 | 34.0 | 76.0 | 112.0 | CPM 2668 bearing |
| 32 | 51.750 | 25.0 | 59.1 | 74.7 | CPM 2496 bearing |
| 32 | 51.750 | 29.0 | 71.5 | 95.5 | CPM 2579 bearing |
| 34 | 50.200 | 29.0 | 66.7 | 96.6 | CPM 2634 bearing |
| 35 | 49.800 | 28.0 | 56.8 | 89.7 | CPM 2434 bearing |
| 35 | 52.090 | 26.5 | 56.6 | 79.4 | CPM 2723 bearing |
| 35 | 55.520 | 36.0 | 83.6 | 113.6 | CPM 2470 bearing |
| 35 | 55.520 | 36.0 | 83.6 | 113.6 | CPM 2520 bearing |
| 35 | 55.520 | 36.0 | 83.6 | 113.6 | CPM 2706 bearing |
| 35 | 59.190 | 27.0 | 68.4 | 85.5 | CPM 2721 bearing |
| 35 | 64.300 | 26.5 | 72.9 | 95.7 | CPM 2528 bearing |
| 38 | 52.950 | 28.0 | 59.2 | 97.0 | CPM 2164 bearing |
| 38 | 52.950 | 29.5 | 59.2 | 97.0 | CPM 2504 bearing |
| 38 | 52.950 | 29.5 | 59.2 | 97.0 | CPM 2806 bearing |
| 38 | 54.686 | 29.5 | 56.9 | 86.7 | CPM 2464 bearing |
| 38 | 54.690 | 29.5 | 63.0 | 99.0 | CPM 2458 bearing |
| 38 | 57.910 | 38.0 | 106.0 | 156.0 | CPM 2669 bearing |
| 40 | 57.810 | 34.0 | 96.0 | 141.0 | CPM 2827 bearing |
| 40 | 60.680 | 31.0 | 80.8 | 118.1 | CPM 2729 bearing |
| 40 | 61.740 | 28.0 | 70.6 | 90.6 | CPM 2188 bearing |
| 40 | 61.740 | 35.5 | 100.0 | 140.0 | CPM 2650 bearing |
| 42 | 60.750 | 37.0 | 100.7 | 156.9 | CPM 2412 bearing |
| 42 | 60.750 | 37.0 | 107.2 | 169.7 | CPM 2777 bearing |
| 44 | 61.600 | 34.0 | 90.1 | 153.0 | CPM 2592 bearing |
| 44 | 62.970 | 37.0 | 103.5 | 164.4 | CPM 2401bearing |
| 45 | 61.550 | 32.0 | 77.3 | 125.7 | CPM 2559 bearing |
| 45 | 61.550 | 36.0 | 90.0 | 153.0 | CPM 2425 bearing |
| 45 | 65.020 | 34.0 | 94.3 | 140.4 | CPM 2647bearing |
| 45 | 66.850 | 37.5 | 105.8 | 156.7 | CPM 2722 bearing |
| 45 | 66.850 | 37.5 | 123.0 | 157.0 | CPM 2828 bearing |
| 45 | 83.880 | 85.0 | 268.0 | 393.9 | CPM 2619 bearing |
| 46 | 69.500 | 45.0 | 145.0 | 207.0 | CPM 2807 bearing |
| 50 | 67.280 | 32.0 | 75.7 | 145.2 | CPM 2530 bearing |
| 50 | 67.360 | 40.0 | 109.0 | 201.0 | CPM 2720 bearing |
| 50 | 69.580 | 40.0 | 118.0 | 202.0 | CPM 2719 bearing |
| 50 | 69.670 | 32.0 | 89.1 | 141.0 | CPM 2492 bearing |
| 50 | 69.670 | 37.5 | 111.2 | 186.9 | CPM 2609 bearing |
| 50 | 72.050 | 37.0 | 111.7 | 172.5 | CPM 2466 bearing |
| 50 | 72.330 | 40.0 | 130.9 | 194.3 | CPM 2190 bearing |
| 50 | 72.330 | 40.0 | 130.9 | 194.3 | CPM 2465 bearing |
Product packaging
Packing : 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
