Place of Origin:
CHINA
Brand Name:
QIEAL ZH
Model Number:
AJ503807

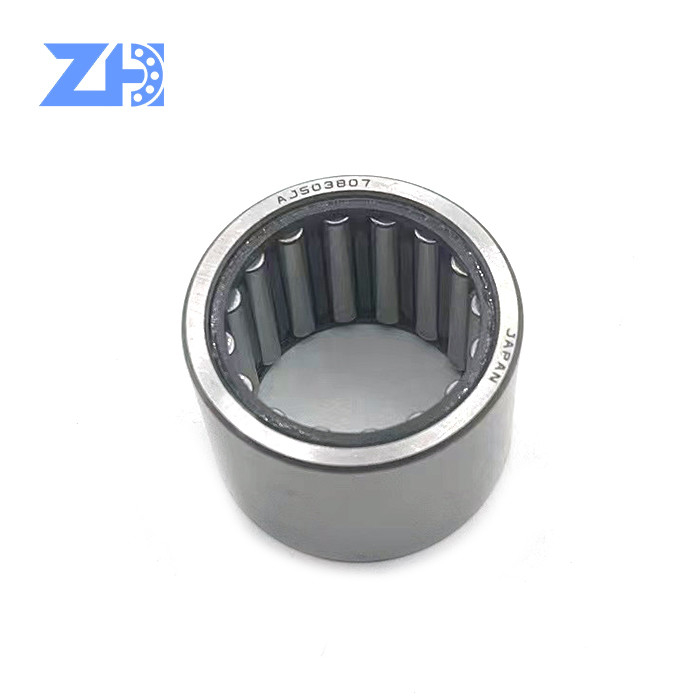

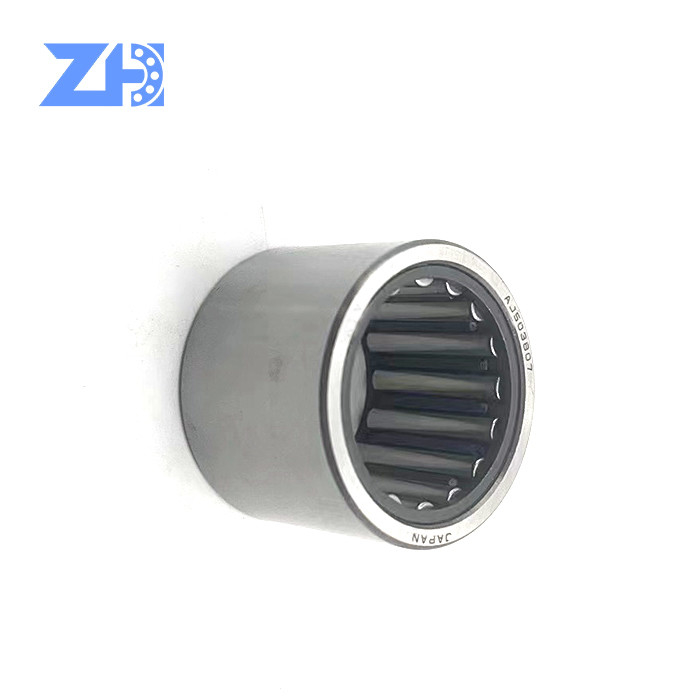

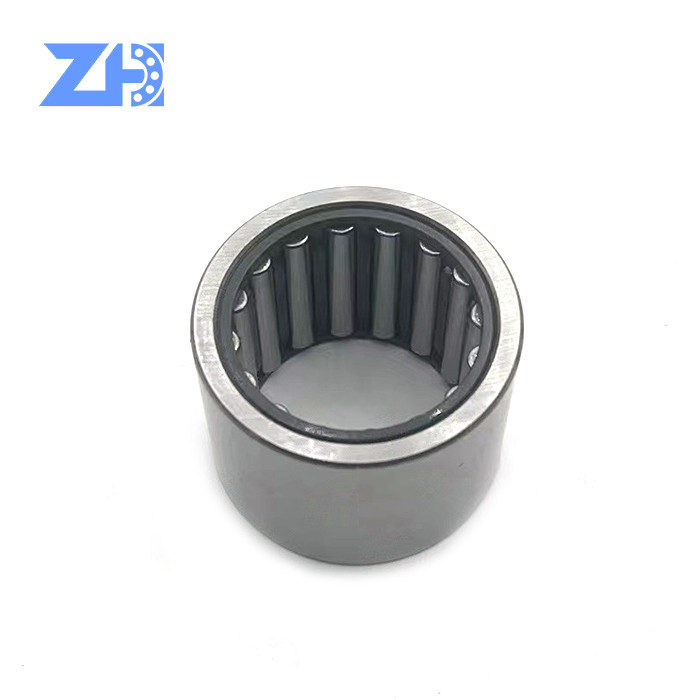

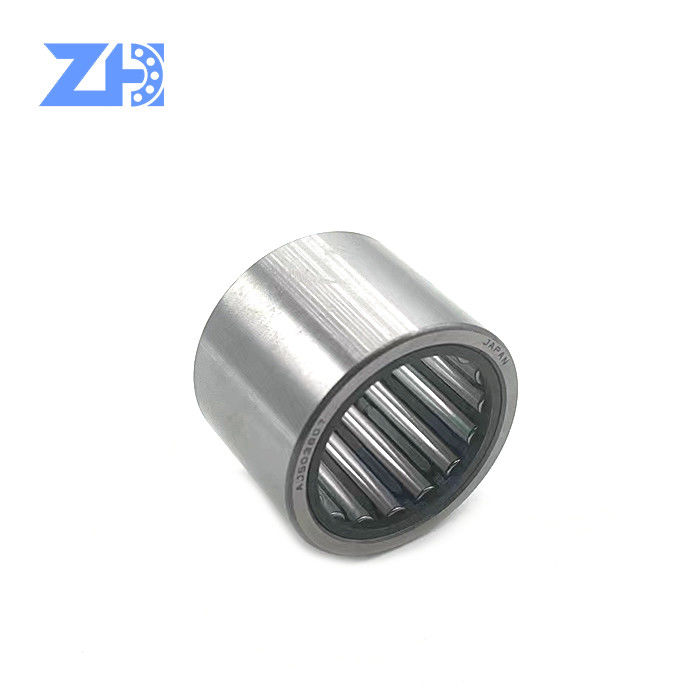

Needle Bearing Bearing AJ503807 To 38x54x40mm For Hydraulic Excavator Pump
| Model | Weight/g | Size/mm | |||
| fw | D | W | driving torque | ||
| RC02 | two | 3,175 | 7.15 | 6.35 | 1.9 |
| RC040708 | 3.5 | 6.35 | 11,112 | 12.7 | 1.9 |
| RC040708-FS | 3.5 | 6.35 | 11,112 | 12.7 | 1.9 |
| RC061008 | 4.7 | 9,525 | 15,875 | 12.7 | 4.83 |
| RC061008-FC | 4.7 | 9,525 | 15,875 | 12.7 | 4.83 |
| RC081208 | 9.2 | 12.7 | 19.05 | 12.7 | 7.9 |
| RC081208-FS | 9.2 | 12.7 | 19.05 | 12.7 | 7.9 |
| RC101410 | 14.5 | 15,875 | 22,225 | 15.88 | 15.4 |
| RC101410-FC | 14.5 | 15,875 | 22,225 | 15.88 | 15.4 |
| RC121610 | 17 | 19.05 | 25.4 | 15.88 | 20.9 |
| RC121610-FS | 17 | 19.05 | 25.4 | 15.88 | 20.9 |
| RC162110 | 16.2 | 25.4 | 33,338 | 15.88 | 45 |
| RC162110-FC | 16.2 | 25.4 | 33,338 | 15.88 | 45 |
| RCB061014 | 12 | 9,525 | 15,875 | 22.22 | 4.83 |
| RCB061014-FS | 12 | 9,525 | 15,875 | 22.22 | 4.83 |
| RCB081214 | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
| RCB081214-FC | 16 | 12.7 | 19.05 | 22.22 | 7.9 |
| RCB101416 | 21.3 | 15,875 | 22,225 | 25.4 | 15.4 |
| RCB101416-FS | 21.3 | 15,875 | 22,225 | 25.4 | 15.4 |
| RCB121616 | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
| RCB121616-FC | 26.5 | 19.05 | 25.4 | 25.4 | 20.9 |
| RCB162117 | 44.8 | 25.4 | 33,338 | 26.99 | 45 |
| RCB162117-FS | 44.8 | 25.4 | 33,338 | 26.99 | 45 |
ONE WAY BEARING DESIGN FEATURES:
• Torque can be transmitted by either the housing or the shaft.
• Torque is transmitted positively by roller ramps that wedge against the inside.
• Transition from free motion to lockout occurs with minimal play or lost motion.
• Available as a clutch-or just as a clutch and bearing assembly.
• Clutch-only units must be used with external support components to hold the shaft and radial housing.
Bearing Packing:
1) Inner Plastic Bag + Carton + Paper Box (+ Pallet);
2) small sizes: Plastic Tube+Carton
3) big sizes: Wooden Case
Appliexcavatorion for needle roller bearing RC bearings:
- Needle roller bearings are widely suitable for automotive transmissions
-Air conditioning compressors
-bulldozer blades
- Cranes
-Gear box
- Machine tool spindles
-Copy machines and many more
• Moving paper for photocopiers, fax machines, paper towel dispensers, etc.
• Exercise equipment
• Apparatus
• Two-speed gearboxes
• Rack indexing units
• Converters, anti-backflow devices and transcendental grips.
• Fishing Reels, RC Cars, RC Helis, RC Engines
