Place of Origin:
Shandong
Brand Name:
ZH
Model Number:
22320CA

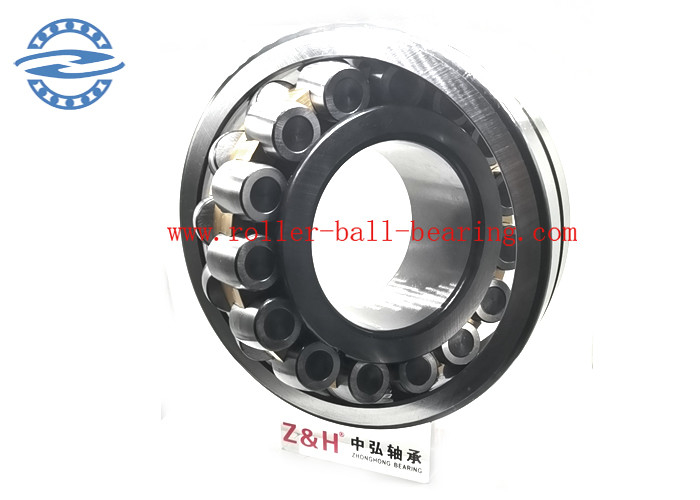

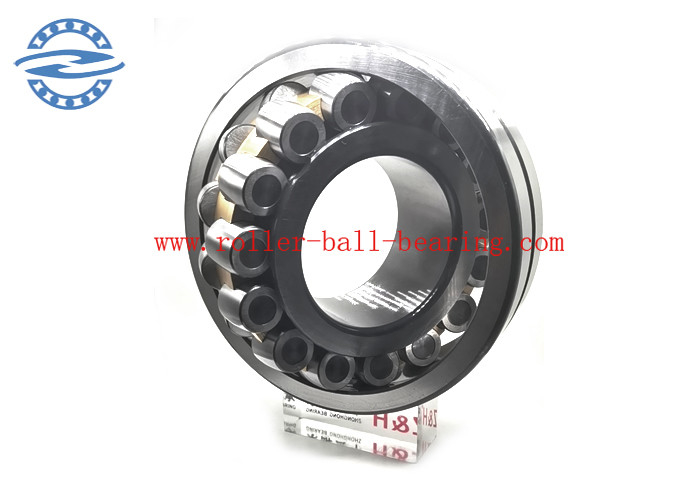

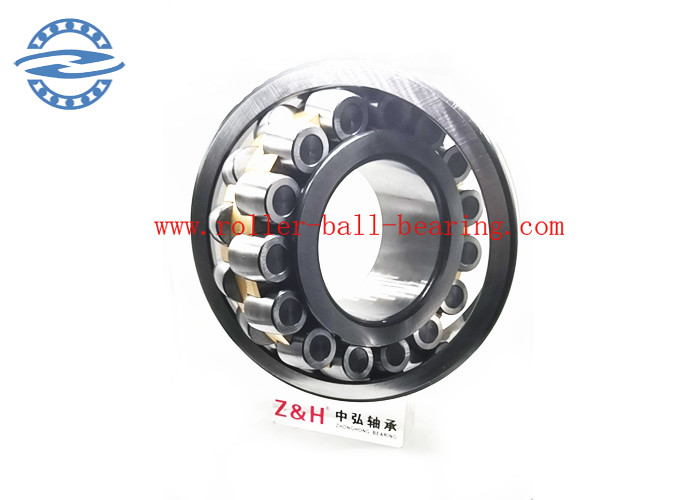

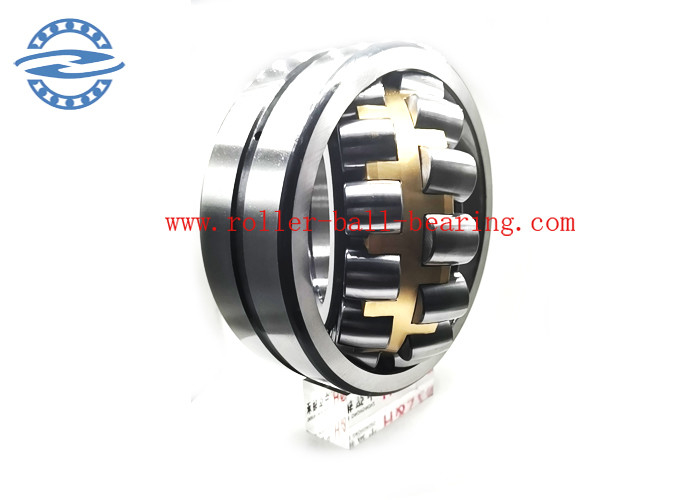

Spherical roller bearings are bearings with drum-shaped rollers assembled between the inner ring with two raceways and the outer ring with spherical raceways. Spherical roller bearings have two rows of rollers, which mainly bear radial loads, but can also bear axial loads in any direction. It has high radial load capacity, especially suitable for working under heavy load or vibration load, but cannot bear pure axial load. The outer ring raceway of this type of bearing is spherical, so its alignment performance is good and it can compensate for the coaxiality error.
|
Features: |
Long Life Low Noise |
Product Name: |
Spherical Roller Bearing |
|---|---|---|---|
|
Structure: |
CC CA CAE MB E |
Size: |
100×215×73MM |
|
Weight: |
13kg |
Material: |
GCr15/GCr15SiMn |
|
Cage: |
Brass/Steel |
Hardness: |
HRC60-HRC64 |
|
Grade: |
P0 P6 P5 P4 |
Clearance: |
C0 C3 C4 |
|
Lubriexcavatorion: |
Oil Or Grease |
||
|
High Light: |
HRC 60 Spherical Roller Bearing, 22320CA/w33 Spherical Roller Bearing, C3 Spherical Roller Bearing |
||
| d | 100 | mm |
| D | 215 | mm |
| B | 73 | mm |
| r min | 3 | mm |
| da min | 114 | mm |
| Da max | 201 | mm |
| ra max | 2.5 | mm |
| Cr | 614 | kN |
| Cor | 785 | kN |
| Limiting speed(Grease) | 1600 | r/min |
| Limiting speed(Oil) | 2100 | r/min |
| Y1 | 1.9 | |
| Y2 | 2.9 | |
| e | 0.35 |
| Mass bearing | 12.4 | kg |
Q : How is quality controlled ?
A : Quality is the key ! Our QC team and engineer team works through all the process from an order placed to shipped.
Q: Can I come for a visit?
A: You are welcome to visit our factories , office and showroom ! Please contact our reception and we will help you to make a schedule .
