Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
SY509M

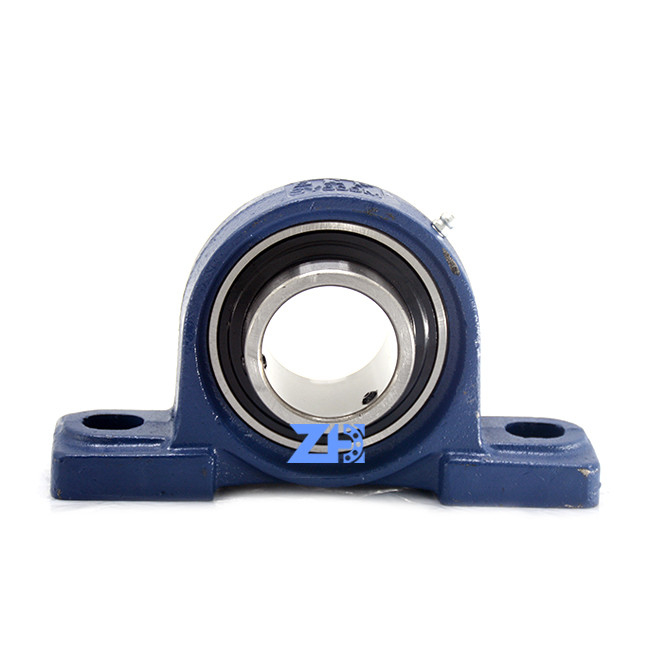

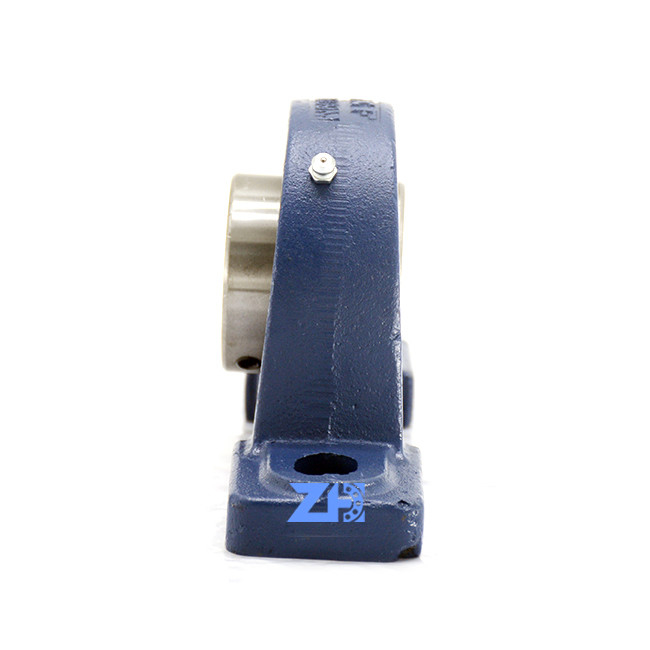

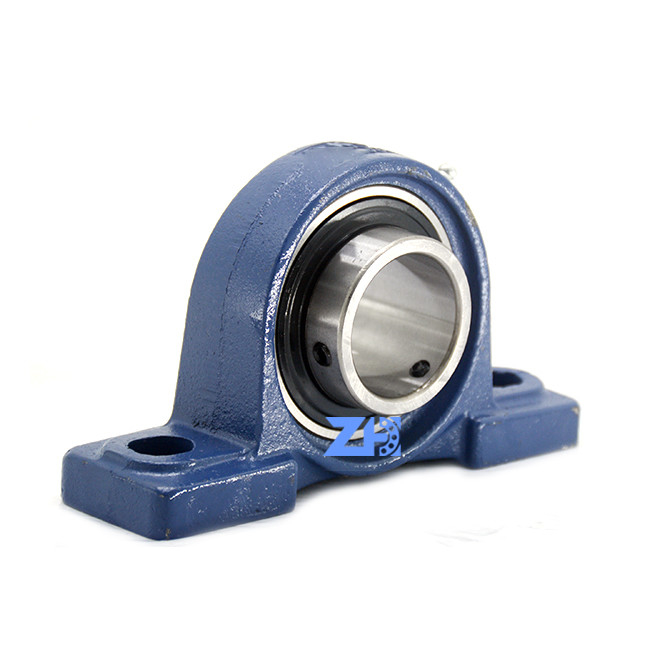

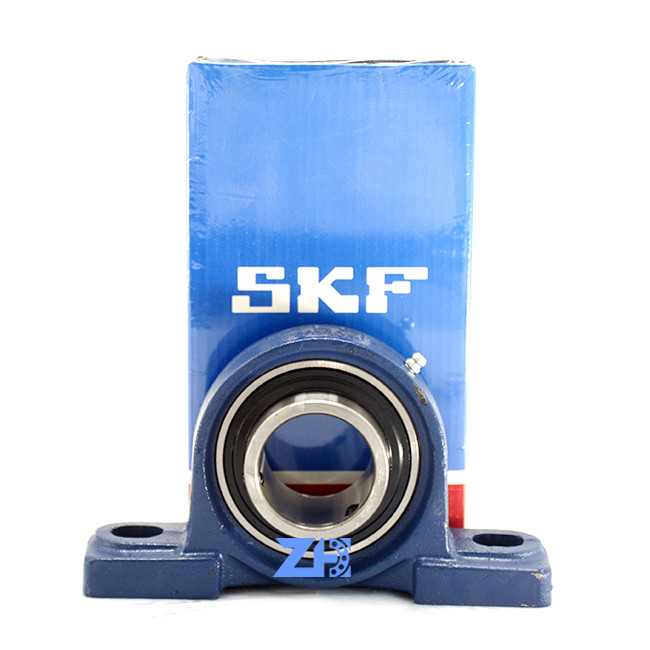

SY509M Pillow Ball Bearing High Limiting Speed Linear Bearing Block
SY509M Pillow Ball Bearing Load-bearing capacity pilot bearing
Technical Parameters:
| model | SY509M |
| Size(d*D*B) | Sandard size |
| Type |
Pillow Ball Bearing
|
| Precision | P0/P6/P5/P4 |
| Feature |
Durable seals and couping life |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock | Abundant |
Product Description
The housing or pillow of a pillow ball bearing is usually made of metal or a composite material and is designed to provide a secure and durable mounting point. It often has threaded holes or a bolt-on flange for easy installation. The inner ring of the bearing is attached to the component that requires movement, such as a control arm or a linkage rod, while the outer ring is attached to the stationary component.
Pillow ball bearings are commonly used in applications where there is a need for rotational or oscillating motion between two components. They are typically used in mechanical linkages, control systems, suspension systems, and other applications where there is a requirement for articulation or movement.
Excavator Bearings Catalog:
| Model | Dimensions | Separate components | Mass (KG) | ||||||
| d(MM) | A(MM) | A1(MM) | H(MM) | H1(MM) | L(MM) | Housing | Bearing | ||
| SY 12 TF | 12 | 32 | 18 | 57 | 30.2 | 127 | SY 503 M | YAR 203/12-2F | 0.52 |
| SY 15 TF | 15 | 32 | 18 | 57 | 30.2 | 127 | SY 503 M | YAR 203/15-2F | 0.51 |
| SY 17 TF | 17 | 32 | 18 | 57 | 30.2 | 127 | SY 503 M | YAR 203-2F | 0.5 |
| SY 20 TF | 20 | 32 | 21 | 65 | 33.3 | 127 | SY 504 M | YAR 204-2F | 0.57 |
| SYJ 20 TF | 20 | 34 | 23 | 65 | 33.3 | 127 | SYJ 504 | YAR 204-2F | 0.55 |
| SY 20 TR | 20 | 32 | 21 | 65 | 33.3 | 127 | SY 504 M | YAR 204-2RF | 0.57 |
| SY 25 TF | 25 | 36 | 22 | 70.5 | 36.5 | 130 | SY 505 M | YAR 205-2F | 0.72 |
| SYJ 25 TF | 25 | 38 | 24 | 70.5 | 36.5 | 140 | SYJ 505 | YAR 205-2F | 0.73 |
| SY 25 TR | 25 | 36 | 22 | 70.5 | 36.5 | 130 | SY 505 M | YAR 205-2RF | 0.72 |
| SY 30 TF | 30 | 40 | 25 | 82.5 | 42.9 | 152 | SY 506 M | YAR 206-2F | 1.1 |
| SYJ 30 TF | 30 | 42 | 27 | 82.5 | 42.9 | 165 | SYJ 506 | YAR 206-2F | 1.05 |
| SY 30 TR | 30 | 40 | 25 | 82.5 | 42.9 | 152 | SY 506 M | YAR 206-2RF | 1.1 |
| SY 35 TF | 35 | 45 | 27 | 93 | 47.6 | 160 | SY 507 M | YAR 207-2F | 1.45 |
| SYJ 35 TF | 35 | 46 | 28 | 93 | 47.6 | 167 | SYJ 507 | YAR 207-2F | 1.5 |
| SY 35 TR | 35 | 45 | 27 | 93 | 47.6 | 160 | SY 507 M | YAR 207-2RF | 1.45 |
| SY 40 TF | 40 | 48 | 30 | 99 | 49.2 | 175 | SY 508 M | YAR 208-2F | 1.8 |
| SYJ 40 TF | 40 | 49 | 31 | 99 | 49.2 | 184 | SYJ 508 | YAR 208-2F | 1.85 |
| SY 40 TR | 40 | 48 | 30 | 99 | 49.2 | 175 | SY 508 M | YAR 208-2RF | 1.8 |
| SY 45 TF | 45 | 48 | 32 | 107.5 | 54 | 187 | SY 509 M | YAR 209-2F | 2.2 |
| SYJ 45 TF | 45 | 52 | 36 | 107.5 | 54 | 190 | SYJ 509 | YAR 209-2F | 2.4 |
| SY 45 TR | 45 | 48 | 32 | 107.5 | 54 | 187 | SY 509 M | YAR 209-2RF | 2.2 |
| SY 50 TF | 50 | 54 | 34 | 114.5 | 57.2 | 203 | SY 510 M | YAR 210-2F | 2.7 |
| SYJ 50TF | 50 | 58 | 38 | 114.5 | 57.2 | 206 | SYJ 510 | YAR 210-2F | 2.95 |
| SY 50 TR | 50 | 54 | 34 | 114.5 | 57.2 | 203 | SY 510 M | YAR 210-2RF | 2.7 |
| SY 55 TF | 55 | 60 | 40 | 126 | 63.5 | 219 | SY 511 M | YAR 211-2F | 3.6 |
| SYJ 55 TF | 55 | 60 | 40 | 126 | 63.5 | 219 | SYJ 511 | YAR 211-2F | 3.7 |
| SY 55 TR | 55 | 60 | 40 | 126 | 63.5 | 219 | SY 511 M | YAR 211-2RF | 3.6 |
| SY 60 TF | 60 | 60 | 42 | 138 | 69.8 | 240 | SY 512 M | YAR 212-2F | 4.45 |
| SYJ 60 TF | 60 | 65 | 57 | 138 | 69.8 | 241 | SYJ 512 | YAR 212-2F | 4.85 |
| SY 60 TR | 60 | 60 | 42 | 138 | 69.8 | 240 | Y 512 M | YAR 212-2RF | 4.45 |
