Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
1P4693

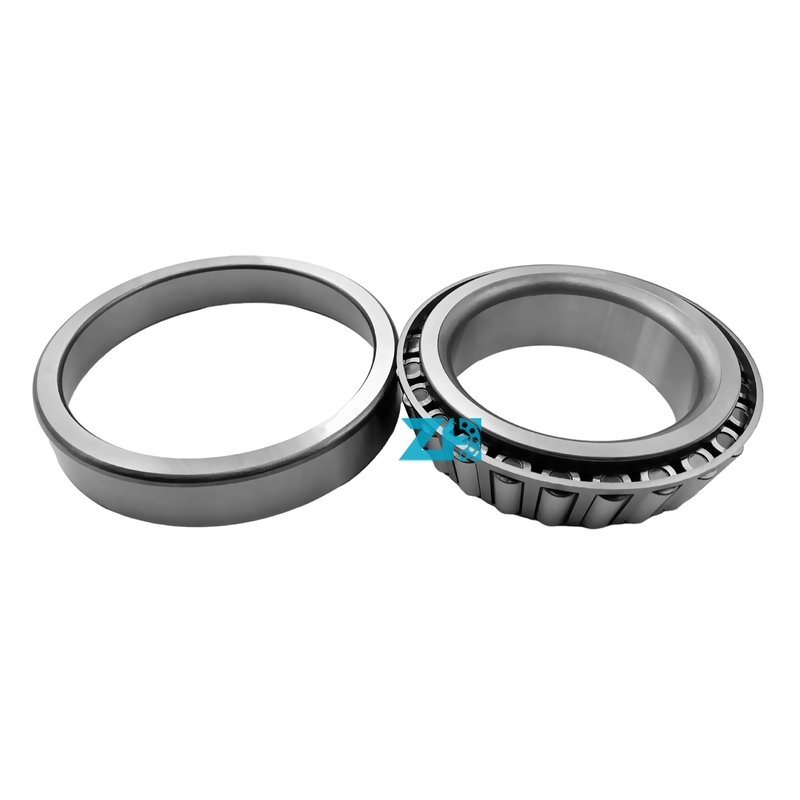

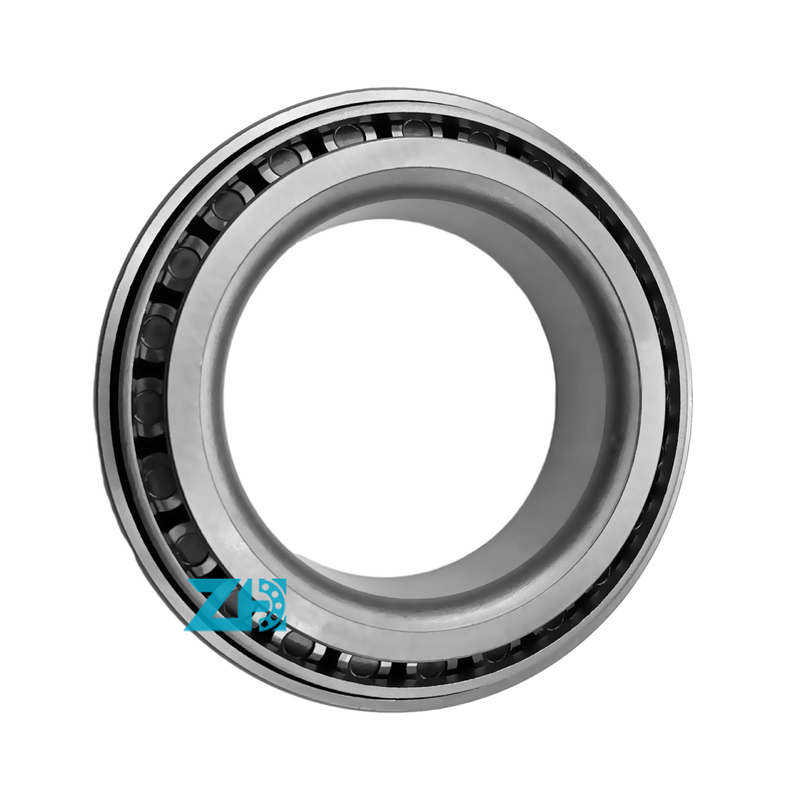

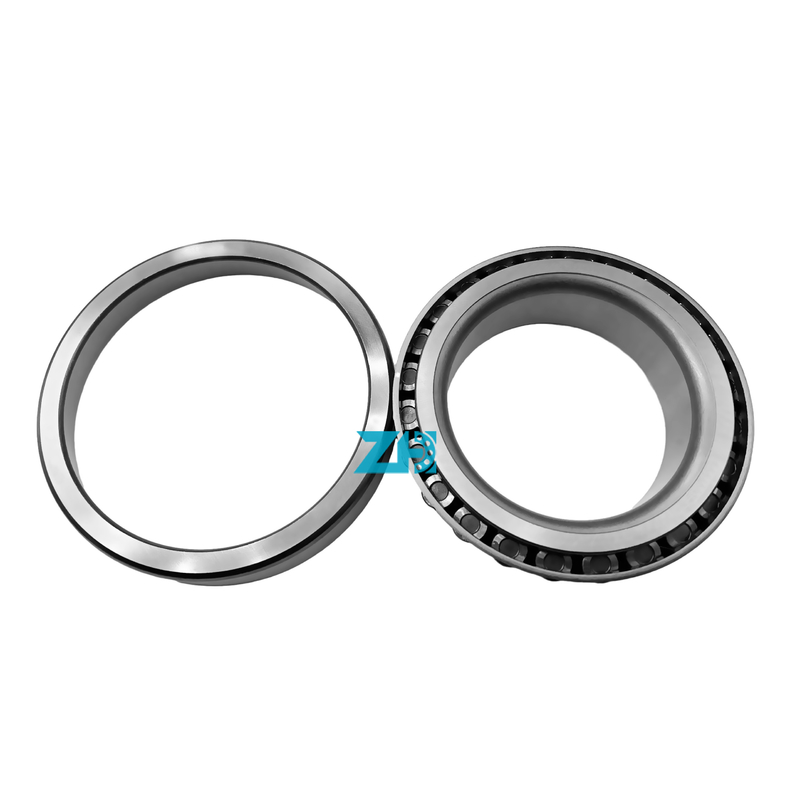

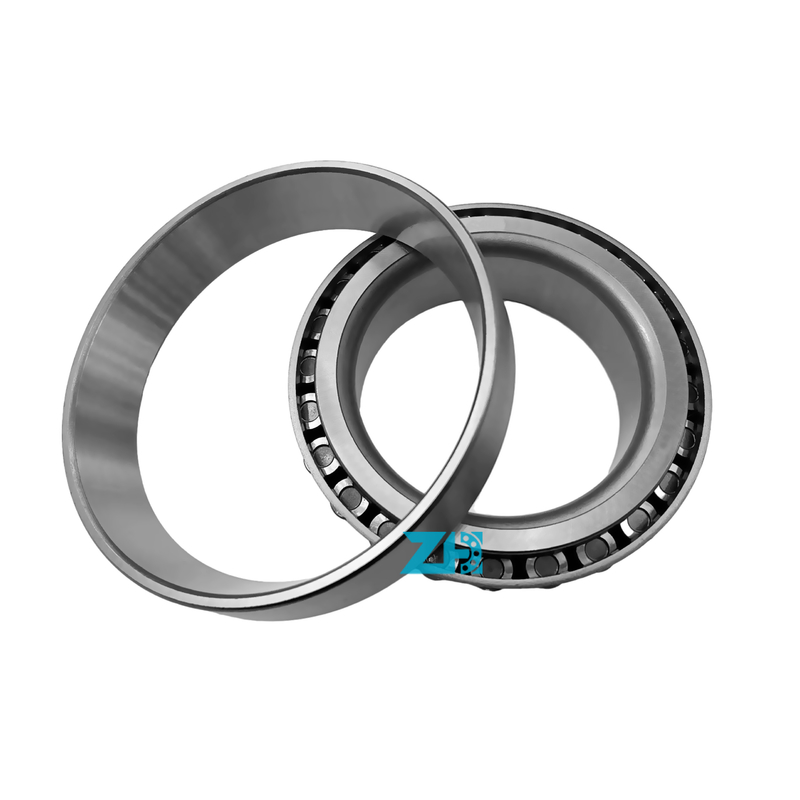

1P4693 Excavator bearing excavator walking tooth box bearing
Technical Parameters:
| model | 1P4693 |
| Size(d*D*B) | Standard size |
| Type | Excavator bearing |
| Precision | P0/P6/P5/P4 |
| Feature | High Load Carrying Capacity |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock | Abundant |
Product Description
An excavator bearing is a specialized type of bearing designed to meet the unique requirements of excavator machinery. Excavators are heavy construction machines used for digging, excavating, and moving earth or other materials. These machines operate in demanding conditions, subjecting the bearings to heavy loads, high impact forces, and harsh environments.
Excavator bearings are engineered to withstand these challenging conditions and provide reliable and efficient performance. They are typically large-sized bearings capable of handling both radial loads (perpendicular to the shaft) and axial loads (parallel to the shaft). The design and construction of excavator bearings enable them to support the various components and movements of the excavator, such as the boom, arm, bucket, swing system, and undercarriage.
Excavator Bearings Catalog:
| Model Number | Inner Diameter(mm) | Outer Diameter(mm) | Width(mm) |
| BA289-1SA | 289 | 355 | 32.5 |
| BA270-3 | 270 | 350 | 38 |
| BA115-1 | 115 | 145 | 15 |
| BA200-6 | 200 | 250 | 24 |
| BA168-1 | 168 | 205 | 20 |
| BA176-1 | 176 | 216 | 22 |
| BA135-6A | 135 | 170 | 20 |
| BA135-16A | 135 | 175 | 22 |
| BA165-6A | 165 | 210 | 24 |
| BA257-1 | 257 | 315 | 30 |
| BA130-1 | 130 | 166 | 18 |
| BA240-3WSA | 240 | 310 | 32 |
| BA240-5WSA | 240 | 308 | 30 |
| BA222-1WSA | 222 | 273 | 26 |
| BN220-1 | 220 | 280 | 28 |
| BA230-7 | 230 | 300 | 34 |
| BA222-5WSA | 222 | 273 | 26 |
| BA280-4 | 280 | 400 | 39 |
| BA180-4WSA | 180 | 250 | 33 |
| BA280-2SA | 280 | 370 | 40 |
| BA200-7B | 200 | 250 | 25 |
| BA300-4WSA | 300 | 395 | 52 |
| BA340-1 | 340 | 440 | 52 |
| BA345-1WSA | 345 | 470 | 52 |
| BA205-1 | 205 | 295 | 40 |
| BA290-3A | 290 | 380 | 40 |
| BA250-4A | 250 | 330 | 38 |
| BA246-1A | 246 | 308 | 32 |
| BA246-2A | 246 | 313 | 32 |
| BA200-10 | 200 | 280 | 38 |
| BA300-5 | 300 | 380 | 40 |
| BA230-2 | 230 | 320 | 40 |
| BA260-3 | 260 | 340 | 38 |
| BA260-4 | 260 | 340 | 38 |
| BA195-3A | 195 | 280 | 36.15 |
| BA165-19A | 165 | 203 | 17 |
| SF4831VPX1 | 240 | 310 | 33.4 |
| SF4815VPX1 | 240 | 310 | 34 |
| SF4860VPX1 | 240 | 320 | 37 |
| SF4826VPX1 | 240 | 310 | 33 |
| SF4852VPX1 | 240 | 310 | 33 |
| B-SF4454VPX1 | 220 | 295 | 33 |
| SF4444VPX1 | 220 | 295 | 32 |
| SF6015VPX1 | 300 | 375 | 36 |
| SF4411VPX1 | 220 | 290 | 32.5 |
| SF4615VPX1 | 230 | 300 | 35 |
| SF4460VPX1 | 220 | 300 | 35 |
| SF4903VPX1 | 245 | 305 | 31.5 |
| SF3215VPX1 | 160 | 200 | 20 |
| SF5235VPX1 | 260 | 330 | 34.5 |
| SF3215 | 160 | 200 | 28 |
| SF4007VPX1 | 200 | 250 | 25 |
| SF4910PX1 | 243 | 312 | 33 |
| SF2812VP1 | 140 | 175 | 17.5 |
| SF2907VPX1 | 143 | 175 | 17 |
| SF2912VPX1 | 145 | 200 | 27.5 |
| SF3607VPX1 | 180 | 225 | 21 |
| SF3227VPX1 | 160 | 200 | 20 |
| SF3240VPX1 | 160 | 200 | 20 |
| SF4019VPX1 | 200 | 260 | 30 |
| 4205VPX1 | 190 | 260 | 33 |
| SF4224PX1 | 210 | 180 | 35 |
| SF7938 | 190 | 260 | 45 |
| SF4820VPX1 | 240 | 310 | 34 |
| SF3650PX1 | 182 | 214 | 18 |
| SF3417PX1 | 168 | 205 | 20 |
| SF6413PX3 | 320 | 395 | 35 |
| SF4640 | 230 | 290 | 26 |
| SF3666PX1 | 180 | 235 | 27 |
| SF7002PX1 | 350 | 400 | 22 |
