Place of Origin:
Guangzhou
Brand Name:
ZH
Model Number:
HM86649 HM86610 HM86649 /10

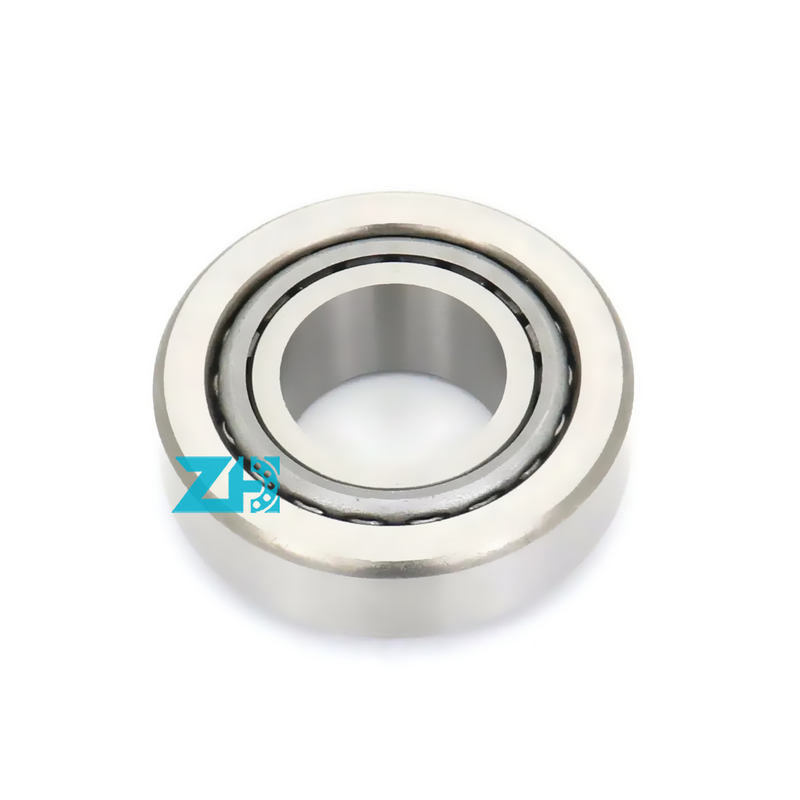

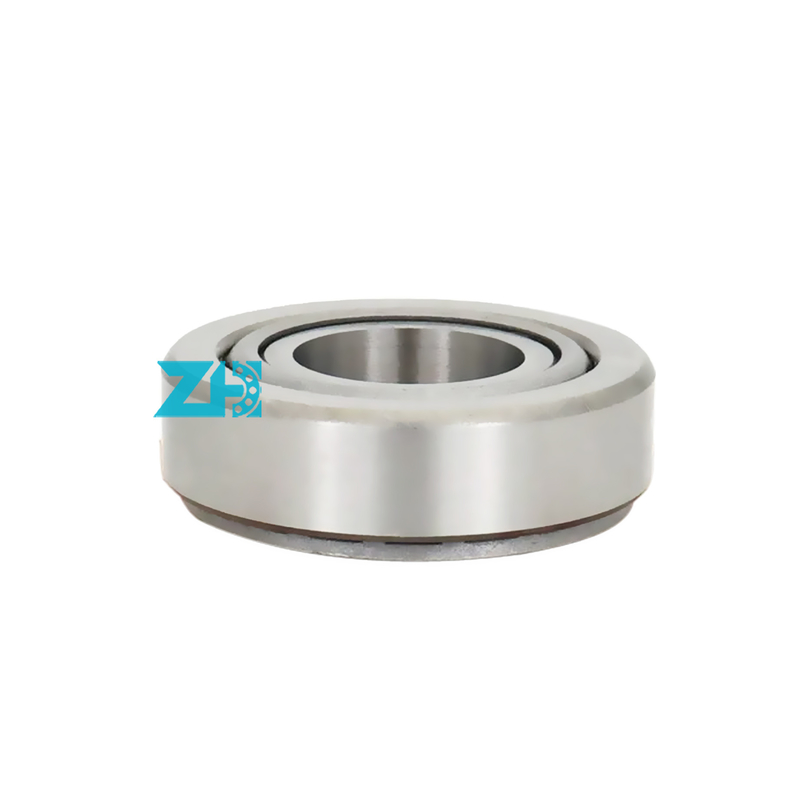

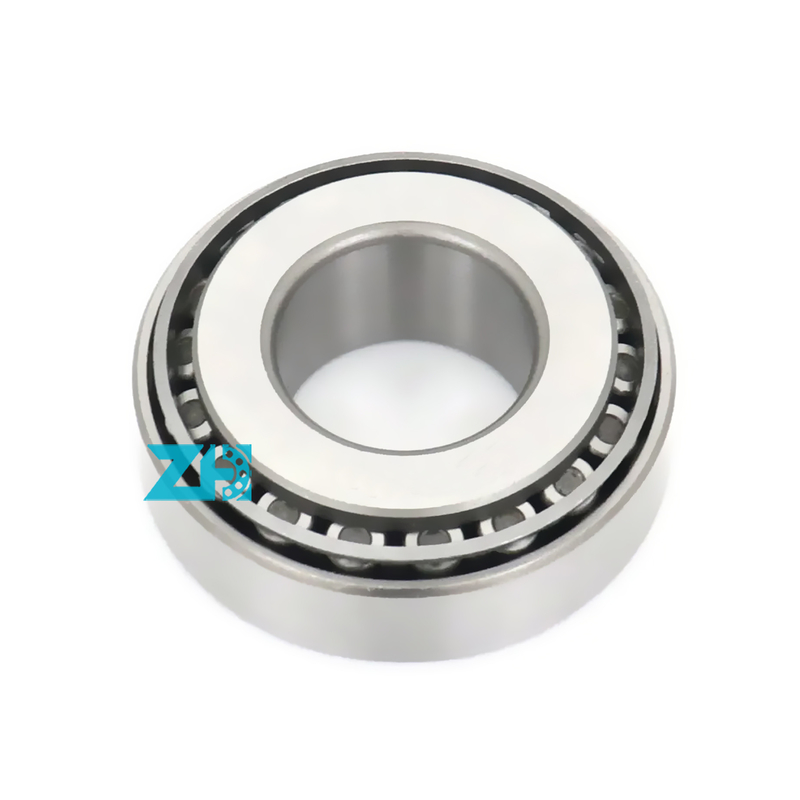

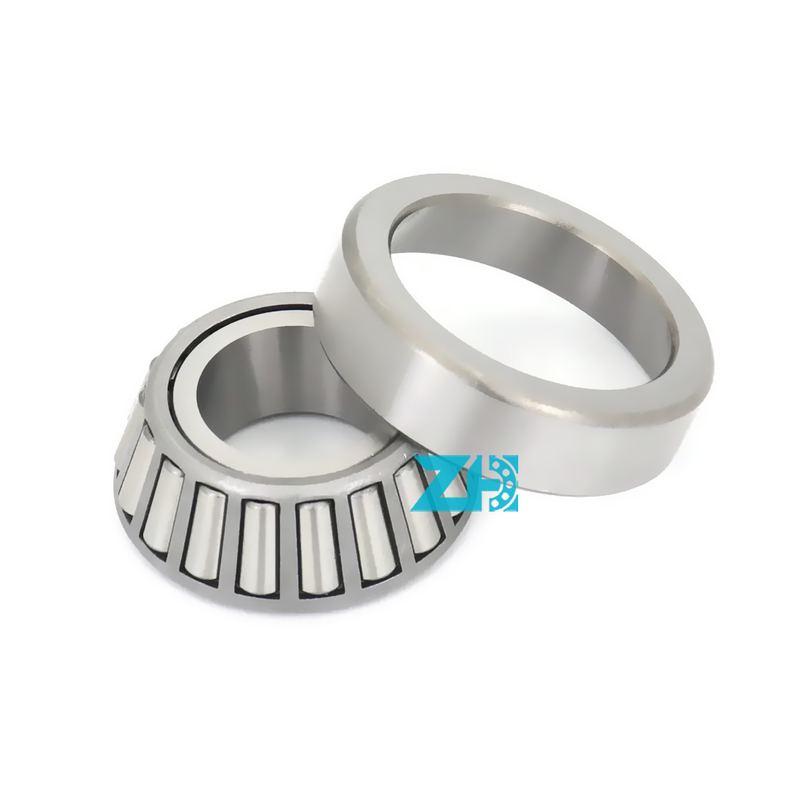

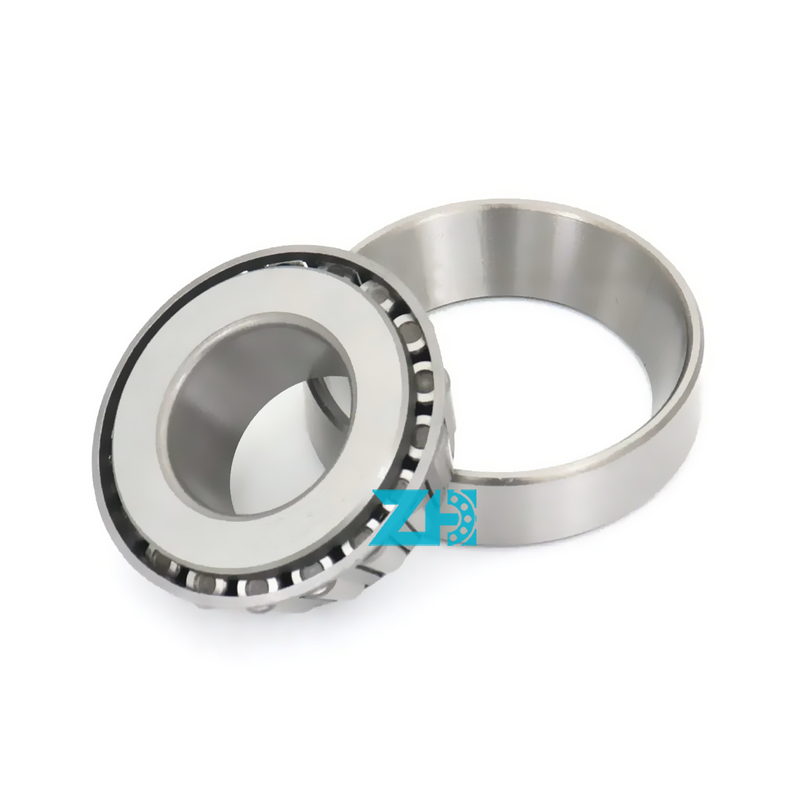

High Precision Bearings HM86649 HM86610 HM86649 /10 Tapered Roller Bearings
Tapered Roller Bearings HM86649 HM86610 HM86649 /10 excavator walking tooth box bearing
Technical Parameters:
| model | HM86649 HM86610 HM86649 /10 |
| Size(d*D*B) | Standard size |
| Type | Taper Roller Bearing |
| Precision | P0/P6/P5/P4 |
| Feature | High Precision And Load Capacity |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock | Abundant |
Product Description
Tapered roller bearings are a type of rolling element bearing commonly used in various applications, including automotive, industrial, and heavy machinery. They are designed to handle both radial and axial loads by utilizing tapered rolling elements (called rollers) that are guided by inner and outer raceways.
Tapered roller bearings have a unique design in which the rolling elements are tapered in shape, typically in the form of truncated cones. The inner and outer raceways are also tapered to match the shape of the rollers. This design allows for efficient distribution of the load along the rollers and provides high load-carrying capacity.
Tapered roller bearings can accommodate both radial and axial loads. The tapered design helps distribute the load evenly across the rollers, enabling them to handle significant radial loads. Additionally, the angle of the taper allows the bearing to withstand axial or thrust loads in one or both directions.
Excavator Bearings Catalog:
| Cone Bearing | Cup Bearing | d(mm) | D(mm) | T(mm) |
| EE107060 | 107105CD | 152.4 | 268.3 | 160.3 |
| EE450601 | 451215CD | 152.4 | 308.0 | 200.0 |
| HH234048 | HH234011CD | 152.4 | 308.0 | 200.0 |
| HH234049 | HH234011CD | 152.4 | 308.0 | 200.0 |
| 81606 | 81963CD | 154.0 | 244.5 | 108.0 |
| 46780 | 46720CD | 158.8 | 225.4 | 85.7 |
| 81629 | 81963CD | 160.0 | 244.5 | 108.0 |
| 81630 | 81963CD | 160.0 | 244.5 | 108.0 |
| HM237532 | HM237510CD | 160.3 | 288.9 | 142.9 |
| 46790 | 46720CD | 165.1 | 225.4 | 85.7 |
| 67780 | 67720CD | 165.1 | 247.7 | 103.2 |
| M235145 | M235113CD | 165.1 | 254.0 | 101.6 |
| 94649 | 94114CD | 165.1 | 288.9 | 142.9 |
| HM237535 | HM237510CD | 165.1 | 288.9 | 142.9 |
| 46792 | 46720CD | 166.7 | 225.4 | 85.7 |
| 67782 | 67720CD | 168.3 | 247.7 | 103.2 |
| M235149 | M235113CD | 170.0 | 254.0 | 101.6 |
| 94675 | 94114CD | 171.5 | 288.9 | 142.9 |
| 67786 | 67720CD | 174.6 | 247.7 | 103.2 |
| 67787 | 67720CD | 174.6 | 247.7 | 103.2 |
| 94687 | 94114CD | 174.6 | 288.9 | 142.9 |
| HM237542 | HM237510CD | 174.6 | 288.9 | 142.9 |
| 36990 | 36920CD | 177.8 | 227.0 | 66.7 |
| 67790 | 67720CD | 177.8 | 247.7 | 103.2 |
| 67791 | 67720CD | 177.8 | 247.7 | 103.2 |
| M238840 | M238810CD | 177.8 | 269.9 | 119.1 |
| 94700 | 94114CD | 177.8 | 288.9 | 142.9 |
| HM237545 | HM237510CD | 177.8 | 288.9 | 142.9 |
| HM237545H | HM237510CD | 177.8 | 288.9 | 142.9 |
| EE222070 | 222127CD | 177.8 | 320.7 | 185.7 |
| H239640 | H239612CD | 177.8 | 320.7 | 185.7 |
| 93708 | 93127CD | 180.0 | 317.5 | 146.1 |
| 67883 | 67820CD | 184.2 | 266.7 | 103.2 |
| 67884 | 67820CD | 187.3 | 266.7 | 103.2 |
| M238849 | M238810CD | 187.3 | 269.9 | 119.1 |
| H239649 | H239612CD | 187.3 | 320.7 | 185.7 |
| 67885 | 67820CD | 190.5 | 266.7 | 103.2 |
| 93750 | 93127CD | 190.5 | 317.5 | 146.1 |
| EE420751 | 421451CD | 190.5 | 368.3 | 193.7 |
| 67887 | 67820CD | 192.1 | 266.7 | 103.2 |
| LM739749 | LM739710CD | 196.9 | 257.2 | 85.7 |
Support and Services:
Mode of transport ...within 3 days after received the payment , by air or by express or by sea on the basis of thequantity and emergency circumstances.
By Couriers – DHL,UPS, FEDEX, TNT are the main courier companies we are cooperated,
By Air – Delivery from the Guangzhou air port to customer's destination city air port.
By Sea – Delivery from the Huangpu port
