Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
CPM 2610

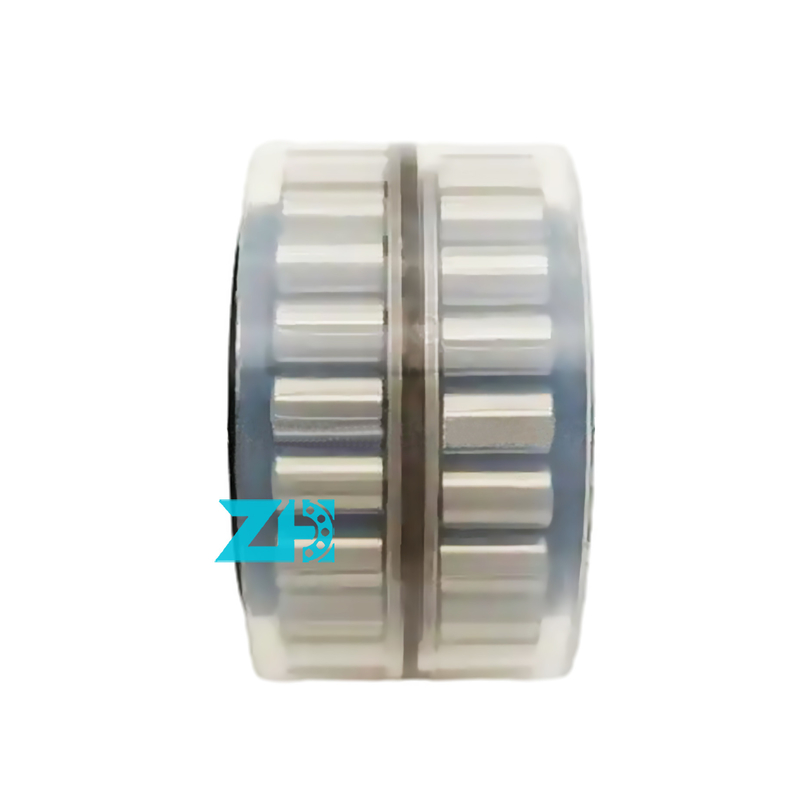

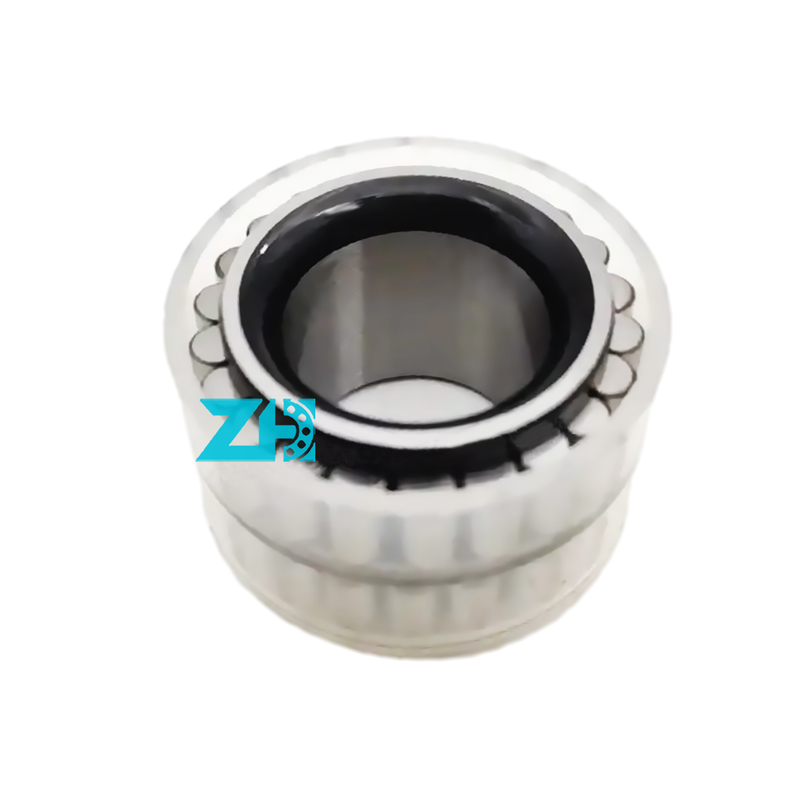

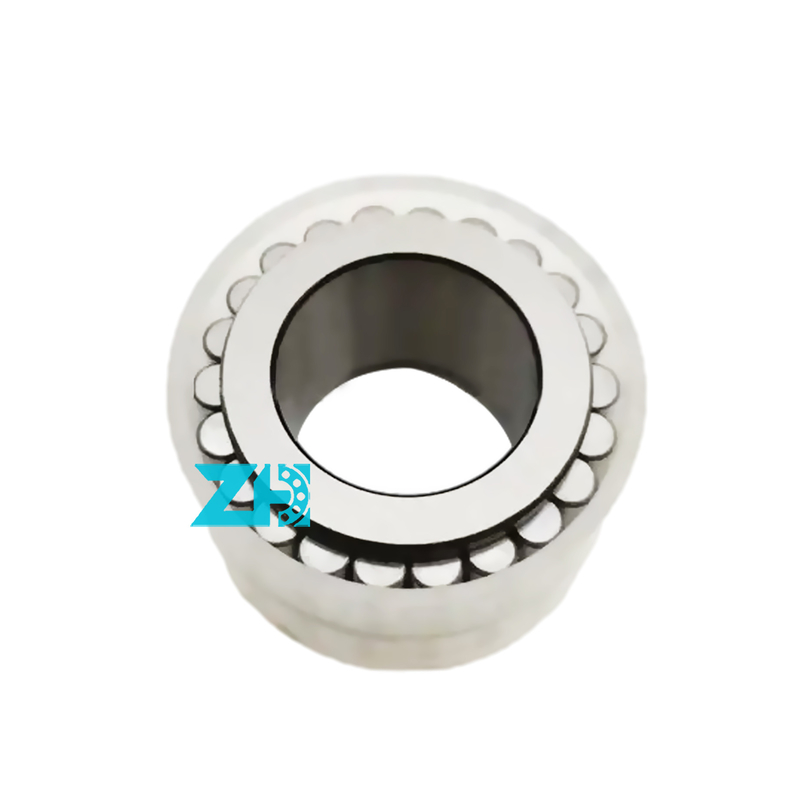

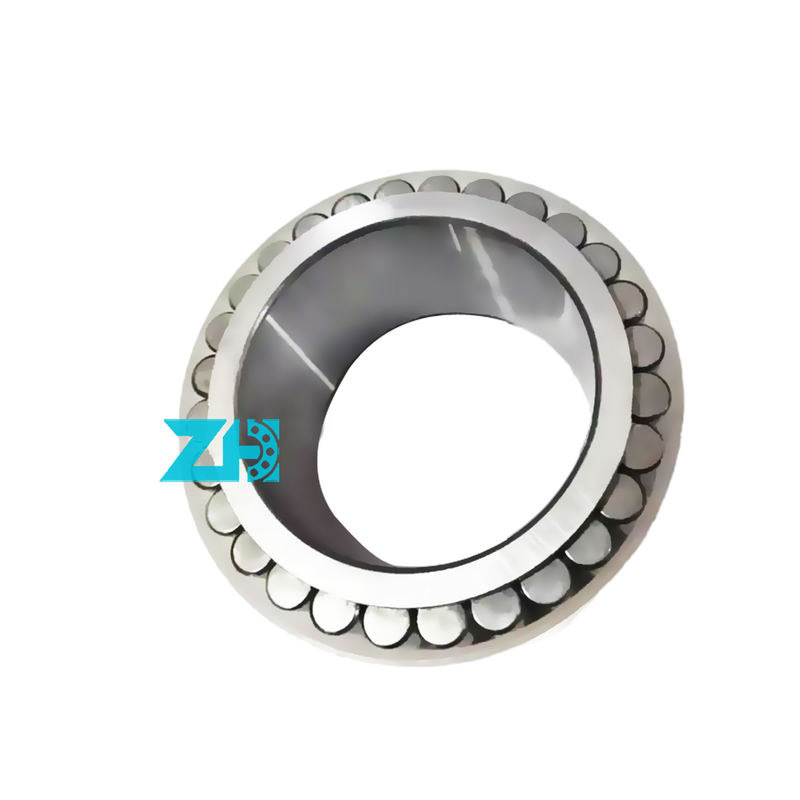

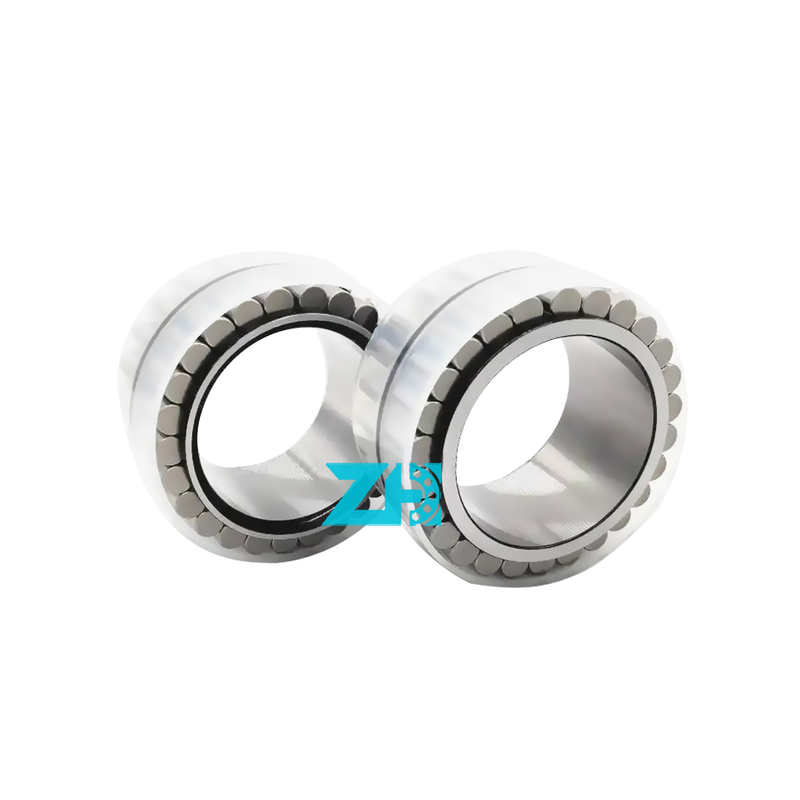

CPM2610 Cylindrical Roller Bearing Size 80x112.75x60mm
Double Row Cylindrical Roller Bearing
Technical Parameters:
| model | CPM2610 |
| Size(d*D*B) | 80x112.75x60mm |
| Type | Cylindrical Roller Bearing |
| Precision | P0/P6/P5/P4 |
| Feature | High Precision And Load Capacity |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock | Abundant |
Product Description
A cylindrical roller bearing is a type of rolling element bearing that consists of cylindrical rollers held in place between inner and outer rings. These bearings are designed to handle high radial loads and moderate axial loads in both directions. They have a larger contact area compared to ball bearings, allowing them to distribute the load evenly and provide high radial stiffness.
Cylindrical roller bearings are available in single row and double row configurations. Single row bearings have a single set of cylindrical rollers between the inner and outer rings, while double row bearings have two sets of cylindrical rollers arranged in parallel. Double row bearings have higher load-carrying capacity and increased rigidity compared to single row bearings.
Full complement cylindrical roller bearings are a type of design that does not include a cage. Instead, the bearing has a maximum number of cylindrical rollers arranged closely together in the space between the inner and outer rings. Full complement bearings offer higher load-carrying capacity but may have limitations in terms of speed and increased friction due to the absence of a cage.
Excavator Bearings Catalog:
| Model | Size (MM) | Weight (KG) |
| F-202578 | 35.5*57*22 | 0.2 |
| F-202808 | 50-90*27 | 0.37 |
| F-202969 | 38*60*26 | 0.27 |
| F-202703 | 35*67*21 | 0.33 |
| F-202577 | 30.77*48*18.5 | 0.1 |
| F-202626 | 20*28*14.5 | 0.03 |
| F-202168 | 28.6*44*17 | 0.1 |
| F-201872 | 45*85*25 | 0.6 |
| F-217041.1 | 38.2*63*27 | |
| F-217040.1 | 55*100*31 | |
| F-221321.1 | 49.55*80*32 | 0.6 |
| F-201346 | 50*90*23 | 0.5 |
| F-207813 | 52*106*35 | 1.2 |
| F-209285 | 48*98*34 | 1.24 |
| F-94480 | 60*110*128 | 1 |
| F-207407 | 65*120*33 | 1.5 |
| F-22094.2 | 70*125*36 | 1.68 |
| F-94196 | 60*130*31.06 | 2.1 |
| F-204781 | 52*106*35 | 1.2 |
| F-235793 | 41.28*66*27 | 0.4 |
| F-204754 | 41.8*72*30 | 0.5 |
| F-205526 | 41.36*67*27 | 0.35 |
| 10-8032 | 40*64*27 | 0.32 |
| F-224580 | 42*80*23 | 0.55 |
| F-56718 | 40*80*23 | 0.5 |
| 76-592708-M1 | 40*78*23 | 0.5 |
| BC1B320785 | 40*90*23 | 0.75 |
| BCB320784A | 40*80*23 | 0.5 |
| F-201381 | 38.6*68*30 | 0.5 |
| F-232169 | 38.1*67*21 | 0.3 |
| F-222094.2 | 70*125*36 | 1.68 |
| F-84874 | 35*62*20 | 0.3 |
| F-201209 | 35*73*23.7 | 0.52 |
| F-205045 | 33*52*20 | 0.22 |
| F-204864 | 31.8*52*22 | 0.27 |
| F-201380 | 30.4*52*22 | 0.2 |
| F-57063 | 29*47*20 | 0.15 |
| F-202965 | 38*60*26 | 0.27 |
| F-203740 | 25*54*21 | 0.25 |
| F-202972 | 24.8*39*17 | 0.07 |
| F-58787 | 24.83*41*17 | 0.1 |
| F-57491 | 22.3*36*17 | 0.1 |
| 10-5319 | 26.7*43*18.4 | 0.1 |
| PLC44-203 SH | 25*54*21 | 0.25 |
| PLC55-200-1 | 50*72.1*31 | 0.4 |
| BC1B320784A | 40*80*23 | 0.5 |
| BC1B320785 | 40*90*23 | 0.75 |
| 103-2560 | 40*64*27 | 0.33 |
| 10-8032 | 40*64*27 | 0.32 |
| RNUP709V | 35*72*19 | 0.4 |
| 76-592708-M1 | 40*78*23 | 0.5 |
