Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
CPM2435

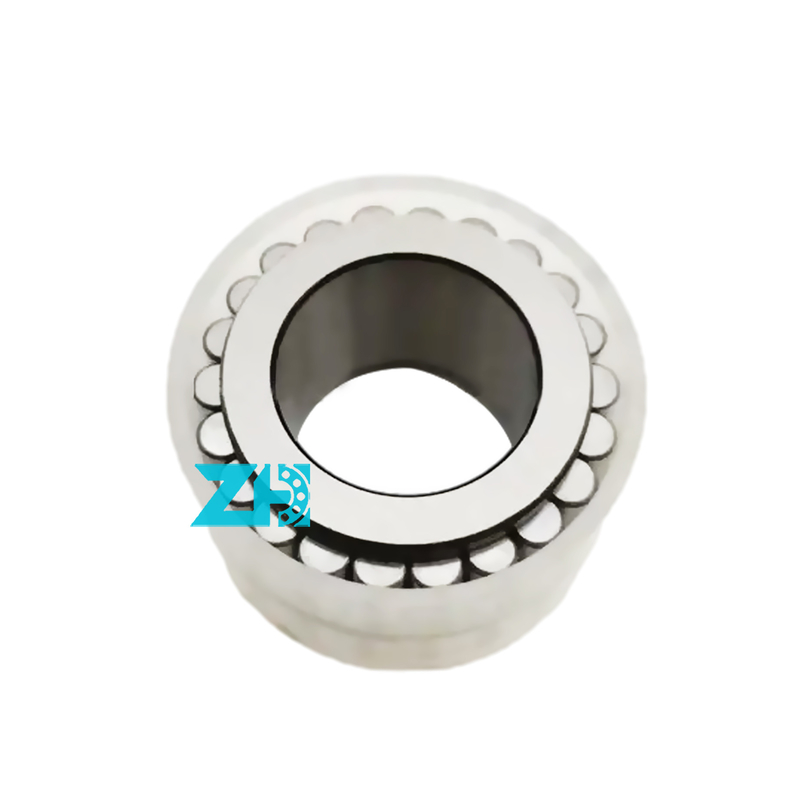

CPM2435 Cylindrical Roller Bearing Size 22*36.2*30mm Cylindrical Roller Bearing
Technical Parameters:
| model | CPM2435 |
| Size(d*D*B) |
22*36.2*30mm |
| Type | Cylindrical Roller Bearing |
| Precision | P0/P6/P5/P4 |
| Feature | High Precision And Load Capacity |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock | Abundant |
Product Description
A cylindrical roller bearing is a type of rolling element bearing that consists of cylindrical rollers held in place between inner and outer rings. These bearings are designed to handle high radial loads and moderate axial loads in both directions. They have a larger contact area compared to ball bearings, allowing them to distribute the load evenly and provide high radial stiffness.
Cylindrical roller bearings are manufactured to specific dimensional tolerances to ensure proper fit and alignment with the associated shaft and housing. Tolerance classes, such as ISO P0 to P9, define the maximum permissible deviations from the nominal dimensions. The selection of the appropriate tolerance class depends on factors such as the application's precision requirements, operating conditions, and cost considerations.
Various online tools and software are available to assist engineers and designers in selecting the appropriate cylindrical roller bearings for their applications. These tools take into account factors such as load, speed, temperature, and dimensional constraints to recommend suitable bearing types, sizes, and configurations. Manufacturers often provide these selection tools on their websites or offer technical support for bearing selection.
Excavator Bearings Catalog:
| Model | Size (MM) | Weight (KG) | Model | Size (MM) |
Weight (KG) |
| F-202578 | 35.5*57*22 | 0.2 | F-56718 | 40*80*23 | 0.5 |
| F-202808 | 50-90*27 | 0.37 | 76-592708-M1 | 40*78*23 | 0.5 |
| F-202969 | 38*60*26 | 0.27 | BC1B320785 | 40*90*23 | 0.75 |
| F-202703 | 35*67*21 | 0.33 | BCB320784A | 40*80*23 | 0.5 |
| F-202577 | 30.77*48*18.5 | 0.1 | F-201381 | 38.6*68*30 | 0.5 |
| F-202626 | 20*28*14.5 | 0.03 | F-232169 | 38.1*67*21 | 0.3 |
| F-202168 | 28.6*44*17 | 0.1 | F-222094.2 | 70*125*36 | 1.68 |
| F-201872 | 45*85*25 | 0.6 | F-84874 | 35*62*20 | 0.3 |
| F-217041.1 | 38.2*63*27 | F-201209 | 35*73*23.7 | 0.52 | |
| F-217040.1 | 55*100*31 | F-205045 | 33*52*20 | 0.22 | |
| F-221321.1 | 49.55*80*32 | 0.6 | F-204864 | 31.8*52*22 | 0.27 |
| F-201346 | 50*90*23 | 0.5 | F-201380 | 30.4*52*22 | 0.2 |
| F-207813 | 52*106*35 | 1.2 | F-57063 | 29*47*20 | 0.15 |
| F-209285 | 48*98*34 | 1.24 | F-202965 | 38*60*26 | 0.27 |
| F-94480 | 60*110*128 | 1 | F-203740 | 25*54*21 | 0.25 |
| F-207407 | 65*120*33 | 1.5 | F-202972 | 24.8*39*17 | 0.07 |
| F-22094.2 | 70*125*36 | 1.68 | F-58787 | 24.83*41*17 | 0.1 |
| F-94196 | 60*130*31.06 | 2.1 | F-57491 | 22.3*36*17 | 0.1 |
| F-204781 | 52*106*35 | 1.2 | 10-5319 | 26.7*43*18.4 | 0.1 |
| F-235793 | 41.28*66*27 | 0.4 | PLC44-203 SH | 25*54*21 | 0.25 |
| F-204754 | 41.8*72*30 | 0.5 | PLC55-200-1 | 50*72.1*31 | 0.4 |
| F-205526 | 41.36*67*27 | 0.35 | BC1B320784A | 40*80*23 | 0.5 |
| 10-8032 | 40*64*27 | 0.32 | BC1B320785 | 40*90*23 | 0.75 |
| F-224580 | 42*80*23 | 0.55 | 103-2560 | 40*64*27 | 0.33 |
| 10-8032 | 40*64*27 | 0.32 | 76-592708-M1 | 40*78*23 | 0.5 |
| RNUP709V | 35*72*19 | 0.4 |
Support and Services:
Mode of transport ...within 3 days after received the payment , by air or by express or by sea on the basis of thequantity and emergency circumstances.
By Couriers – DHL,UPS, FEDEX, TNT are the main courier companies we are cooperated,
By Air – Delivery from the Guangzhou air port to customer's destination city air port.
By Sea – Delivery from the Huangpu port.
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! !
