Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
TJ-602-662

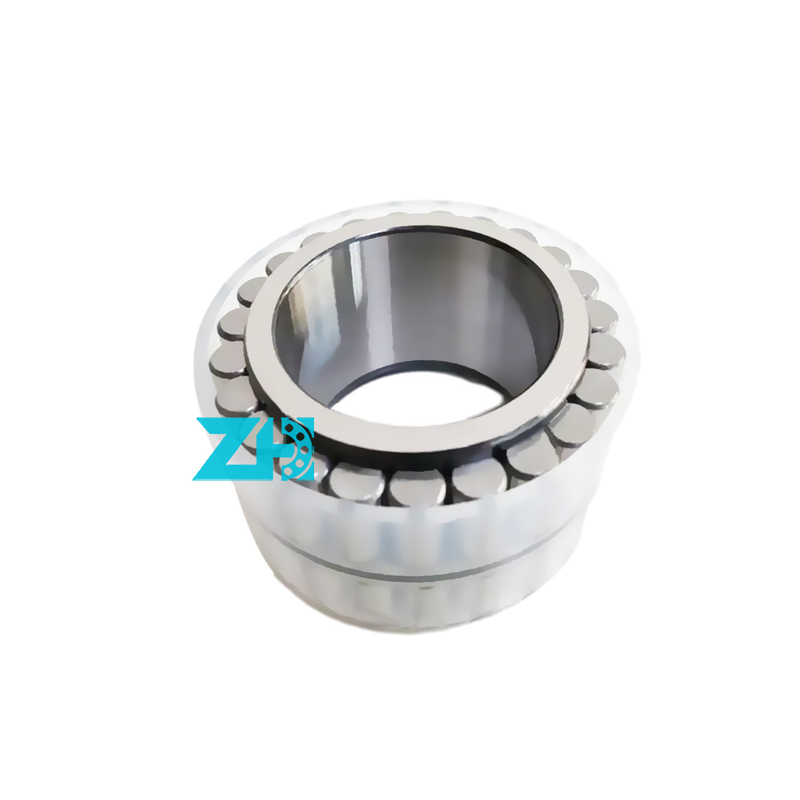

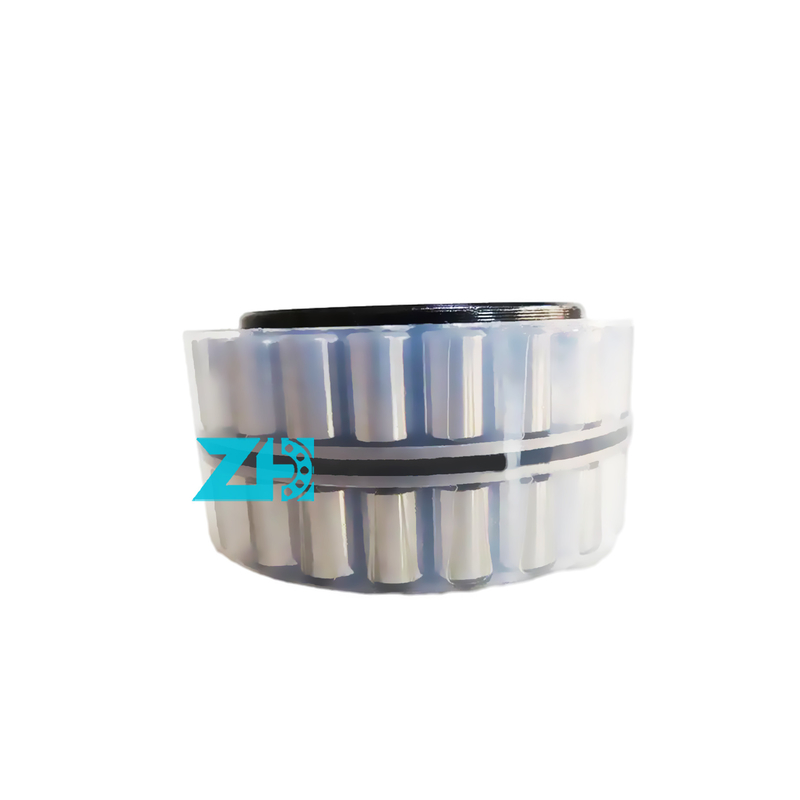

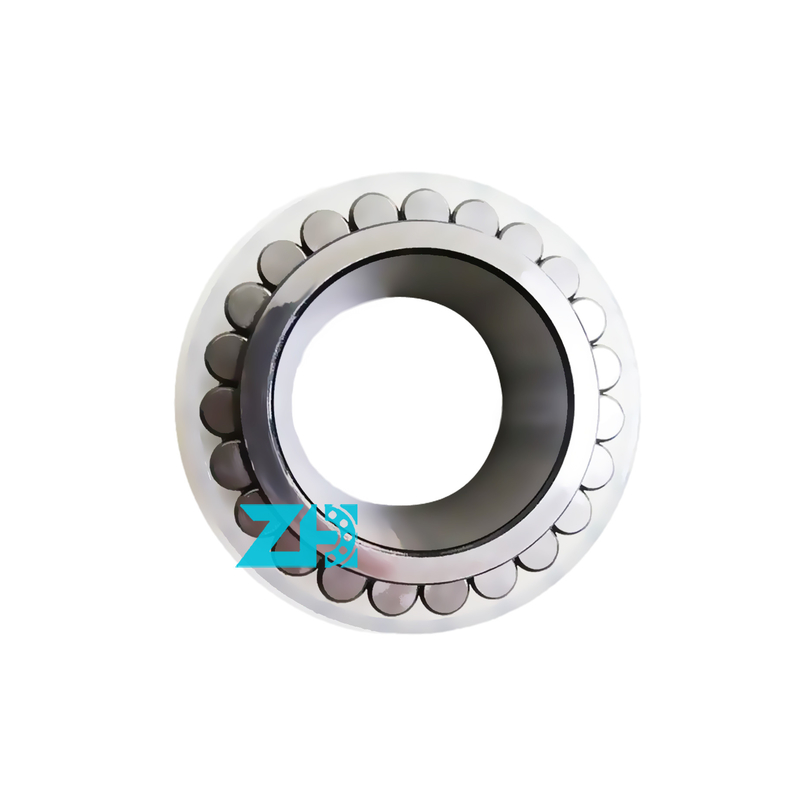

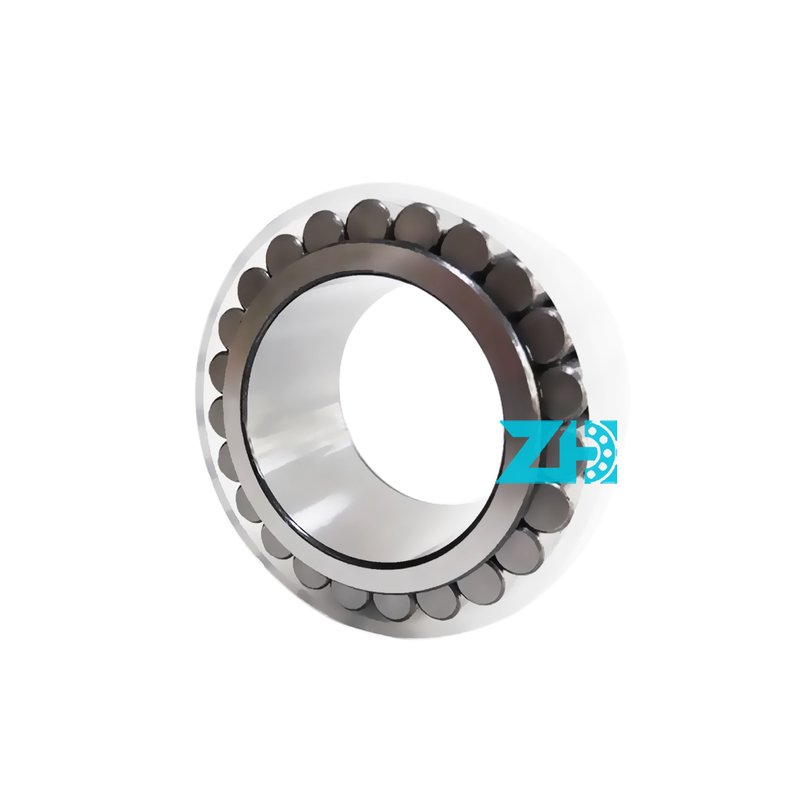

TJ-602-662 Cylindrical Roller Bearing
Size 50*75.25*40mm Double Row Cylindrical Roller Bearing
Technical Parameters:
| model | TJ-602-662 |
| Size(d*D*B) |
50*75.25*40mm |
| Type | Cylindrical Roller Bearing |
| Precision | P0/P6/P5/P4 |
| Feature | High Precision And Load Capacity |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock | Abundant |
Product Description
A cylindrical roller bearing is a type of rolling element bearing that consists of cylindrical rollers held in place between inner and outer rings. These bearings are designed to handle high radial loads and moderate axial loads in both directions. They have a larger contact area compared to ball bearings, allowing them to distribute the load evenly and provide high radial stiffness.
Cylindrical roller bearings can experience various failure modes, including fatigue, wear, contamination, improper lubrication, misalignment, and excessive loading. Understanding the common failure modes and their causes can help in implementing preventive measures and optimizing bearing performance.
Bearing Standards and Regulations: Cylindrical roller bearings are manufactured in compliance with international standards and regulations to ensure consistent quality and interchangeability. Common standards include those issued by organizations such as the International Organization for Standardization (ISO), the American National Standards Institute (ANSI), and the European Committee for Standardization (CEN). These standards define dimensions, tolerances, load ratings, and other specifications.
Excavator Bearings Catalog:
| Model | Size (MM) | Weight (KG) | Model | Size (MM) |
Weight (KG) |
| F-202578 | 35.5*57*22 | 0.2 | F-56718 | 40*80*23 | 0.5 |
| F-202808 | 50-90*27 | 0.37 | 76-592708-M1 | 40*78*23 | 0.5 |
| F-202969 | 38*60*26 | 0.27 | BC1B320785 | 40*90*23 | 0.75 |
| F-202703 | 35*67*21 | 0.33 | BCB320784A | 40*80*23 | 0.5 |
| F-202577 | 30.77*48*18.5 | 0.1 | F-201381 | 38.6*68*30 | 0.5 |
| F-202626 | 20*28*14.5 | 0.03 | F-232169 | 38.1*67*21 | 0.3 |
| F-202168 | 28.6*44*17 | 0.1 | F-222094.2 | 70*125*36 | 1.68 |
| F-201872 | 45*85*25 | 0.6 | F-84874 | 35*62*20 | 0.3 |
| F-217041.1 | 38.2*63*27 | F-201209 | 35*73*23.7 | 0.52 | |
| F-217040.1 | 55*100*31 | F-205045 | 33*52*20 | 0.22 | |
| F-221321.1 | 49.55*80*32 | 0.6 | F-204864 | 31.8*52*22 | 0.27 |
| F-201346 | 50*90*23 | 0.5 | F-201380 | 30.4*52*22 | 0.2 |
| F-207813 | 52*106*35 | 1.2 | F-57063 | 29*47*20 | 0.15 |
| F-209285 | 48*98*34 | 1.24 | F-202965 | 38*60*26 | 0.27 |
| F-94480 | 60*110*128 | 1 | F-203740 | 25*54*21 | 0.25 |
| F-207407 | 65*120*33 | 1.5 | F-202972 | 24.8*39*17 | 0.07 |
| F-22094.2 | 70*125*36 | 1.68 | F-58787 | 24.83*41*17 | 0.1 |
| F-94196 | 60*130*31.06 | 2.1 | F-57491 | 22.3*36*17 | 0.1 |
| F-204781 | 52*106*35 | 1.2 | 10-5319 | 26.7*43*18.4 | 0.1 |
| F-235793 | 41.28*66*27 | 0.4 | PLC44-203 SH | 25*54*21 | 0.25 |
| F-204754 | 41.8*72*30 | 0.5 | PLC55-200-1 | 50*72.1*31 | 0.4 |
| F-205526 | 41.36*67*27 | 0.35 | BC1B320784A | 40*80*23 | 0.5 |
| 10-8032 | 40*64*27 | 0.32 | BC1B320785 | 40*90*23 | 0.75 |
| F-224580 | 42*80*23 | 0.55 | 103-2560 | 40*64*27 | 0.33 |
| 10-8032 | 40*64*27 | 0.32 | 76-592708-M1 | 40*78*23 | 0.5 |
| RNUP709V | 35*72*19 | 0.4 |
