Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
544740A

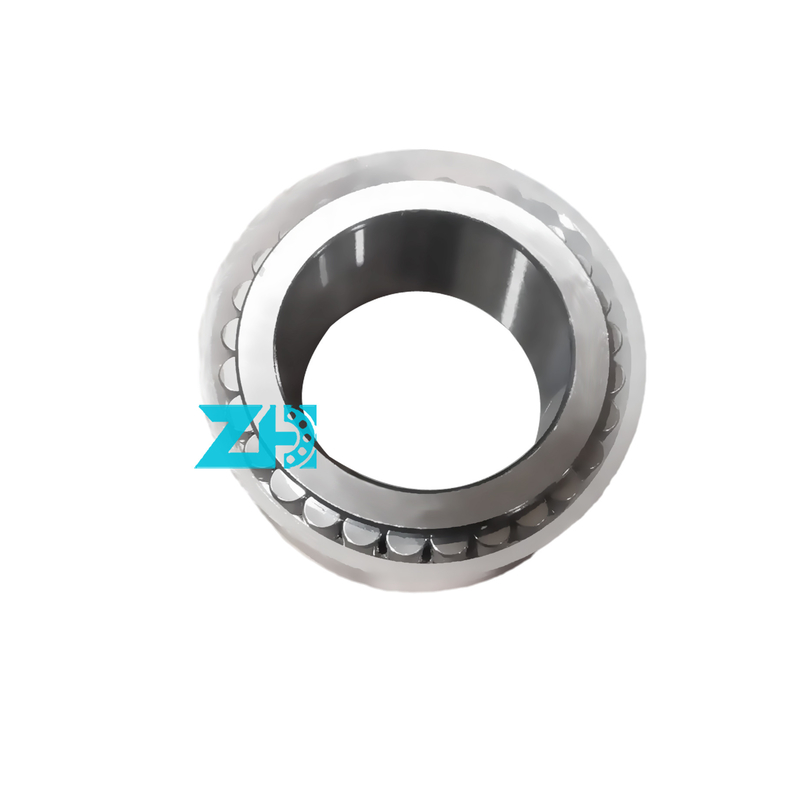

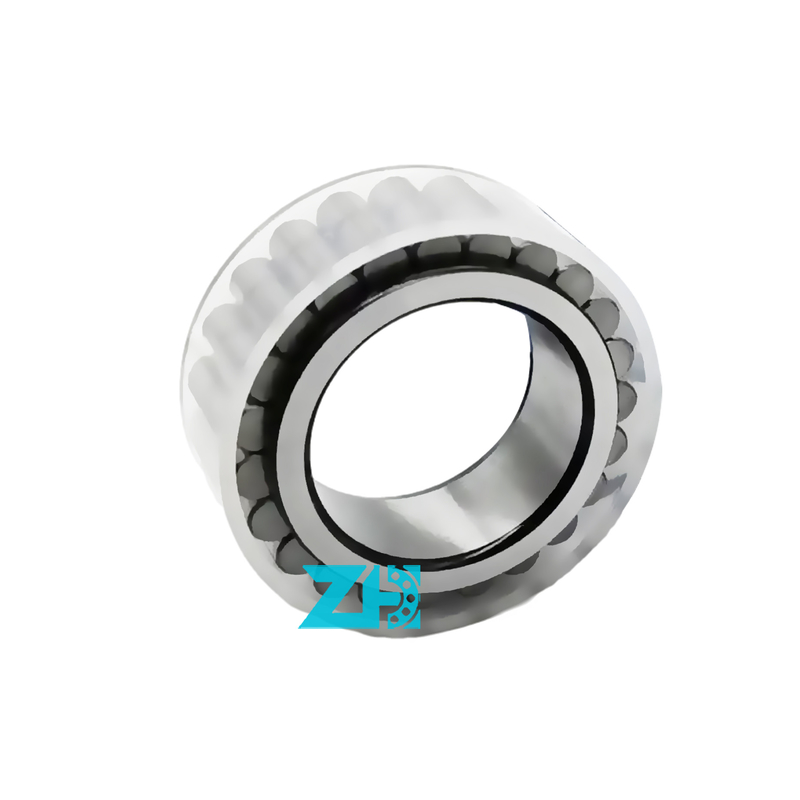

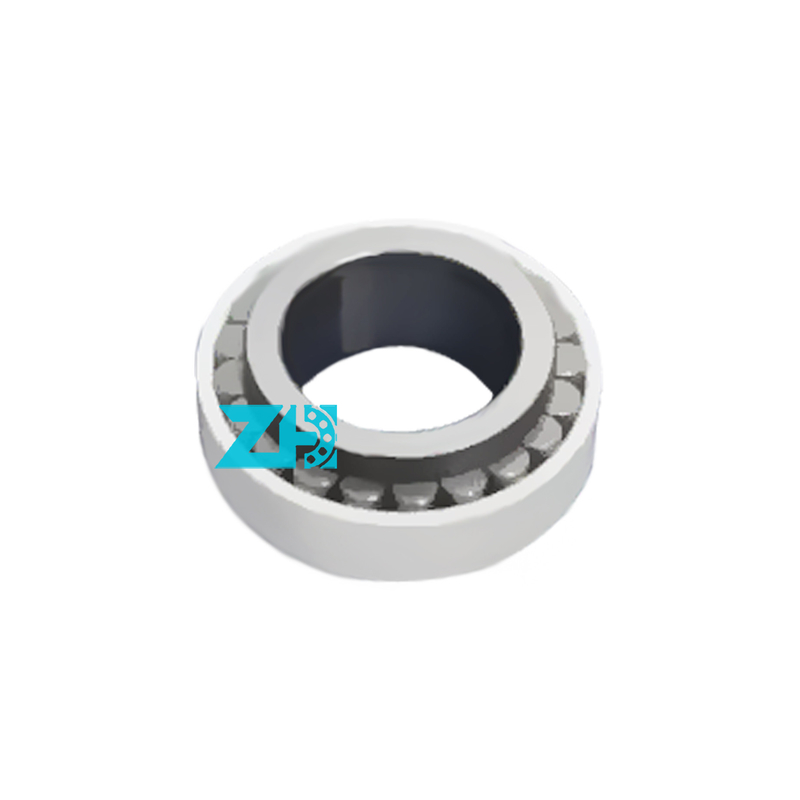

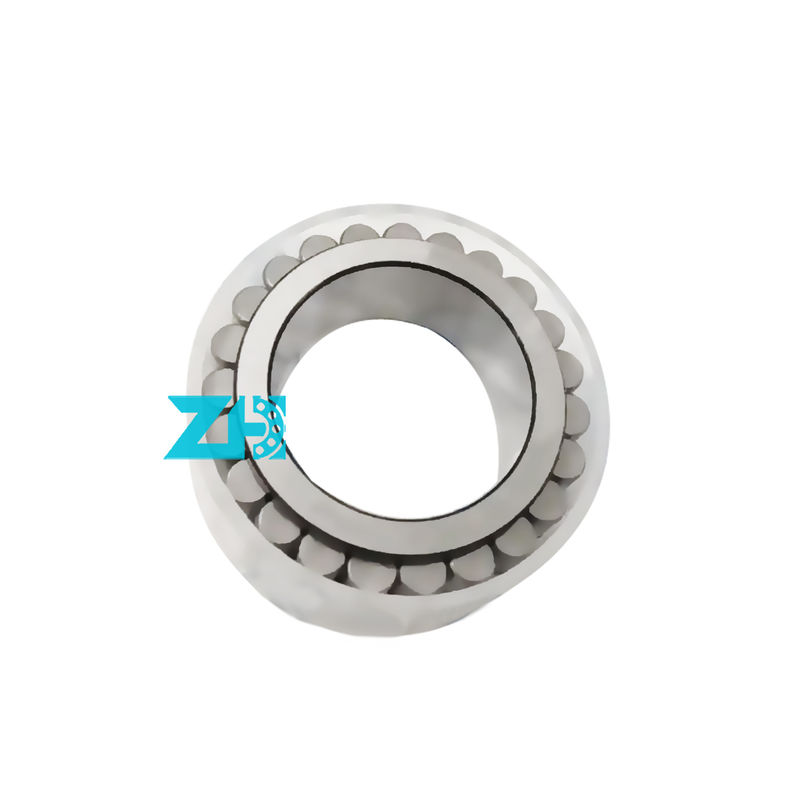

544740A Cylindrical Roller Bearing Size
Technical Parameters:
| model | 544740A |
| Size(d*D*B) |
24x38.7x17mm |
| Type | Cylindrical Roller Bearing |
| Precision | P0/P6/P5/P4 |
| Feature | High Precision And Load Capacity |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock | Abundant |
Product Description
A cylindrical roller bearing is a type of rolling element bearing that consists of cylindrical rollers held in place between inner and outer rings. These bearings are designed to handle high radial loads and moderate axial loads in both directions. They have a larger contact area compared to ball bearings, allowing them to distribute the load evenly and provide high radial stiffness.
When a cylindrical roller bearing fails prematurely, it is important to conduct a failure analysis to determine the root cause. Failure analysis may involve examining the bearing and its components, as well as reviewing operating conditions, lubrication practices, and installation procedures. Identifying the cause of failure helps in implementing corrective actions to prevent recurrence.
Cylindrical roller bearings have specific variations and designs to meet the unique requirements of certain applications. For example, in high-precision machine tool spindles, super-precision cylindrical roller bearings are employed to provide exceptional accuracy and rigidity. Similarly, in aerospace applications, specialized aerospace-grade cylindrical roller bearings are used to withstand extreme operating conditions.
Excavator Bearings Catalog:
| Model | Size (MM) | Weight (KG) | Model | Size (MM) |
Weight (KG) |
| F-202578 | 35.5*57*22 | 0.2 | F-56718 | 40*80*23 | 0.5 |
| F-202808 | 50-90*27 | 0.37 | 76-592708-M1 | 40*78*23 | 0.5 |
| F-202969 | 38*60*26 | 0.27 | BC1B320785 | 40*90*23 | 0.75 |
| F-202703 | 35*67*21 | 0.33 | BCB320784A | 40*80*23 | 0.5 |
| F-202577 | 30.77*48*18.5 | 0.1 | F-201381 | 38.6*68*30 | 0.5 |
| F-202626 | 20*28*14.5 | 0.03 | F-232169 | 38.1*67*21 | 0.3 |
| F-202168 | 28.6*44*17 | 0.1 | F-222094.2 | 70*125*36 | 1.68 |
| F-201872 | 45*85*25 | 0.6 | F-84874 | 35*62*20 | 0.3 |
| F-217041.1 | 38.2*63*27 | F-201209 | 35*73*23.7 | 0.52 | |
| F-217040.1 | 55*100*31 | F-205045 | 33*52*20 | 0.22 | |
| F-221321.1 | 49.55*80*32 | 0.6 | F-204864 | 31.8*52*22 | 0.27 |
| F-201346 | 50*90*23 | 0.5 | F-201380 | 30.4*52*22 | 0.2 |
| F-207813 | 52*106*35 | 1.2 | F-57063 | 29*47*20 | 0.15 |
| F-209285 | 48*98*34 | 1.24 | F-202965 | 38*60*26 | 0.27 |
| F-94480 | 60*110*128 | 1 | F-203740 | 25*54*21 | 0.25 |
| F-207407 | 65*120*33 | 1.5 | F-202972 | 24.8*39*17 | 0.07 |
| F-22094.2 | 70*125*36 | 1.68 | F-58787 | 24.83*41*17 | 0.1 |
| F-94196 | 60*130*31.06 | 2.1 | F-57491 | 22.3*36*17 | 0.1 |
| F-204781 | 52*106*35 | 1.2 | 10-5319 | 26.7*43*18.4 | 0.1 |
| F-235793 | 41.28*66*27 | 0.4 | PLC44-203 SH | 25*54*21 | 0.25 |
| F-204754 | 41.8*72*30 | 0.5 | PLC55-200-1 | 50*72.1*31 | 0.4 |
| F-205526 | 41.36*67*27 | 0.35 | BC1B320784A | 40*80*23 | 0.5 |
| 10-8032 | 40*64*27 | 0.32 | BC1B320785 | 40*90*23 | 0.75 |
| F-224580 | 42*80*23 | 0.55 | 103-2560 | 40*64*27 | 0.33 |
| 10-8032 | 40*64*27 | 0.32 | 76-592708-M1 | 40*78*23 | 0.5 |
| RNUP709V | 35*72*19 | 0.4 |
