Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
F-575869

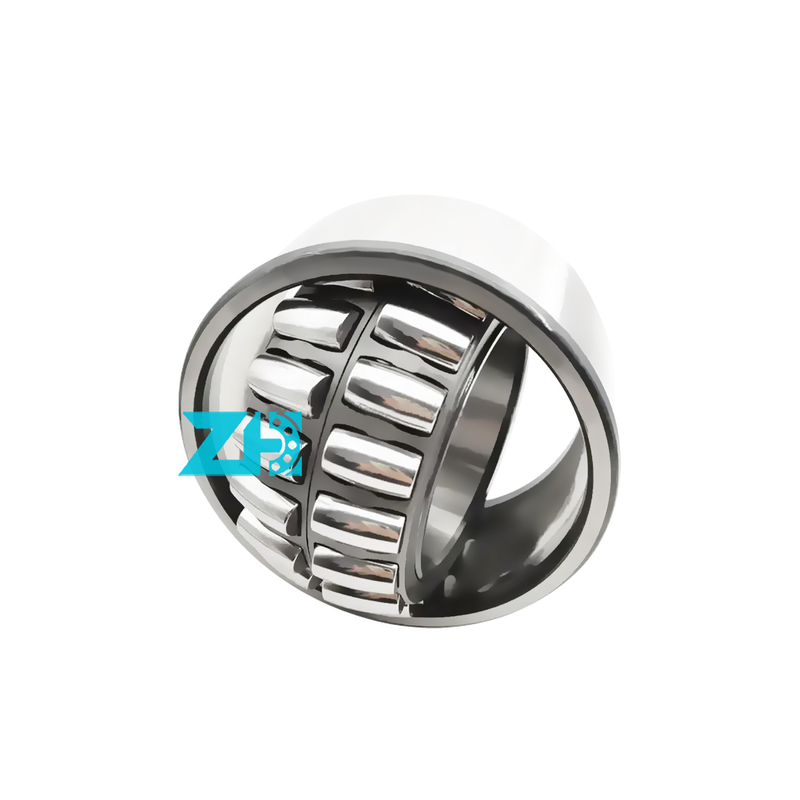

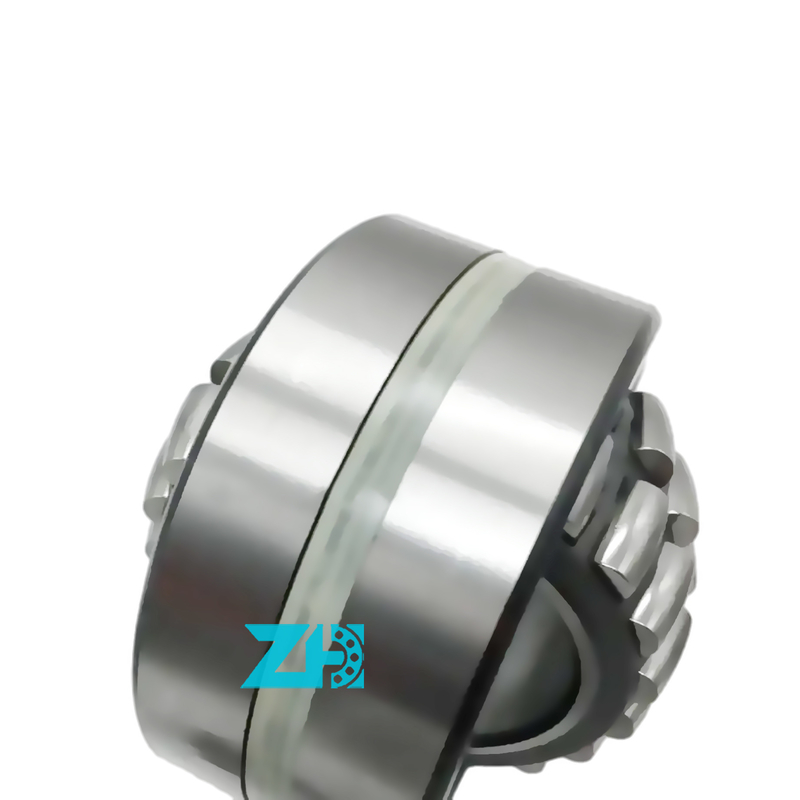

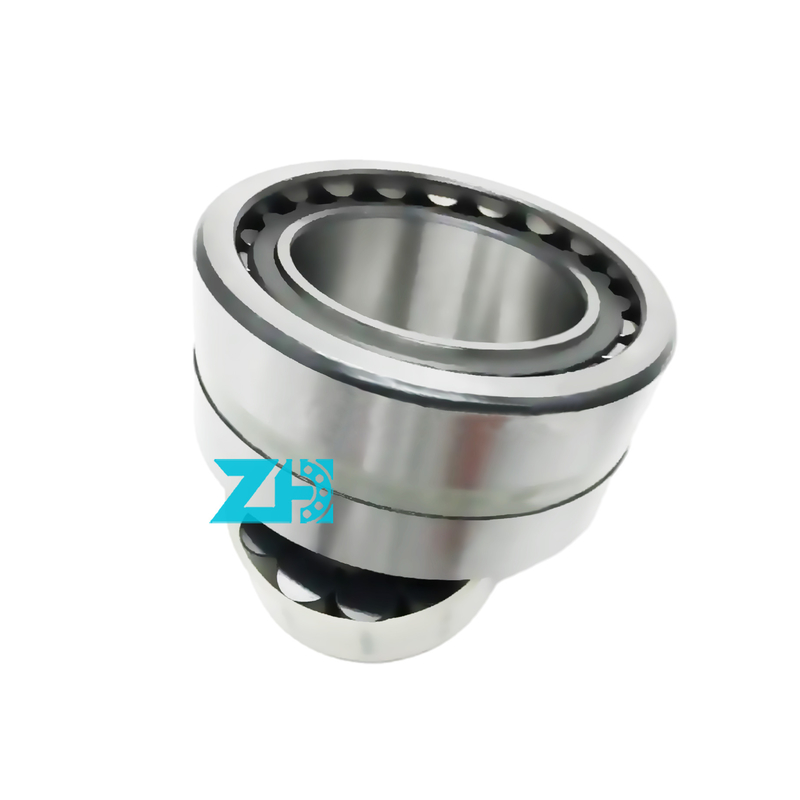

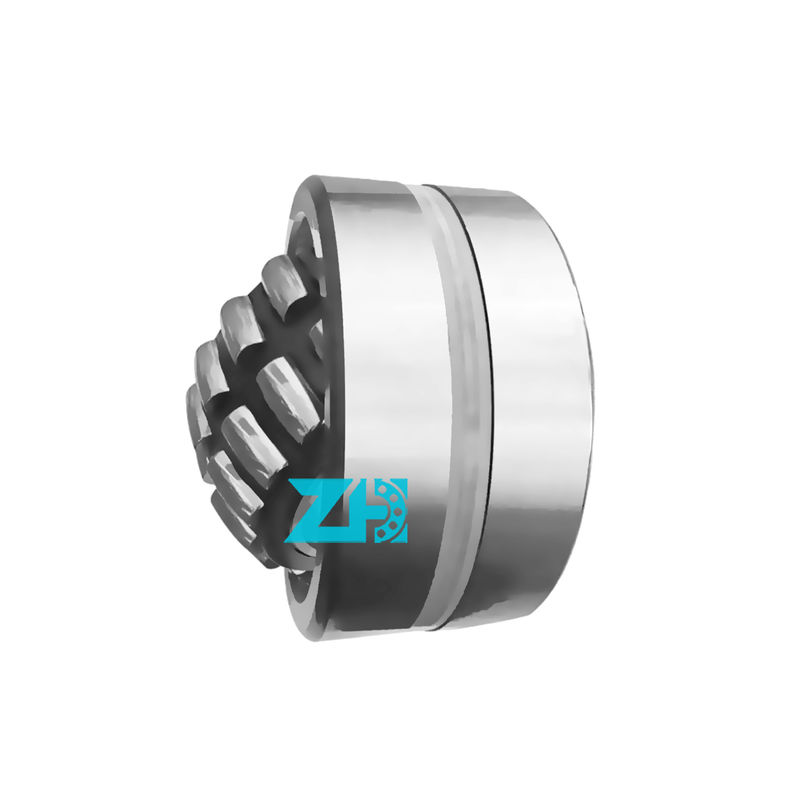

F-575869 High Load Mixer Bearing 110x180x84mm Double Spherical Roller Bearing F-575869
F-575869 Spherical Roller Bearing size 110x180x84mm Concrete mixer truck bearing
Technical Parameters:
model | F-575869 |
Size(d*D*B) |
110x180x84mm |
Type | Spherical Roller Bearing |
Precision | P0/P6/P5/P4 |
Feature |
Less energy consumption |
Material | GCR15 |
After-sales Service |
Online Support Professional Service |
Stock |
Abundant |
A spherical roller bearing is a type of rolling element bearing that is designed to accommodate heavy radial loads and moderate to high axial loads in both directions. It consists of an inner ring with two raceways, an outer ring with a spherical raceway, and barrel-shaped rollers that are positioned between the raceways. The rollers are guided by a cage, which maintains their spacing and orientation.
The internal clearance of a spherical roller bearing refers to the amount of internal space between the rolling elements and raceways when the bearing is not under load. It affects factors such as bearing stiffness, heat generation, and operating temperature. Bearings with greater internal clearance have higher operating temperatures but can accommodate higher levels of misalignment. Conversely, bearings with reduced internal clearance offer improved rigidity but are less tolerant of misalignment.
Spherical roller bearings can be equipped with different cage designs to guide and retain the rolling elements. Common cage designs include stamped steel cages, machined brass cages, and polyamide cages. Each cage material has its advantages and limitations in terms of load capacity, operating temperature, and resistance to wear and corrosion.
Excavator Bearings Catalog:
Designation | Principal Dimension | ||
d | D | B | |
22308CA/W33 | 40 | 90 | 33 |
22309CA/W33 | 45 | 100 | 36 |
22310CA/W33 | 50 | 110 | 40 |
22311CA/W33 | 55 | 120 | 43 |
22312CA/W33 | 60 | 130 | 46 |
22313CA/W33 | 65 | 140 | 48 |
22314CA/W33 | 70 | 150 | 51 |
22315CA/W33 | 75 | 160 | 55 |
22316CA/W33 | 80 | 170 | 58 |
22317CA/W33 | 85 | 180 | 60 |
22318CA/W33 | 90 | 190 | 64 |
22319CA/W33 | 95 | 200 | 67 |
22320CA/W33 | 100 | 215 | 73 |
22322CA/W33 | 110 | 240 | 80 |
22324CA/W33 | 120 | 260 | 86 |
22326CA/W33 | 130 | 280 | 93 |
22328CA/W33 | 140 | 300 | 102 |
22330CA/W33 | 150 | 320 | 108 |
22332CA/W33 | 160 | 340 | 114 |
22334CA/W33 | 170 | 360 | 120 |
22336CA/W33 | 180 | 380 | 126 |
Support and Services:
Mode of transport ...within 3 days after received the payment , by air or by express or by sea on the basis of thequantity and emergency circumstances.
By Couriers – DHL,UPS, FEDEX, TNT are the main courier companies we are cooperated,
By Air – Delivery from the Guangzhou air port to customer's destination city air port.
By Sea – Delivery from the Huangpu port
