Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
RNU0727 9036547013

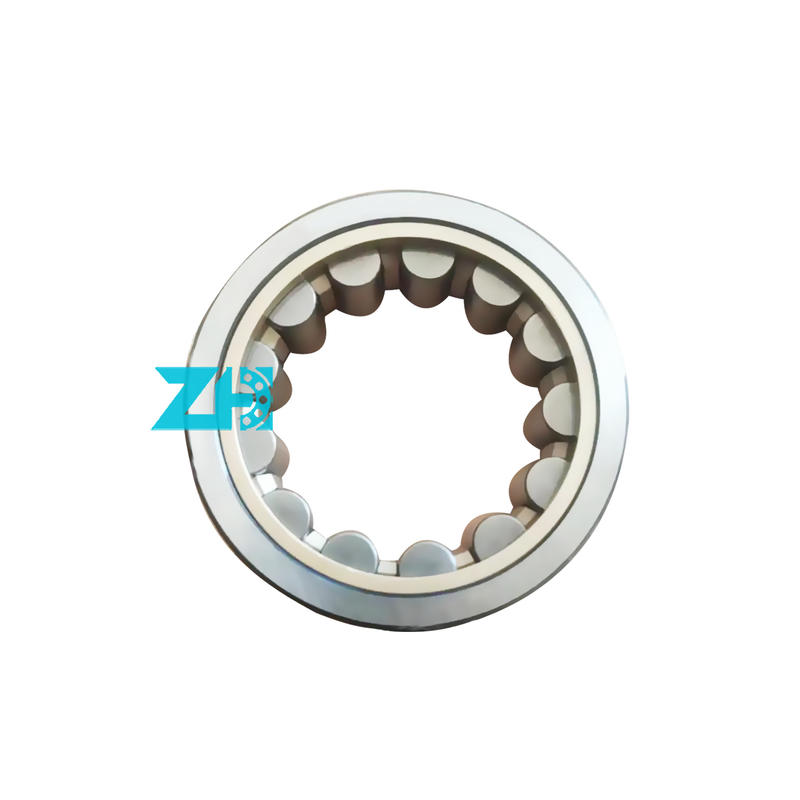

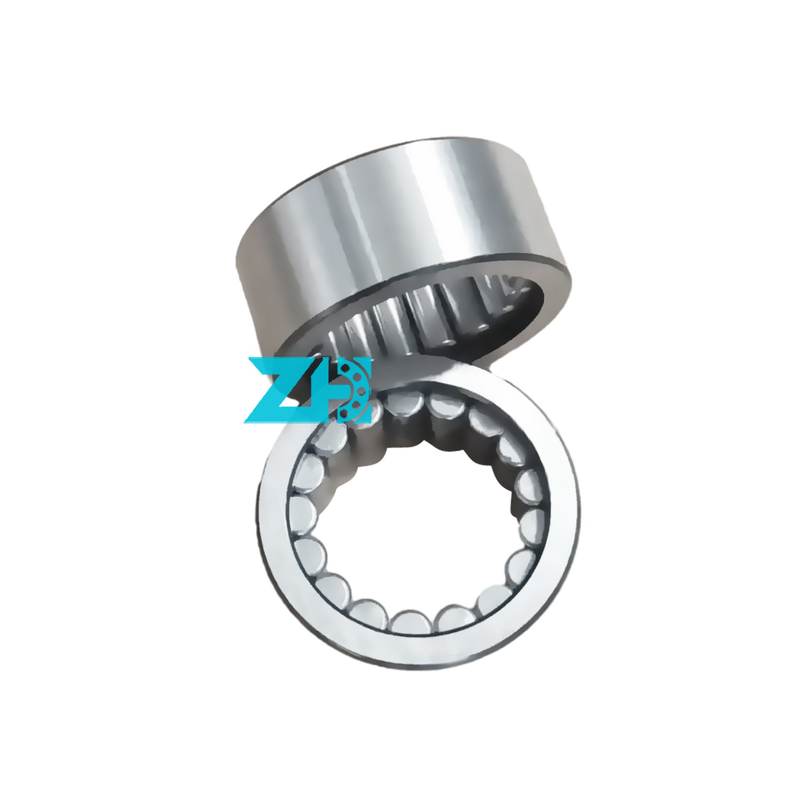

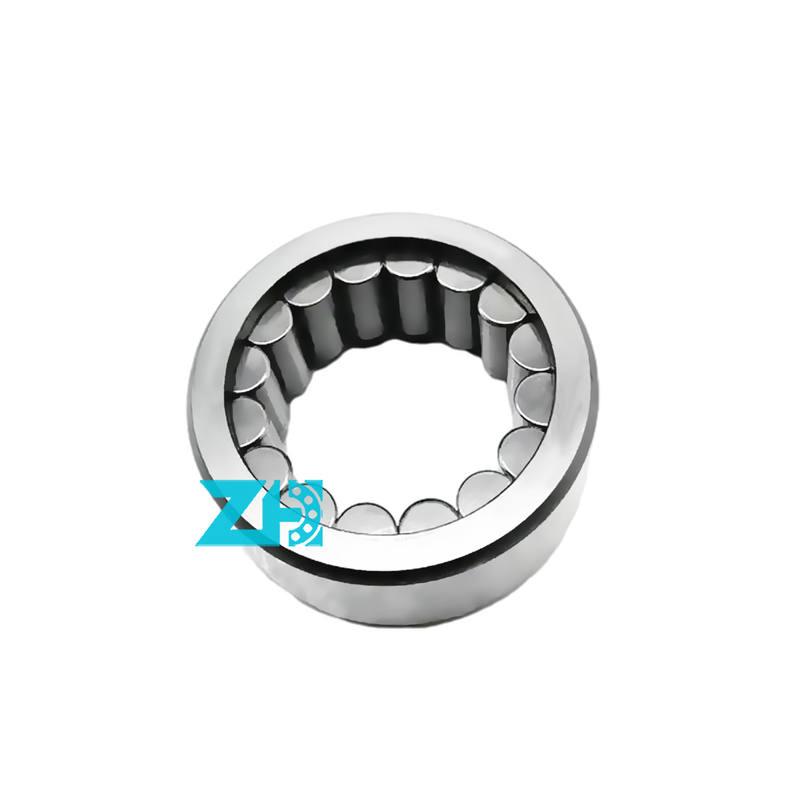

RNU0727 9036547013 Cylindrical Roller Bearing
RNU0727 double row spherical roller bearing 9036547013
Technical Parameters:
| model | RNU0727 9036547013 |
| Size(d*D*B) |
Standard size |
| Type | Cylindrical Roller Bearing |
| Precision | P0/P6/P5/P4 |
| Feature | High Precision And Load Capacity |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock | Abundant |
Product Description
A cylindrical roller bearing is a type of rolling element bearing that consists of cylindrical rollers held in place between inner and outer rings. These bearings are designed to handle high radial loads and moderate axial loads in both directions. They have a larger contact area compared to ball bearings, allowing them to distribute the load evenly and provide high radial stiffness.
Cylindrical roller bearings have limited ability to accommodate misalignment compared to other types of bearings such as spherical roller bearings. However, some designs incorporate special features to compensate for minor misalignments, such as self-aligning capabilities or floating inner rings. It is important to consider the application's alignment requirements when selecting cylindrical roller bearings.
Various accessories are available to complement cylindrical roller bearings and optimize their performance. These accessories include bearing housings, adapter sleeves, locknuts, and lock washers. Bearing housings provide a secure and stable mounting surface for the bearing, while adapter sleeves facilitate easy installation and removal of bearings on tapered shafts.
Excavator Bearings Catalog:
| Model | Size (MM) | Weight (KG) | Model | Size (MM) |
Weight (KG) |
| F-202578 | 35.5*57*22 | 0.2 | F-56718 | 40*80*23 | 0.5 |
| F-202808 | 50-90*27 | 0.37 | 76-592708-M1 | 40*78*23 | 0.5 |
| F-202969 | 38*60*26 | 0.27 | BC1B320785 | 40*90*23 | 0.75 |
| F-202703 | 35*67*21 | 0.33 | BCB320784A | 40*80*23 | 0.5 |
| F-202577 | 30.77*48*18.5 | 0.1 | F-201381 | 38.6*68*30 | 0.5 |
| F-202626 | 20*28*14.5 | 0.03 | F-232169 | 38.1*67*21 | 0.3 |
| F-202168 | 28.6*44*17 | 0.1 | F-222094.2 | 70*125*36 | 1.68 |
| F-201872 | 45*85*25 | 0.6 | F-84874 | 35*62*20 | 0.3 |
| F-217041.1 | 38.2*63*27 | F-201209 | 35*73*23.7 | 0.52 | |
| F-217040.1 | 55*100*31 | F-205045 | 33*52*20 | 0.22 | |
| F-221321.1 | 49.55*80*32 | 0.6 | F-204864 | 31.8*52*22 | 0.27 |
| F-201346 | 50*90*23 | 0.5 | F-201380 | 30.4*52*22 | 0.2 |
| F-207813 | 52*106*35 | 1.2 | F-57063 | 29*47*20 | 0.15 |
| F-209285 | 48*98*34 | 1.24 | F-202965 | 38*60*26 | 0.27 |
| F-94480 | 60*110*128 | 1 | F-203740 | 25*54*21 | 0.25 |
| F-207407 | 65*120*33 | 1.5 | F-202972 | 24.8*39*17 | 0.07 |
| F-22094.2 | 70*125*36 | 1.68 | F-58787 | 24.83*41*17 | 0.1 |
| F-94196 | 60*130*31.06 | 2.1 | F-57491 | 22.3*36*17 | 0.1 |
| F-204781 | 52*106*35 | 1.2 | 10-5319 | 26.7*43*18.4 | 0.1 |
| F-235793 | 41.28*66*27 | 0.4 | PLC44-203 SH | 25*54*21 | 0.25 |
| F-204754 | 41.8*72*30 | 0.5 | PLC55-200-1 | 50*72.1*31 | 0.4 |
| F-205526 | 41.36*67*27 | 0.35 | BC1B320784A | 40*80*23 | 0.5 |
| 10-8032 | 40*64*27 | 0.32 | BC1B320785 | 40*90*23 | 0.75 |
| F-224580 | 42*80*23 | 0.55 | 103-2560 | 40*64*27 | 0.33 |
| 10-8032 | 40*64*27 | 0.32 | 76-592708-M1 | 40*78*23 | 0.5 |
| RNUP709V | 35*72*19 | 0.4 |
Support and Services:
Mode of transport ...within 3 days after received the payment , by air or by express or by sea on the basis of thequantity and emergency circumstances.
By Couriers – DHL,UPS, FEDEX, TNT are the main courier companies we are cooperated,
By Air – Delivery from the Guangzhou air port to customer's destination city air port.
By Sea – Delivery from the Huangpu port.
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! !
