Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
XU060111

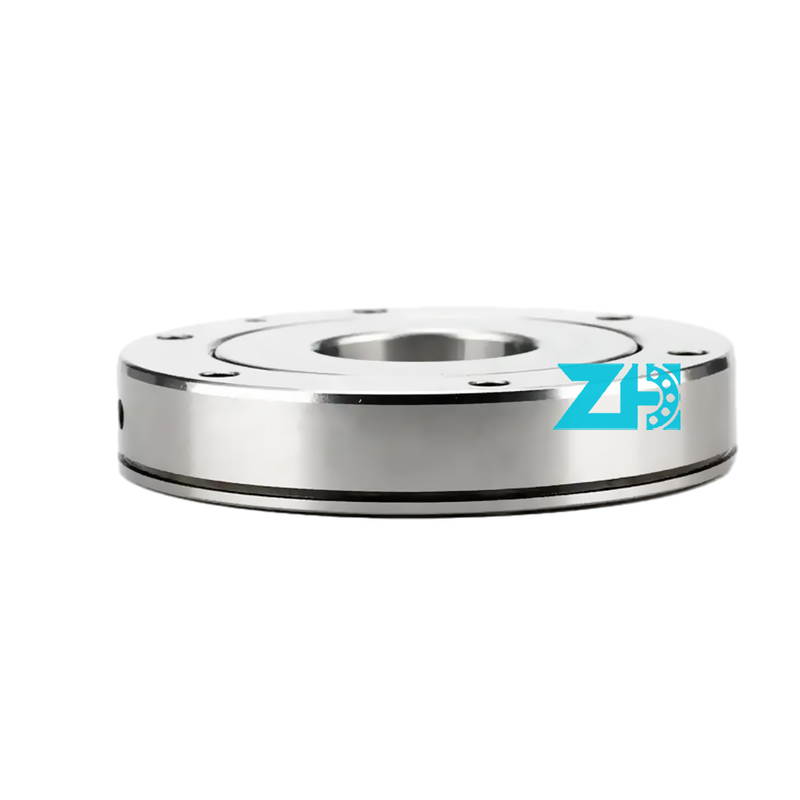

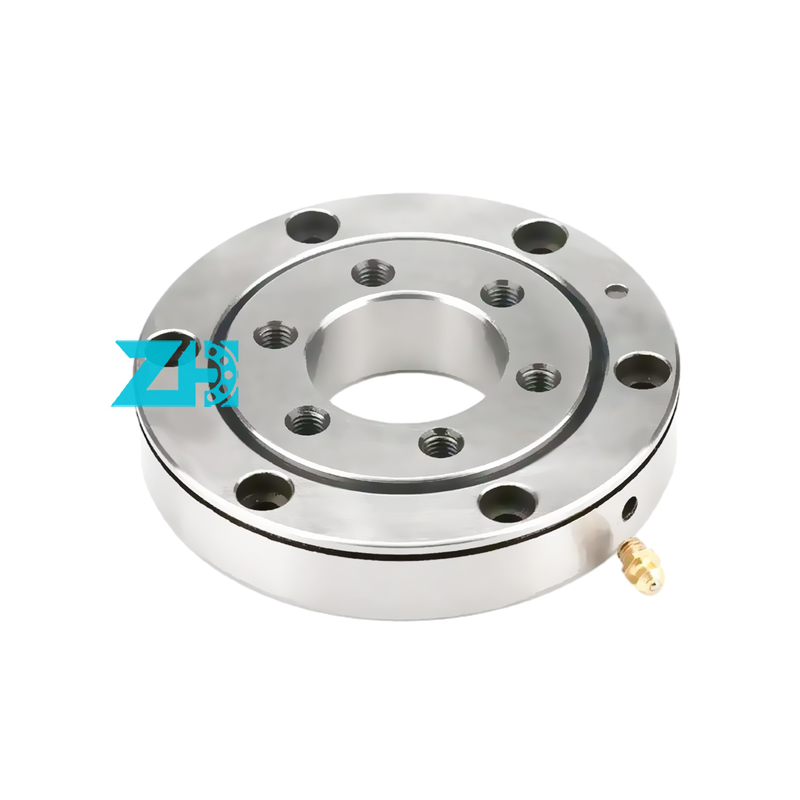

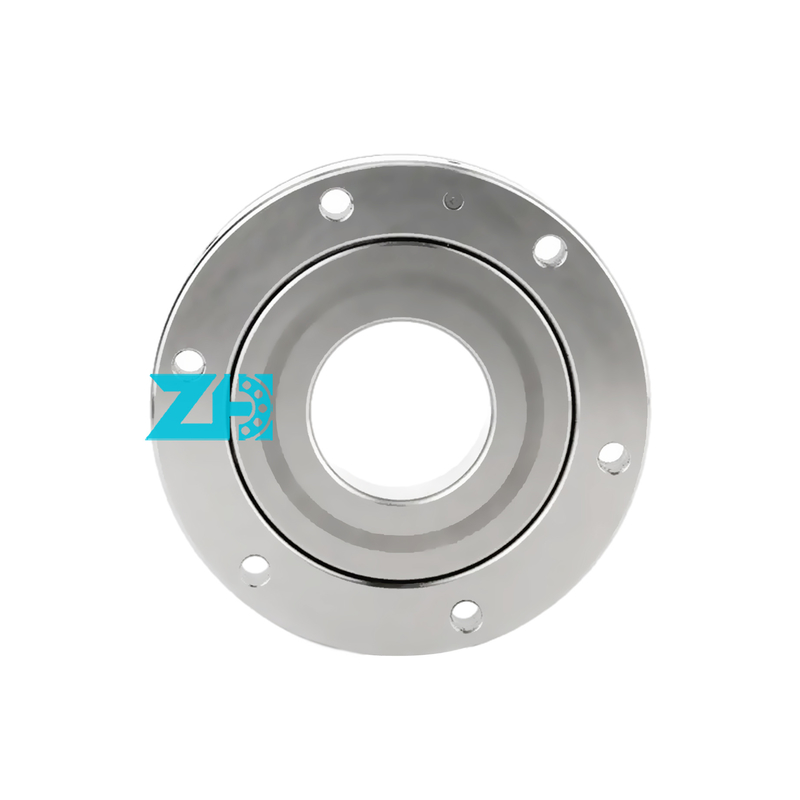

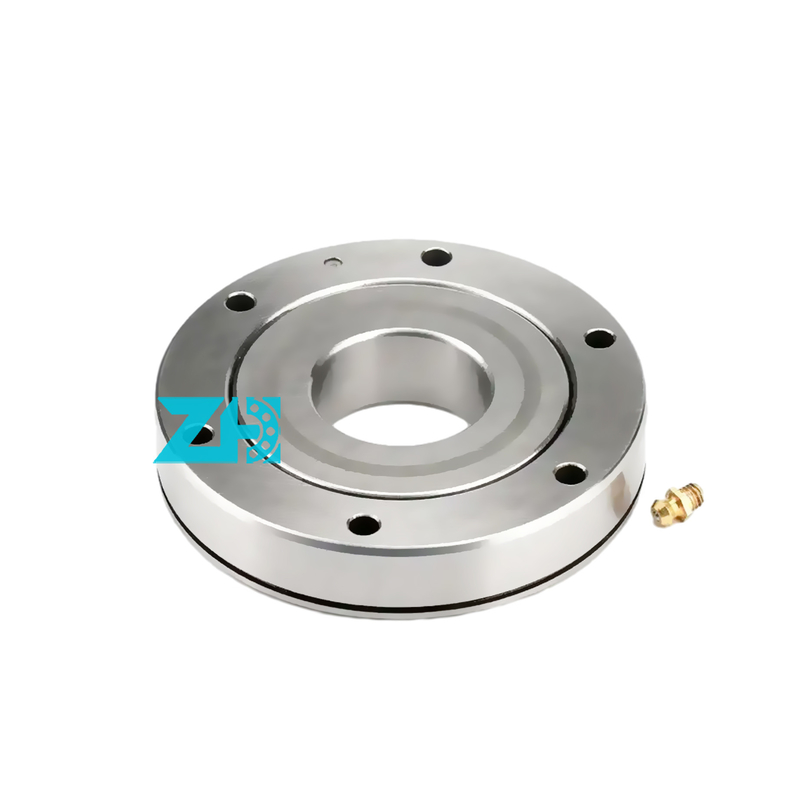

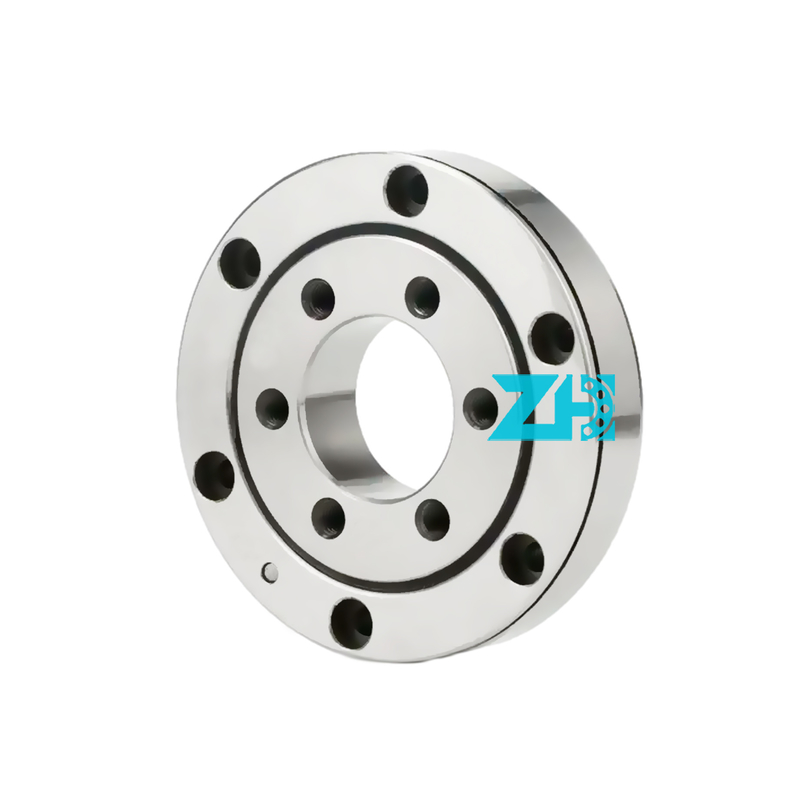

Crossed Roller Bearings XU060111
single-row crossed roller bearing slewing ring
Technical Parameters:
| model |
XU060111 |
| Size(d*D*B) |
Standard size |
| Type | Crossed Roller Bearings |
| Precision | P0/P6/P5/P4 |
| Feature |
Long Life,Stable Performance and Durable |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock |
Sufficient |
Product Description
Crossed roller bearings, also known as crossed roller slewing bearings or crossed roller slide bearings, are a specialized type of rolling element bearing. They are designed to handle both radial and axial loads while providing high rotational accuracy and stiffness.
A type of rolling element bearing that features crossed cylindrical rollers arranged at right angles to each other between inner and outer rings. This design enables the bearing to handle both radial and axial loads while providing high rotational accuracy.
The cylindrical rollers within a crossed roller bearing that facilitate smooth rolling motion between the inner and outer rings.
The specially designed grooves or tracks on the inner and outer rings of a crossed roller bearing, which guide the movement of the rollers.
Other bearing model catalog:
| Type | Main dimensions | Basic load rating | |||
| (Radial) | |||||
| Inner diameter | Outer diameter | Width | Dynamic rating | Static rating | |
| d | D | H | C | C0 | |
| mm | mm | mm | kN | kN | |
| RB 2008 | 20 | 36 | 8 | 3.23 | 3.1 |
| RB 2508 | 25 | 41 | 8 | 3.63 | 3.83 |
| RB 3010 | 30 | 55 | 10 | 7.35 | 8.36 |
| RB 3510 | 35 | 60 | 10 | 7.64 | 9.12 |
| RB 4010 | 40 | 65 | 10 | 8.33 | 10.6 |
| RB 4510 | 45 | 70 | 10 | 8.62 | 11.3 |
| RB 5013 | 50 | 80 | 13 | 16.7 | 20.9 |
| RB 6013 | 60 | 90 | 13 | 18 | 24.3 |
| RB 7013 | 70 | 100 | 13 | 19.4 | 27.7 |
| RB 8016 | 80 | 120 | 16 | 30.1 | 42.1 |
| RB 9016 | 90 | 130 | 16 | 31.4 | 45.3 |
| RB 10016 | 100 | 140 | 16 | 31.7 | 48.6 |
| RB 10020 | 100 | 150 | 20 | 33.1 | 50.9 |
| RB 11012 | 110 | 135 | 12 | 12.5 | 24.1 |
| RB 11015 | 110 | 145 | 15 | 23.7 | 41.5 |
| RB 11020 | 110 | 160 | 20 | 34 | 54 |
| RB 12016 | 120 | 150 | 16 | 24.2 | 43.2 |
| RB 12025 | 120 | 180 | 25 | 66.9 | 100 |
| RB 13015 | 130 | 160 | 15 | 25 | 46.7 |
| RB 13025 | 130 | 190 | 25 | 69.5 | 107 |
| RB 14016 | 140 | 175 | 16 | 25.9 | 50.1 |
| RB 14025 | 140 | 200 | 25 | 74.8 | 121 |
| RB 15013 | 150 | 180 | 13 | 27 | 53.5 |
| RB 15025 | 150 | 210 | 25 | 76.8 | 128 |
| RB 15030 | 150 | 230 | 30 | 100 | 156 |
| RB 16025 | 160 | 220 | 25 | 81.7 | 135 |
| RB 17020 | 170 | 220 | 20 | 29 | 62.1 |
| RB 18025 | 180 | 240 | 25 | 84 | 143 |
| RB 19025 | 190 | 240 | 25 | 41.7 | 82.9 |
| RB 20025 | 200 | 260 | 25 | 84.2 | 157 |
| RB 20030 | 200 | 280 | 30 | 114 | 200 |
| RB 20035 | 200 | 295 | 35 | 151 | 252 |
| RB 22025 | 220 | 280 | 25 | 92.3 | 171 |
| RB 24025 | 240 | 300 | 25 | 68.3 | 145 |
| RB 25025 | 250 | 310 | 25 | 69.3 | 150 |
| RB 25030 | 250 | 330 | 30 | 126 | 244 |
| RB 25040 | 250 | 355 | 40 | 195 | 348 |
| RB 30025 | 300 | 360 | 25 | 76.3 | 178 |
| RB 30035 | 300 | 395 | 35 | 183 | 367 |
| RB 30040 | 300 | 405 | 40 | 212 | 409 |
