Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
NRXT15025

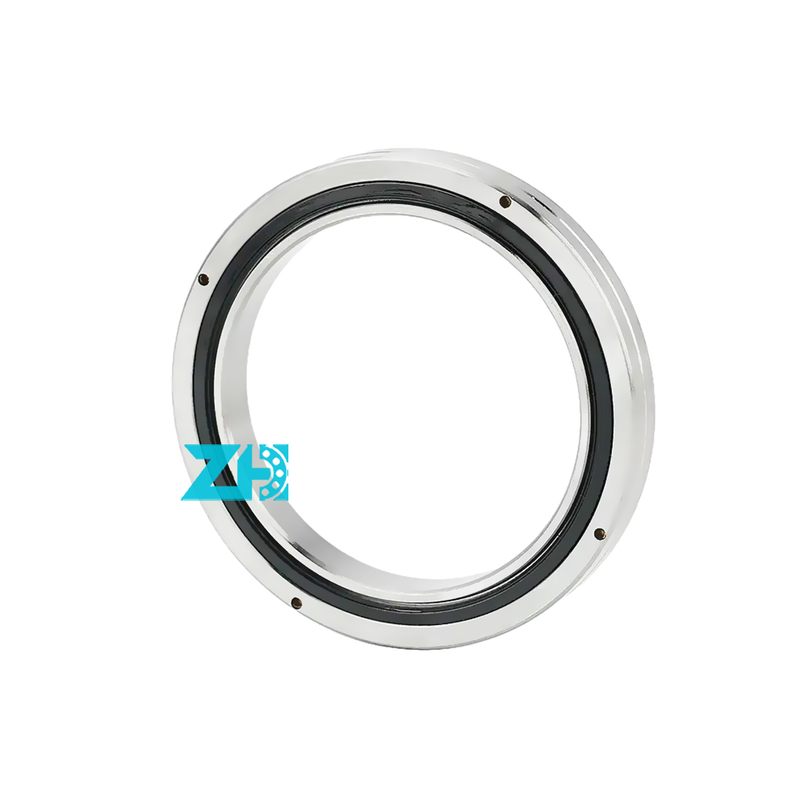

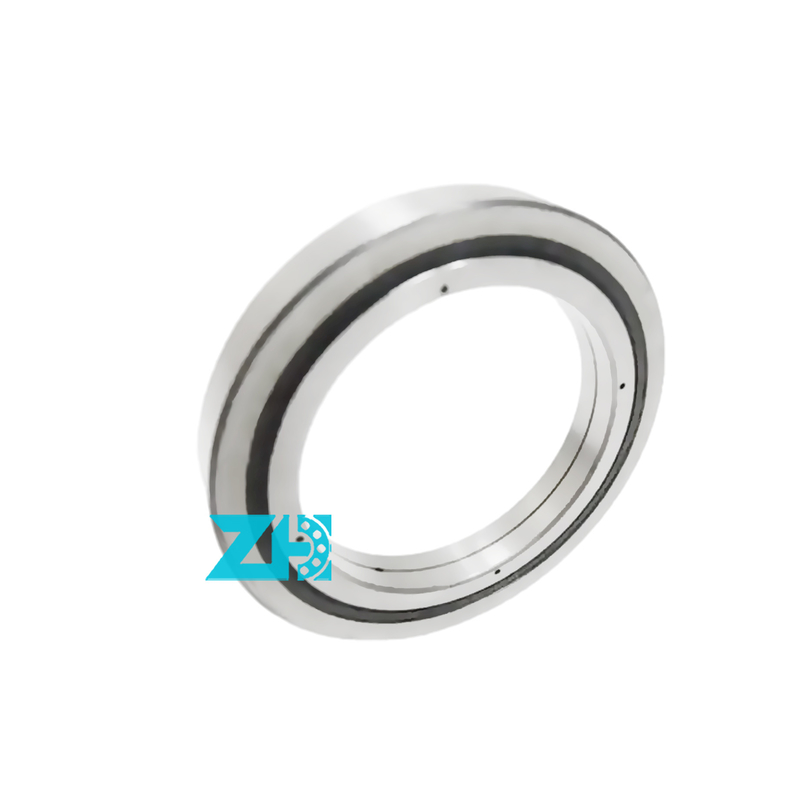

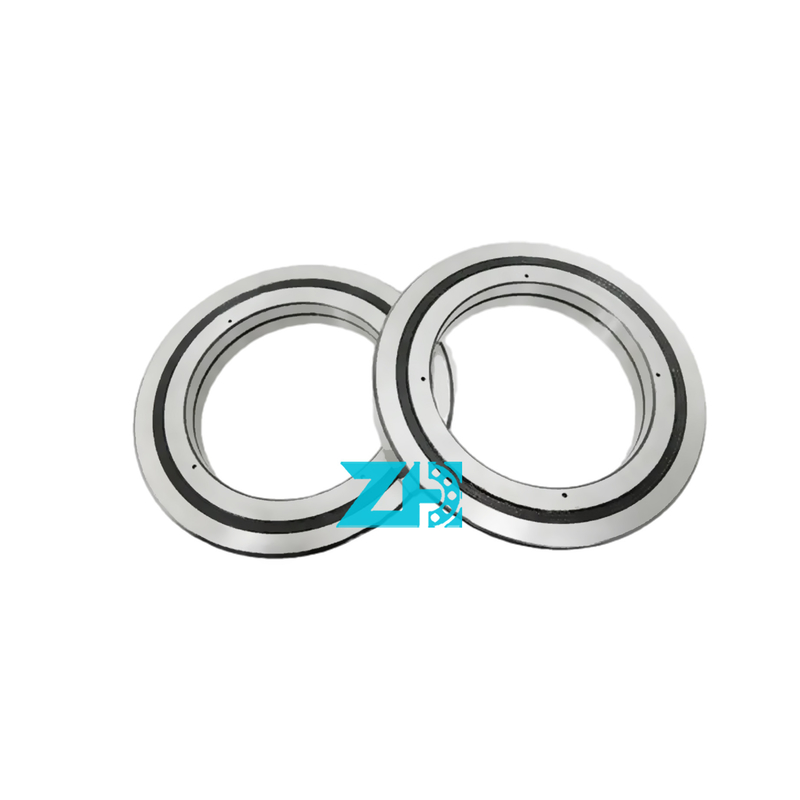

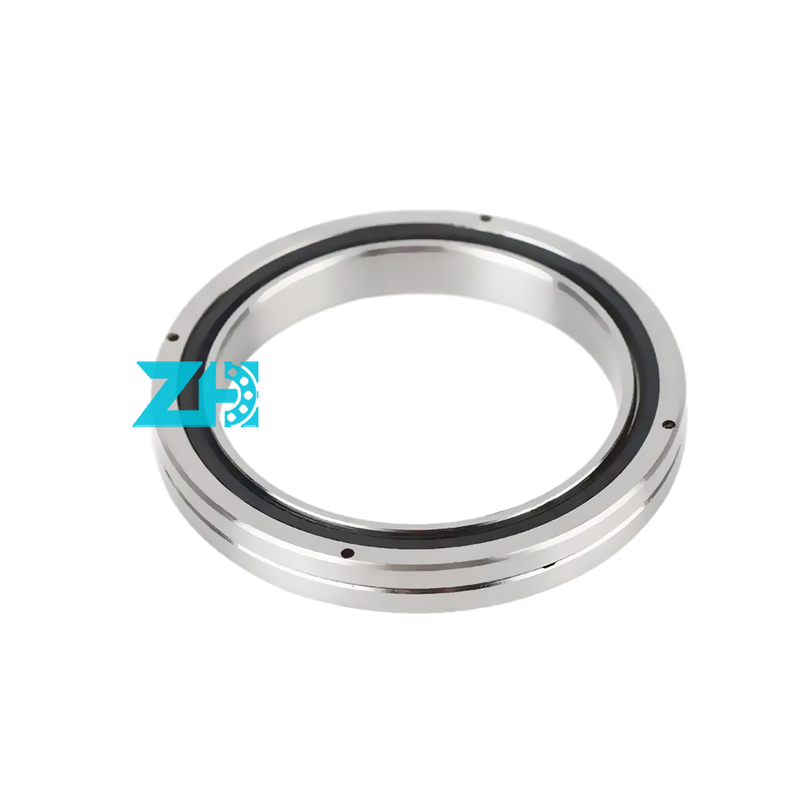

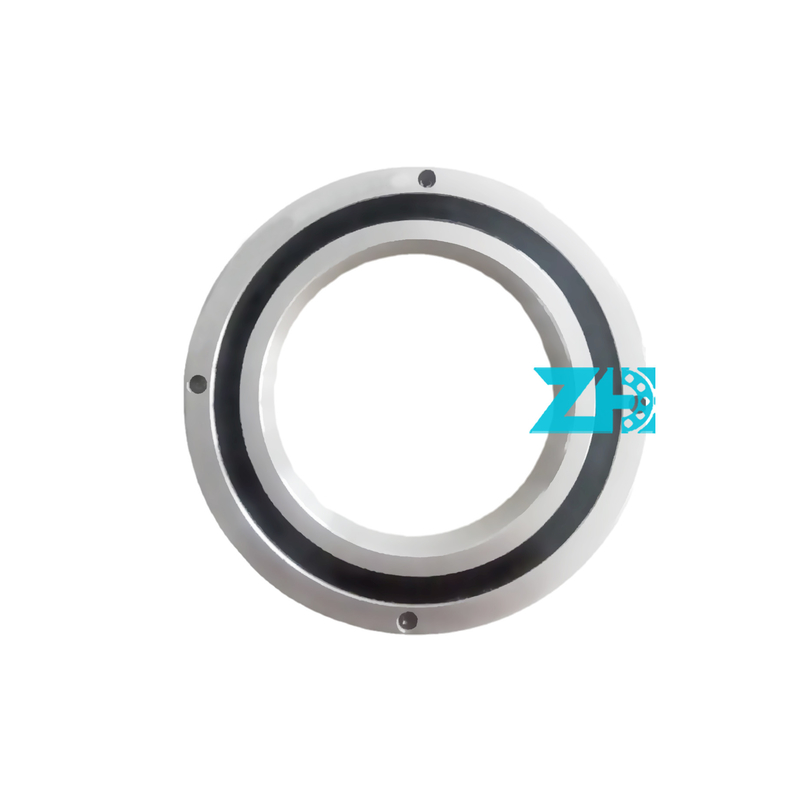

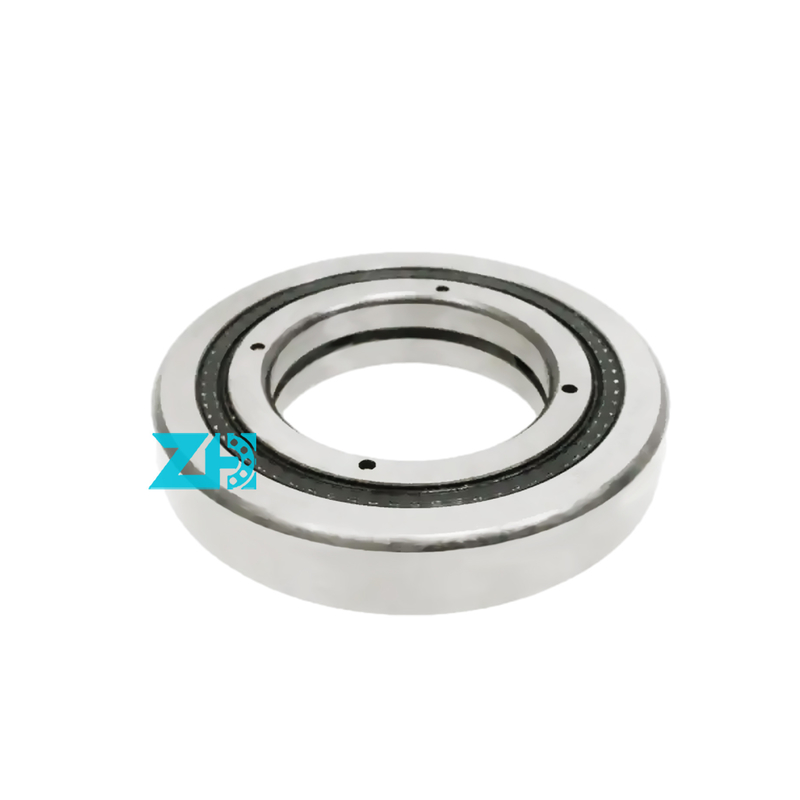

Crossed Roller Bearings NRXT15025 size 150x210x25mm
single-row crossed roller bearing slewing ring
Crossed Roller Bearing NRXT15025 Crossed Roller Slide Rail 150x210x25mm High Precision Crossed Roller Bearing NRXT15025
Technical Parameters:
| model |
NRXT15025 |
| Size(d*D*B) |
150x210x25mm |
| Type | Crossed Roller Bearings |
| Precision | P0/P6/P5/P4 |
| Feature |
Long Life,Stable Performance and Durable |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock |
Sufficient |
Product Description
Crossed roller bearings, also known as crossed roller slewing bearings or crossed roller slide bearings, are a specialized type of rolling element bearing. They are designed to handle both radial and axial loads while providing high rotational accuracy and stiffness.
Preload is a technique used in crossed roller bearings to eliminate internal clearance and increase the rigidity of the bearing. By applying a controlled axial force to the bearing, the rolling elements are brought into contact with the raceways, improving the bearing's resistance to deflection and enhancing its precision and stiffness.
Crossed roller bearings can be mounted in various arrangements to accommodate different load and space requirements. Common mounting arrangements include single-row, double-row, and four-point contact configurations. The choice of mounting arrangement depends on factors such as load distribution, axial rigidity, and ease of assembly.
Other bearing model catalog:
| Type | Main dimensions | Basic load rating | |||
| (Radial) | |||||
| Inner diameter | Outer diameter | Width | Dynamic rating | Static rating | |
| d | D | H | C | C0 | |
| mm | mm | mm | kN | kN | |
| RB 2008 | 20 | 36 | 8 | 3.23 | 3.1 |
| RB 2508 | 25 | 41 | 8 | 3.63 | 3.83 |
| RB 3010 | 30 | 55 | 10 | 7.35 | 8.36 |
| RB 3510 | 35 | 60 | 10 | 7.64 | 9.12 |
| RB 4010 | 40 | 65 | 10 | 8.33 | 10.6 |
| RB 4510 | 45 | 70 | 10 | 8.62 | 11.3 |
| RB 5013 | 50 | 80 | 13 | 16.7 | 20.9 |
| RB 6013 | 60 | 90 | 13 | 18 | 24.3 |
| RB 7013 | 70 | 100 | 13 | 19.4 | 27.7 |
| RB 8016 | 80 | 120 | 16 | 30.1 | 42.1 |
| RB 9016 | 90 | 130 | 16 | 31.4 | 45.3 |
| RB 10016 | 100 | 140 | 16 | 31.7 | 48.6 |
| RB 10020 | 100 | 150 | 20 | 33.1 | 50.9 |
| RB 11012 | 110 | 135 | 12 | 12.5 | 24.1 |
| RB 11015 | 110 | 145 | 15 | 23.7 | 41.5 |
| RB 11020 | 110 | 160 | 20 | 34 | 54 |
| RB 12016 | 120 | 150 | 16 | 24.2 | 43.2 |
| RB 12025 | 120 | 180 | 25 | 66.9 | 100 |
| RB 13015 | 130 | 160 | 15 | 25 | 46.7 |
| RB 13025 | 130 | 190 | 25 | 69.5 | 107 |
| RB 14016 | 140 | 175 | 16 | 25.9 | 50.1 |
| RB 14025 | 140 | 200 | 25 | 74.8 | 121 |
| RB 15013 | 150 | 180 | 13 | 27 | 53.5 |
| RB 15025 | 150 | 210 | 25 | 76.8 | 128 |
| RB 15030 | 150 | 230 | 30 | 100 | 156 |
| RB 16025 | 160 | 220 | 25 | 81.7 | 135 |
| RB 17020 | 170 | 220 | 20 | 29 | 62.1 |
| RB 18025 | 180 | 240 | 25 | 84 | 143 |
| RB 19025 | 190 | 240 | 25 | 41.7 | 82.9 |
| RB 20025 | 200 | 260 | 25 | 84.2 | 157 |
| RB 20030 | 200 | 280 | 30 | 114 | 200 |
| RB 20035 | 200 | 295 | 35 | 151 | 252 |
| RB 22025 | 220 | 280 | 25 | 92.3 | 171 |
| RB 24025 | 240 | 300 | 25 | 68.3 | 145 |
| RB 25025 | 250 | 310 | 25 | 69.3 | 150 |
| RB 25030 | 250 | 330 | 30 | 126 | 244 |
| RB 25040 | 250 | 355 | 40 | 195 | 348 |
| RB 30025 | 300 | 360 | 25 | 76.3 | 178 |
| RB 30035 | 300 | 395 | 35 | 183 | 367 |
| RB 30040 | 300 | 405 | 40 | 212 | 409 |
Support and Services:
Mode of transport ...within 3 days after received the payment , by air or by express or by sea on the basis of thequantity and emergency circumstances.
By Couriers – DHL,UPS, FEDEX, TNT are the main courier companies we are cooperated,
By Air – Delivery from the Guangzhou air port to customer's destination city air port.
By Sea – Delivery from the Huangpu port
Dear my friend, our company has thousands of products, and we cannot display them all at the moment. If you need to leave a message or send an email to us, we will serve you as quickly as possible, thanks! !
