Place of Origin:
CHINA
Brand Name:
ZH
Model Number:
NRXT30035

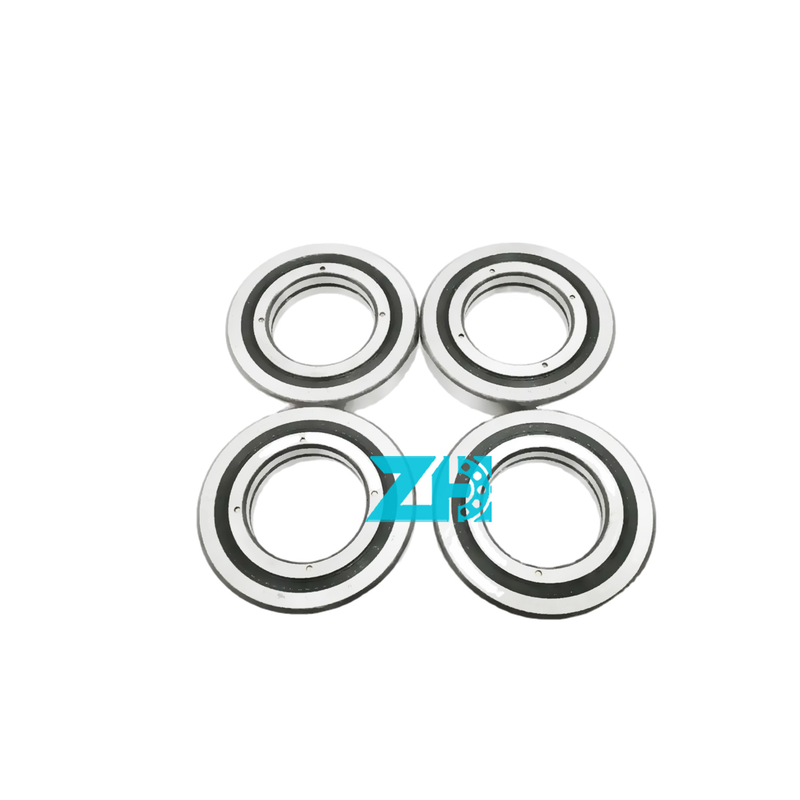

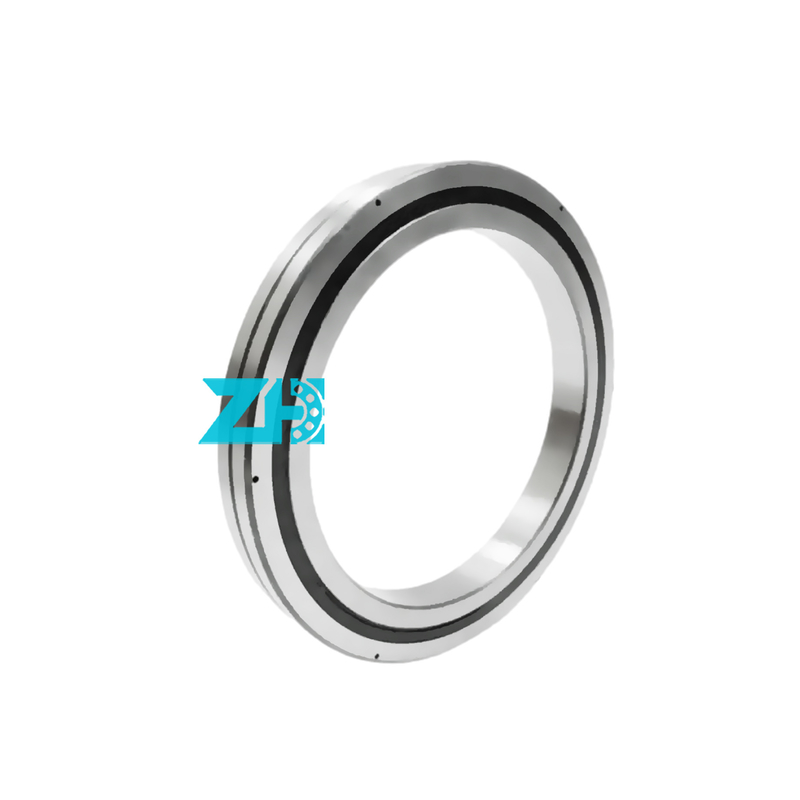

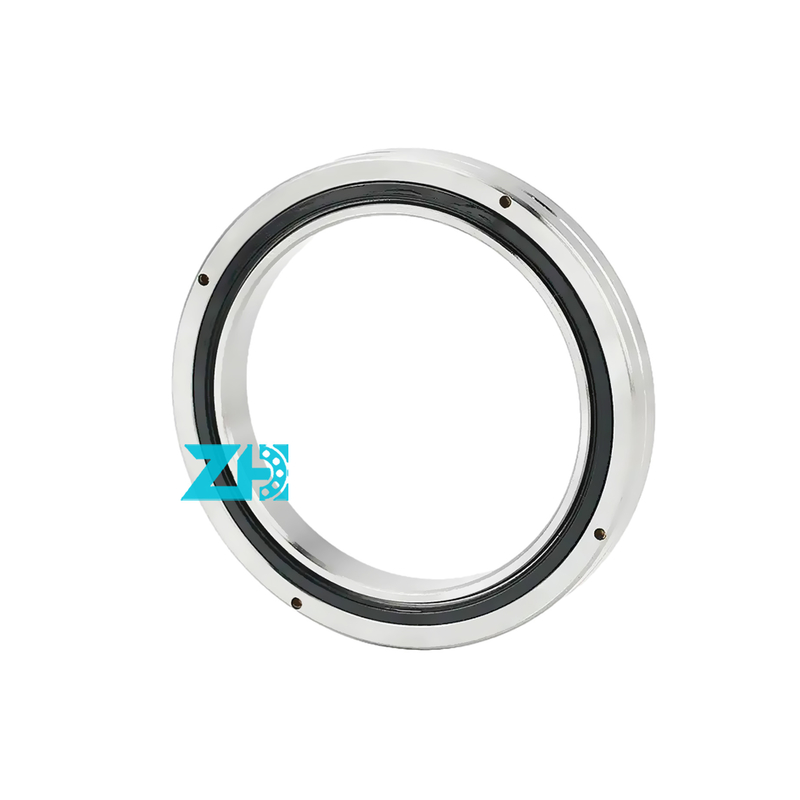

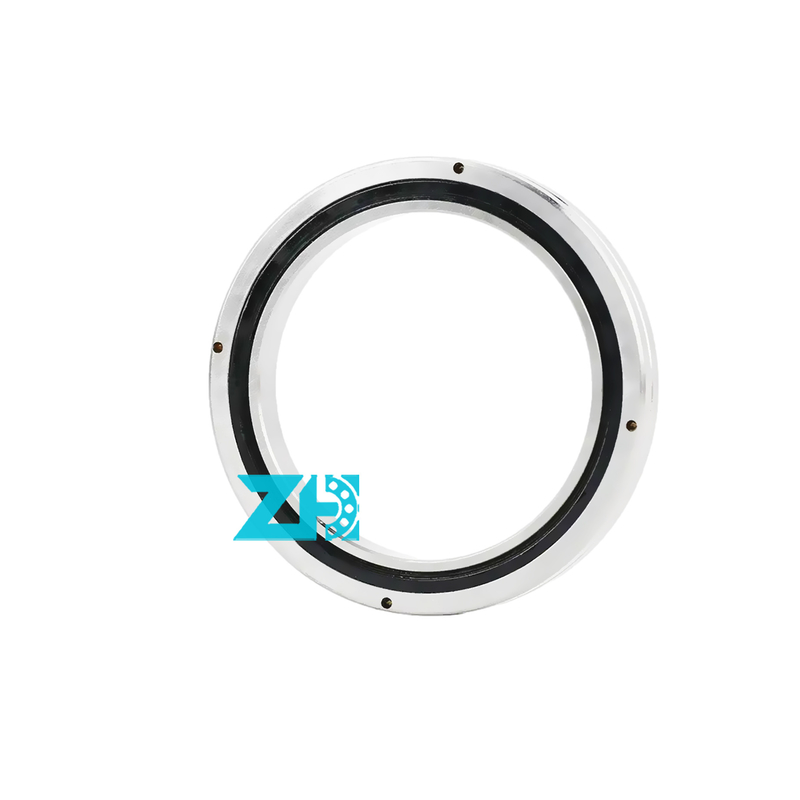

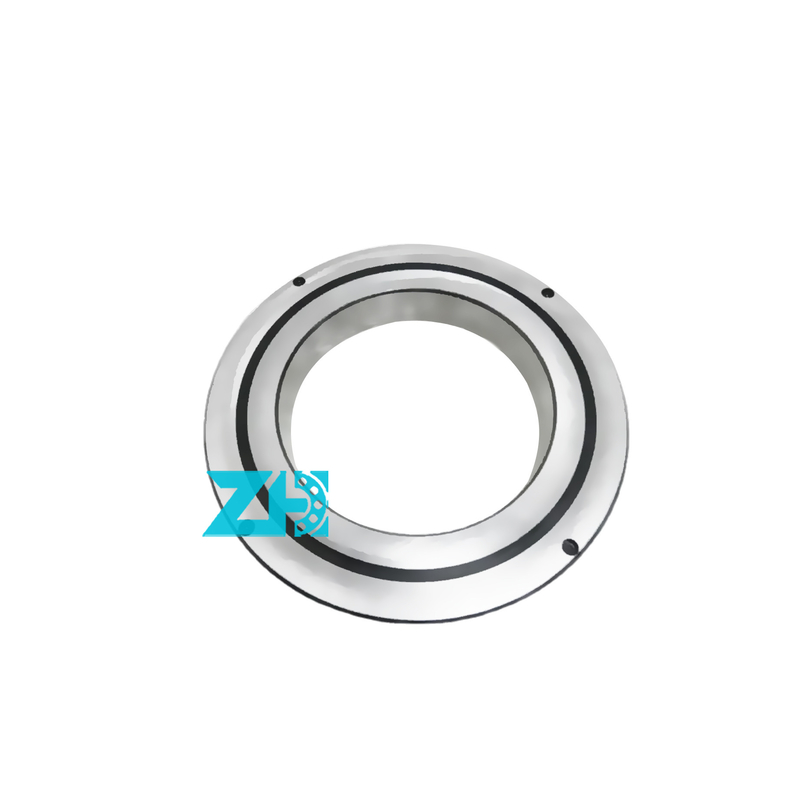

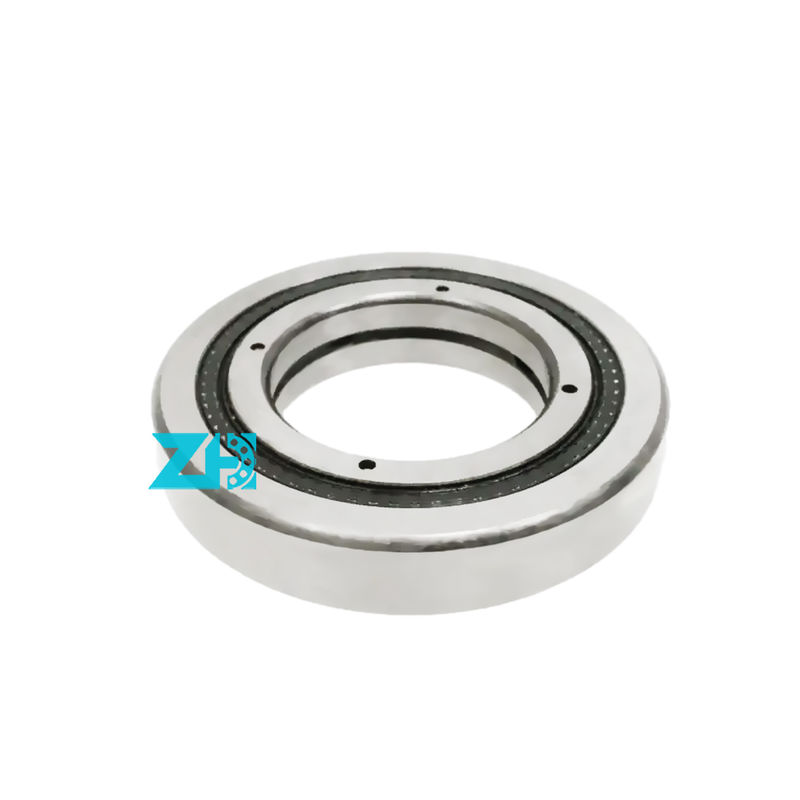

Crossed Roller Bearings NRXT30035 size 300x390x35mm
single-row crossed roller bearing slewing ring
NRXT30035 Crossed Roller Bearings 300x390x35mm Cross Reference Bearings NRXT30035
Technical Parameters:
| model |
NRXT30035 |
| Size(d*D*B) |
300x390x35mm |
| Type | Crossed Roller Bearings |
| Precision | P0/P6/P5/P4 |
| Feature |
Long Life,Stable Performance and Durable |
| Material | GCR15 |
| After-sales Service |
Online Support Professional Service |
| Stock |
Sufficient |
Product Description
Crossed roller bearings, also known as crossed roller slewing bearings or crossed roller slide bearings, are a specialized type of rolling element bearing. They are designed to handle both radial and axial loads while providing high rotational accuracy and stiffness.
Crossed roller bearings can operate effectively within a wide range of temperatures. However, extreme temperatures can affect the bearing's performance and longevity. High temperatures can cause lubricant breakdown or evaporation, leading to increased friction and wear. Conversely, low temperatures can cause lubricant stiffness or solidification, reducing the bearing's efficiency. Understanding the temperature limits and selecting appropriate lubricants or bearing materials for the specific temperature conditions are crucial.
Crossed roller bearings have both dynamic load rating and static load rating. The dynamic load rating indicates the maximum load that the bearing can withstand while rotating at a constant speed for a specific number of revolutions without experiencing fatigue failure. The static load rating refers to the maximum load the bearing can handle when it is stationary. Understanding these ratings helps in selecting the appropriate bearing for the application's load requirements.
Other bearing model catalog:
| Type | Main dimensions | Basic load rating | |||
| (Radial) | |||||
| Inner diameter | Outer diameter | Width | Dynamic rating | Static rating | |
| d | D | H | C | C0 | |
| mm | mm | mm | kN | kN | |
| RB 2008 | 20 | 36 | 8 | 3.23 | 3.1 |
| RB 2508 | 25 | 41 | 8 | 3.63 | 3.83 |
| RB 3010 | 30 | 55 | 10 | 7.35 | 8.36 |
| RB 3510 | 35 | 60 | 10 | 7.64 | 9.12 |
| RB 4010 | 40 | 65 | 10 | 8.33 | 10.6 |
| RB 4510 | 45 | 70 | 10 | 8.62 | 11.3 |
| RB 5013 | 50 | 80 | 13 | 16.7 | 20.9 |
| RB 6013 | 60 | 90 | 13 | 18 | 24.3 |
| RB 7013 | 70 | 100 | 13 | 19.4 | 27.7 |
| RB 8016 | 80 | 120 | 16 | 30.1 | 42.1 |
| RB 9016 | 90 | 130 | 16 | 31.4 | 45.3 |
| RB 10016 | 100 | 140 | 16 | 31.7 | 48.6 |
| RB 10020 | 100 | 150 | 20 | 33.1 | 50.9 |
| RB 11012 | 110 | 135 | 12 | 12.5 | 24.1 |
| RB 11015 | 110 | 145 | 15 | 23.7 | 41.5 |
| RB 11020 | 110 | 160 | 20 | 34 | 54 |
| RB 12016 | 120 | 150 | 16 | 24.2 | 43.2 |
| RB 12025 | 120 | 180 | 25 | 66.9 | 100 |
| RB 13015 | 130 | 160 | 15 | 25 | 46.7 |
| RB 13025 | 130 | 190 | 25 | 69.5 | 107 |
| RB 14016 | 140 | 175 | 16 | 25.9 | 50.1 |
| RB 14025 | 140 | 200 | 25 | 74.8 | 121 |
| RB 15013 | 150 | 180 | 13 | 27 | 53.5 |
| RB 15025 | 150 | 210 | 25 | 76.8 | 128 |
| RB 15030 | 150 | 230 | 30 | 100 | 156 |
| RB 16025 | 160 | 220 | 25 | 81.7 | 135 |
| RB 17020 | 170 | 220 | 20 | 29 | 62.1 |
| RB 18025 | 180 | 240 | 25 | 84 | 143 |
| RB 19025 | 190 | 240 | 25 | 41.7 | 82.9 |
| RB 20025 | 200 | 260 | 25 | 84.2 | 157 |
| RB 20030 | 200 | 280 | 30 | 114 | 200 |
| RB 20035 | 200 | 295 | 35 | 151 | 252 |
| RB 22025 | 220 | 280 | 25 | 92.3 | 171 |
| RB 24025 | 240 | 300 | 25 | 68.3 | 145 |
| RB 25025 | 250 | 310 | 25 | 69.3 | 150 |
| RB 25030 | 250 | 330 | 30 | 126 | 244 |
| RB 25040 | 250 | 355 | 40 | 195 | 348 |
| RB 30025 | 300 | 360 | 25 | 76.3 | 178 |
| RB 30035 | 300 | 395 | 35 | 183 | 367 |
| RB 30040 | 300 | 405 | 40 | 212 | 409 |
